SigmasTek YTX7L-BS Motorcycle Battery User Manual

Introduction

This manual provides essential information for the safe and effective use of your SigmasTek YTX7L-BS AGM Maintenance-Free Motorcycle Battery. Please read these instructions carefully before installation and operation to ensure proper performance and longevity of the battery. This battery is designed for various powersport applications including motorcycles, ATVs, jet skis, snowmobiles, and lawn & garden equipment.

Коопсуздук маалыматы

Always prioritize safety when handling batteries. Failure to follow these safety guidelines can result in personal injury or damage to property.

• Батареяларды колдонууда ар дайым коопсуздук көз айнеги жана кол кап сыяктуу тиешелүү жеке коргонуу каражаттарын (ЖКК) кийиңиз.
• Keep batteries away from open flames, sparks, and heat sources. Batteries can produce explosive gases.
• Do not short-circuit the battery terminals. This can cause severe sparks, heat, and potential explosion.
• Балдар жетпеген жерде сактаңыз.
• Батарея кислотасы менен тийбеңиз. тийип калса, дароо суу менен жууп, медициналык жардамга кайрылыъыз.
• Dispose of batteries responsibly according to local regulations. Do not discard with household waste.

Продукт бүттүview

The SigmasTek YTX7L-BS is a high-performance Absorbent Glass Mat (AGM) battery designed for reliable power in powersport vehicles. It is a maintenance-free unit, meaning no water addition or acid filling is required.

• Тtage: 12V
• Сыйымдуулугу: 6Ah
• Cold Cranking Amps (CCA): 100
• Технология: Абсорбенттүү айнек Mat (AGM)
• Өзгөчөлүктөрү: Extreme freeze, heat, and vibration resistance; superior starting power and deep cycle capacity.

Image: SigmasTek YTX7L-BS Motorcycle Battery. This image displays the overall appearance of the battery unit.

Орнотуу жана орнотуу

The SigmasTek YTX7L-BS battery comes fully charged and ready for immediate use. No initial charging or acid filling is required.

1. Даярдоо: Ensure the battery compartment in your vehicle is clean, dry, and free of debris or corrosion.
2. Жайгашкан жери: Carefully place the new battery into the battery tray. Ensure it fits securely and does not move freely.
3. Байланыштары:
   • туташтыруу оң (+) terminal first. Attach the positive cable from your vehicle to the positive terminal of the battery and tighten securely.
   • туташтыруу терс (-) terminal second. Attach the negative cable from your vehicle to the negative terminal of the battery and tighten securely.
4. Коопсуз Батарея: Use any straps or clamps provided by your vehicle manufacturer to firmly secure the battery in place. This prevents vibration damage during operation.
5. Акыркы текшерүү: Double-check all connections to ensure they are tight and properly seated.

Note: Always refer to your vehicle's owner's manual for specific battery installation instructions and safety precautions.

Image: SigmasTek YTX7L-BS Battery with Dimensions. This image illustrates the physical dimensions of the battery: Length 4.49 inches (114 mm), Width 2.80 inches (71 mm), Height 5.12 inches (130 mm).

Иштөө нускамалары

Once properly installed, the SigmasTek YTX7L-BS battery is ready for operation. This AGM battery is designed to provide reliable starting power for your powersport vehicle.

• Ensure all electrical connections are secure before attempting to start your vehicle.
• The battery is factory-activated and sealed, requiring no initial charging or acid filling.
• Operate your vehicle as per its manufacturer's guidelines. The charging system of your vehicle will maintain the battery's charge during use.

Техникалык тейлөө

The SigmasTek YTX7L-BS is a maintenance-free battery, simplifying its care. However, some general checks are recommended to ensure optimal performance and lifespan.

• Терминалдык текшерүү: Periodically inspect the battery terminals for any signs of corrosion. If corrosion is present, disconnect the battery (negative first, then positive) and clean the terminals with a wire brush and a solution of baking soda and water. Rinse with clean water and dry thoroughly before reconnecting.
• Battery Cleanliness: Keep the top of the battery clean and dry. Dirt and moisture can lead to self-discharge.
• Сактагыч: If the vehicle or battery is stored for extended periods (e.g., off-season), it is recommended to use a trickle charger or battery maintainer specifically designed for AGM batteries. This helps prevent deep discharge and prolongs battery life. SigmasTek ST series batteries can be stored for up to 6 months at 25°C (77°F) before a freshening charge is recommended. For higher storage temperatures, this interval will be shorter.
• Терең разряддан качуу: Do not allow the battery to fully discharge, as this can reduce its overall lifespan.

Проблемаларды чечүү

If you encounter issues with your battery, consider the following troubleshooting steps:

• Унаа от албай жатат:
  • Check battery connections for tightness and corrosion. Loose or corroded connections can prevent proper power delivery.
  • Батареянын көлөмүн текшериңизtage with a multimeter. A fully charged 12V battery should read approximately 12.6V or higher. If the voltage is significantly lower, the battery may be discharged.
• Battery Discharged: If the battery is discharged, recharge it using a battery charger compatible with AGM batteries. Follow the charger's instructions carefully. Avoid overcharging, which can damage the battery.
• Жай айлануу: This often indicates a low state of charge or a weakening battery. Check voltage and consider recharging or testing the battery's capacity.
• Батарея зарядды кармабайт: After fully charging, if the battery quickly loses its charge, it may indicate an issue with the vehicle's charging system or the battery itself. Consult a qualified technician.

If issues persist after performing these checks, it is recommended to consult a qualified technician or contact SigmasTek customer support.

Техникалык шарттар

Detailed technical specifications for the SigmasTek YTX7L-BS battery:

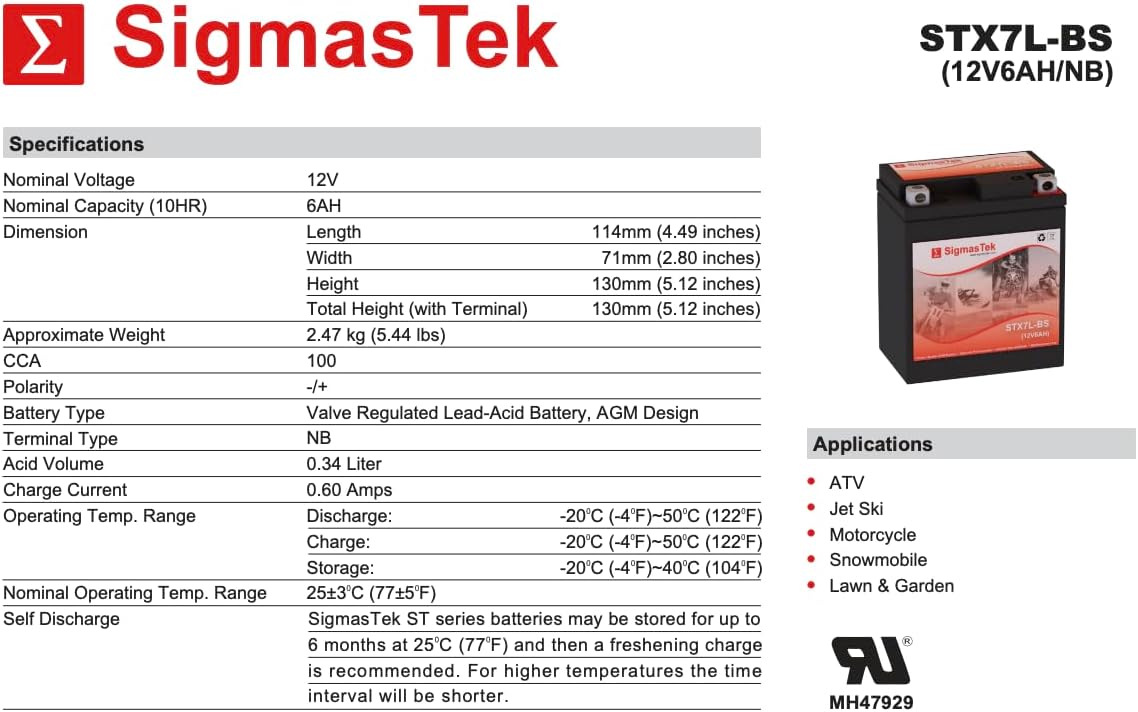

Image: SigmasTek YTX7L-BS Specifications Table. This image provides a detailed table of the battery's electrical and physical specifications, including nominal voltage, capacity, dimensions, and operating temperatures.

Кепилдик маалымат

For specific warranty terms and conditions applicable to your SigmasTek YTX7L-BS battery, please refer to the product packaging or the official SigmasTek webсайт. Кепилдик камтуу адатта материалдардын жана нормалдуу колдонуудагы чеберчиликтин кемчиликтерин камтыйт.

Колдоо

Should you require technical assistance, have questions regarding installation, maintenance, or troubleshooting, please contact SigmasTek customer support. You can typically find contact information on the product packaging or by visiting the official SigmasTek webсайт.
