ABBREE SMA-Female Tactical Antenna User Manual

1. Киришүү

Thank you for choosing the ABBREE SMA-Female Tactical Antenna. This high-gain, foldable antenna is designed to significantly improve the range and transmission capabilities of your compatible two-way radio, such as Baofeng UV-5R, BF-F8HP, and similar models. Its robust design and flexible structure make it ideal for various applications, from casual use to demanding outdoor environments.

Image: Two ABBREE SMA-Female tactical antennas, showcasing their design and foldable nature.

2. Негизги өзгөчөлүктөрү

• Туташтыргыч түрү: SMA-Female, ensuring broad compatibility with many popular two-way radios.
• Пайда: 2.15dBi, providing enhanced signal reception and transmission.
• Жыштыгы: Dual-band 144/430 MHz, supporting both VHF and UHF frequencies.
• Дизайн: Foldable CS Tactical Antenna, offering flexibility and durability. The updated AR-152A model provides improved bending and signal performance.
• Узундугу: Approximately 18.8 inches (48 cm) when fully extended, optimizing signal reach.

Image: Visual representation of the antenna's high gain, foldable design, and durable construction.

3. Техникалык шарттар

Image: The antenna's length of 48cm (18.89 inches) is clearly indicated.

4. Пакеттин мазмуну

Your ABBREE SMA-Female Tactical Antenna package typically includes:

• 1 or 2 x ABBREE SMA-Female Tactical Antenna (depending on the purchased pack)
• Gaskets (if included with specific models for secure fitting)

Image: The original ABBREE antenna package, including the antenna and gaskets for better quality and fit.

5. Орнотуу

To attach your ABBREE SMA-Female Tactical Antenna to your compatible two-way radio:

1. Ensure your radio is powered off before attaching or detaching any antenna.
2. Locate the SMA-Male connector on your two-way radio.
3. Align the SMA-Female connector of the ABBREE antenna with the radio's connector.
4. Gently screw the antenna onto the radio's connector clockwise until it is finger-tight. Do not overtighten, as this can damage the connectors.
5. If your antenna came with gaskets, ensure they are properly placed between the antenna and the radio for a secure and stable connection.

Сүрөт: деталдуу view of the SMA-Female connector, ready for attachment to a radio.

Image: The ABBREE antenna connected to a Baofeng radio, demonstrating its extended position.

6. Антеннаны иштетүү

The ABBREE Tactical Antenna is designed for optimal performance in various configurations:

• Кеңейтилген колдонуу: For maximum range and signal clarity, extend the antenna fully upright. This configuration provides the best performance for both receiving and transmitting signals.

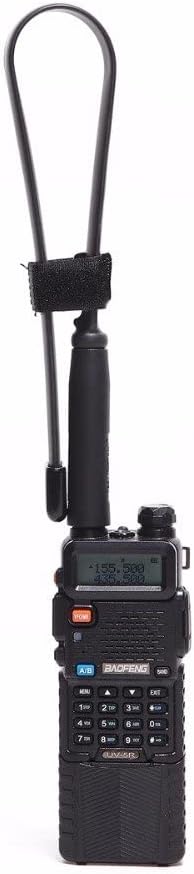

• Folded Use: The antenna can be folded for portability and convenience. Even when folded, it offers improved performance compared to standard rubber ducky antennas, making it suitable for situations where a full extension is not practical or necessary.

Extended for optimal signal.

Folded for portability.

The flexible design allows for easy adjustment and storage without compromising the antenna's integrity. Always ensure the antenna is securely attached before operation.

7. Техникалык тейлөө

To ensure the longevity and optimal performance of your ABBREE Tactical Antenna:

• Тазалоо: Wipe the antenna with a soft, damp чаңды жана кирди тазалоо үчүн кездеме. Катуу химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.
• Сактагыч: When not in use, store the antenna in a cool, dry place, away from direct sunlight and extreme temperatures. The foldable design makes it easy to store compactly.
• Текшерүү: Periodically check the SMA-Female connector for any signs of wear, corrosion, or damage. Ensure the connection remains secure.
• Колдонуу: While durable, avoid excessive force or sharp bends that could damage the internal wiring or outer casing.

8. Кыйынчылыктарды

If you experience issues with your ABBREE Tactical Antenna, consider the following:

If problems persist, please refer to the radio's user manual or contact ABBREE customer support.

9. Кепилдик жана колдоо

ABBREE products are manufactured to high-quality standards. For specific warranty information and customer support, please refer to the documentation included with your purchase or visit the official ABBREE webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

For further assistance, you may contact ABBREE customer service through their official channels.
