Carbest унаа коопсуздугу боюнча пейджинг унаа сигнализация системасынын колдонуучу колдонмосу

1. Киришүү

Welcome to the user manual for your Carbest Vehicle Security Paging Car Alarm System. This manual provides essential information for the proper installation, operation, and maintenance of your new security system. Please read this manual thoroughly before attempting any installation or operation to ensure optimal performance and safety.

2. Продукт бүтүп калдыview

2.1 Негизги өзгөчөлүктөрү

• 2-Way Communication: Real-time feedback from your vehicle to the remote control.
• LCD Remote Display: Clear visual indicators for alarm status, door status, and more.
• Моторду алыстан иштетүү: Conveniently start your vehicle from a distance.
• Шок сенсору: Detects impacts and provides warnings.
• Магистралдык релиз: Remote access to your vehicle's trunk.
• Anti-Hijacking Function: Enhanced security features.
• Пейджинг функциясы: Alerts on the remote for various triggers.

2.2 Пакеттин мазмуну

The Carbest Vehicle Security Paging Car Alarm System typically includes the following components:

Figure 2.2.1: Complete Carbest 2-Way Car Alarm System Kit.

This image displays all components included in the Carbest 2-Way Car Alarm System kit, featuring the main control unit, two LCD remote controls, the siren, various wiring harnesses, and the shock sensor.

• Негизги башкаруу блогу
• Two-Way LCD Remote Controls (2 units)
• Сирена
• Электр өткөргүчтөрү
• Шок сенсору
• Антенна модулу
• Эстафета

3. Орнотуу боюнча колдонмо

Warning: Installation of this car alarm system requires advanced automotive electrical knowledge. Professional installation is highly recommended to prevent damage to your vehicle or the alarm system.

3.1 Электр өткөргүч схемасы

Refer to the detailed wiring diagram below for proper connection of all components. Ensure all connections are secure and insulated to prevent short circuits.

Figure 3.1.1: Wiring Diagram for the Carbest Alarm System.

This diagram illustrates the electrical connections for the main unit, siren, shock sensor, and other components, including central door locking system integration.

3.2 Компонентти жайгаштыруу

• Негизги башкаруу бирдиги: Install in a secure, hidden location within the vehicle's cabin, away from direct moisture and extreme temperatures. Ensure easy access for wiring.


Figure 3.2.1: Main Control Unit.

Жакын план view of the main control unit, showing its compact design and connection ports.

• Сирена: Mount the siren securely under the hood, facing downwards to prevent water accumulation. Choose a location that is difficult for intruders to access.

Figure 3.2.2: Alarm Siren.
The siren component of the alarm system, designed for loud audible alerts.
• Шок сенсору: Install the shock sensor in a central location within the vehicle, such as under the dashboard or center console, to ensure optimal vibration detection. Adjust sensitivity as needed.

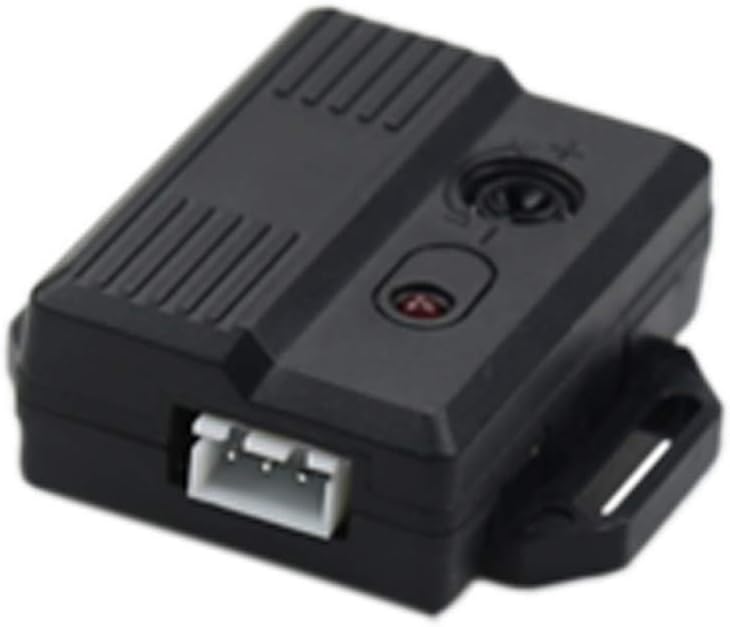

Figure 3.2.3: Shock Sensor.

The shock sensor, a small black box, responsible for detecting impacts and vibrations to the vehicle.

• Антенна: Position the antenna module in a location with minimal metal obstruction to maximize remote control range.

4. Иштөө нускамалары

4.1 Алыстан башкаруу функциялары

Your 2-Way LCD remote control provides visual and audible feedback on your vehicle's status. Familiarize yourself with the buttons and display icons.

Figure 4.1.1: 2-Way LCD Remote Control.

A close-up of the 2-Way LCD remote control, highlighting its display and control buttons.

• Кулпу/Кол: Press the lock button once to arm the alarm system and lock the doors. The remote will confirm the action.
• Кулпуну ачуу/Карсыздандыруу: Press the unlock button once to disarm the alarm system and unlock the doors. The remote will confirm the action.
• Моторду алыстан иштетүү: Press and hold the engine start button (refer to remote specific icon) for a few seconds to remotely start your vehicle. The remote will display engine status.
• Магистралдык релиз: Press and hold the trunk release button (refer to remote specific icon) to open the vehicle's trunk.
• Paging/Warning: If the alarm is triggered (e.g., by shock, door opening, or illegal engine start), the remote will vibrate, beep, and display the specific trigger icon.

4.2 Ойготкуч режимдери

• Куралдаштыруу режими: When armed, the system monitors doors, ignition, and shock sensor. Any unauthorized entry or impact will trigger the alarm.
• Disarming Mode: Disarms the system, allowing normal vehicle access.
• Үнсүз курал/жараксыздандыруу: Some models allow arming/disarming without audible siren confirmation. Refer to your remote's specific button combination.
• Паника режими: Pressing a designated button on the remote (often the lock button held down) will trigger the alarm siren and lights for emergency situations.

4.3 Видео көрсөтүү

Watch this video for a visual guide on the key features and operation of the Carbest 2-Way Car Alarm System.

5. Техникалык тейлөө

• Батарейканы алыстан алмаштыруу: When the remote's LCD display dims or its range decreases, replace the battery. Refer to the remote's specific instructions for battery type and replacement procedure.
• Тазалоо: Use a soft, dry cloth to clean the main unit and remote controls. Avoid using harsh chemicals or abrasive cleaners.
• Үзгүлтүксүз текшерүүлөр: Periodically test the alarm functions (arming, disarming, shock sensor) to ensure proper operation.

6. Кыйынчылыктарды

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please contact the manufacturer, Carbest, or your authorized dealer. Keep your purchase receipt as proof of purchase for warranty claims.
