MSR Guardian Gravity Water Purifier Instruction Manual

Introduction

The MSR Guardian Gravity Water Purifier is a state-of-the-art, high-volume water purification system designed for backcountry use, global travel, and emergency preparedness. It utilizes advanced hollow-fiber technology and activated carbon to provide safe, clean drinking water.

Image: The MSR Guardian Gravity Water Purifier components, including the dirty water reservoir, filter, hoses, and storage bag.

Негизги өзгөчөлүктөрү

• Өркүндөтүлгөн чыпкалоо: Hollow-fiber technology removes 99.99% of viruses, 99.9999% of bacteria, 99.9% of protozoa, sediment, and microplastics.
• Taste Improvement: Activated carbon reduces chemicals, unpleasant tastes, and odors.
• Жогорку агым ылдамдыгы: Purifies up to 1 liter in 2 minutes based on an optimal hang height of 6 feet above the clean water output. No pumping required.
• Military-Grade Standard: Meets NSF Protocol 248, the testing standard used by the U.S. Military for purifying water in challenging conditions.

Image: A visual representation of the hollow fiber membrane, demonstrating its effectiveness in trapping contaminants down to the tiniest harmful viruses.

Image: The internal components of the purifier, highlighting the hollow fiber membrane for viral protection and activated carbon for taste and odor reduction.

Кутуда эмне бар

Your MSR Guardian Gravity Water Purifier package includes:

• Эки-сtage purifier cartridge
• 10-liter dirty water reservoir (collection bag)
• Universal bottle adapter
• Шлангдар
• Сыдырмалуу жүк кутусу

Сүрөт: үстүнкү view of all included components, neatly arranged.

Жайгашуу

1. Суу сактагычты толтуруу: Open the top of the 10-liter dirty water reservoir and fill it with water from your source. Ensure the top is securely rolled down and clipped to prevent leaks.
2. Hang Reservoir: Hang the filled reservoir from a sturdy branch or elevated point. For optimal flow rate, aim for a height of at least 6 feet (1.8 meters) above your clean water collection container.
3. Шлангдарды туташтыруу: Ensure both the shut-off clamp (white) and purge clamp (black) on the hoses are in the closed position. Attach the inlet hose (with the filter cartridge) to the dirty water reservoir's outlet.
4. Initial Flush (First Use Only): Before collecting drinking water, open the purge clamp and allow approximately 0.5 liters of water to flow through the system. This flushes out any loose carbon dust and glycerin from the new filter. Ensure this water is discarded and does not contaminate your clean water container.

Иштеп жатат

1. Start Flow: Once the reservoir is hung and the initial flush (if applicable) is complete, open the purge clamp to allow water to flow through the filter. This helps to remove any trapped air bubbles.
2. Close Purge Clamp: After a few seconds of steady flow, close the purge clamp.
3. Collect Clean Water: Attach your clean water container (such as a Nalgene bottle using the universal adapter) to the clean water output hose. Open the shut-off clamp (white) to begin collecting purified water.
4. Агымды көзөмөлдөө: The system will purify water at a rate of up to 1 liter in 2 minutes, depending on the height difference between the dirty water reservoir and the clean water output.

Image: Users collecting purified water from the gravity system, highlighting the fast flow rate.

Техникалык тейлөө

• Regular Cleaning (Purge Function): The Guardian Gravity Purifier features a simple purge function. Regularly open the purge clamp to flush the system and maintain optimal flow rates. This prevents clogging and extends the filter's lifespan.
• Кургатуу компоненттери: After each use, towel dry all external parts of the system.
• Сактагыч: Keep all parts connected to prevent cross-contamination. Roll the dirty water reservoir around the filter and hoses, then place it in the zippered carry case.
• Узак мөөнөттүү сактоо: For storage longer than two weeks, disinfect the filter to prevent biofilm growth, which can slow flow rates. Detailed long-term storage directions are included in the product packaging.
• Критикалык эскертүү: Do not disassemble the filter cartridge or attempt to dry out the internal fibers. The cartridge must remain wet inside to function correctly. If the internal fibers dry out, they will no longer pass water.
• Avoid Freezing/Dropping: Do not drop or freeze the cartridge after it has been wetted inside. Freezing can damage the internal fibers, rendering the filter ineffective. If the filter is dropped or frozen after initial use, perform a safety check as described in the product packaging before relying on it for purification.

Сүрөт: деталдуу view of the filter cartridge, emphasizing the delicate internal hollow fibers that must remain wet.

Проблемаларды чечүү

• Жай агым ылдамдыгы: If the flow rate decreases significantly, perform the purge function multiple times. Ensure the dirty water reservoir is hung at an adequate height. If the issue persists, the filter may be nearing the end of its lifespan or heavily clogged.
• Suspected Damage (Dropped/Frozen): If the filter has been dropped or frozen after initial use, it may be compromised. Refer to the safety check instructions in your product packaging. Do not use a potentially damaged filter without performing the safety check.

Техникалык шарттар

Image: The compact carry case with dimensions, illustrating its portability.

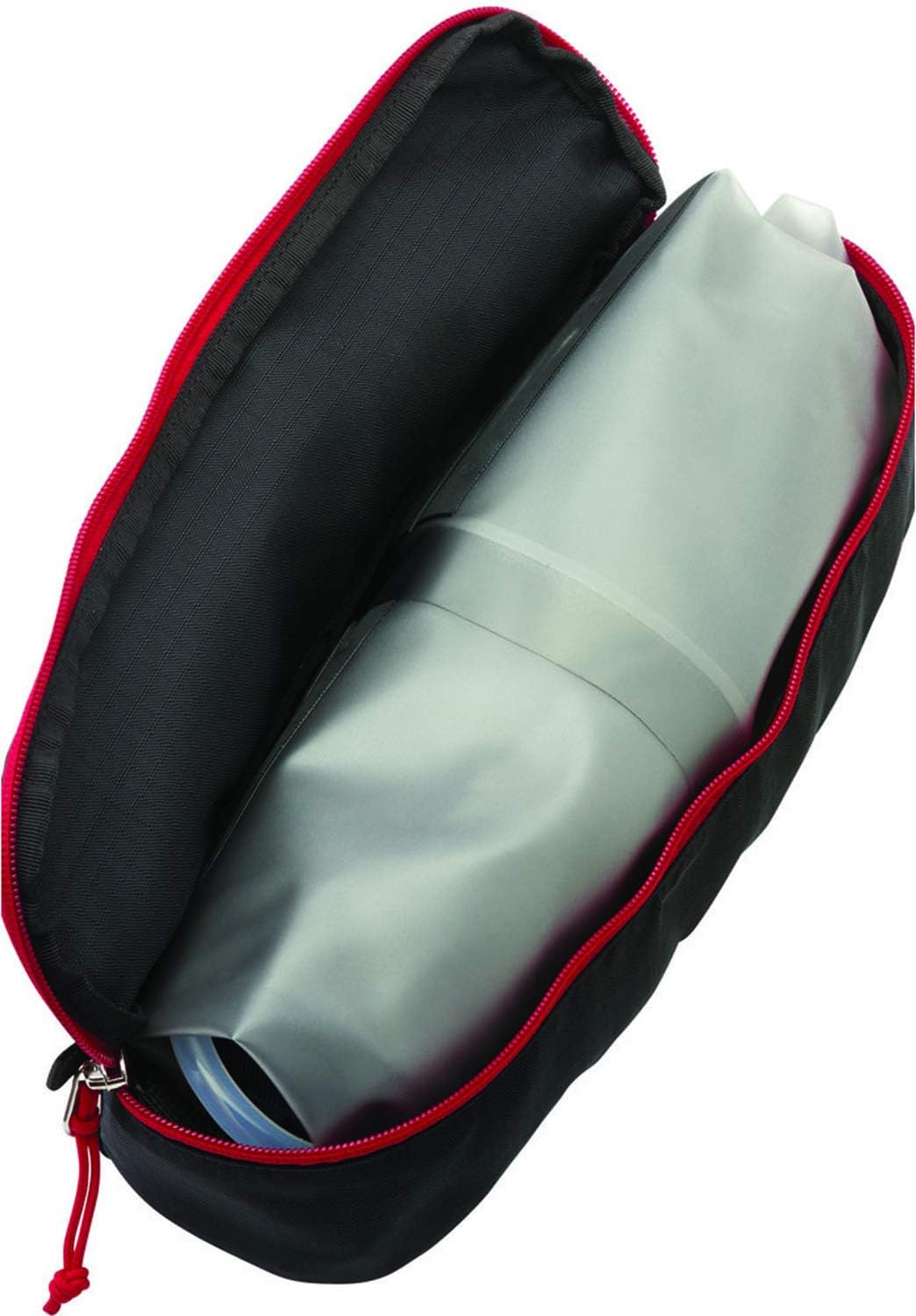

Image: The purifier system packed inside its carry case for easy transport.

Кепилдик жана колдоо

The MSR Guardian Gravity Water Purifier comes with a Чектелген Өмүр бою Кепилдик. For detailed warranty information, claims, or technical support, please refer to the documentation included with your product or visit the official MSR webсайт.
