Brillihood LED Solar Panel Security Light

1. Киришүү

Thank you for choosing the Brillihood LED Solar Panel Security Light. This manual provides essential information for the safe and efficient operation of your new solar floodlight. Please read it thoroughly before installation and use, and retain it for future reference.

Image: The Brillihood LED Solar Panel Security Light, showcasing the floodlight unit, the separate solar panel, and the remote control.

2. Коопсуздук маалыматы

• Кыска туташуулардын алдын алуу үчүн бардык электр байланыштары коопсуз жана туура изоляцияланганын текшериңиз.
• Продукцияны бөлүктөргө бөлүүгө же өзгөртүүгө аракет кылбаңыз. Бул кепилдикти жокко чыгарып, коопсуздук коркунучтарын жаратышы мүмкүн.
• Keep the solar panel clean and free from obstructions to ensure optimal charging efficiency.
• Install the light and solar panel in a stable location to prevent falling.
• Жарыктандырылганда, LED жарык булагына түз көз тийүүдөн алыс болуңуз.
• Продукциянын жана анын курамдык бөлүктөрүнүн иштөө мөөнөтү аяктагандан кийин жергиликтүү эрежелерге ылайык жоопкерчилик менен жок кылыңыз.

3. Продукциянын өзгөчөлүктөрү

The Brillihood LED Solar Panel Security Light is designed for efficient and reliable outdoor illumination, featuring:

• Жогорку жарыктык: 100W power with 5,000 lumens output for extensive area coverage.
• Энергияны үнөмдүү: Solar-powered operation eliminates electricity costs, recharging under sunlight.
• Узак мөөнөттүү батарея: Built-in 20000mAh Lithium-Ion battery provides over 20 hours of illumination in half-lighting mode after a full charge.
• Туруктуу дизайн: IP67 waterproof rating ensures reliable performance in various weather conditions.
• Smart Control: Features a light sensor for automatic dusk-to-dawn operation and a remote control for manual adjustments, including timing modes (3/5/8 hours) and brightness levels.
• Кең нур бурчу: 120-degree beam angle maximizes illumination for large spaces.
• Ийкемдүү орнотуу: Adjustable wall mount bracket allows for versatile placement as a security or landscape light.

Сүрөт: деталдуу view of the LED floodlight, highlighting its high color rendering index (CRI ≥ 85) and lower heat generation (Work temps ≥ 45).

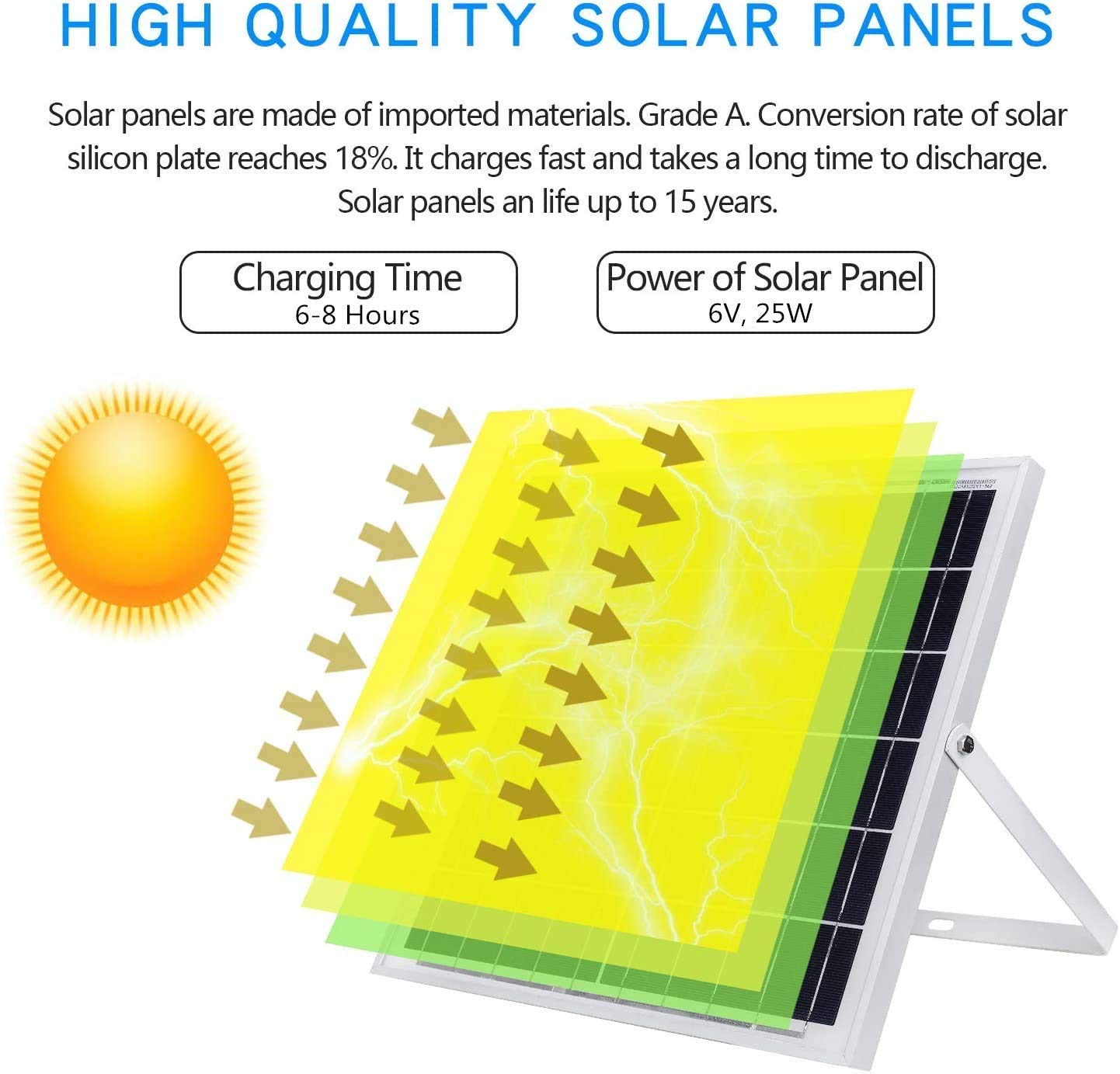

Image: Illustration of the solar panel's charging process, indicating a charging time of 6-8 hours and a power output of 6V, 25W. It also mentions the 18% conversion rate of solar silicon plate and a lifespan of up to 15 years for the solar panels.

Image: A collage of six key features: 1. Third-generation lighting system with 20% increased efficiency. 2. 56 high-quality LED lamp beads. 3. IP67 waterproof rating. 4. High-capacity lithium-iron phosphate battery with no attenuation in 6 years. 5. A-class big board solar panel chargeable on rainy days. 6. Aluminum fin heat shell for long life.

4. Пакеттин мазмуну

Сураныч, бардык буюмдардын бар экенин жана бузулбаганын текшерүү үчүн пакетти кылдат текшериңиз:

• LED Solar Floodlight Unit
• Күн панели
• Алыстан башкаруу
• Монтаждоо кронштейндери жана буроолор
• Колдонуучунун Колдонмосу (бул документ)

5. Орнотуу жана орнотуу

The Brillihood Solar Floodlight offers two easy installation methods. Choose a location that receives ample direct sunlight for the solar panel and provides the desired illumination for the floodlight.

5.1 Күн батареяларын жайгаштыруу

• Select a location for the solar panel where it can receive 6-8 hours of direct sunlight daily, free from shadows from buildings, trees, or other obstructions.
• Mount the solar panel using the provided bracket, ensuring it is angled towards the sun for maximum exposure.

5.2 Floodlight Mounting

• Choose a suitable wall or pole for mounting the floodlight. The adjustable bracket allows for flexible positioning.
• Securely attach the floodlight unit using the provided mounting hardware.
• Connect the cable from the solar panel to the floodlight unit. Ensure the connection is tight and waterproof.

Сүрөт: мурункуample installation showing the solar panel mounted on a roof and the floodlight unit mounted on the wall of a house, illuminating the garage area.

6. Иштөө нускамалары

The Brillihood Solar Floodlight can be operated using the included remote control. The remote control has a range of up to 12 meters (39 feet).

Image: A detailed diagram of the IR remote control, illustrating the functions of each button: AUTO mode, 3/5/8 hours timing, ON/OFF, Full light mode, and Half light mode. A note explains that pressing ON/OFF closes the light control, and the red AUTO button must be pressed to activate automatic dusk-to-dawn operation.

Алыстан башкаруу функциялары:

• AUTO режими: Press the red "AUTO" button. The light will automatically turn on at dusk and turn off at dawn. This is the default light sensor mode.
• КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Press "ON" to turn the light on manually. Press "OFF" to turn the light off manually. Note: If you turn the light off manually, you must press the red "AUTO" button to re-enable automatic dusk-to-dawn operation.
• Убакыт режимдери:
  • 3H: Sets the light to stay on for 3 hours after activation, then turn off.
  • 5H: Sets the light to stay on for 5 hours after activation, then turn off.
  • 8H: Sets the light to stay on for 8 hours after activation, then turn off.
• Жарыктыкты жөндөө:
  • Толук жарык режими: Максималдуу жарыктыкты иштетет.
  • Half Light Mode: Activates reduced brightness, extending battery life.

7. Техникалык тейлөө

Regular maintenance ensures optimal performance and longevity of your solar floodlight.

• Күн панелин тазалоо: Мезгил-мезгили менен күн панелинин бетин жумшак, гamp cloth to remove dust, dirt, and debris. A clean panel ensures efficient charging.
• Жарык берүүчү бөлүктү тазалоо: Clean the floodlight's lens and housing with a soft, dry or slightly damp кездеме. Абразивдүү тазалагычтардан алыс болуңуз.
• Батареяга кам көрүү: The built-in Lithium-Ion battery is designed for long life. Avoid prolonged storage in extreme temperatures. If storing for an extended period, ensure the battery is partially charged.
• Текшерүү: Periodically check all mounting hardware and connections for tightness and signs of wear or damage.

8. Кыйынчылыктарды

If you encounter issues with your Brillihood Solar Floodlight, refer to the following common problems and solutions:

9. Техникалык шарттар

Detailed technical specifications for the Brillihood LED Solar Panel Security Light:

Image: A technical diagram illustrating the dimensions of both the solar panel (18.11"/460mm length, 13.78"/350mm width) and the floodlight unit (11.42"/290mm width, 10.24"/260mm height), along with key specifications like Luminous Flux, Battery, and Solar Panel power.

10. Кепилдик жана колдоо

For warranty information, technical support, or any inquiries regarding your Brillihood LED Solar Panel Security Light, please contact Brillihood customer service through your purchase platform or the official Brillihood website. Please have your purchase receipt and product model information ready when contacting support.
