TECCPO 3.7V Cordless Rotary Tool (Model US-TPRT01D) Instruction Manual

1. Киришүү

Welcome to your TECCPO 3.7V Cordless Rotary Tool. This manual provides essential information for safe operation, maintenance, and troubleshooting. Please read it thoroughly before using the tool.

2. Коопсуздук боюнча маанилүү маалымат

Өрт, электр шок жана жеке жаракат алуу коркунучун азайтуу үчүн ар дайым негизги коопсуздук чараларын аткарыңыз.

• Always wear appropriate eye protection (safety glasses or goggles) when operating the tool.
• Ensure adequate ventilation in your workspace to prevent inhalation of dust or fumes.
• Secure your workpiece firmly to prevent movement during operation.
• Keep hands and fingers clear of rotating accessories.
• Disconnect the tool from its power source before changing accessories or performing maintenance.
• Do not operate the tool near flammable liquids or gases.
• Куралды жана аксессуарларды кургак, балдар жетпеген жерде сактаңыз.

3. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• 1 x TECCPO 3.7V Cordless Rotary Tool
• 1 x сактоо кутучасы
• 1 x USB заряддоо кабели
• 1 x User Manual
• 50 даана кошумча жабдуулар:
  • 1pcs Mandrel Drilling
  • 2pcs Hss drill (2.3mm)
  • 5pcs Grinding wheel with shank (2.3mm)
  • 12pcs Sanding band
  • 8pcs Sanding paper
  • 1pc Sanding shank (2.3mm)
  • 10pcs Cut off wheel
  • Universal Keyless Chuck

4. Продукциянын өзгөчөлүктөрү

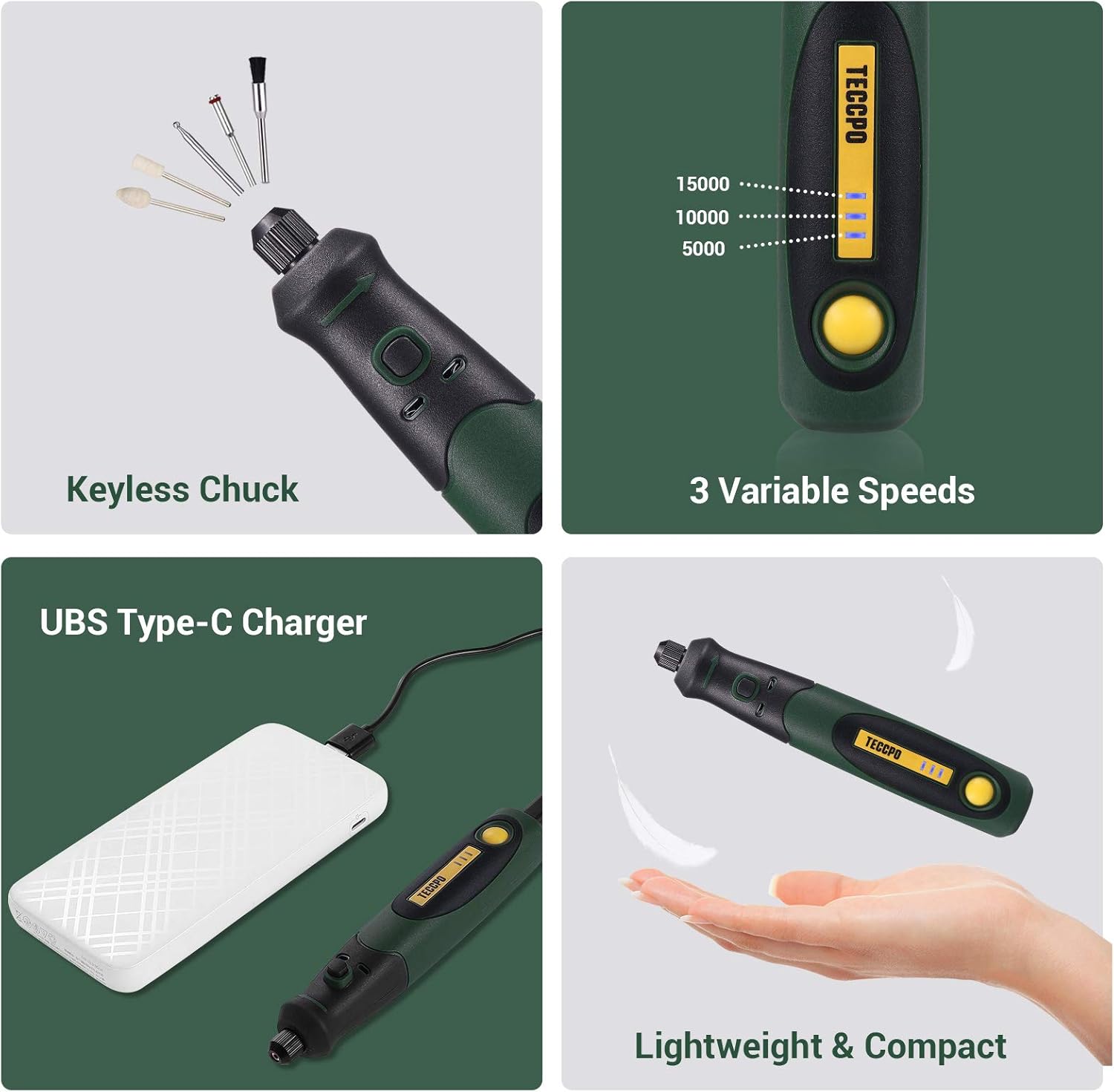

The TECCPO 3.7V Cordless Rotary Tool is designed for versatility and ease of use, featuring a compact and ergonomic design.

5. Орнотуу

5.1 Charging the Rotary Tool

The tool is powered by a 3.7V Lithium Ion battery. Before first use, fully charge the tool using the provided USB-C charging cable.

• Connect the USB-C cable to the charging port on the tool.
• Plug the other end of the USB cable into a compatible USB power adapter (not included) or a power bank.
• The 3-speed indicator lights will show the charging status. All three lights illuminated indicate a full charge.

5.2 Аксессуарларды орнотуу

The TECCPO rotary tool features a universal keyless chuck for quick and easy accessory changes. Ensure the tool is powered off before changing accessories.

• Press and hold the spindle locking button.
• Unscrew the nut on the chuck counter-clockwise until the collet opens.
• Insert the desired accessory bit into the collet.
• While still holding the spindle locking button, tighten the nut clockwise until the accessory is securely held.
• Шпинделди бекитүү баскычын бошотуңуз.

6. Айланма куралды иштетүү

6.1 Күйгүзүү/өчүрүү жана ылдамдыкты жөндөө

To power on the tool, press the On/Off switch. Press the speed adjustment button to cycle through the 3 variable speeds.

• Speed 1: 5000 RPM (indicated by one blue light)
• Speed 2: 10000 RPM (indicated by two blue lights)
• Speed 3: 15000 RPM (indicated by three blue lights)
• To power off, cycle through the speeds until all lights are off, or press and hold the On/Off switch.

6.2 Сунушталган колдонуулар

This multi-purpose tool is suitable for various light jobs and detailed work:

• Бургулоо
• Майдалоо
• Кумдоо
• Кесүү
• Жылмалоо
• Карвинг

7. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин айлануучу куралыңыздын узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.

• Тазалоо: After each use, wipe down the tool with a clean, dry cloth to remove dust and debris. Use a small brush to clean the ventilation slots and chuck area.
• Сактагыч: Store the tool and its accessories in the provided storage box in a cool, dry place, away from direct sunlight and moisture.
• Батареяга кам көрүү: For long-term storage, ensure the battery is partially charged (around 50%). Recharge the battery every 3-6 months to prevent deep discharge.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик жана колдоо

Your TECCPO rotary tool comes with a 12-month warranty. For support, please refer to the contact information provided in your warranty card or user manual. You can also visit the official TECCPO webкошумча жардам үчүн сайт.
