Introduction
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your JUKI DDL-8000A Direct-drive, 1-needle, Lockstitch Sewing Machine. Please read this manual thoroughly before using the machine to ensure proper function and longevity.
Коопсуздук чаралары
- Always disconnect the power supply before cleaning, servicing, or when the machine is not in use.
- Keep fingers and hands away from the needle, presser foot, and other moving parts during operation.
- Use only genuine JUKI parts and recommended accessories.
- Машина туруктуу, түз бетке коюлганын текшериңиз.
- Эгерде бөлүктөрү бузулуп же жок болсо, машинаны иштетпеңиз.
Пакеттин мазмуну
Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:
- JUKI DDL-8000A Sewing Machine Head
- Sewing Machine Table and Stand
- Motor (Integrated Direct-drive)
- Thread Guard
- Thread Stand
- Needles (Assorted)
- Bobbins
- Tools (for assembly and maintenance)
- Drawer (for accessories)
- Instruction Manual (PDF version available)
Жайгашуу
The JUKI DDL-8000A is shipped as a complete unit with a table and motor, however, assembly is required. Professional assembly is recommended to ensure correct setup and optimal performance.
1. Table and Stand Assembly
Follow the instructions provided with the table and stand components to assemble the support structure. Ensure all bolts are securely tightened for stability.
Image: Components of the sewing machine table and stand before assembly.
2. Machine Head Installation
Carefully place the sewing machine head onto the prepared table opening. Ensure it is seated correctly and secured according to the table's design. Connect any necessary wiring for the direct-drive motor and control panel.
Image: The JUKI DDL-8000A sewing machine fully assembled on its table.
3. Thread Stand Setup
Assemble the thread stand and place it in the designated position on the table. Route the thread from the spool through the thread guides to the machine head.
4. Power Connection
Connect the machine to a suitable power outlet. The DDL-8000A operates on standard 110V or 220V electricity. Ensure the power switch is in the OFF position before connecting.
Иштөө нускамалары
Familiarize yourself with the main components of the JUKI DDL-8000A before operation.
Сүрөт: деталдуу view of the JUKI DDL-8000A sewing machine head, showing the needle area, presser foot, and tension dials.
Башкаруу панелиview
The DDL-8000A features an intuitive control panel for various settings and functions.
Image: Close-up of the JUKI DDL-8000A control panel and the built-in LED light illuminating the needle area.
- Voice-guided assistance: Provides audible feedback and guidance for operations and settings.
- Камтылган LED жарык: Көрүнүүнү жакшыртуу үчүн тигүүчү жерди жарыктандырат.
- Эки USB порту: Located on the machine head, these ports allow for charging personal electronic devices.
- Auto-Off Backlight: The control panel backlight automatically turns off after a period of inactivity to save energy.
- Автоматтык түрдө артка кайтаруу: Engages automatic reverse stitching at the beginning or end of a seam.
- Auto Cut-Off (Automatic Thread Trimmer): Automatically trims the upper and lower threads at the end of a sewing cycle.
- Optional Auto Foot Lift: Automatically lifts the presser foot.
- Программалануучу функциялар: Allows users to customize and save various sewing patterns and settings.
Image: The JUKI DDL-8000A sewing machine head showing the integrated USB ports for charging electronic devices.
Basic Sewing Operation
- Threading: Follow the threading path indicated on the machine, ensuring the thread is correctly seated in all guides and tension discs.
- Бобин оруу: Use the integrated bobbin winder to prepare bobbins.
- Inserting Bobbin: Place the wound bobbin into the bobbin case and insert it into the machine's shuttle area.
- Adjusting Stitch Length: Use the control panel to set the desired stitch length (maximum 5mm).
- Басуучу бутту көтөрүү: The presser foot can be lifted manually (5.5mm), automatically (1st stage 8.5мм, 2-сtage 13.0mm), or by knee lever (15mm).
- Starting Sewing: Gently press the foot pedal to begin sewing. The machine has a maximum sewing speed of 5,000 stitches per minute.
- Тигишти бүтүрүү: Utilize the auto reverse and auto thread trimmer functions for a clean finish.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your JUKI DDL-8000A.
- Тазалоо: Regularly clean lint and dust from the bobbin area, feed dogs, and needle plate using a brush or vacuum. Disconnect power before cleaning.
- Майлоо: The DDL-8000A features a semi-dry lubrication system. Refer to the detailed lubrication points in the full PDF manual for specific instructions and frequency.
- Ийне алмаштыруу: Replace needles frequently, especially when sewing different materials or if the needle shows signs of wear or bending. Use DB×1 (#11) #9~#18 needles.
- Thread Path Inspection: Periodically check the thread path for any obstructions or rough spots that could cause thread breakage.
Проблемаларды чечүү
This section addresses common issues you might encounter. For more complex problems, consult a professional technician.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Өткөрүлгөн тигүү | Туура эмес ийне, ийне ийилген, жип туура эмес өткөрүлгөн, туура эмес тартылуу. | Ийнени туура түрү/өлчөмү менен алмаштырыңыз, жипти машинадан кайра өткөрүңүз, тартылуусун жөндөңүз. |
| Thread Breakage | High thread tension, burrs on thread path, poor quality thread, incorrect needle. | Reduce tension, inspect thread path, use quality thread, replace needle. |
| Тегиз эмес тигүү | Туура эмес чыңалуу, эскирген тоют, ыраатсыз кездеме менен тамактандыруу. | Adjust tension, clean feed dogs, ensure consistent fabric handling. |
| Машина иштебей жатат | Электр кубаты туташкан эмес, коопсуздук ачкычы иштеп жатат, мотордо көйгөй бар. | Check power connection, ensure all covers are closed, consult technician if motor fails. |
Техникалык шарттар
Detailed technical specifications for the JUKI DDL-8000A sewing machine:
| Модел | DDL-8000A |
| Type | Direct-drive, High-speed, 1-needle, Lockstitch Machine |
| Колдонмо | Орто салмактагы материалдар |
| Майлоо | Жарым кургак |
| Макс. Тигүү ылдамдыгы | 5,000 stitches/min |
| Макс. Тигүү узундугу | 5мм |
| Ийне түрү | DB×1 (#11) #9~#18 |
| Presser Foot Lift (Hand) | 5.5мм |
| Presser Foot Lift (Auto) | 1 -сtage: 8.5mm, 2nd stagд: 13.0мм |
| Presser Foot Lift (Knee) | 15мм |
| Product Dimensions (Machine Head) | 16 x 24.4 x 11.2 дюйм (40.64 x 61.98 x 28.45 см) |
| Item Weight (Machine Head) | 66 фунт (29.94 кг) |
| UPC | 880542039405 |

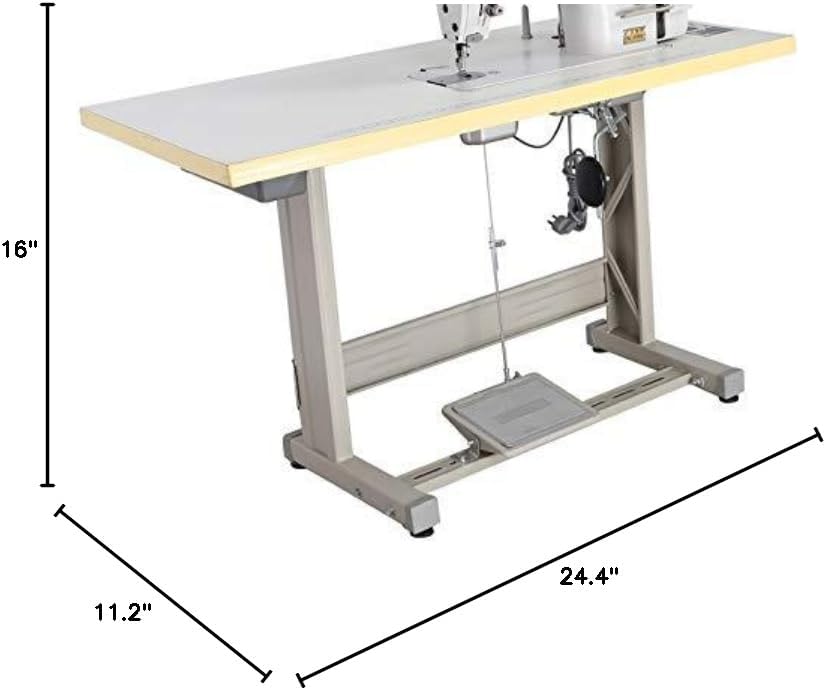

Image: Diagram illustrating the dimensions of the JUKI DDL-8000A sewing machine head.
Колдоо
For further assistance, technical support, or inquiries regarding parts and service, please contact your authorized JUKI dealer or the manufacturer's customer support channels.
Refer to the complete PDF instruction manual for detailed diagrams, advanced settings, and comprehensive troubleshooting guides.
