IMAYCC 2100W Mortar Mixer User Manual

1. Киришүү

This manual provides essential information for the safe and effective operation, setup, and maintenance of your IMAYCC 2100W Mortar Mixer. Please read these instructions carefully before using the product and retain them for future reference.

The IMAYCC 2100W Mortar Mixer, ready for operation with its mixing paddle.

2. Коопсуздук нускамалары

Электр шаймандарын иштетүүдө өрт, электр шок жана жеке жаракат алуу коркунучун азайтуу үчүн ар дайым негизги коопсуздук чараларын сактаңыз.

• Тийиштүү жеке коргонуу каражаттарын (ЖКК) кийиңиз: Ар дайым коопсуздук көз айнегин, кулак коргоочу каражатты жана кол кап кийиңиз.
• Ensure a stable work area: Operate the mixer on a firm, level surface. Keep the work area clean and well-lit.
• Кооптуу чөйрөлөрдөн алыс болуңуз: Do not use the mixer in damp же нымдуу жерлерге тийгизбеңиз, же жамгырдын таасирине дуушар кылбаңыз.
• Secure materials: Аралаштыруу идишинин туруктуу экенин жана иштөө учурунда оодарылып кетпешин текшериңиз.
• Бекем кармаңыз: Always hold the mixer firmly with both hands using the ergonomic handles.
• Электр кубатын өчүрүү: Unplug the mixer from the power source before making any adjustments, changing accessories, or performing maintenance.
• Туура томду колдонуңузtage: кубат менен камсыз кылуу Voltage specified on the mixer's rating plate (220V).
• Ашыкча ысып кетүүдөн коргоо: The mixer features overheat protection. If it shuts down, allow it to cool before resuming operation.

3. Продукциянын компоненттери

Familiarize yourself with the parts of your IMAYCC Mortar Mixer for proper assembly and operation.

A comprehensive diagram identifying the main parts of the mixer, including the power switch, speed selector, ergonomic handles, and the detachable mixing paddle.

• Мотор: 2100W powerful motor for efficient mixing.
• Reinforced Aluminum Gearbox: Provides durability and smooth power transmission.
• Эргономикалык туткалары: Designed for comfortable and secure two-hand operation.
• ON/OFF Switch with Lock: For continuous operation and safety.
• 6-тез тандагыч: Allows adjustment of mixing speed from 270 to 930 RPM.
• M14 Quick Thread Interface: For easy attachment and detachment of mixing paddles.
• Thickened Dual-Paddle Mixer: Spiral rod design for thorough mixing.
• External Carbon Brush Design: For easy maintenance and replacement.

А жарылды view highlighting key components: the powerful 2100W motor, durable aluminum gearbox, M14 threaded connection for the mixing paddle, and the accessible external carbon brush housing.

4. Орнотуу

Follow these steps to assemble your mortar mixer before use:

1. Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging. Check for any damage.
2. Attach Mixing Paddle: Align the M14 threaded end of the mixing paddle with the M14 quick thread interface on the mixer's shaft.
3. Secure Paddle: Rotate the mixing paddle clockwise until it is securely tightened onto the mixer shaft. Ensure it is firmly attached to prevent loosening during operation.
4. Байланыштарды текшерүү: Before plugging in, ensure all connections are secure and the paddle is correctly installed.

5. Иштөө нускамалары

Proper operation ensures efficiency and safety.

5.1. Материалды даярдоо

The mixer is suitable for various medium-viscosity materials, including:

• Май боёк
• Цемент
• Астарлар
• Чайырлар
• Printing inks
• Fine mortar
• Гипс
• Cement-containing adhesives

Examples of materials suitable for mixing with this tool, including mortar, different colored paints, and plaster, demonstrating its versatility.

5.2. Powering On and Speed Adjustment

1. Туташуу кубаты: Plug the mixer into a suitable 220V power outlet.
2. Ылдамдыкты тандоо: Use the 6-speed selector dial to choose the desired mixing speed (270-930 RPM). Start with a lower speed to prevent splashing, especially with liquid materials.
3. Миксерди баштоо: Press the ON/OFF switch. For continuous operation, engage the switch lock.
4. Adjust Speed During Operation: You can adjust the speed while the mixer is running to achieve optimal consistency for your material.

5.3. Mixing Technique

• Submerge Paddle: Fully submerge the mixing paddle into the material before starting the mixer to prevent splashing.
• Акырын кыймыл: Move the mixer slowly through the material, ensuring all parts are thoroughly mixed. Avoid rapid movements that could cause material to splash out of the container.
• Монитор ырааттуулугу: Continue mixing until the desired uniform consistency is achieved.

5.4. Ашыкча ысып кетүүдөн коргоо

The mixer is equipped with an intelligent temperature cooling design to prevent overheating. If the machine becomes excessively hot, it will automatically shut down to prevent damage. Allow the mixer to cool down completely before attempting to restart it.

Illustration of the mixer's cooling system, which draws in cold air and expels hot air to prevent overheating, ensuring extended operation. The 6-speed adjustment dial is also visible.

6. Техникалык тейлөө

Миксердин үзгүлтүксүз техникалык тейлөөсү анын узак мөөнөттүү иштешин жана оптималдуу иштешин камсыз кылат.

6.1. Тазалоо

• Кубатты өчүрүү: Тазалоодон мурун дайыма миксерди сууруп алыңыз.
• Clean Paddle: Immediately after use, clean the mixing paddle thoroughly to prevent material from hardening on it. Use water and a brush for water-based materials, or appropriate solvents for oil-based materials.
• Clean Mixer Body: Миксердин корпусун жарнама менен сүртүңүзamp cloth. Do not use harsh chemicals or immerse the mixer in water. Ensure ventilation openings are clear of debris.

6.2. Көмүртек щеткасын алмаштыруу

The mixer features an external carbon brush design for easy replacement. Worn carbon brushes can lead to reduced performance or motor failure.

А деталдуу view of the external carbon brush cover, illustrating the ease of access for maintenance and replacement of the carbon brushes.

1. Кубатты өчүрүү: Миксер розеткадан ажыратылганын текшериңиз.
2. Brush капкактарын табыңыз: Identify the external carbon brush caps on the motor housing.
3. Капкактарды алып салуу: Use a screwdriver to unscrew and remove the brush caps.
4. Replace Brushes: Carefully remove the old carbon brushes and insert new ones. Ensure they slide in smoothly.
5. Коопсуз капкактар: Щетка капкактарын алмаштырып, бекемдеңиз.

7. Кыйынчылыктарды

Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.

8. Техникалык шарттар

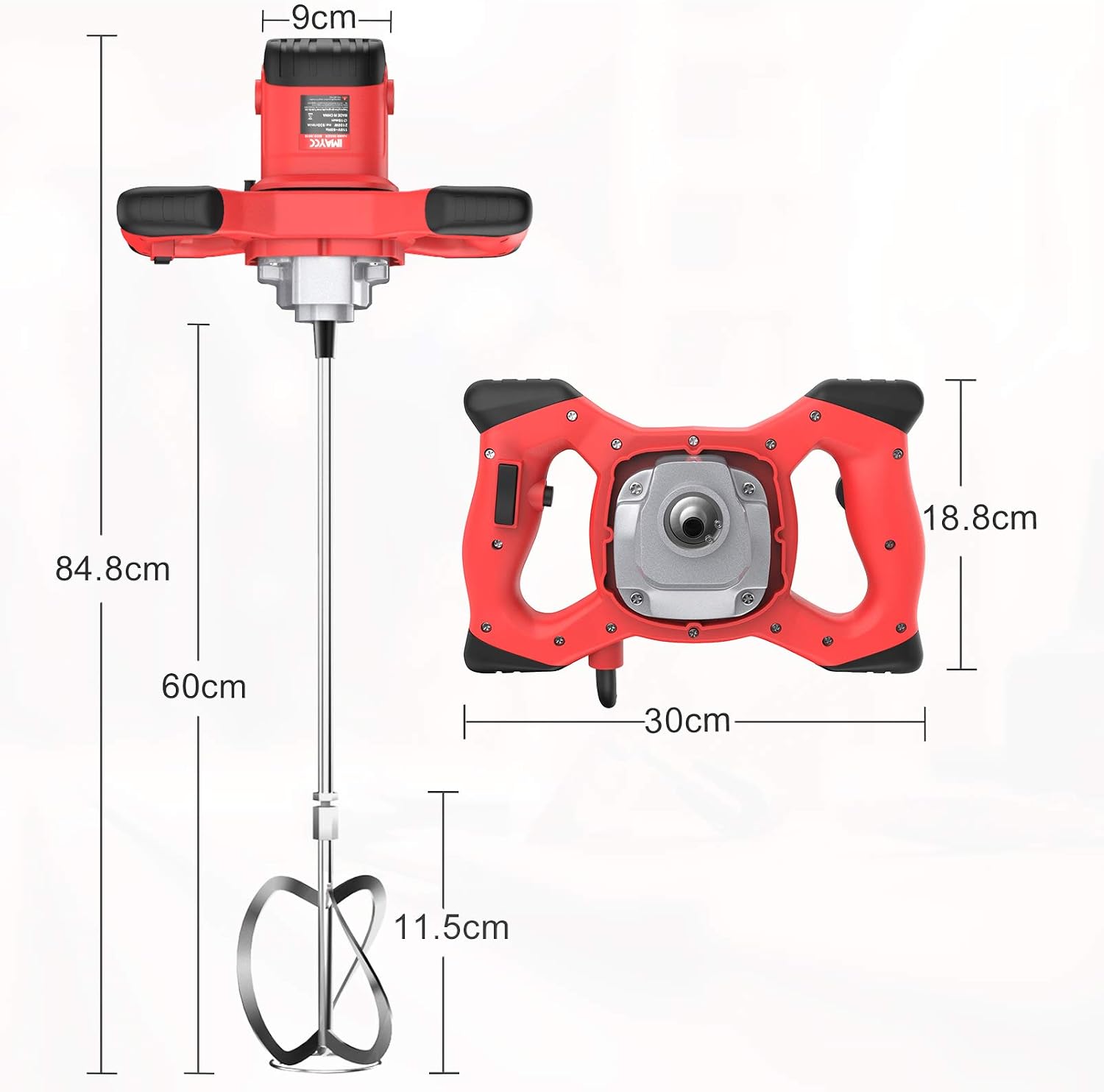

Diagram detailing the physical dimensions of the mixer and its paddle, providing measurements for the main unit and the mixing rod assembly.

9. Кепилдик жана колдоо

IMAYCC products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation included with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
