Cinwiny Wall-Mounted Waterfall Bathtub Faucet with Handheld Shower - Instruction Manual

1. Продукт бүтүп калдыview

The Cinwiny Wall-Mounted Waterfall Bathtub Faucet with Handheld Shower is designed to provide a luxurious and functional bathing experience. This faucet features a wide waterfall spout for rapid tub filling, a single handle for precise control of water temperature and flow, and a versatile handheld shower for targeted rinsing. Constructed from high-quality brass with a matte black finish, it ensures durability and a modern aesthetic for your bathroom.

Негизги өзгөчөлүктөрү:

• Премиум материал: Made from high-quality metal and solid brass for enhanced durability and reliability.
• Waterfall Bathtub Spout: A wide, square spout delivers a smooth, large volume of water, filling your tub quickly and creating a serene waterfall effect.
• Adjustable Handheld Sprayer: Features a straight handheld shower with a 150 cm hose, offering flexibility and a 360° rotatable holder for optimal showering angles.
• Dual-Function Brass Valve: A single handle controls both water temperature and flow, while a diverter knob easily switches water between the waterfall spout and the handheld shower.
• Жалтырабаган кара финиш: A sleek, modern matte black finish complements contemporary bathroom designs.

2. Коопсуздук маалыматы

Сураныч, орнотуу жана колдонуу алдында бардык нускамаларды кылдат окуп чыгыңыз. Бул нускамаларды аткарбоо жеке жаракат же мүлккө зыян алып келиши мүмкүн.

• Кесиптик орнотуу сунушталат: If you are unsure about plumbing installations, it is recommended to consult a qualified plumber.
• Суу менен камсыздоо: Ensure the main water supply is turned off before beginning any installation work to prevent water damage.
• Ысык суу коопсуздугу: Exercise caution when adjusting hot water temperatures to avoid scalding.
• Компонент менен иштөө: Handle all components with care to avoid scratches or damage to the finish.
• агып текшерүүлөр: After installation, thoroughly check all connections for leaks before fully restoring water pressure.

3. Пакеттин мазмуну

Орнотууну улантуудан мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.

3.1-сүрөт: Package contents including the wall-mounted bathtub filler, handheld sprayer, hand shower holder, 150 cm water hose, decorative cover, handle and knob, valve and diverter, and all necessary hardware.

• Wall-Mounted Bathtub Filler (Waterfall Spout)
• Колго чачыратуучу
• Кол душ кармагыч
• 150 cm Water Hose
• Декоративдүү капкак плитасы
• Single Handle and Diverter Knob
• Brass Rough-in Valve and Diverter
• Монтаждоочу жабдык

4. Орнотуу жана орнотуу

This section provides general guidelines for installing your Cinwiny wall-mounted bathtub faucet. Specific installation details may vary based on your plumbing setup.

4.1 Керектүү шаймандар (кошулбайт):

• Жөнгө салынуучу ачкыч
• Түтүк жиптерин герметикалоочу лента (тефлон тасмасы)
• Бурагыч (Phillips/Flathead)
• Өлчөө лентасы
• Деңгээл
• Бургулоо (орнотуу үчүн зарыл болсо)

4.2 Орнотуу кадамдары:

1. Орнотуу аймагын даярдоо: Turn off the main water supply. Clear the area around the bathtub where the faucet will be installed. Ensure the wall is structurally sound to support the faucet.
2. Install the Rough-in Valve:

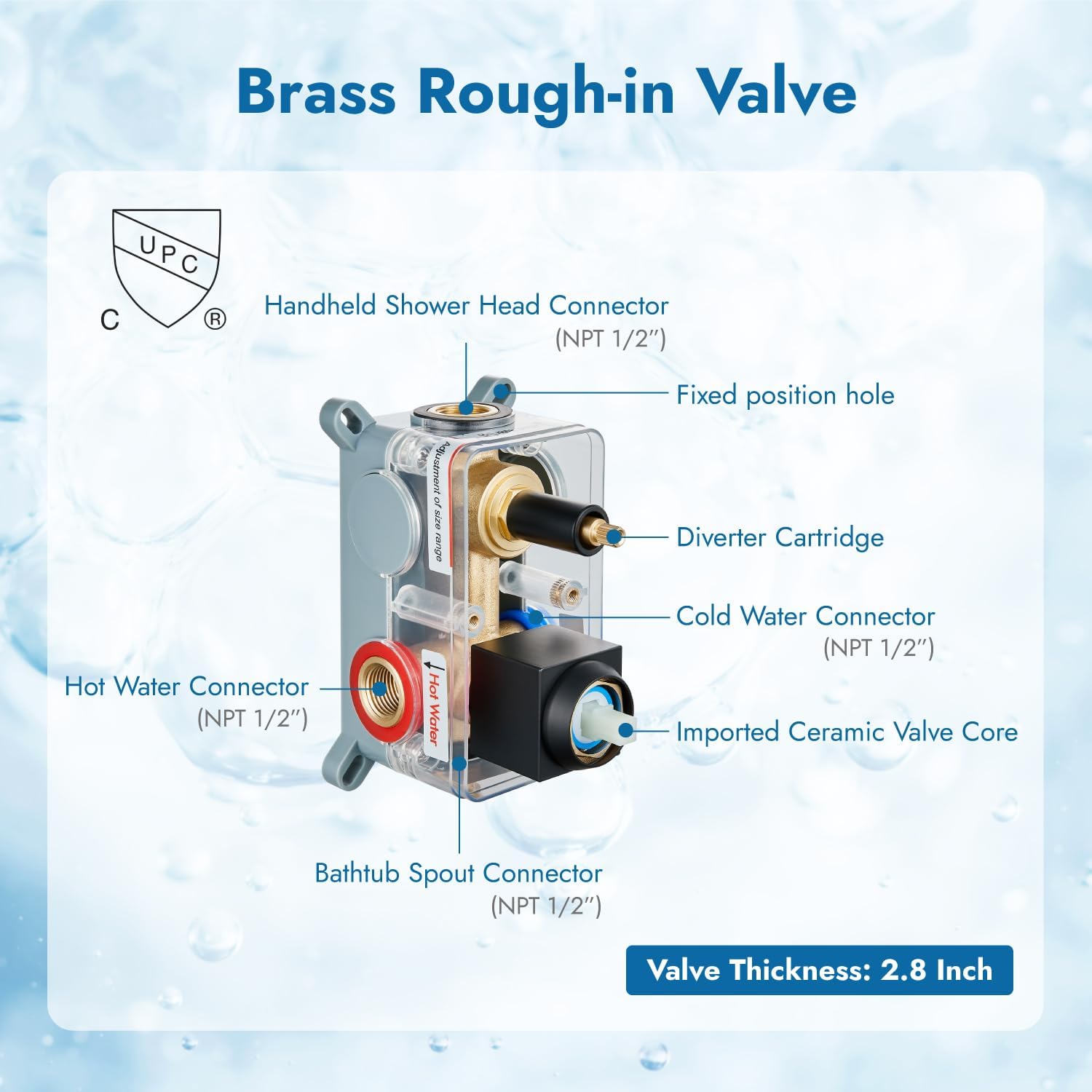

   4.1-сүрөт: Brass Rough-in Valve Components. Note the NPT 1/2" connectors for hot water, cold water, handheld shower, and bathtub spout.

   Mount the brass rough-in valve securely within the wall, ensuring it is level and at the desired height. Connect the hot and cold water supply lines to the corresponding NPT 1/2" connectors on the valve. Connect the lines for the handheld shower head and the bathtub spout to their respective NPT 1/2" connectors. Use pipe thread sealant tape on all threaded connections to prevent leaks. The valve thickness is approximately 2.8 inches.
3. Install the Bathtub Spout:


   4.2-сүрөт: Waterfall Bathtub Spout. Ensure a distance of 3.8 inches (97mm) from the wall for proper installation and water flow.

   Attach the waterfall bathtub spout to its connection point from the rough-in valve. Ensure the spout is securely fastened and positioned correctly, maintaining a distance of approximately 3.8 inches (97mm) from the wall for optimal waterfall effect.
4. Install the Handheld Shower and Holder:

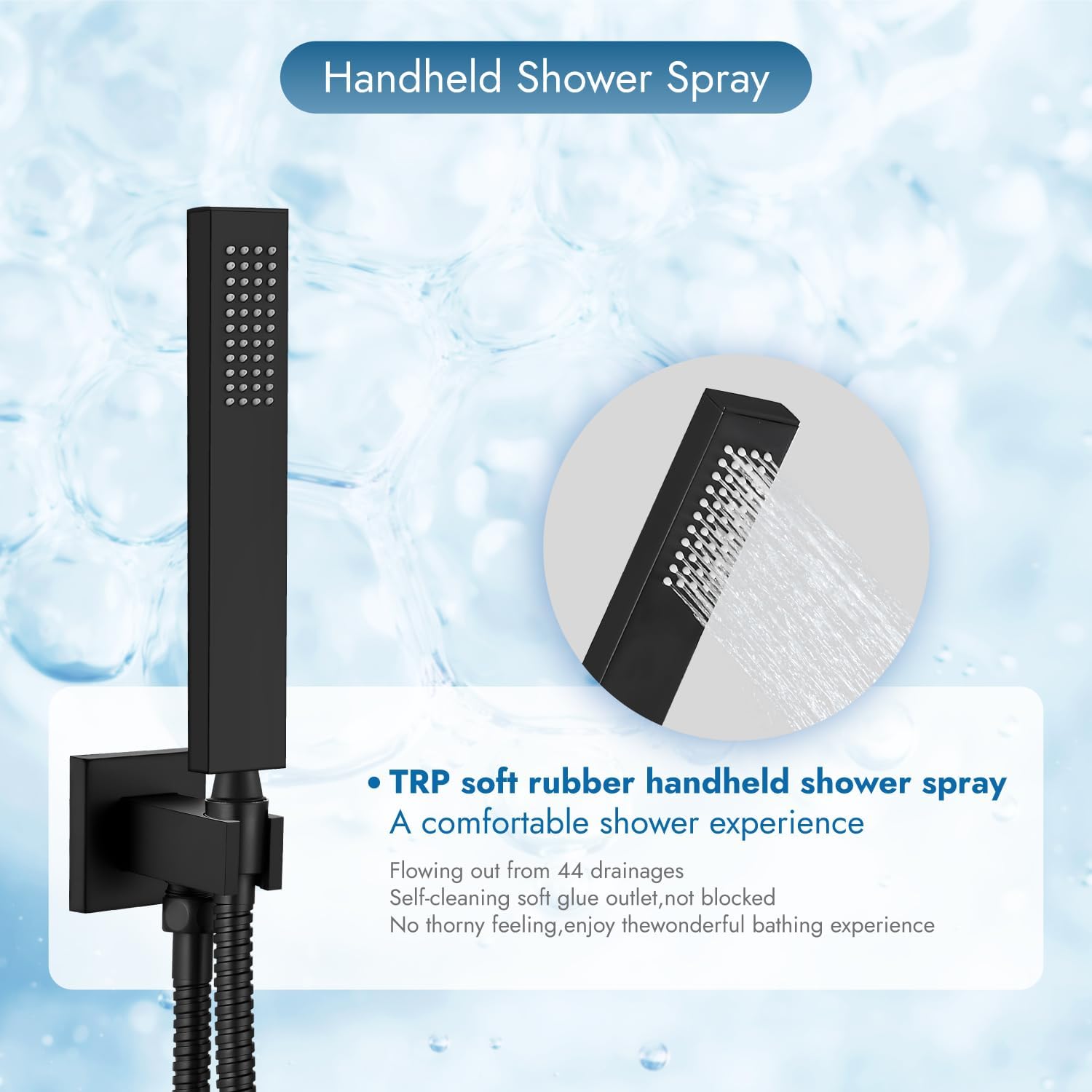

   4.3-сүрөт: Handheld Shower Spray. The spray features TRP soft rubber nozzles for a comfortable shower experience and easy cleaning.
   Mount the hand shower holder to the wall at a convenient height. Connect the 150 cm water hose to the handheld sprayer and then to the corresponding outlet from the rough-in valve. Place the handheld sprayer into its holder.
5. Install the Decorative Cover Plate and Handle:Secure the decorative cover plate over the rough-in valve opening. Install the single handle and diverter knob onto their respective stems, ensuring they operate smoothly.
6. Агышуу үчүн сыноо: Slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks are detected, turn off the water supply, tighten the connections, and re-test.

5. Иштөө нускамалары

Your Cinwiny faucet is designed for ease of use with a single handle and a diverter knob.

5.1-сүрөт: Single Handle Control. Push the handle up to turn on water, move left for hot, right for cold.

1. Turning Water On/Off and Adjusting Temperature:
   • To turn on the water, lift the single handle upwards.
   • Суунун агымын көбөйтүү үчүн, тутканы андан ары көтөрүңүз.
   • To adjust temperature, move the handle to the left for hotter water and to the right for colder water.
   • To turn off the water, push the handle downwards.
2. Switching Between Waterfall Spout and Handheld Shower:


   5.2-сүрөт: Two Modes of Water Outlet. Use the diverter knob to switch between the handheld shower and the waterfall spout.

   Your faucet features a diverter knob, typically located below the main handle or on the cover plate.
   • To direct water to the waterfall bathtub spout, turn the diverter knob to the corresponding position (usually indicated by an icon).
   • To direct water to the handheld shower, turn the diverter knob to the other position.
3. Using the Handheld Shower:
   • Remove the handheld shower from its holder.
   • Adjust the angle of the shower holder as needed (360° rotation).
   • The TRP soft rubber nozzles provide a comfortable spray and are designed for easy cleaning to prevent blockages.

6. Техникалык тейлөө жана кам көрүү

Proper care and maintenance will ensure the longevity and appearance of your Cinwiny faucet.

• үзгүлтүксүз тазалоо: Кранды дайыма жумшак, d менен тазалап туруңузamp кездеме жана жумшак самын. Абразивдүү тазалоочу каражаттардан, катуу химиялык заттардан же кыргыч губкалардан алыс болуңуз, анткени алар күңгүрт кара түстөгү каптамага зыян келтириши мүмкүн.
• Тазалоо: For water spots or fingerprints, use a non-abrasive cleaner specifically designed for matte finishes or a mixture of white vinegar and water (diluted). Always rinse thoroughly with clean water and dry with a soft cloth.
• Handheld Shower Nozzles: The TRP soft rubber nozzles on the handheld shower are designed for easy cleaning. Gently rub the nozzles to dislodge any mineral buildup.
• Зыяндан качуу: Do not use tools or excessive force when cleaning or operating the faucet, as this can cause damage.
• Агышууларды текшерүү: Periodically inspect all connections for any signs of leaks and address them promptly.

7. Кыйынчылыктарды

If you encounter any issues with your faucet, refer to the following common troubleshooting steps.

8. Техникалык шарттар

8.1-сүрөт: Product Dimensions. Key measurements for the control plate, spout, and handheld shower.

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation included with your purchase or contact Cinwiny customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

If you require further assistance or have questions not covered in this manual, please reach out to the manufacturer's support team.
