HUTACT 10x50 Marine Binoculars Instruction Manual

Introduction

Thank you for choosing the HUTACT 10x50 Marine Binoculars. These binoculars are designed for marine navigation, boating, sailing, and various outdoor activities, offering 10x magnification and a 50mm objective lens for bright, clear views. They feature a built-in rangefinder and compass, are IPX7 waterproof, and float, making them a reliable companion for your adventures.

Продукт бүттүview

The HUTACT 10x50 Marine Binoculars are engineered with high-quality optics and a robust design to withstand challenging environments. Key features include:

• 10x чоңойтуу: Brings distant objects 10 times closer.
• 50 мм объектив: Ensures bright images, even in low light conditions.
• BAK4 Porro Prisms: Provides superior light transmission and sharp, clear images.
• Толугу менен көп капталган оптика: Enhances contrast and color fidelity.
• IPX7 Waterproof & Floating Design: Protected against water immersion and designed to float if dropped in water.
• Built-in Rangefinder Reticle: For estimating distances to objects.
• Illuminated Compass: For navigation and direction finding.
• Individual Eyepiece Focusing: Allows precise focus adjustment for each eye.
• Орнотуучу штатив: For stable, extended viewing.

Diagram illustrating the 23mm eyepiece and 50mm objective lens, highlighting their contribution to enhanced viewing clarity and light gathering capabilities.

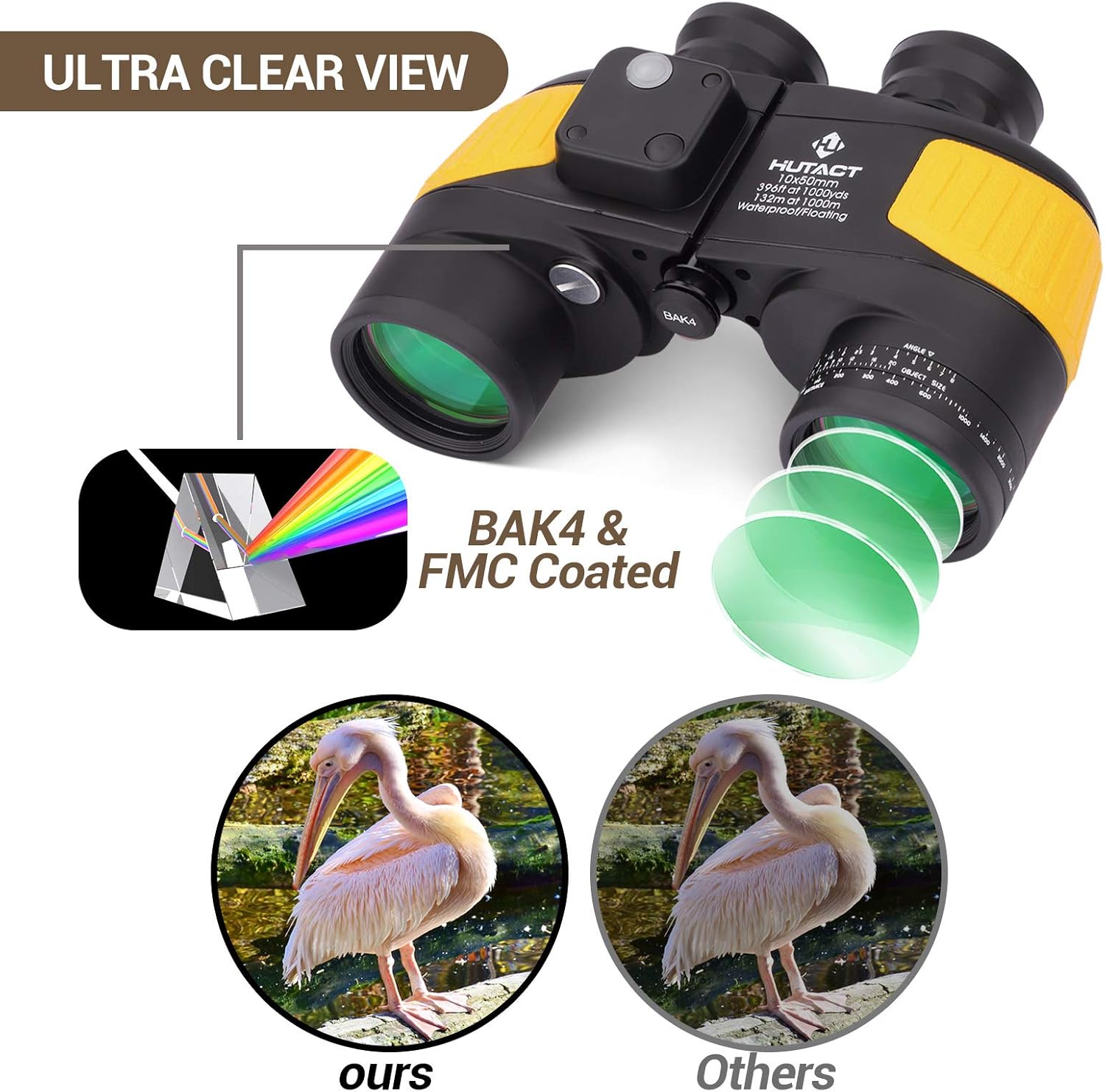

Binocular optics showing BAK4 Porro Prisms and Fully Multi-Coated lenses, which work together to provide bright, high-contrast, and color-accurate images.

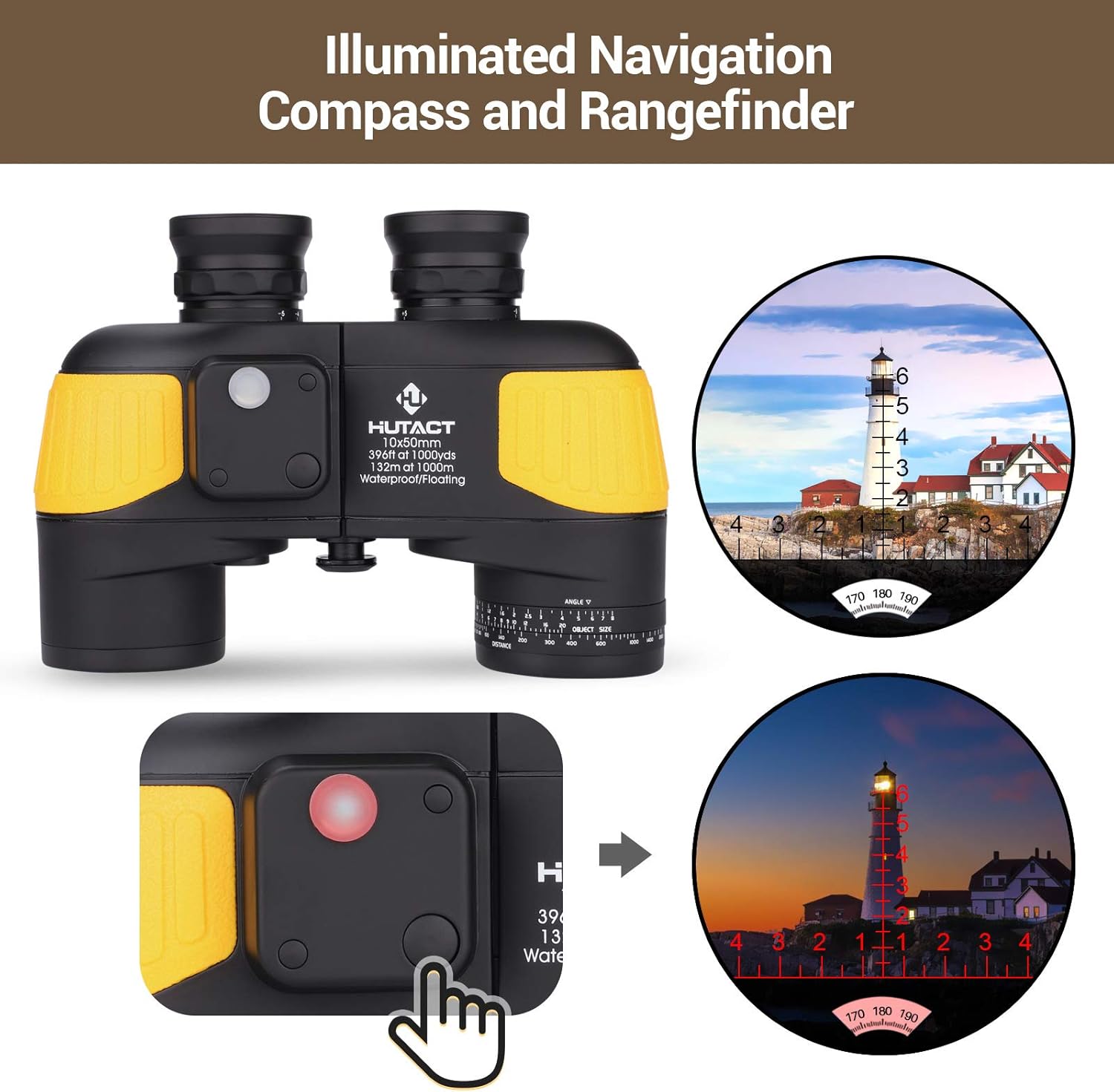

Дүрбү view demonstrating the illuminated navigation compass and rangefinder reticle, essential tools for marine navigation and distance estimation.

HUTACT 10x50 Marine Binoculars submerged in water, highlighting their IPX7 waterproof rating, ensuring functionality even after immersion.

Various outdoor activities such as traveling, observing sea scenery, bird watching, and wildlife observation, demonstrating the versatility of these binoculars.

Жайгашуу

1. Карек ортосундагы аралыкты тууралоо: Дүрбүнү эки колуңуз менен кармап, караңыз. Эки челектин ортосундагы аралыкты бир гана, тунук тегерек талаа көрүнгөнгө чейин жакындатып же алыстатып тууралаңыз. view.
2. Диоптрияны тууралоо: These binoculars feature individual eyepiece focusing. First, close your right eye and focus your left eye on a distant object using the left eyepiece's focus ring. Once the left eye is sharp, close your left eye and focus your right eye on the same object using the right eyepiece's focus ring. Both eyepieces are now set for your vision.
3. Моюнга тагылуучу боону бекитүү: Thread the provided neck strap through the strap lugs on each side of the binoculars. Adjust the length for comfortable carrying around your neck.
4. Tripod орнотуу: To mount the binoculars on a tripod, locate the tripod adapter port on the front hinge. Remove the cap and screw in a compatible tripod adapter (sold separately).

Иштөө нускамалары

Фокустоо

As these binoculars use individual eyepiece focusing, once the diopter is set during initial setup, minor adjustments may be needed for objects at different distances. Simply rotate the individual eyepiece rings until the image is sharp for each eye.

Using the Rangefinder Reticle

The built-in rangefinder reticle allows you to estimate the distance to an object if its height is known, or vice versa. The reticle appears in the field of view of the right eyepiece. Align the reticle with the object and use the scale to calculate distance based on the object's known size.

Using the Illuminated Compass

The integrated compass provides directional guidance. To illuminate the compass for low-light conditions, press the button located on the top of the binoculars. The compass scale will light up, allowing you to read your bearing clearly.

Техникалык тейлөө

• Тазалоочу линзалар: Use the provided lens cleaning cloth or a soft, lint-free cloth to gently wipe the lens surfaces. For stubborn smudges, use a small amount of lens cleaning fluid applied to the cloth, not directly to the lens. Avoid abrasive materials that can scratch the coatings.
• Суу өткөрбөйт кам көрүү: Although IPX7 waterproof, it is recommended to rinse the binoculars with fresh water after exposure to saltwater to prevent salt buildup. Ensure all caps are securely in place before rinsing. Dry thoroughly with a soft cloth.
• Сактагыч: Store the binoculars in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying case for protection during transport and storage. Ensure lens caps are on to protect the optics.
• Rubber Armor: The durable rubber armor protects the binoculars from impacts. Clean with a damp зарыл болсо, кездеме.

Проблемаларды чечүү

• бүдөмүк сүрөт: Ensure both interpupillary distance and individual eyepiece focus are correctly adjusted for your eyes and the object's distance.
• Кош сүрөт: бир тегерек талаа пайда болгонго чейин, каректердин ортосундагы аралыкты кайра тууралаңыз. view жетишилет.
• Compass Not Illuminating: Check if the battery for the compass illumination is properly inserted and has sufficient charge.
• Тумандоо: If internal fogging occurs, it may indicate a seal compromise. Contact customer support. External fogging can be wiped away with a dry cloth.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information or technical support, please refer to the documentation included with your purchase or contact HUTACT customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
