1. Киришүү
The Alesis Recital Grand is an 88-key digital piano designed to provide an authentic piano playing experience. It features graded hammer-action weighted keys and a selection of 16 realistic built-in sounds. This instrument is suitable for various skill levels, from beginners to advanced players, offering a comprehensive set of features for practice and performance. This manual provides detailed instructions for setting up, operating, and maintaining your Recital Grand digital piano.
2. Пакеттин мазмуну
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact Alesis support.
- Recital Grand Digital Piano
- Кубаттуу адаптер
- Музыкалык эс алуу
- Sustain Pedal
- Программалык камсыздоону жүктөө картасы
- Колдонуучунун колдонмосу (бул документ)
- Коопсуздук жана кепилдик боюнча колдонмо
Image: The Alesis Recital Grand digital piano shown with its essential accessories: a sustain pedal, a music rest, and the power adapter. These components are crucial for the instrument's functionality and user convenience.
3. Орнотуу
Follow these steps to set up your Alesis Recital Grand digital piano:
- Жайгашкан жери: Place the digital piano on a stable, flat surface or a compatible keyboard stand. Ensure there is adequate space for playing and connecting cables.
- Музыкалык эс алуу: Insert the music rest into the designated slot on the top panel of the piano.
- Туруктуу педаль: Connect the included sustain pedal to the 'Sustain Pedal' input on the rear panel of the piano.
- Кубат туташуу: Connect the power adapter to the 'DC 12V' input on the rear panel, then plug the adapter into a power outlet.
- Күйгүзүү: Press the Power button located on the top left of the control panel to turn on the instrument.
- Кулакчындар/Тышкы аудио (милдеттүү эмес): For private practice, connect headphones to the 1/4" (6.35mm) or 1/8" (3.5mm) headphone outputs. For external amplification, connect the 1/4" (6.35mm) stereo outputs to an ampкөтөргүч же аралаштыргыч консол.
Сүрөт: деталдуу view of the rear panel connectivity options on the Alesis Recital Grand. This includes ports for USB, the sustain pedal, stereo 1/4-inch outputs, and an auxiliary input, illustrating how to connect various external devices.
4. Өзгөчөлүктөрү
The Alesis Recital Grand offers a range of features designed to enhance your playing experience:
- 88 Graded Hammer-Action Weighted Keys: Provides a realistic piano feel with heavier touch in the lower register and lighter touch in the upper register. Adjustable touch response allows customization.
- 16 Premium Multi-Sampled Voices: Includes Grand Piano, Electric Piano, Organ, Synthesizers, and more, offering a diverse sound palette.
- 128 Max Polyphony: Ensures that notes do not cut off prematurely, even when playing complex passages with sustain.
- 50W Micro-Array Speaker System: Custom-voiced speakers deliver clear, full, and realistic sound in any environment.
- 5 Adjustable Reverb FX: Adds depth and ambiance to your sound.
- Бөлүнүү режими: Divides the keyboard into two zones, allowing you to play different instrument tones with each hand simultaneously.
- Катмар режими: Stacks two different instrument tones to be played together with each key press.
- Сабак режими: Divides the keyboard into two zones with the same pitch and voice, ideal for student and teacher to play together.
- Жазуу режими: Allows you to record and playback your performances for review and practice.
- Байланыш: Stereo 1/4" (6.35mm) outputs, 1/4" (6.35mm) and 1/8" (3.5mm) headphone outputs, and USB-MIDI output for connection to computers or educational software.
Image: A user demonstrates the Alesis Recital Grand, emphasizing its 88 full-sized, graded hammer-action keys and the adjustable touch response feature, which provides a customizable playing feel.
Image: The control panel of the Alesis Recital Grand, illustrating the dedicated buttons for Split, Layer, Lesson, and Record modes. This image also highlights the integration with Melodics and Skoove for enhanced learning.

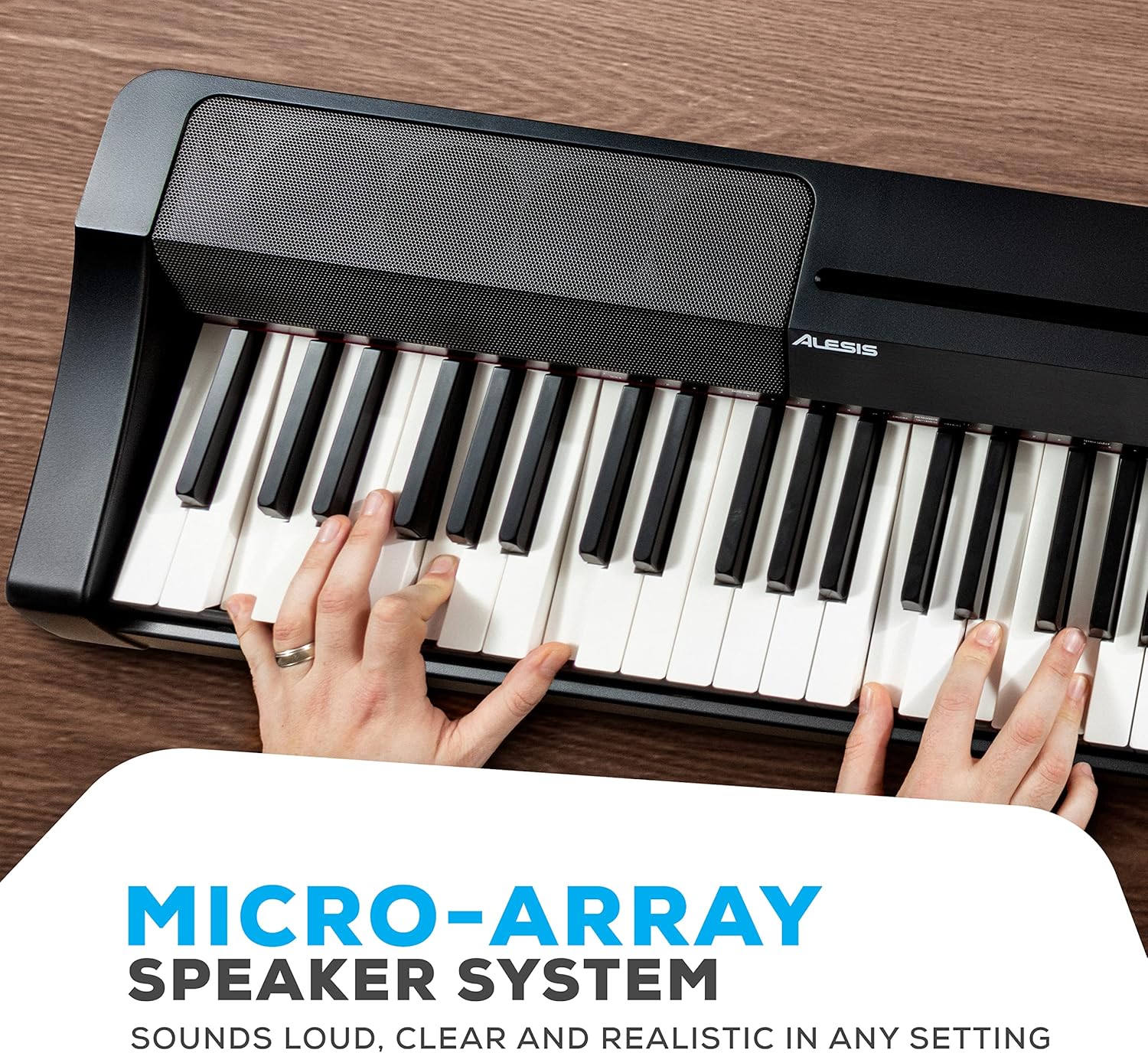

Сүрөт: деталдуу view of the Alesis Recital Grand's micro-array speaker system, designed to deliver clear and powerful audio output.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү жана Көлөмү
- Күч: басыңыз Күч button to turn the piano on or off.
- Көлөмү: колдонуу Көлөм knob to adjust the overall output level of the piano.
5.2 Үндөрдү тандоо
The Recital Grand features 16 built-in voices, accessible via dedicated buttons and combinations:
- басыңыз Пианино button to select the Grand Piano voice. Hold the Piano button to access the Dark Piano or Harpsichord variations.
- басыңыз Электр пианино button to select the MK1/Suitcase Electric Piano voice. Hold the Electric Piano button to access the Wurlitzer or FM Piano variations.
- Similarly, use the Орган, Саптар, Синт, жана Бас buttons to select their primary voices and hold them for variations.
5.3 Split and Layer Modes
- Бөлүнүү режими: басыңыз Бөлүнүү button. The keyboard will be divided into two sections, each playing a different voice. The split point can be adjusted.
- Катмар режими: басыңыз Катмар button. Two selected voices will sound simultaneously when a key is pressed.
5.4 Lesson and Record Modes
- Сабак режими: басыңыз Сабак button to activate. This mode is useful for teaching, as it duplicates the keyboard range.
- Жазуу режими: басыңыз Rec/Start/Stop button to begin recording your performance. Press it again to stop. Press the Play жаздырылган тректи угуу үчүн баскычты басыңыз.
5.5 Эффекттер
- Реверб: колдонуу Reverb button to cycle through and adjust the 5 available reverb effects.
Video: An official Alesis performance video demonstrating the sound and playability of the Recital Grand digital piano. This video showcases various voices and musical styles.
Video: An official Alesis demonstration video providing an overview of the Recital Grand's features and sound capabilities. This video highlights key aspects of the instrument's design and functionality.
6. Техникалык тейлөө
Proper care will ensure the longevity and optimal performance of your Alesis Recital Grand:
- Тазалоо: Use a soft, dry cloth to wipe the surface of the piano. For stubborn dirt, a slightly damp кездемени, андан кийин кургак чүпүрөктү колдонсо болот. Абразивдүү тазалоочу каражаттарды, эриткичтерди же момдорду колдонбоңуз.
- Негизги тазалоо: Ачкычтарды акырын жумшак, бир аз г менен сүртүңүзamp кездеме. Ашыкча нымдуулукту колдонбоңуз.
- Сактагыч: When not in use, cover the piano with a dust cover to protect it from dust and debris. Avoid placing heavy objects on the keys or control panel.
- Курчап турган чөйрө: Keep the piano away from direct sunlight, heat sources, and areas with high humidity or extreme temperature changes.
- Транспорт: Пианинону жылдырып жатканда, бузулуп калбашы үчүн анын туура бекитилишин текшериңиз.
7. Кыйынчылыктарды
If you encounter issues with your Alesis Recital Grand, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Үн жок | Үнү өтө төмөн; кулакчындар туташып турат; тышкы amplifier off/disconnected. | Increase volume knob; disconnect headphones; check external amplifier connections and power. |
| Ачкычтар жооп бербейт же ырааттуу тийбейт | Touch sensitivity setting; dust/debris under keys. | Adjust touch sensitivity setting (refer to full user manual); gently clean keys. |
| Бурмаланган үн | Volume too high; incorrect audio cable connection; faulty speakers/headphones. | Lower volume; ensure audio cables are correctly connected; test with different headphones/speakers. |
| MIDI иштебей жатат | Incorrect USB-MIDI connection; driver issues; software settings. | Ensure USB cable is securely connected; install necessary drivers; check MIDI settings in your software. |
For more detailed troubleshooting or issues not listed here, please refer to the full User Manual (PDF) available on the Alesis website or contact Alesis customer support.
8. Техникалык шарттар
Below are the technical specifications for the Alesis Recital Grand digital piano:
- Бренд: Алезис
- Модель аты: Recital Grand
- Ачкычтардын саны: 88
- Негизги Түрү: Graded Hammer-Action Weighted Keys
- Үндөр: 16 Premium Multi-Sampled Voices
- Полифония: 128 Макс
- Эффекттери: 5 Adjustable Reverb FX
- Динамик системасы: 50W Micro-Array
- Байланыш: Stereo 1/4" (6.35mm) Outputs, 1/4" (6.35mm) Headphone Jack, 1/8" (3.5mm) Headphone Jack, USB-MIDI Output, Sustain Pedal Input, Power Adapter Input
- Кубат булагы: Электр зымдары (12V DC)
- Өлчөмдөрү (D x W x Y): 9.65" x 57.87" x 15.55" (24.5 см x 147 см x 39.5 см)
- Элемент Салмагы: 12.8 килограмм (28.2 фунт)
- Түсү: Кара
- Чеберчилик деңгээли: Beginner to Professional
Image: A diagram illustrating the physical dimensions of the Alesis Recital Grand digital piano, including its length, width, and height.
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
The Alesis Recital Grand digital piano comes with a 1 жылдык өндүрүүчүнүн кепилдиги. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full details regarding warranty terms and conditions, refer to the Safety & Warranty Manual included in your package or visit the official Alesis webсайт.
9.2 Кардарларды колдоо
For technical assistance, product inquiries, or warranty service, please contact Alesis customer support through their official website. You can typically find support contact information, FAQs, and additional resources at www.alesis.com/support.
Additionally, a comprehensive User Manual (PDF) is available for download from the Alesis website, providing more in-depth information on all features and functions.
