Mujocooker B2-WPRC-GH0B Folding Mobility Scooter User Manual

1. Киришүү

Thank you for choosing the Mujocooker B2-WPRC-GH0B Folding Mobility Scooter. This ultra-lightweight, portable scooter is designed to provide reliable and comfortable mobility for adults, featuring a dual front-wheel design for enhanced stability and a powerful 300W motor. Please read this manual thoroughly before operating your scooter to ensure safe and proper use.

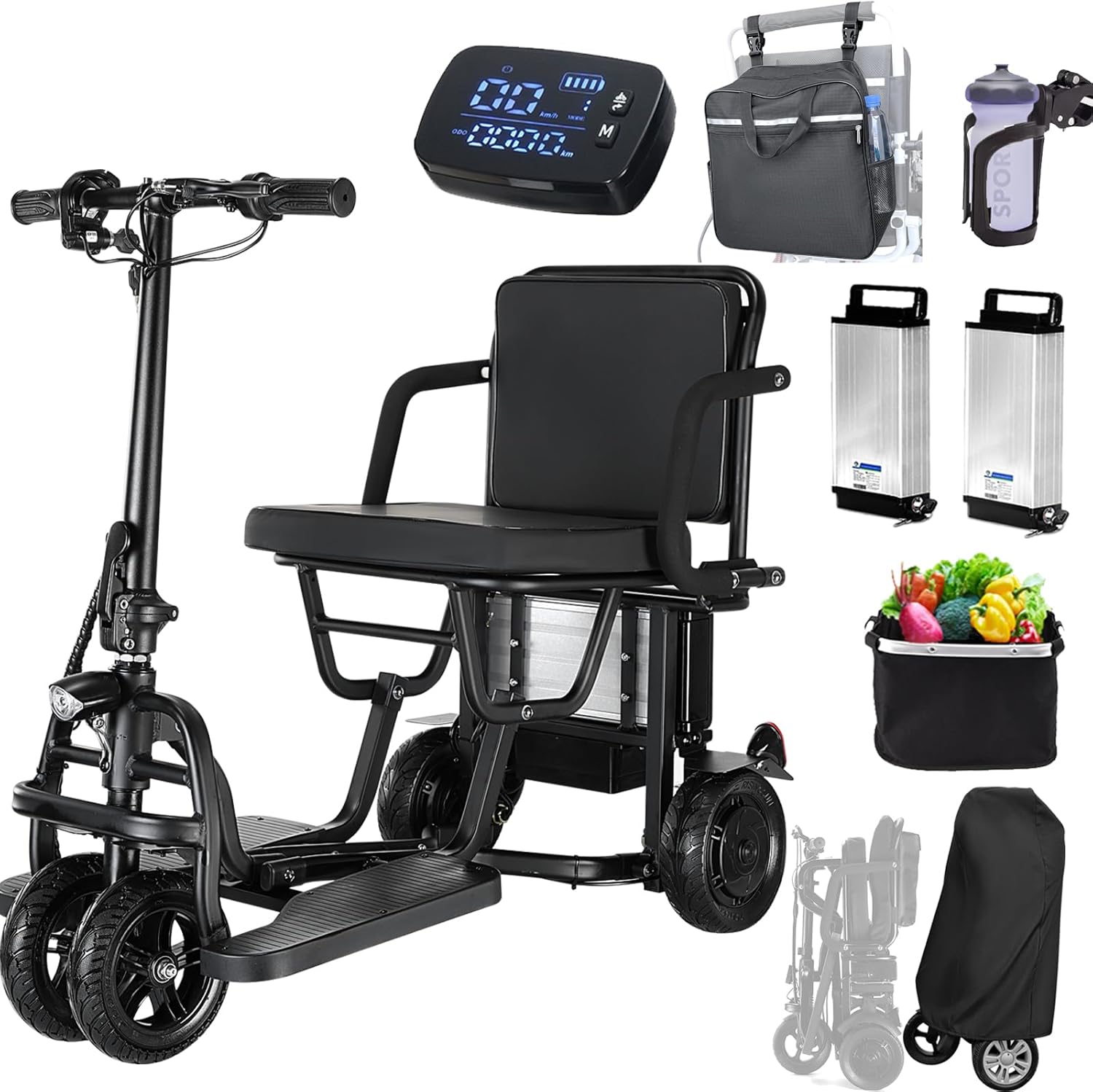

The Mujocooker B2-WPRC-GH0B Folding Mobility Scooter, shown with included accessories such as spare batteries, charger, cup holder, folding basket, and dust-proof bag.

2. Коопсуздук маалыматы

Сиздин коопсуздугуңуз баарынан маанилүү. Ар дайым төмөнкү көрсөтмөлөрдү карманыңыз:

• Скутерди иштетип жатканда ар дайым тиешелүү коопсуздук шайманын, анын ичинде шлемди кийиңиз.
• Ensure the scooter is fully unfolded and locked before use.
• 300 LBS максималдуу салмагы кубаттуулугу ашпагыла.
• Operate the scooter at a safe speed, especially in crowded areas or on uneven terrain.
• Be aware of your surroundings and avoid distractions while driving.
• Regularly check the brakes, tires, and battery for proper function.
• Avoid operating the scooter in extreme weather conditions (heavy rain, snow, ice).
• Familiarize yourself with all controls before your first ride.

3. Продукт бүтүп калдыview & Компоненттери

The Mujocooker B2-WPRC-GH0B is designed for ease of use and portability. Key features include:

• Dual Front Wheels: Enhanced stability and safety compared to traditional 4-wheeled scooters.
• Күчтүү мотор: 300W brushless motor for reliable performance and climbing ability.
• Узак аралыкка батарея: Two 8Ah lithium batteries provide up to 40 miles of travel.
• Ыңгайлуу отургуч: Fully-padded, waterproof, and breathable 17-inch wide seat with armrests.
• Колдонуучуга ыңгайлуу башкаруулар: Height-adjustable handlebar, reverse gear, horn, bright LED headlight, and clear display.
• Портативдик дизайн: Ultra-lightweight (55 lbs) and folds quickly for easy transport and storage.

This image highlights key design elements: a large capacity storage basket for personal items, a convenient cup holder, the stable dual front wheel design, and a comfortable, waterproof seat cushion.

4. Орнотуу жана чогултуу

Your Mujocooker scooter comes 95% pre-assembled. Follow these steps for initial setup:

4.1 Скутерди ачуу

1. Бүктөлгөн скутерди тегиз, туруктуу бетке коюңуз.
2. Gently pull the handlebar upwards until the main frame locks into place.
3. Unfold the seat and ensure it is securely positioned.
4. Extend the footrests if they are folded.

This video demonstrates the folding and unfolding process of the Mujocooker mobility scooter, highlighting its ease of transformation for storage and transport.

4.2 Рулдун бийиктигин тууралоо

1. Тез бошотуучу клапанды табыңызamp рулдун сабында.
2. cl ачыңызamp, adjust the handlebar to your desired height, and then securely close the clamp.

4.3 Батареяны туташтыруу

1. Ensure the battery is fully charged (see Section 6).
2. Батарея бөлүмүн, адатта отургучтун астына жайгаштырыңыз.
3. Insert the battery and ensure it clicks securely into place.
4. Turn the key to the 'ON' position to activate the scooter's power.

5. Скутерди башкаруу

5.1 Баштоо жана айдоо

1. Insert the key into the ignition and turn it to the 'ON' position. The display panel will light up.
2. To move forward, gently twist the right-hand throttle. The speed can be adjusted by how much you twist the throttle.
3. To engage reverse, press the 'D/R' button on the handlebar and then gently twist the throttle.

This video provides instructions on how to start the scooter, including inserting the key and engaging the power.

5.2 Тормоздоо

• To slow down or stop, release the throttle and gently squeeze the brake lever on the left handlebar.
• For parking, engage the brake buckle onto the brake lever to lock the wheels.

This video demonstrates the proper procedure for parking the scooter, including engaging the brake for stability.

5.3 Жарыктар жана сигнал

• The bright front LED headlight can be activated for visibility.
• Use the horn button to alert others when necessary.

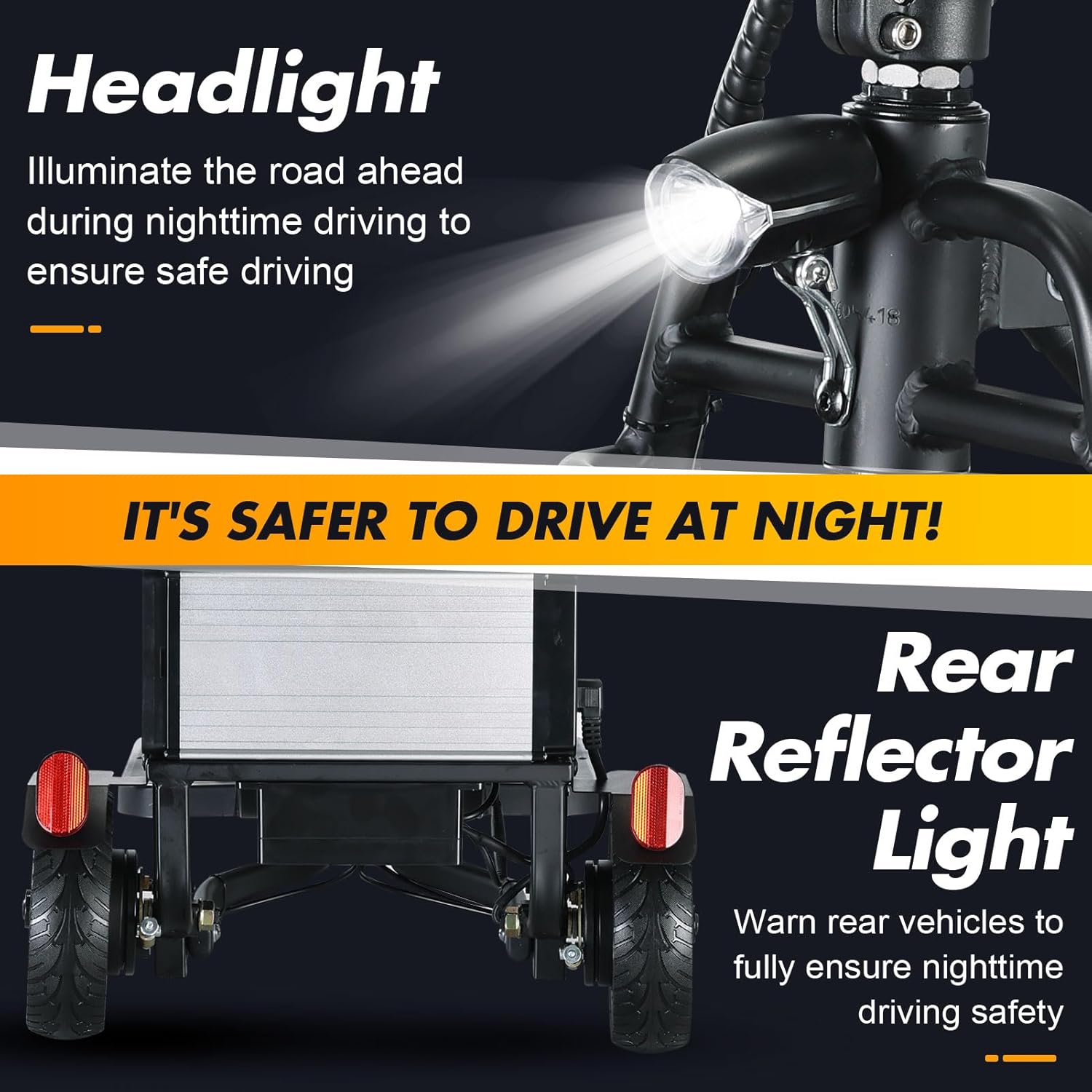

The scooter features a bright front LED headlight for visibility during nighttime driving and rear reflector lights to alert other vehicles, enhancing safety.

6. Battery Information & Charging

The scooter is equipped with two 8Ah anti-theft lithium batteries, offering long endurance and flexible charging options.

6.1 Батареяны алып салуу

1. Ensure the scooter is powered off and the key is removed.
2. Locate the battery lock and turn the key to the 'Unlock' position.
3. Grip the black handle on the battery and pull it outwards to remove.

This video illustrates the steps for safely removing the battery from the scooter for charging or replacement.

6.2 Батареяны заряддоо

• On-board Charging: Connect the charger directly to the charging port on the scooter.
• Off-board Charging: Remove the battery and connect the charger to the battery's charging port.
• The charger indicator light will be red during charging and turn green when fully charged. Charging time is approximately 4-5 hours.

This image details the battery charging steps and highlights features like maintenance-free operation and various protections (overcurrent, temperature, overcharge, short circuit).

7. Folding & Transport

The scooter's lightweight and compact design makes it ideal for travel.

7.1 Скутерди бүктөө

1. Ensure the scooter is powered off and the key is removed.
2. Follow the reverse steps of unfolding to collapse the scooter into its compact form.

The scooter's compact design allows for quick folding in approximately 3 seconds, making it lightweight and easy to store in a car trunk or transport for airline travel.

7.2 Ташуу

• The scooter weighs only 55 lbs, making it easy to lift and carry.
• Its compact folded size allows it to fit in most car trunks.
• The batteries are airline approved, making the scooter suitable for air travel.

8. Техникалык тейлөө

• Тазалоо: Скутерди дайыма жарнама менен сүртүп туруңузamp кездеме. Катуу химиялык заттарды колдонуудан алыс болуңуз.
• Шиналар: The scooter features solid explosion-proof rubber tires that require minimal maintenance. Periodically check for wear and tear.
• Батареяга кам көрүү: Store batteries in a cool, dry place. Charge regularly, even if not in frequent use, to prolong battery life.
• Сактагыч: When not in use, store the scooter in a dry, protected area. Use the provided dust-proof bag for added protection.

The scooter is shown covered with a dust-proof bag, illustrating protection against light and dust during storage.

9. Кыйынчылыктарды

If you encounter any issues with your scooter, please refer to the following common solutions:

• Скутер күйбөй жатат: Check if the battery is properly connected and charged. Ensure the key is fully turned to the 'ON' position.
• Иш учурунда электр энергиясын жоготуу: The battery may be low. Recharge the battery immediately.
• адаттан тыш үндөр: Stop the scooter immediately and inspect for any loose parts or obstructions. Contact customer support if the issue persists.
• Тормоз жооп бербейт: Check the brake cables and levers. Ensure they are not obstructed or damaged.

For further assistance, please contact Mujocooker customer support.

10. Техникалык шарттар

11. Кепилдик жана колдоо

Mujocooker provides Gold Standard Customer Support to all our customers.

• кадр: 1 жылдык кепилдик
• Motor & Joystick Controller: 1 жылдык кепилдик
• Батарея: 3 айлык кепилдик

If you encounter any issues with your mobility scooter, please reach out to us promptly for assistance. Our professional customer team is available to solve problems within 365 days after signing for your product.
