Introduction

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Honeywell 14,000 BTU Portable Air Conditioner. This versatile 3-in-1 unit offers cooling, dehumidification, and fan functions for rooms up to 700 square feet. Please read this manual thoroughly before using the appliance.

Figure 1: Honeywell 14,000 BTU Portable Air Conditioner, front view.

Коопсуздук маалыматы

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This unit features thermal overload protection for enhanced safety. Ensure the unit is placed on a stable, level surface and that the power supply matches the unit's requirements (115V).

• Аппаратты бузулган шнур же сайгыч менен иштетпеңиз.
• Аба тешиктерин жаап албаңыз.
• Иштеп жаткан учурда балдарды жана үй жаныбарларын аппараттан алыс кармаңыз.
• Тазалоо же тейлөө алдында блокту электр розеткасынан ажыратыңыз.

Figure 2: The portable air conditioner positioned in a living room environment.

Продукт өзгөчөлүктөрү

• 3-ин-1 Функциясы: Cools, dehumidifies, and circulates air with a fan.
• Муздатуу кубаттуулугу: 14,000 BTU (ASHRAE-128 Standard) / 9,000 BTU (SACC BTU), suitable for rooms up to 700 sq. ft.
• Auto Evaporation System: Eliminates the need for manual draining in cooling mode, except in high humidity conditions.
• Ным кургаткыч: Removes up to 51 pints of moisture every 24 hours with a continuous drain option.
• Digital Controls & Remote: Easy-to-use digital display with 3 fan speeds, 24-hour timer, and full-function remote control (batteries included).
• Кир жуугуч чыпка: Designed for easy cleaning to maintain performance and extend unit life.
• Көчүрүү мүмкүнчүлүгү: Smooth-gliding wheels allow for easy movement between rooms.

Figure 3: Illustration of the air conditioner's cooling and exhaust functions.

Орнотуу жана орнотуу

The Honeywell Portable Air Conditioner is designed for quick and easy installation. It comes with an essential window venting kit for exhausting hot air.

1. Пакеттен чыгаруу: Бирдикти жана бардык аксессуарларды таңгактан этияттык менен алып салыңыз.
2. Позициялоо: Place the unit on a flat, stable surface near a window and a power outlet. Ensure there is at least 20 inches of space around the unit for proper airflow.
3. Терезе комплектинин жыйындысы:
   • Assemble the window bracket adapter and exhaust hose connector.
   • Attach the exhaust hose to the unit and the window bracket.
   • Secure the window bracket in your window opening, ensuring a tight seal to prevent air leakage.
4. Кубат туташуу: Plug the unit into a grounded 115V electrical outlet.

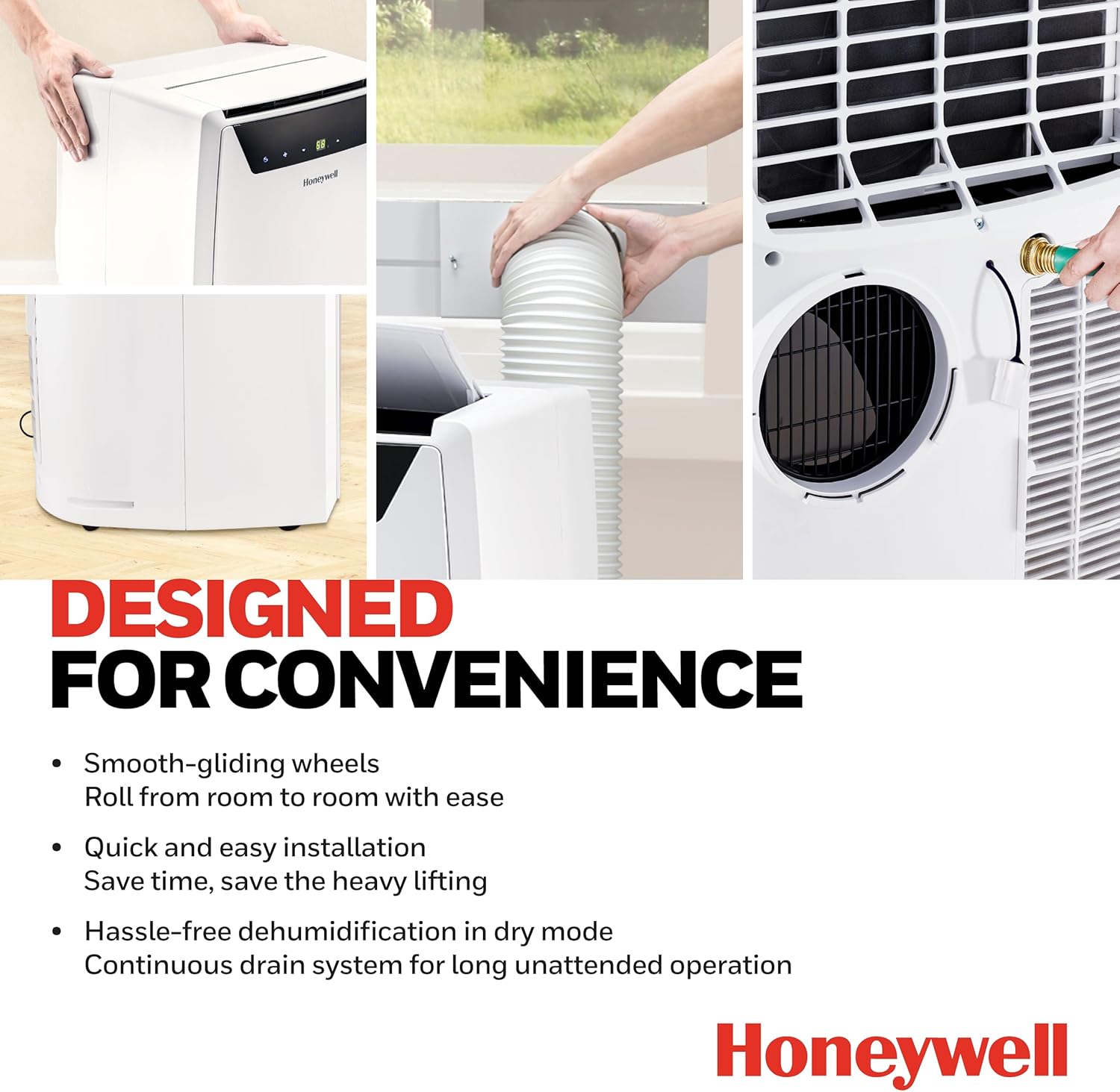

Figure 4: Key features for convenience, including smooth-gliding wheels and quick installation.

Орнотуу боюнча видео көрсөтмө

Иштөө нускамалары

Your portable air conditioner can be operated using the digital control panel on the unit or the included remote control.

Башкаруу панелиview

Figure 5: Close-up of the digital control panel with various settings.

• Кубат баскычы: Түзмөктү ON же ӨЧҮРҮҮ үчүн басыңыз.
• Режим баскычы: Муздатуу, нымдаштыруучу жана желдеткич режимдери аркылуу айланыңыз.
• Температураны жөндөө: Каалаган температураны коюу үчүн өйдө/төмөн жебелерди колдонуңуз.
• желдеткич ылдамдыгы: Select from 3 fan speeds (Low, Medium, High) to adjust airflow.
• Таймер: Set a 24-hour energy-saving timer for automatic ON/OFF operation.

Алыстан башкаруу

The full-function remote control allows you to conveniently operate all features from a distance.

Figure 6: The compact remote control for convenient operation.

Over Over Featuresview Video

Техникалык тейлөө

Үзгүлтүксүз тейлөө оптималдуу иштешин камсыз кылат жана кондиционериңиздин иштөө мөөнөтүн узартат.

• Фильтрди тазалоо: The unit features a washable filter. A "Filter Clean Alert" will indicate when cleaning is needed. Simply remove the filter and wash it under running water. Allow it to dry completely before reinserting.
• Дренаж: In cooling mode, the auto-evaporation system typically handles moisture. However, in high humidity, you may need to use the continuous drain option. Connect a drain hose (not included) to the continuous drain outlet for unattended operation.
• Сактагыч: Before storing the unit for an extended period, ensure all water is drained and the filter is clean and dry.

Figure 7: The washable filter can be easily cleaned under running water.

Проблемаларды чечүү

If you encounter issues with your unit, refer to the following common troubleshooting tips:

Техникалык шарттар

Сүрөт 8: пландаштыруу жайгаштыруу үчүн продукт өлчөмдөрү.

Кепилдик жана колдоо

This Honeywell Portable Air Conditioner comes with a 1 жылдык Чектелген Кепилдик. For warranty claims, technical support, or additional assistance, please refer to the contact information provided in the included warranty card or visit the official Honeywell support webсайт.

For a complete user guide, you can download the PDF version here: Колдонуучунун колдонмосу (PDF).
