Delmitan 3.7V Black USB Charger Adapter Cable for Sky Viper Drones - Instruction Manual

Introduction

This instruction manual provides essential information for the safe and effective use of your Delmitan 3.7V Black USB Charger Adapter Cable. This charger is specifically designed for 3.7V batteries used in Sky Viper drones and other compatible remote-controlled aircraft. Please read this manual thoroughly before first use and retain it for future reference.

Жайгашуу

Follow these steps to prepare your USB charger for use:

1. Компоненттерди аныктоо: Ensure you have the Delmitan 3.7V USB charger cable and the 3.7V battery from your Sky Viper drone or compatible RC device.
2. Кубат булагы: Connect the USB-A end of the charger cable to a compatible USB power source. This can be a computer's USB port, a USB wall adapter (5V output recommended), or a portable power bank. Ensure the power source provides stable 5V DC output.
3. Батарея туташуу: Locate the charging port on your drone's 3.7V battery. Carefully align the connector on the charger cable with the battery's port and push it in firmly until it clicks into place. Do not force the connection.

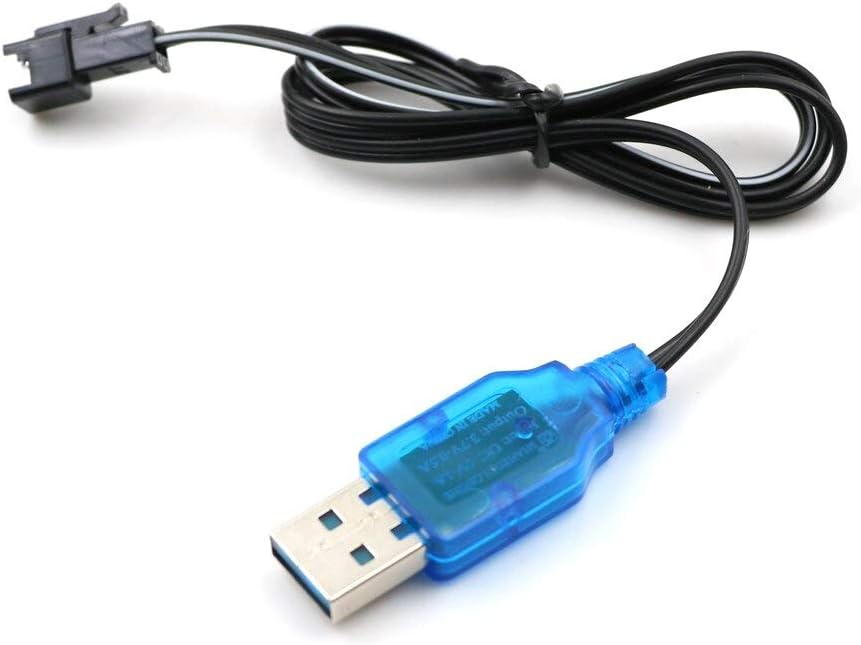

Сүрөт 1: The Delmitan 3.7V USB Charger Adapter Cable. The blue USB-A end connects to a power source, and the black two-pin connector attaches to the drone battery.

Иштөө нускамалары

Once connected, the charging process is straightforward:

1. Заряддоо көрсөткүчү: The charger typically features an LED indicator. When the battery is charging, the LED will illuminate (e.g., red). Once the battery is fully charged, the LED may change color (e.g., turn green) or turn off, depending on the specific charger model. Refer to your drone's battery manual for specific charging times and LED behavior if available.
2. Заряддоо убактысы: Charging times vary depending on the battery capacity and the output of your USB power source. Avoid overcharging by disconnecting the battery once the charging indicator signals completion.
3. Ажыратуу: Once charging is complete, carefully disconnect the charger cable from the battery by pulling on the connector housing, not the wires. Then, disconnect the USB-A end from the power source.

Сүрөт 2: Деталдаштырылган view of the charger cable, highlighting the USB-A connector and the battery plug. The blue housing of the USB-A connector may contain an LED indicator.

Техникалык тейлөө

Proper care will extend the life of your charger cable:

• Сактагыч: Store the charger cable in a cool, dry place away from direct sunlight and extreme temperatures.
• Тазалоо: If necessary, gently wipe the cable and connectors with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Текшерүү: Periodically inspect the cable for any signs of damage, such as frayed wires, bent pins, or cracked insulation. Discontinue use if any damage is observed.
• Колдонуу: Always pull on the connector housing when disconnecting, not the cable itself, to prevent damage to the wires and connections.

Проблемаларды чечүү

Эгер заряддагычыңыз менен көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:

Техникалык шарттар

Key technical details for the Delmitan 3.7V USB Charger Adapter Cable:

• Модель номери: TM2-Del-AL237-RC3-7
• Киргизүү: USB-A (5V DC)
• Чыгуу: 3.7V DC
• Туташтыргыч түрү: USB-A Male to 2-pin Battery Connector
• Кабель түрү: USB
• Түсү: Black cable with Blue USB housing
• Материал: Башка (өндүрүүчү боюнча)
• Шайкеш түзмөктөр: Sky Viper Drones and other 3.7V RC aircraft batteries
• Өндүрүүчү: Delmitan

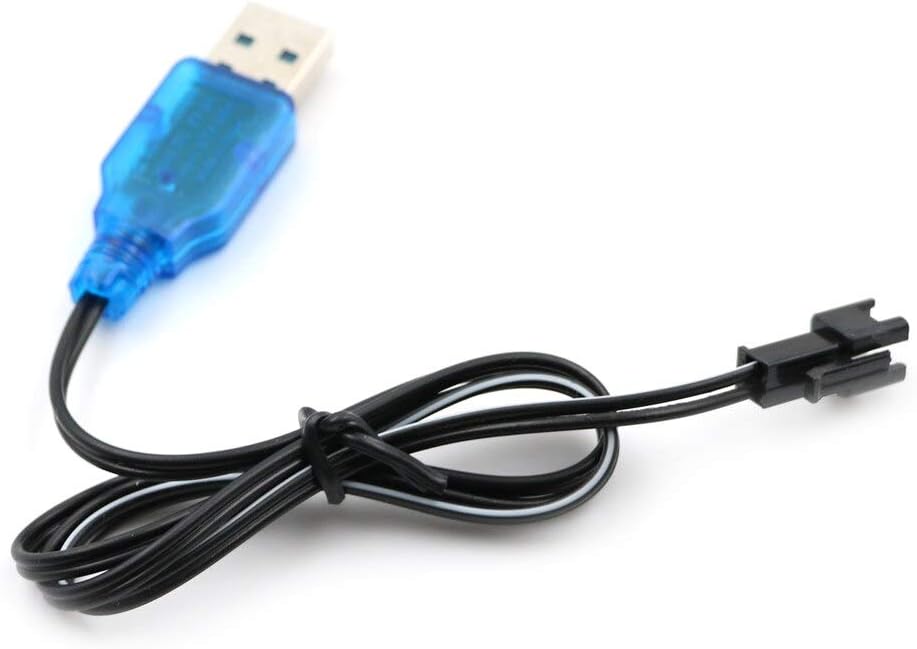

Сүрөт 3: The Delmitan USB charger cable laid out, showing its overall length and the distinct USB-A and battery connectors.

Кепилдик жана колдоо

For warranty information or technical support regarding your Delmitan 3.7V USB Charger Adapter Cable, please contact the manufacturer, Delmitan, directly through their official channels or the retailer from whom the product was purchased. Please retain your proof of purchase for warranty claims.
