Homdox Electric Pressure Washer H17 User Manual

1. Коопсуздук маалыматы

Please read and understand all safety warnings and instructions before operating the Homdox Electric Pressure Washer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Электр коопсуздугу: Always connect the pressure washer to a grounded outlet. Do not use with damaged cords or plugs. Keep all connections dry and off the ground.
• Суунун басымы: The high-pressure stream can cause serious injury. Never direct the spray at people, pets, or electrical devices.
• Жеке коргонуу каражаттары: Always wear safety glasses, hearing protection, and appropriate clothing when operating the pressure washer.
• Химиялык заттар: Use only pressure washer safe detergents. Follow detergent manufacturer's instructions for use and disposal.
• Туруктуулук: Чыгып кетпеш үчүн басымдуу жуугучту туруктуу, түз жерде иштетиңиз.
• Балдар жана үй жаныбарлары: Балдарды жана үй жаныбарларын операциядан алыс кармаңыз.
• Колдонуудан мурун: Inspect the unit for any damage before each use. Do not operate if damaged.

2. Пакеттин мазмуну

Verify that all items are present in the package before assembly and operation.

• Homdox Electric Pressure Washer Unit
• High-Pressure Hose (20 Feet)
• Spray Gun
• Adjustable Nozzles (5 types: 0°, 15°, 25°, 40°, Soap)
• Кир жуугуч резервуар
• Суу кирүүчү туташтыргычы
• User Manual

Image: The Homdox Electric Pressure Washer unit shown with its various components and accessories, including the spray gun, hose, and nozzles.

Сүрөт: деталдуу view of the five adjustable nozzles (0°, 15°, 25°, 40°, and soap nozzle) with descriptions of their uses.

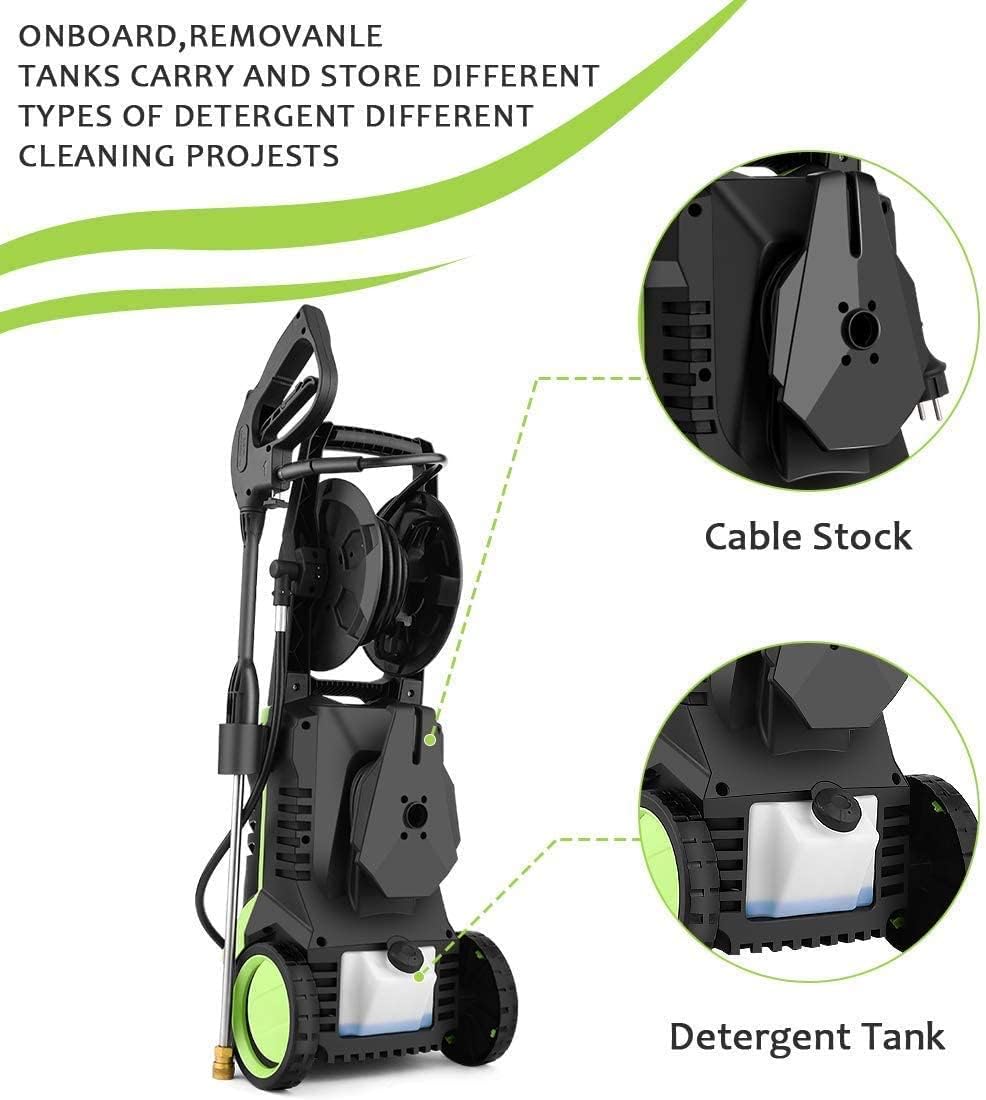

Image: Close-up of the pressure washer showing the onboard, removable detergent tank and the cable stock for organized storage.

3. Орнотуу

1. Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
2. Тутканы чогултуу: Эгерде туткасы алдын ала чогултулбаган болсо, аны негизги блокко бекитиңиз. Анын ордуна бекем орнотулганын текшериңиз.
3. Жогорку басымдагы шлангды туташтыруу:
   • Connect one end of the high-pressure hose to the outlet on the pressure washer unit. Tighten by hand.
   • Connect the other end of the high-pressure hose to the spray gun. Tighten by hand.
4. Суу менен камсыздоону туташтыруу:
   • Attach a standard garden hose (not included) to the water inlet connector on the pressure washer.
   • Connect the garden hose to a water faucet.
   • Turn on the water faucet completely. Ensure there are no leaks.
5. Туташуу кубаты: Plug the power cord into a grounded 120V AC electrical outlet. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI).

4. Иштөө нускамалары

1. Системадан абаны тазалоо: Before turning on the power, squeeze the trigger on the spray gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges.
2. Басымдагы жуугучту иштетиңиз: КҮЙГҮЗҮҮ/ӨЧҮРҮҮ которгучун "КҮЙГҮЗҮҮ" абалына буруңуз. Мотор иштей баштайт.
3. Чачты тандоо: Тазалоо ишиңизге ылайыктуу саптаманы тандаңыз.
   • 0° (Red) Pencil Nozzle: For stubborn grime and dirt. Use with extreme caution.
   • 15° (Yellow) Fan Nozzle: For stripping grease and hard surfaces.
   • 25° (Green) Rotating Nozzle: Good for cleaning wood, sidings, and fences.
   • 40° (White) Detergent Injection Nozzle: Low pressure spray, safe for windows and vehicles.
   • Самын форсункасы (кара): For liquid soap application.

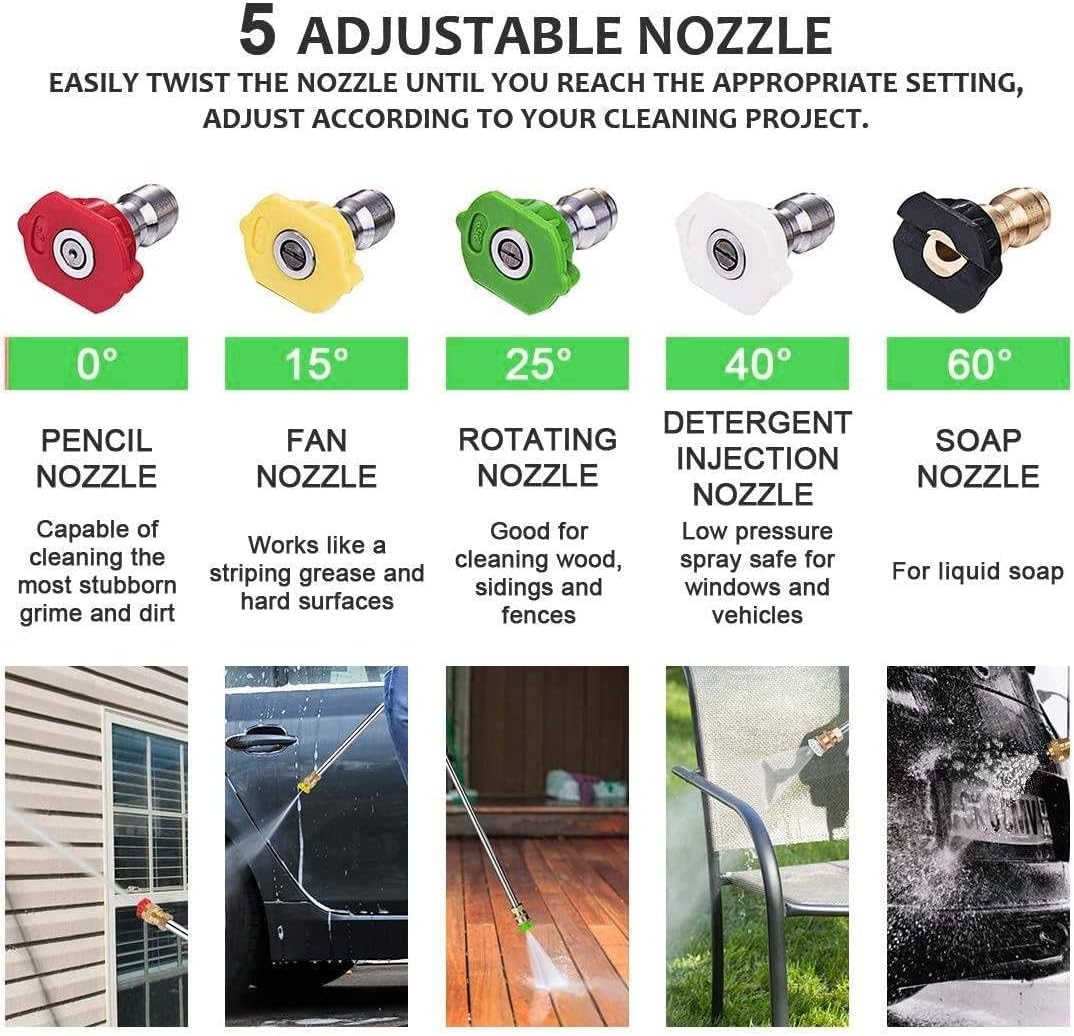

   Image: Visual guide to the five color-coded nozzles and their recommended applications for various cleaning tasks.

4. Соплолорду бекитүү: Pull back the collar on the spray gun, insert the desired nozzle, and release the collar to lock it in place. Tug on the nozzle to ensure it is secure.
5. Жуучу каражатты колдонуу (милдеттүү эмес): If using detergent, fill the detergent tank with pressure washer safe soap. Attach the black soap nozzle or 40° white nozzle. The pressure washer will automatically draw detergent when operating at low pressure.
6. Тазалоону баштоо: Hold the spray gun firmly with both hands. Start spraying from a safe distance (e.g., 12-18 inches) and move closer as needed, observing the surface for any damage. Maintain a consistent distance for even cleaning.
7. Операцияны токтотуу: Release the trigger to stop the water flow. Turn the ON/OFF switch to the "OFF" position. Turn off the water faucet. Squeeze the trigger to release any remaining pressure in the system.

Image: A collage showing the Homdox pressure washer being used for vehicle cleaning, patio cleaning, moss cleaning, watering plants, pet bathing, and debris cleaning.

Image: A person using the Homdox pressure washer to clean a car, demonstrating its application for vehicle maintenance.

5. Техникалык тейлөө

5.1 Ар бир колдонуудан кийин

• Rinse Detergent Tank: If detergent was used, rinse the detergent tank thoroughly with clean water to prevent clogging.
• Аюу системасы: Run clean water through the pressure washer for a few minutes with the spray gun trigger depressed to flush out any remaining detergent or debris.
• Ажыратуу: Turn off the pressure washer and water supply. Disconnect the garden hose and high-pressure hose.
• Таза саптамалар: Remove nozzles and clean any blockages with the included nozzle cleaning tool or a thin wire.
• Өчүрүү: Жарнак менен блоктун сыртын сүртүңүзamp кездеме.

5.2 Сактоо

• Дренаждык суу: Ensure all water is drained from the pump, hoses, and spray gun to prevent freezing damage. Run the pump for a few seconds after disconnecting the water supply to expel excess water.
• Store in a Dry, Frost-Free Area: Store the pressure washer in an area where the temperature will not drop below freezing.
• Organize Hoses and Cords: Wrap the high-pressure hose and power cord neatly. The unit features a cable stock for organized storage.

6. Кыйынчылыктарды

7. Техникалык шарттар

8. Кепилдик жана колдоо

Homdox products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Homdox webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

For technical support, replacement parts, or service inquiries, please contact Homdox customer service through the contact information provided in your product documentation or on the official Homdox webсайт.
