Famidoc FDTH-V0-22 Baby Bath and Room Thermometer User Manual

Introduction

Thank you for choosing the Famidoc FDTH-V0-22 Baby Bath and Room Thermometer. This device is designed to provide accurate temperature readings for your baby's bath water and room environment, ensuring safety and comfort. Please read this manual thoroughly before use and retain it for future reference.

Продукт өзгөчөлүктөрү

• High & Low Temperature Alarm: Features a colored indicator light and LCD display to alert for unsuitable temperatures. A red light and "HOT" display indicate water that is too warm, while a blue light and "COLD" display indicate water that is too cool.
• Көп функциялуу колдонуу: Capable of measuring both water temperature during bath time and ambient room temperature when placed in the air.
• Оңой активдештирүү: No on/off button; the device activates automatically by shaking.
• Тез жана так окуулар: Provides updated temperature readings every 5 seconds in Fahrenheit on an easy-to-read LCD screen.
• Суу өткөрбөйт дизайн: Safely submersible in water for reliable bath temperature measurement.
• Автоматтык түрдө өчүрүү: Conserves battery life with a 30-minute automatic shut-off feature.
• Коопсуз жана бышык: Constructed from environmentally friendly materials with a smooth finish and a child-friendly duck shape.

Коопсуздук маалыматы

• Always test the water temperature with your hand before placing a baby in the bath, even after using the thermometer.
• Ensure the battery compartment is securely closed to maintain waterproofing.
• Do not allow children to play with the thermometer on hard surfaces, as impact may damage the device.
• Батареяларды балдар жетпеген жерде сактаңыз. Эгер жутуп алса, дароо медициналык жардамга кайрылыңыз.
• Түзмөктү өз алдынча бөлүктөргө бөлүүгө же оңдоого аракет кылбаңыз. Көйгөйлөр жаралса, кардарларды колдоо кызматына кайрылыңыз.

Жайгашуу

The Famidoc FDTH-V0-22 thermometer comes with a battery pre-installed. No initial setup is required other than activation.

1. Activate the Thermometer: Gently shake the thermometer in your hand. The LCD screen will illuminate and display the current temperature.

This image outlines the usage steps, including shaking the thermometer to activate it.

Иштөө нускамалары

Measuring Bath Water Temperature

1. Prepare the Bath: Ваннага сууну каалаган деңгээлге чейин толтуруңуз.
2. Stir Water: Stir the bath water to ensure an even temperature distribution.
3. Place Thermometer: Place the activated Famidoc FDTH-V0-22 thermometer into the bath water.
4. Температураны окуу: Wait approximately 1 minute for the reading on the LCD screen to stabilize. The thermometer will update the temperature every 5 seconds.
5. Check Alarms: Observe the colored indicator light and LCD display for temperature warnings:
   • Red Light / "HOT": Суу өтө ысык.
   • Blue Light / "COLD": Суу өтө муздак.
   • No Light / Stable Reading: Water temperature is suitable.

This image illustrates the thermometer's temperature warning system. It shows a baby in a bathtub with the yellow duck thermometer floating. Three digital displays indicate 'COLD' (32.0°C, blue light), 'Just Right' (37.0°C), and 'HOT' (39.0°C, red light), demonstrating how the thermometer alerts users to unsafe water temperatures.

Measuring Room Temperature

To measure room temperature, simply place the activated thermometer in the desired room. The LCD screen will display the ambient air temperature.

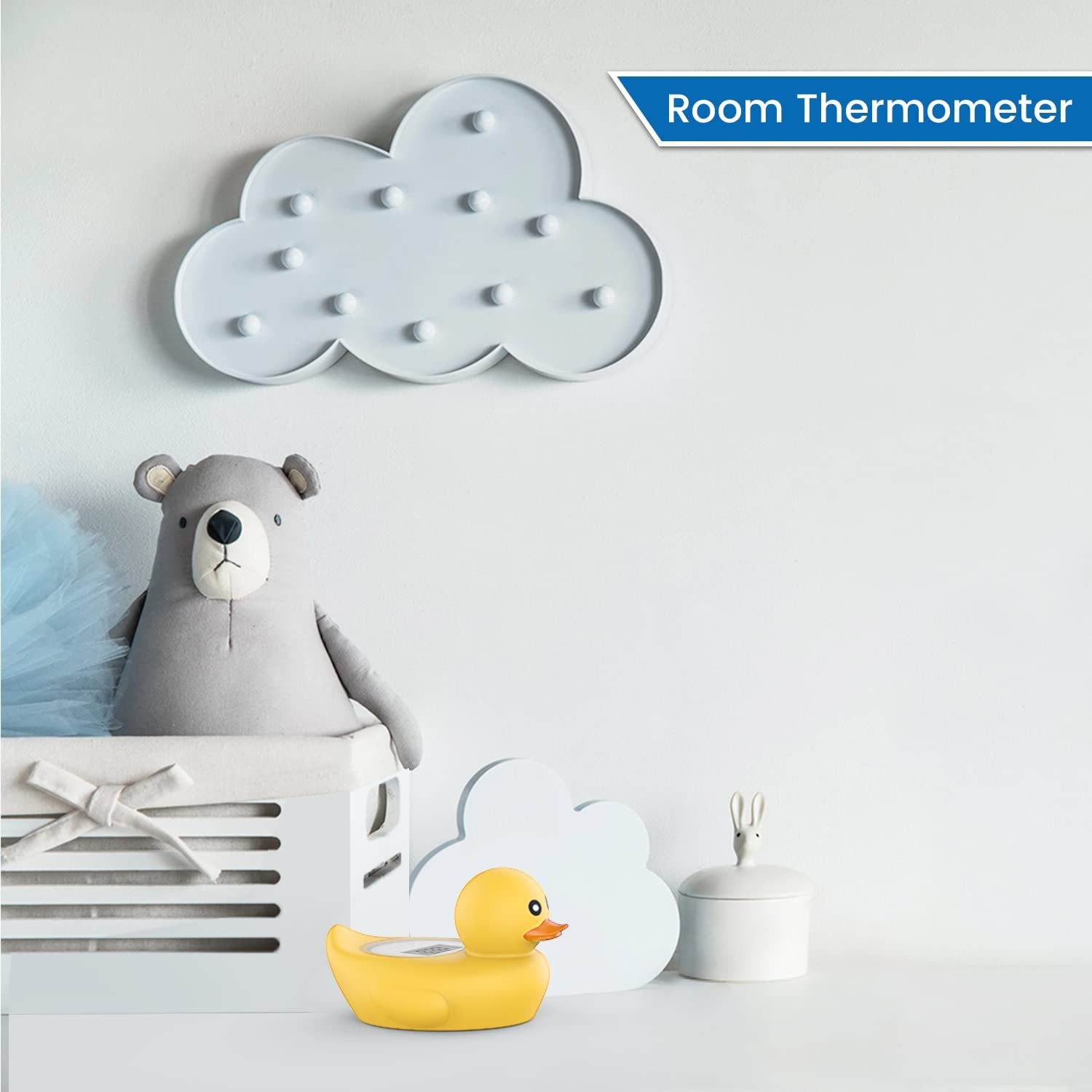

This image demonstrates the thermometer's dual functionality, showing it placed on a shelf in a baby's room, indicating its ability to measure ambient room temperature.

Техникалык тейлөө

Тазалоо

Термометрди жарнама менен тазалаңызamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.

Батареяны алмаштыруу

When the display becomes dim or the thermometer stops responding, it may be time to replace the battery.

1. Locate the battery compartment on the underside of the duck thermometer.
2. Carefully open the compartment using a coin or appropriate tool.
3. Эски батарейканы чыгарып, туура полярдуулукту камсыз кылуу менен жаңысын салыңыз.
4. Close the battery compartment securely to maintain the waterproof seal.

This image provides a visual guide to the thermometer's physical characteristics and details the process for replacing the battery.

Проблемаларды чечүү

• No Display / Device Not Activating: Ensure the thermometer has been shaken to activate. If the display remains blank, the battery may need replacement. Refer to the 'Battery Replacement' section.
• Туура эмес окуулар: Ensure the water is stirred thoroughly before taking a reading. Allow sufficient time (approximately 1 minute) for the temperature to stabilize. If issues persist, replace the battery.
• Суу агып кетиши: Check that the battery compartment cover is securely fastened and properly sealed. If leakage occurs, discontinue use and contact customer support.

Техникалык шарттар

Кепилдик жана колдоо

Specific warranty information for the Famidoc FDTH-V0-22 thermometer was not provided in the product data. For warranty details, technical support, or any inquiries regarding your product, please contact Famidoc customer service directly through their official webпродукт сатылып алынган сайт же сатуучу.

Сиз да зыярат кылсаңыз болот Famidoc Store on Amazon кошумча продукт маалымат жана колдоо ресурстар үчүн.
