CREWORKS 12x15 Inch Heat Press Machine 8-in-1 User Manual

1. Маанилүү коопсуздук нускамалары

Read all instructions carefully before operating this heat press machine. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Машинаны ар дайым туура том менен жерге туташтырылган электр розеткасына туташтырыңызtage (110 вольт).
• Машинаны ным колдор менен же дamp шарттар.
• Иш учурунда балдарды жана үй жаныбарларын машинадан алыс кармаңыз.
• The heating platen reaches high temperatures (up to 482°F / 250°C). Avoid direct contact with hot surfaces. Use the swing-away design to prevent accidental burns.
• Иш зонасында шайкеш желдетүүнү камсыз кылыңыз.
• Машина күйүп турганда же иштеп жатканда аны кароосуз калтырбаңыз.
• In case of malfunction or unusual noise, immediately turn off the power and unplug the machine.
• The machine is equipped with a built-in circuit breaker for electrical safety. Do not bypass or modify safety features.
• Only use attachments and accessories approved by CREWORKS.

2. Продукт бүтүп калдыview жана компоненттер

The CREWORKS 8-in-1 Heat Press Machine is designed for transferring designs onto various items. It features a 12x15 inch main platen and includes multiple attachments for diverse applications.

Image 2.1: The CREWORKS 8-in-1 Heat Press Machine shown with all included attachments, including various mug presses, plate presses, and a cap press.

Камтылган компоненттер:

• Main Heat Press Unit (12x15 inch platen)
• Cap Press Attachment
• Mug Press Attachments (9 oz., 11 oz., 12 oz., 17 oz.)
• Mug Press Holder
• Plate Press Attachments (5 inch, 6 inch)
• 2 T-shirts (one-size-fits-most)
• 4 Transfer Sheets

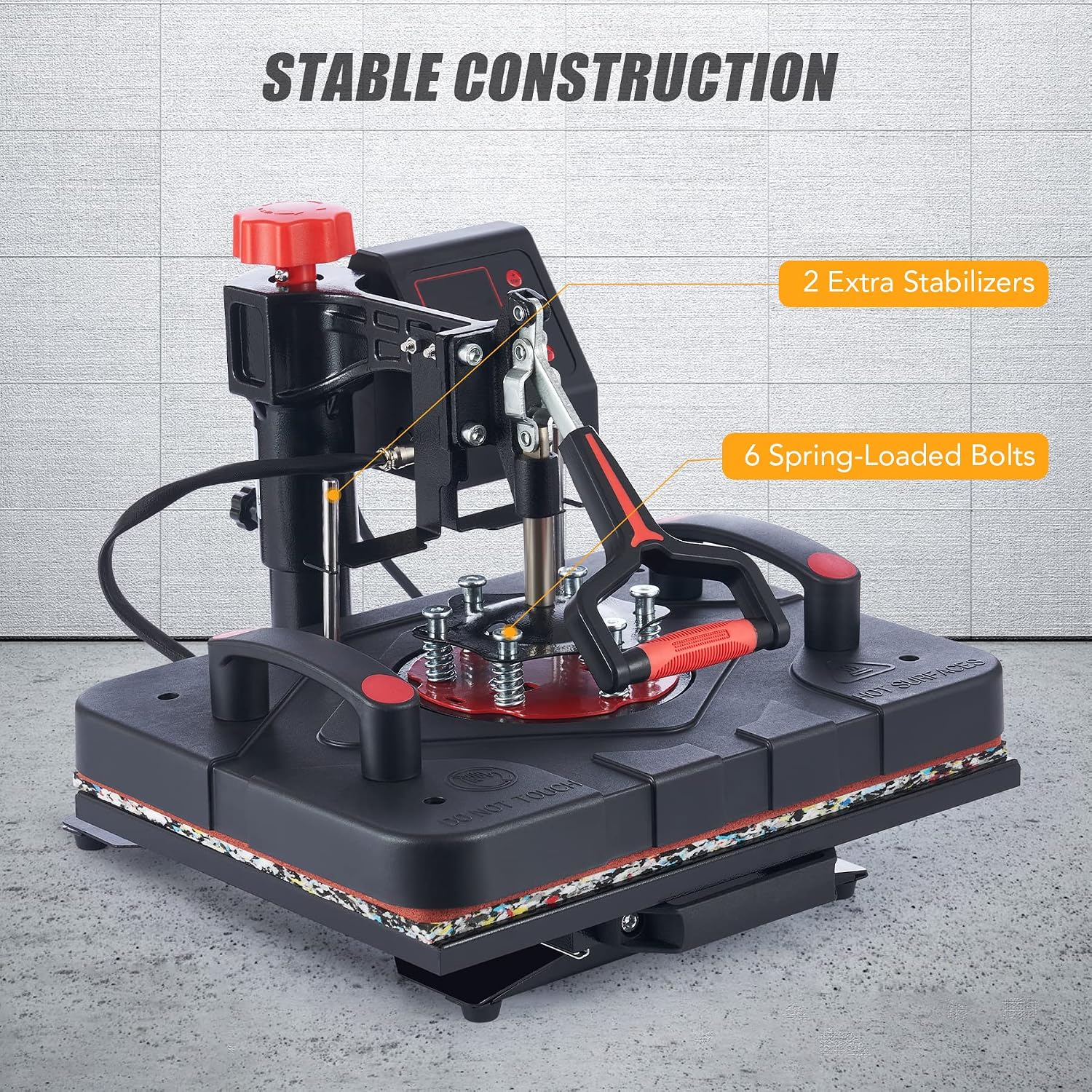

Сүрөт 2.2: Жакын пландан view of the machine's stable construction, highlighting the two extra stabilizers and six spring-loaded bolts that ensure even pressure distribution.

3. Орнотуу

Before first use, ensure all packaging materials are removed and the machine is placed on a stable, heat-resistant surface.

3.1 Алгачкы Ассамблея

1. Carefully remove the heat press from its packaging.
2. Place the main unit on a sturdy workbench or table.
3. Attach the desired press attachment (e.g., mug press, cap press) if not using the main platen. Refer to the specific attachment's instructions for secure installation.
4. Ensure all connections are secure and the power cord is not damaged.

3.2 Кубат туташтыруу

Plug the power cord into a standard 110V grounded electrical outlet. The machine is rated at 1000W.

4. Иштөө нускамалары

This section details the general operation of the heat press machine for various applications.

Image 4.1: A user demonstrating the operation of the heat press machine with a T-shirt, showcasing the 12x15 inch work area.

4.1 Башкаруу панелинин үстүнөview

The intelligent LCD control box allows for precise temperature and time settings.

Сүрөт 4.2: Детальдуу view of the LCD control box, displaying temperature, timer, and preset mode buttons.

• Температура диапазону: Макс. 482°F (250°C)
• Таймер диапазону: 0-999 seconds (16.7 minutes)
• Алдын ала коюлган режимдер: Three preset modes are available for common materials:
  • 302°F for Silicone Fiber Fabrics
  • 356°F for Cotton Clothing
  • 392°F for Ceramic Mugs & Plates

4.2 Негизги операция кадамдары

1. Күйгүзүү: Flip the main power switch to the 'ON' position.
2. Температураны жана убакытты коюу: Use the control panel to set the desired temperature and time according to your transfer material's requirements. You may use one of the preset modes or manually adjust.
3. Алдын ала ысытуу: Allow the platen to reach the set temperature. The LCD will indicate when the temperature is stable. The thick platen features a doubled heating element for faster and more even heating.
4. Элементти даярдоо: Place your item (e.g., T-shirt, mug, cap) on the appropriate platen or attachment. Position your design or transfer sheet on the item.
5. Позициялоо: Utilize the 360-degree swing-away feature to move the heating platen away from the lower platen for safe and easy placement of your item. The slide-out design also aids in positioning.


Image 4.3: The heat press demonstrating its 360-degree swing-away motion and the convenient slide-out lower platen for easy item placement.

6. Кысым колдонуу: Swing the heating platen back over the item. Lower the handle to apply pressure. Adjust the pressure knob on top of the machine to achieve the required pressure for your transfer.
7. Таймерди баштоо: Once pressure is applied, the timer will begin counting down.
8. Толук которуу: When the timer reaches zero, lift the handle and swing the heating platen away from the item. Carefully remove the transferred item.

4.3 Even Heating Technology

The machine incorporates a doubled tube design within the heating platen to ensure consistent and even heat distribution across the entire surface, which is crucial for flawless transfers.

Image 4.4: An internal diagram illustrating the doubled tube heating element design, ensuring uniform temperature across the platen for optimal transfer results.

4.4 Material Heat Resistance

The aluminum platen is coated with a temperature-resistant nylon fiberglass composite, enhancing safety and durability.

Image 4.5: A cross-section diagram detailing the heat-resistant casing of the platen, made from nylon and fiberglass composite, designed to withstand high temperatures.

5. Техникалык тейлөө

Тийиштүү техникалык тейлөө жылуулук пресс машинаңыздын узак мөөнөттүү иштешин жана оптималдуу иштешин камсыз кылат.

5.1 Тазалоо

• Тазалоодон мурун ар дайым машинаны розеткадан сууруп, аны толугу менен муздатыңыз.
• Сырткы беттерди жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• For the heating platen, use a non-abrasive cloth and a specialized platen cleaner if necessary. Ensure no residue is left behind.
• Clean the silicone pad on the lower platen regularly to remove any debris or adhesive residue.

5.2 Сактоо

When not in use, store the heat press machine in a dry, dust-free environment. Ensure the platen is in the open position to prevent prolonged compression of the silicone pad.

6. Кыйынчылыктарды

Бул бөлүмдө сиз иштөө учурунда кабылышы мүмкүн болгон жалпы маселелер каралат.

6.1 Тегиз эмес жылытуу

• Белги: Transfers appear inconsistent, with some areas lighter or darker than others.
• Мүмкүн болгон себеп: Insufficient preheating time, incorrect temperature setting, or uneven pressure.
• Чечим: Ensure the machine is fully preheated. Verify the temperature setting is appropriate for your material. Adjust the pressure knob to ensure even contact across the entire platen.

6.2 Attachments Not Functioning Correctly

• Белги: Specific attachments (e.g., cap press, mug press) do not heat or apply pressure effectively.
• Мүмкүн болгон себеп: Incorrect installation of the attachment, loose connections, or a faulty attachment.
• Чечим: Double-check that the attachment is securely installed and all electrical connections are firm. If the issue persists, contact customer support.

6.3 Slide Rail Issues

• Белги: The lower platen does not slide in and out smoothly or is stuck.
• Мүмкүн болгон себеп: Debris in the rail, damage to the rail mechanism, or lack of lubrication.
• Чечим: Inspect the slide rail for any obstructions and carefully remove them. If the rail appears damaged, discontinue use and contact customer support.

6.4 Machine Not Powering On

• Белги: The machine does not turn on when the power switch is flipped.
• Мүмкүн болгон себеп: No power from the outlet, tripped circuit breaker (either in the machine or your home), or a faulty power cord.
• Чечим: Check the power outlet with another device. Inspect the machine's circuit breaker (if accessible) and reset if tripped. Examine the power cord for damage. If the problem persists, contact customer support.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, technical support, or to inquire about replacement parts, please contact CREWORKS customer service directly. Refer to your purchase documentation for specific contact details or visit the official CREWORKS webсайт.
