zemismart Tuya Zigbee Rechargeable Roller Blind Motor (Model ZM25EL) User Manual

1. Киришүү

This manual provides comprehensive instructions for the installation, operation, and maintenance of your zemismart Tuya Zigbee Rechargeable Roller Blind Motor (Model ZM25EL). This motor is designed to automate roller blinds with 38mm tubes, offering smart control via the Tuya Smart Life app, remote control, and voice assistants. Please read this manual carefully before installation and use to ensure proper function and safety.

2. Продукциянын өзгөчөлүктөрү

• Integrated Tuya Zigbee Receiver: Converts normal blinds into smart, controllable devices.
• Шайкештик: Designed for 38mm (1-1/2 inch) roller blind tubes.
• Кайра заряддалуучу батарея: Features a built-in 3000mAh lithium battery for cordless operation.
• Бир нече башкаруу параметрлери: Supports Tuya Smart / Smart Life app control, RF433 remote control, and voice control via Alexa, Google Home, and Siri.
• USB заряддоо: Кадимки USB кабели аркылуу ыңгайлуу кубаттоо.
• Кошумча күн панели: Can be charged directly using an optional solar panel (sold separately).
• Таймер функциясы: Пардаларды автоматтык түрдө ачуу жана жабуу үчүн графиктерди орнотуңуз.

3. Орнотуу жана орнотуу

3.1 Пакеттин мазмуну

Баштоодон мурун, бардык компоненттердин бар экендигин текшериңиз:

• zemismart Tuya Zigbee Roller Blind Motor (ZM25EL)
• Crown жана Drive Set
• Орнотуу кашаа
• RF433 алыстан башкаруу
• USB заряддоо кабели
• Колдонуучунун Колдонмосу (бул документ)

3.2 Motor Components Overview

Сүрөт: деталдуу view of the motor components, highlighting the motor set key, battery power switch, and USB charging port.

3.3 Физикалык орнотуу

1. Prepare the Roller Blind Tube: Ensure your roller blind tube has an inner diameter of 38mm. The motor is designed to fit snugly inside.
2. Attach Crown and Drive Set: Slide the crown and drive set onto the motor shaft. These components ensure the motor properly engages with the blind tube.
3. Insert Motor into Tube: Carefully insert the motor assembly into the roller blind tube. Ensure it is fully seated and secure.
4. Сокур тоо: Install the roller blind assembly, including the motor, into your window frame using the provided mounting brackets. This motor supports interior mounting. The maximum recommended blind width for installation is 3 meters, and the maximum weight is 4kg.

Image: Illustration of the motor's dimensions and its fit within a 38mm tube, alongside mounting accessories.

3.4 Алгачкы заряддоо

Before first use, fully charge the motor's built-in 3000mAh lithium battery. Connect the provided USB charging cable to the motor's USB charging port and to a standard USB power adapter (not included). A full charge typically takes several hours.

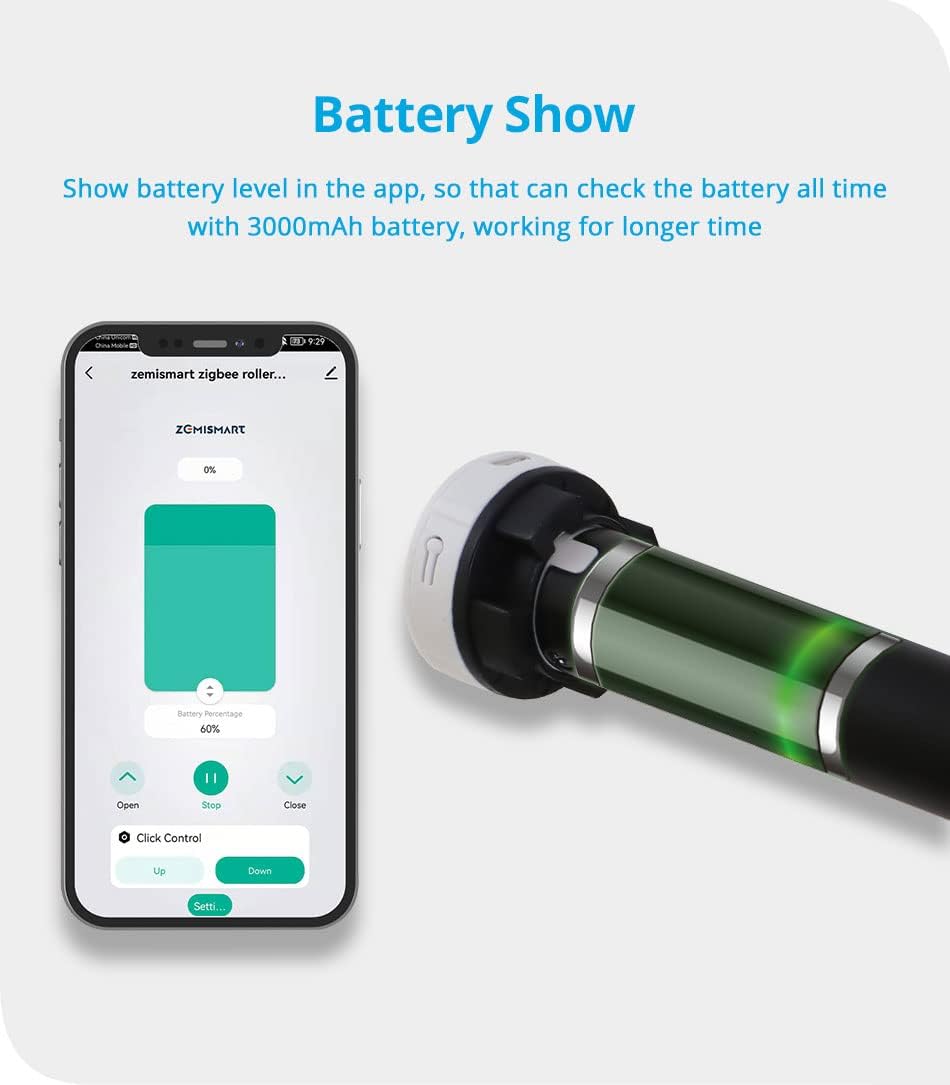

Image: The motor's battery level can be monitored via the app. The motor features a USB charging port for convenience.

An optional solar panel can be connected for continuous charging, reducing the need for manual USB charging.

4. Иштөө нускамалары

4.1 Tuya Zigbee Hub Requirement

This motor requires a Tuya Zigbee Gateway (hub) to function with the Tuya Smart / Smart Life app and for voice control integration. Ensure your Zigbee hub is set up and connected to your home network.

Image: A visual reminder that a Tuya Zigbee Hub is essential for smart functionality.

4.2 Колдонмону башкаруу (Tuya Smart / Smart Life)

1. Колдонмону жүктөп алуу: Смартфонуңуздун колдонмолор дүкөнүнөн "Tuya Smart" же "Smart Life" тиркемесин жүктөп алыңыз.
2. Түзмөк кошуу: Open the app, log in, and follow the instructions to add a new device. Select 'Curtain Motor' or similar, and ensure your Zigbee hub is detected.
3. Жупташтыруу: Follow the app's instructions to put the motor into pairing mode (usually by pressing a button on the motor or remote).
4. Негизги операция: Once paired, you can use the app to open, close, or stop the blinds at any position.
5. Чектөөлөрдү коюу: Use the app's settings to define the upper and lower limits for your blinds. This ensures the motor stops precisely at the desired open and closed positions.
6. Пландаштыруу: Create schedules within the app to automate the opening and closing of your blinds at specific times.

Image: The Tuya Smart Life app interface demonstrating control over the roller blind, including open, stop, and close functions.

Сүрөт: Мисample of setting schedules in the app for automatic blind operation at specific times, such as 7:00 AM and 4:00 PM.

4.3 RF433 алыстан башкаруу

The included RF433 remote control provides direct and convenient operation of your blinds.

• Жупташтыруу пульту: Refer to the motor's specific pairing instructions (usually a combination of button presses on the motor and remote) to link the remote control.
• Баскычтар: The remote typically features 'Up', 'Down', and 'Stop' buttons for basic control.
• Көп каналдуу башкаруу: Some remotes support multiple channels, allowing control of several motors individually or in groups. One remote can control up to 50 motors.

Image: A user operating roller blinds with the RF remote control, showing simple and direct control.

4.4 Voice Control (Alexa, Google Home, Siri)

Once the motor is integrated with your Tuya Zigbee hub and linked to your smart home platform (Alexa, Google Home, or Apple HomeKit via Siri), you can use voice commands.

• Аккаунттарды байланыштыруу: In the Alexa, Google Home, or Apple Home app, link your Tuya Smart / Smart Life account.
• Түзмөктөрдү табуу: Үн жардамчыңыздан жаңы түзмөктөрдү табууну сураныңыз.
• Үн буйруктары: Мындай буйруктарды колдонуңуз:
  • "Алекса, жалюзилерди ач."
  • "Эй, Google, конок бөлмөнүн жалюзилерин жап."
  • "Hey Siri, set the bedroom blinds to 50%."

Image: Diagram illustrating the connectivity for voice control, showing the motor, Zigbee hub, router, and smart speakers (Amazon Echo, Google Home).

Image: An integrated smart home environment where blinds are controlled via voice assistants and a smartphone app.

5. Техникалык тейлөө

5.1 Батареяны заряддоо

Regularly check the battery level via the Tuya Smart / Smart Life app. Recharge the motor using the USB cable when the battery is low. If using an optional solar panel, ensure it is clean and positioned to receive adequate sunlight for optimal charging.

5.2 Тазалоо

The motor itself requires minimal cleaning. If necessary, use a soft, dry cloth to wipe the exterior. For the roller blind fabric, follow the manufacturer's instructions, typically involving spot cleaning.

6. Кыйынчылыктарды

• Мотор жооп бербейт:
  • Батареянын деңгээлин текшерип, керек болсо кайра заряддаңыз.
  • Ensure the RF remote control has working batteries.
  • Verify the motor is properly paired with the remote and the Zigbee hub.
• Колдонмонун туташуу маселелери:
  • Ensure your Tuya Zigbee hub is powered on and connected to your home Wi-Fi network.
  • Интернет байланышыңызды текшериңиз.
  • Restart the Tuya Smart / Smart Life app.
  • If issues persist, try re-pairing the motor with the Zigbee hub.
• Үн менен башкаруу иштебей жатат:
  • Confirm that your Tuya Smart / Smart Life account is correctly linked to Alexa, Google Home, or Apple Home.
  • Үн жардамчы түзмөгүңүздүн онлайн режиминде жана иштеп жатканын текшериңиз.
  • Үн жардамчысы колдонмоңуз аркылуу түзмөктөрдү кайра таап көрүңүз.
• Limits Not Set Correctly:
  • Access the motor settings in the Tuya Smart / Smart Life app and re-calibrate the upper and lower limits.

7. Техникалык шарттар

Image: Detailed product parameters including physical dimensions and technical specifications of the motor and accessories.

8. Кепилдик жана колдоо

For warranty information and technical support, please refer to the zemismart official webсайтка же сатуучуга кайрылыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
