1. Киришүү
Thank you for choosing the VICLLAX Outdoor Cordless Roller Shade. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new roller shade. Please read these instructions carefully before use and retain them for future reference.
This outdoor roller shade is designed to provide privacy and sun protection for your porch, gazebo, or patio. Constructed from durable 200 GSM HDPE material, it offers up to 95% UV block, helping to keep your space cooler in summer. The weather-resistant fabric and components are designed to resist fading, ensuring longevity.

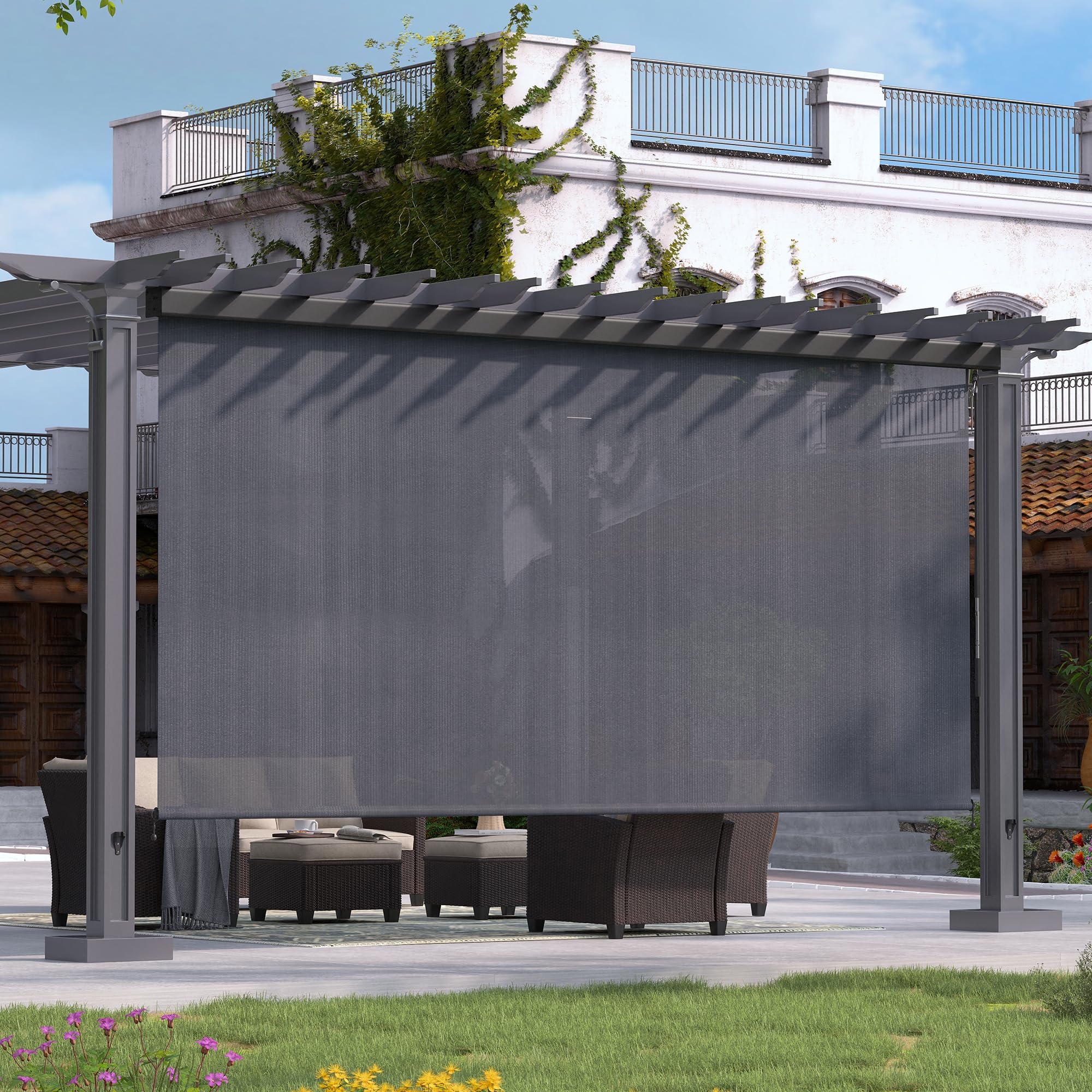

Figure 1: VICLLAX Outdoor Cordless Roller Shade (Anthracite Grey)
2. Коопсуздук маалыматы
- Always ensure the shade is securely mounted according to the instructions to prevent accidental detachment.
- Keep children and pets away from the shade during operation to prevent entanglement or injury.
- Do not attempt to operate the shade if any parts are damaged or missing. Contact customer support for assistance.
- In strong winds, it is recommended to retract the shade to prevent damage.
- Use appropriate tools and safety gear during installation. If unsure, seek professional assistance.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Roller Shade Assembly with Aluminum Valance
- Mounting Brackets (for wall or ceiling mounting)
- Crank Wand (47.2 inches)
- Bungee System (for securing the bottom rail)
- Монтаждоочу жабдуулар (буроолор, анкерлер)
- Колдонуучунун Колдонмосу (бул документ)
Figure 2: Included components: Brackets, Crank, and Bungee System.
4. Орнотуу жана орнотуу
The VICLLAX Outdoor Roller Shade offers versatile installation options, suitable for both wall-mounting and ceiling-mounting. The clutch mechanism can be optionally placed on either the left or right side to suit your preference.
4.1 Choosing Mounting Location
Determine whether to mount the shade on a wall or ceiling. Ensure the mounting surface is sturdy enough to support the weight of the shade.
4.2 Кронштейндерди орнотуу
Position the mounting brackets at the desired location, ensuring they are level and spaced correctly for your shade's width. Mark the drill points and secure the brackets using the provided hardware. For wall mounting, ensure adequate clearance for the shade to operate freely.
Figure 3: Illustration of Wall Mount and Ceiling Mount options.
4.3 Installing the Shade
Once the brackets are secure, carefully lift the roller shade assembly and snap it into place on the brackets. Ensure the valance is properly aligned and secured. The robust full 3-sided aluminum valance protects the shade fabric when retracted.
4.4 Attaching the Crank Wand
Attach the crank wand to the clutch mechanism on the side you prefer. The clutch can be positioned on either the left or right side of the shade.
Figure 4: The lifting crank wand for manual operation.
4.5 Орнотуу боюнча видео колдонмо
For a visual guide on the installation process, please refer to the following video:
Video 1: Installation guide for the VICLLAX Outdoor Roller Shade. This video demonstrates the steps to assemble and mount the shade.
5. Иштөө нускамалары
5.1 Raising and Lowering the Shade
To raise or lower the shade, insert the hook of the crank wand into the loop on the clutch mechanism. Rotate the crank wand clockwise to lower the shade and counter-clockwise to raise it. Adjust the shade to your desired height.
5.2 Securing the Shade with Bungee System
The shade is equipped with a bungee system to keep it in a fixed position, especially during mild to moderate wind conditions. Once the shade is lowered to the desired position, attach the bungee cords from the bottom rail to suitable anchor points on your patio or gazebo structure. This prevents the shade from swaying excessively.
Figure 5: The bungee system helps secure the shade in place.
6. Техникалык тейлөө
- Тазалоо: The HDPE material is easy to clean. Use a soft brush or cloth with mild soap and water to remove dirt and debris. Rinse thoroughly and allow to air dry completely before retracting.
- Текшерүү: Periodically inspect the mounting hardware, fabric, and operating mechanism for any signs of wear or damage.
- Кышкы сактоо: For prolonged periods of non-use or during harsh winter conditions, it is recommended to remove the shade and store it indoors to extend its lifespan. The easy-to-remove brackets facilitate this process.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Shade does not roll up/down smoothly. | Obstruction in the mechanism or misaligned fabric. | Check for any debris or obstructions. Ensure the fabric is rolling evenly. Re-check bracket alignment. |
| Shade sways excessively in wind. | Bungee system not properly secured or strong winds. | Ensure bungee cords are firmly attached to anchor points. Retract shade in strong wind conditions. |
| Bottom rod end caps come loose. | Wear and tear or improper fit. | Re-secure the end caps. If they continue to come loose, contact customer support for replacement parts. |
8. Техникалык шарттар
- Модель номери: VSR0708BL
- Материал: Жогорку тыгыздыктагы полиэтилен (HDPE)
- UV Block: 95% чейин
- Продукциянын өлчөмдөрү: 96"L x 84"W (7' W x 8' L)
- Түсү: Антрацит боз
- Иштөө режими: Manual (Crank Wand)
- Crank Wand Length: 47.2 дюйм
- Монтаж түрү: Outside Mount (Wall or Ceiling)
- Кошумча өзгөчөлүктөр: UV Protection, Weather Resistant, Aluminum Valance
- Камтылган компоненттер: Монтаждоо жабдыктары, Колдонуучунун колдонмосу
Figure 6: Detailed size chart for different shade variants.
9. Кепилдик жана колдоо
This VICLLAX Outdoor Cordless Roller Shade comes with a 2-year warranty. For warranty claims, technical support, or replacement parts, please contact VICLLAX customer service. Keep your purchase receipt as proof of purchase.
Өндүрүүчү: Vicllax
Кошумча жардам алуу үчүн, сураныч, баш багыңыз VICLLAX Store on Amazon.
