Einhell TE-MA 1700 Wall Chaser Instruction Manual

1. Киришүү

The Einhell TE-MA 1700 wall chaser is designed for cutting horizontal and vertical grooves and channels in masonry, primarily for laying pipes and cables. This tool facilitates precise cutting operations on hard materials, offering an efficient alternative to manual methods. Its 1700 W motor drives two parallel cutting discs, enabling accurate groove creation. The tool features continuous adjustment of cutting depth and individual width adjustment for various groove sizes. Safety features include soft start and overload protection. A guide roller and auxiliary handle provide a secure grip for controlled use. The spindle lock system simplifies disc changes. An adapter is included for connecting a wet/dry vacuum cleaner to reduce dust during operation. The 4-meter power cable provides a flexible working range. The product is supplied with a transport case and four diamond cutting discs.

2. Коопсуздук нускамалары

Always observe general safety regulations when operating power tools. Read and understand all instructions before use. Keep this manual for future reference.

• Жеке коргонуу каражаттары: Always wear safety goggles, hearing protection, a dust mask, and work gloves when operating the wall chaser.
• Иш чөйрөсү: Ensure the work area is clean, well-lit, and free from obstructions. Keep bystanders and children away.
• Электр коопсуздугу: Ensure the power supply matches the tool's specifications. Do not use the tool in damp or wet conditions. Avoid damaging the power cable.
• Курал менен иштөө: Maintain a firm grip on the tool with both hands. Do not overreach. Ensure stable footing.
• Диск коопсуздугу: Only use cutting discs specified for this tool. Ensure discs are correctly installed and tightened before operation. Inspect discs for damage before each use.
• Чаңды башкаруу: Connect a suitable dust extraction system to minimize dust exposure.
• Ашыкча жүктөн коргоо: The tool is equipped with overload protection. If the tool stops due to overload, release the trigger and allow it to cool before resuming operation.
• Жумшак баштоо: The soft start feature ensures a gradual increase in speed, reducing kickback and improving control.
• Тейлөө: Disconnect the tool from the power supply before making any adjustments, changing accessories, or performing maintenance.

3. Продукт бүтүп калдыview

Familiarize yourself with the components of your Einhell TE-MA 1700 Wall Chaser.

Сүрөт 3.1: Алдыңкы view of the Einhell TE-MA 1700 Wall Chaser.

Камтылган компоненттер:

• Einhell TE-MA 1700 Wall Chaser
• 1 Hex ачкыч
• 1 Transport Case

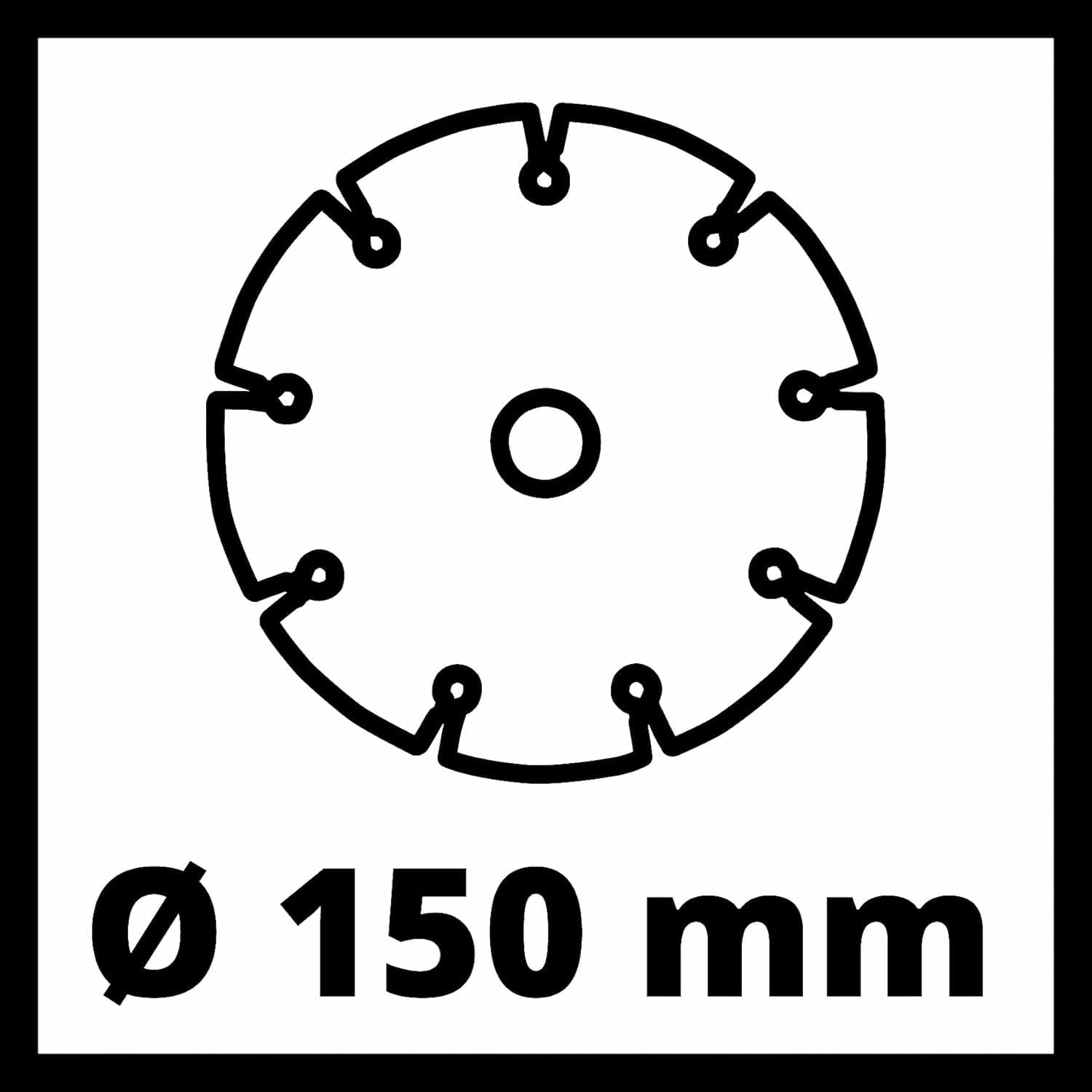

• 4 Diamond Cutting Discs (Ø 150 mm)

Figure 3.2: The wall chaser with its transport bag, diamond cutting discs, and hex key.

Негизги өзгөчөлүктөрү:

• Adjustable Cutting Depth: The cutting depth can be continuously adjusted up to 40 mm.
• Жөнгө салынуучу кесүү туурасы: The cutting width can be individually set up to 38 mm.
• Шпиндель кулпусу: Facilitates easy and secure changing of cutting discs.
• Dust Extraction Adapter: For connection to a vacuum cleaner to maintain a clean work environment.
• Жумшак баштоо: Ensures a smooth start-up of the motor.
• Ашыкча жүктөн коргоо: Protects the motor from damage due to excessive load.
• Guide Roller and Auxiliary Handle: Provide enhanced control and comfortable handling.

4. Орнотуу

4.1. Installing Cutting Discs

1. Ensure the tool is disconnected from the power supply.
2. Шпинделди бекитүү баскычын басып, кармап туруңуз.
3. Use the hex key to loosen the clamping nut and remove the outer flange.
4. Place the diamond cutting discs onto the spindle, ensuring the rotation direction arrows on the discs match the arrow on the tool. For two discs, place a spacer between them.
5. Reinstall the outer flange and tighten the clamping nut securely with the hex key while holding the spindle lock button.

Figure 4.1: Spindle lock button for disc changes.

4.2. Кесүү тереңдигин жөндөө

The cutting depth can be adjusted continuously to suit your application.

1. Тереңдикти жөндөө баскычын бошотуңуз.
2. Move the guide plate to the desired depth indicated on the scale (up to 40 mm).
3. Орнотууну бекитүү үчүн тереңдикти жөндөө баскычын бекем бураңыз.

Figure 4.2: Cutting depth adjustment mechanism.

4.3. Adjusting Cutting Width

The cutting width can be adjusted by adding or removing spacers between the cutting discs.

1. Follow the steps for installing cutting discs (Section 4.1).
2. Insert or remove spacers as needed to achieve the desired cutting width (up to 38 mm).
3. Ensure all components are securely tightened before operation.

4.4. Чаң чыгарууну туташтыруу

For a cleaner work environment and improved visibility, connect a wet/dry vacuum cleaner to the dust extraction adapter.

1. Attach the hose of a suitable wet/dry vacuum cleaner to the dust extraction port on the wall chaser.
2. Чаңдын агып кетишине жол бербөө үчүн туташуунун бекем экенине ынаныңыз.

Figure 4.3: Dust extraction connection.

5. Операция

5.1. Куралды ишке киргизүү

After ensuring all safety precautions are met and the setup is complete:

1. Куралды ылайыктуу электр розеткасына туташтырыңыз.
2. Куралды эки колуңуз менен бекем кармаңыз.
3. Press the ON/OFF switch. The soft start feature will gradually bring the discs to full speed.

5.2. Cutting Technique

The Einhell TE-MA 1700 is designed for a pulling cut motion.

1. Position the tool with the guide plate flat against the workpiece.
2. Engage the power switch.
3. Slowly guide the tool along the desired cutting line, pulling it towards you. Apply steady, even pressure.
4. Avoid forcing the tool, as this can trigger the overload protection.
5. For deeper channels, multiple passes may be required.
6. After cutting, the material between the two grooves can be removed using a hammer drill or chisel.

Figure 5.1: Proper operation of the wall chaser.

5.3. Working on Different Materials

This wall chaser is suitable for masonry materials. Always ensure the diamond cutting discs are appropriate for the specific material being cut.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and performance of your tool. Always disconnect the power plug before any maintenance work.

6.1. Тазалоо

• After each use, clean the tool thoroughly, especially the ventilation slots and the area around the cutting discs.
• Use a brush or compressed air to remove dust and debris. Do not use water or chemical cleaning agents.
• Чаң соргучтун тешиги бүтөлүп калбаганын текшериңиз.

6.2. Disc Replacement

Replace cutting discs when they become worn or damaged. Refer to Section 4.1 for disc installation instructions.

6.3. Сактоо

• Store the wall chaser in its transport case in a dry, secure place, out of reach of children.
• Ensure the tool is clean and free of debris before storage.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

This Einhell product comes with a limited or full warranty, as specified at the time of purchase. Spare parts are available for a period of 1 year.

For warranty claims, technical assistance, or spare parts, please contact Einhell customer support or your authorized dealer. Keep your proof of purchase for warranty validation.

For more information, visit the official Einhell webсайтына кириңиз же продуктуңуздун таңгагында берилген байланыш маалыматтарын караңыз.
