Toro Super Recycler Mower Blade Instruction Manual

1. Киришүү

This manual provides essential information for the proper installation, maintenance, and care of your new Toro Super Recycler Mower Blade, part number 133-8183-03. This blade is a direct replacement for part numbers 108-3762-03 жана 93-4106-03.

It is designed for use with the following Toro Super Recycler models:

• 20030, 20033, 20036, 20037, 20038, 20039, 20040, 20042, 20043, 20045, 20046, 20048
• 20053, 20054, 20055, 20056, 20057, 20058, 20062
• 20090, 20090С, 20091, 20091С, 20092, 20092С

2. Коопсуздук маалыматы

Always prioritize safety when working with lawn mower blades. Failure to follow these instructions may result in serious injury.

• Кубатты өчүрүү: Before performing any maintenance or installation, always ensure the spark plug wire is disconnected from the spark plug (for gasoline engines) or the power cord is unplugged (for electric mowers) to prevent accidental starting.
• Коргоочу шаймандарды кийүү: Бычак менен иштегенде ар дайым бекем кол кап жана көздү коргоочу каражат кийиңиз. Бычактар ​​курч жана кесилип кетиши мүмкүн.
• Туруктуу бети: Ensure the lawn mower is on a flat, stable surface and cannot tip over during blade removal or installation.
• Муздатууга уруксат берүү: If the mower has been recently operated, allow the engine and blade to cool down before handling.

3. Орнотуу жана орнотуу

Follow these steps carefully to replace your mower blade:

1. Чапкычты даярдаңыз: Disconnect the spark plug wire or unplug the power cord. Tilt the mower onto its side with the carburetor facing upwards to prevent fuel leakage.
2. Бычакты бекемдеңиз: Use a block of wood or a specialized blade removal tool to prevent the old blade from turning while you loosen the retaining bolt.
3. Эски бычакты алып салуу: Using a wrench, loosen and remove the blade retaining bolt(s). Carefully remove the old blade, noting its orientation.
4. Компоненттерди текшерүү: Check the blade adapter, washers, and bolt for any damage or wear. Replace if necessary.
5. New Blade орнотуу: Position the new 133-8183-03 blade onto the blade adapter, ensuring the cutting edges face the correct direction (typically towards the deck). The blade should be installed with the curved ends pointing upwards towards the mower deck, creating lift for effective cutting and bagging.
6. Secure New Blade: Reinstall the retaining bolt(s) and washers. Use a torque wrench to tighten the bolt(s) to the manufacturer's specified torque (refer to your mower's specific manual for exact torque specifications). Ensure the blade is centered and securely fastened.
7. Акыркы текшерүү: Rotate the blade by hand to ensure it spins freely and does not wobble. Reconnect the spark plug wire or plug in the power cord.

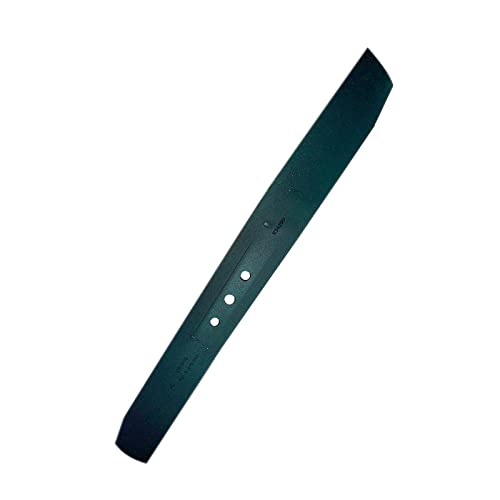

Үстүбүздөгү чыгым view of the Toro 133-8183-03 mower blade, showing its elongated shape, cutting edges, and the three central mounting holes. This image illustrates the general appearance of the replacement blade.

4. Техникалык тейлөө

Regular maintenance of your mower blade ensures optimal cutting performance and extends its lifespan.

• Текшерүү: Ар бир колдонгондон кийин, бычактын тытылган жерлери, ийилген жерлери же ашыкча эскирген жерлери бар-жогун текшериңиз. Өңү жок же бузулган бычак тегиз эмес кесүүгө алып келип, чөп чапкычтын кыймылдаткычына күч келтириши мүмкүн.
• Курчтоо: Sharpen the blade regularly, or have it professionally sharpened, to maintain a keen cutting edge. Ensure the blade remains balanced after sharpening to prevent vibration.
• Тазалоо: Clean grass clippings and debris from the blade and underside of the mower deck after each use. This prevents rust and maintains airflow for effective mulching or bagging.
• Сактагыч: Эгерде чөп чапкычты узак убакытка сактап койсоңуз, дат баспоо үчүн бычагын тазалап, бир аз майлаңыз.

5. Кыйынчылыктарды

Эгерде сиз бычакты орноткондон кийин көйгөйлөргө туш болсоңуз, төмөнкүлөрдү карап көрүңүз:

• Тегиз эмес кесүү: This often indicates a dull or bent blade, or an improperly installed blade. Inspect the blade for damage and ensure it is securely and correctly mounted.
• Ашыкча титирөө: A vibrating mower can be caused by an unbalanced blade (due to uneven sharpening or damage) or a loose blade bolt. Re-check the blade's balance and ensure the bolt is torqued correctly.
• Начар мульчалоо/баштыкка салуу: Ensure the blade is installed with the correct orientation (curved ends pointing up) and is sharp. Excessive grass buildup under the deck can also impede performance.

6. Техникалык шарттар

7. Колдоо

For any questions regarding compatibility with your specific mower model or part numbers, please contact the seller or manufacturer for assistance. They will be able to provide further guidance as soon as possible.
