BLACK+DECKER GST2400-B5

BLACK+DECKER Twin Pole Garment Steamer

Model: GST2400-B5

1. Маанилүү коопсуздук нускамалары

Электр шаймандарын колдонууда өрт, электр тогуна урунуу жана жеке жаракат алуу коркунучун азайтуу үчүн негизги коопсуздук чараларын дайыма сактоо керек. Бул шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.

  • ар дайым камсыз кылуу voltagРейтингдин этикеткасындагы e негизги томго туура келетtagсиздин үйүңүздө.
  • Шайманды, электр шнурын же сууга же башка суюктукка чөмүлбөңүз.
  • Keep the steam nozzle away from your body and face during operation to prevent steam burns.
  • Use the provided heat-protective glove when handling the steam nozzle or fabric.
  • Шайманды колдонбогондо жана тазалоодон мурун электр розеткасынан сууруп алыңыз.
  • Шайманды шнур же вилка менен иштетпеңиз, же шайман иштебей калса же кандайдыр бир зыянга учураса.
  • Бул шайман тиричиликте гана колдонуу үчүн. Сыртта колдонбоңуз.
  • Шайманды ар дайым туруктуу, түз бетке койуңуз.
Heat-protective glove

Image 1.1: Heat-protective glove for safe handling during steaming.

2. Продукт бүтүп калдыview

Familiarize yourself with the components of your BLACK+DECKER Garment Steamer before use.

BLACK+DECKER Twin Pole Garment Steamer full view

Сүрөт 2.1: Толук view of the BLACK+DECKER Twin Pole Garment Steamer with all components assembled.

Компоненттери:

  1. Негизги блок: Contains the water tank, heating element, and control panel.
  2. Суу багы: Removable tank for filling water, with a 1.5L capacity.
  3. Twin Poles: Adjustable height poles to support the hanger and steam hose.
  4. Илгич: Provides a convenient place to hang garments during steaming.
  5. буу түтүгү: Flexible hose connecting the main unit to the steam nozzle.
  6. Буу соргуч: Бырыштарды кетирүү үчүн буу чыгарат.
  7. Control терүү: Used to select steam levels for different fabric types.
  8. Anti-Calc Knob: For descaling the appliance.
  9. Кездеме щетка: Attachment for removing lint and opening fabric weave for deeper steam penetration.
  10. Crease Clips: Used to hold fabric taut for sharper creases.
  11. Heat-Protective Glove: For hand protection during steaming.
  12. Press & Steam Board: Provides a flat surface for pressing and steaming.
Water tank and base of the steamer

Image 2.2: Close-up of the steamer's base and water tank, showing the 1.5L capacity markings.

Steam nozzle with steam vents

Image 2.3: The steam nozzle, designed for efficient steam distribution.

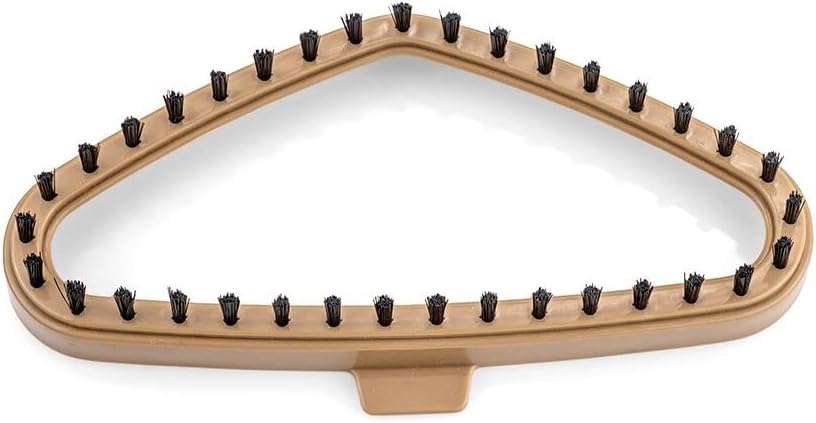

Кездеме щетка тиркемеси

Image 2.4: The fabric brush attachment, useful for thicker materials and lint removal.

Crease clips

Image 2.5: Crease clips for holding fabric taut to create sharp creases.

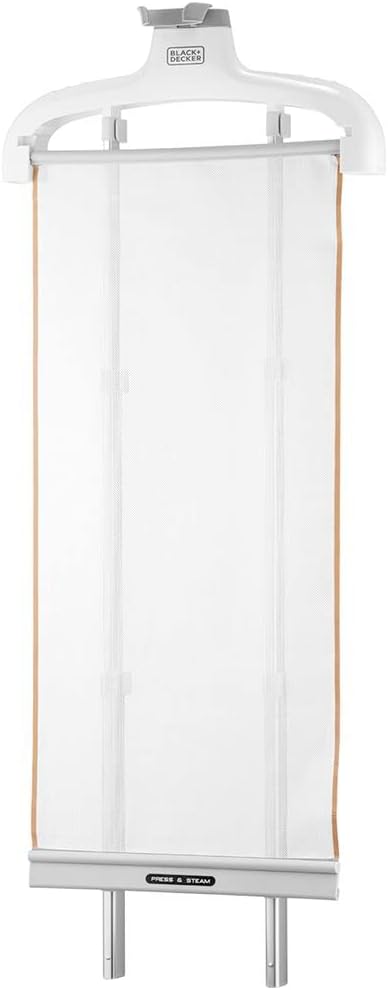

Press & Steam board

Image 2.6: The Press & Steam board, providing a stable surface for steaming.

3. Орнотуу

Follow these steps to assemble and prepare your garment steamer for first use.

  1. Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Келечекте сактоо же ташуу үчүн таңгактарды сактаңыз.
  2. Поляктарды чогултуу: Insert the twin poles into the designated slots on the main unit base. Ensure they are securely locked in place.
  3. Илгичти тиркөө: Slide the garment hanger onto the top of the twin poles. Adjust the pole height as needed for your garments.
  4. Буу түтүгүн туташтырыңыз: Securely attach the steam hose to the steam outlet on the main unit. Ensure a tight connection to prevent steam leakage.
  5. Сууну толтуруу: Remove the water tank from the main unit. Open the filler cap and fill the tank with distilled or demineralized water up to the 'MAX' line. Close the cap securely and place the tank back into the main unit.
Hand removing water tank from steamer base

Image 3.1: Removing the water tank for filling. Always use distilled water to prevent mineral buildup.

4. Иштөө нускамалары

Learn how to effectively use your garment steamer for various fabric types.

  1. Күйгүзүү: Plug the power cord into a suitable electrical outlet. Turn the control dial from 'OFF' to your desired fabric setting. The indicator light will illuminate.
  2. Жылытуу убактысы: Allow approximately 35 seconds for the steamer to heat up and produce steam.
  3. Steam деңгээлин тандоо: Rotate the control dial to select the appropriate steam level for your fabric type (e.g., Silk, Synthetic, Blends, Wool, Cotton, Linen).
Control dial with fabric settings

Image 4.1: The control dial allows selection of steam intensity based on fabric type.

  1. Буулоо кийимдери: Hang the garment on the provided hanger. Hold the steam nozzle a few inches away from the fabric and move it in a downward motion. For stubborn wrinkles, gently press the nozzle against the fabric.
  2. Тиркемелерди колдонуу:
    • Кездеме щетка: Attach the fabric brush to the steam nozzle for use on heavier fabrics like wool or denim. It helps to remove lint and penetrate steam deeper.
    • Crease Clips: Use the crease clips to hold pleats or trouser legs taut for a sharper finish.
    • Press & Steam Board: Utilize the integrated board for a more traditional pressing experience, especially for collars, cuffs, or hems.
  3. Өчүрүү: Once steaming is complete, turn the control dial to 'OFF' and unplug the appliance from the power outlet.

5. Техникалык тейлөө жана тазалоо

Үзгүлтүксүз тейлөө оптималдуу иштешин камсыздайт жана буу кайнаткычыңыздын иштөө мөөнөтүн узартат.

  1. Бош суу багы: After each use, allow the appliance to cool completely. Remove the water tank and empty any remaining water. This prevents mineral buildup.
  2. Какты тазалоо (Какка каршы функция): Periodically, depending on water hardness and usage, descaling may be required. Rotate the 'Anti-Calc' knob to the unlock position, drain the water, and follow the specific descaling instructions in the full manual (not provided here).
Anti-Calc knob on steamer base

Image 5.1: The Anti-Calc knob for descaling the unit, crucial for maintaining performance.

  1. Таза сырткы: Шаймандын сыртын жумшак менен сүртүңүз, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
  2. Сактагыч: Store the steamer in a cool, dry place. Ensure the water tank is empty before storage.

6. Кыйынчылыктарды

Жалпы маселелерди чечүү үчүн бул бөлүмдү караңыз.

КөйгөйМүмкүн себепЧечим
Буу жок же буу аз чыгатWater tank empty; appliance not heated; mineral buildup.Refill water tank; allow sufficient heat-up time; descale the appliance.
Water leakage from baseWater tank not properly seated; overfilled tank; hose not securely connected.Ensure water tank is correctly inserted; do not overfill; check hose connection.
Шайман күйбөй жататNot plugged in; power outlet fault; control dial not set.Check power connection; test outlet with another device; rotate control dial to a fabric setting.

7. Техникалык шарттар

Key technical details for the BLACK+DECKER Twin Pole Garment Steamer GST2400-B5.

  • Модель номери: GST2400-B5
  • Күч: 2400 Вт
  • Суу резервуарынын сыйымдуулугу: 1.5 литр
  • Жылытуу убактысы: Болжол менен 35 секунд
  • Үзгүлтүксүз буу убактысы: Up to 45 minutes (with full tank)
  • Продукциянын өлчөмдөрү: 28.7 x 45.7 x 167 см (L x W x Y)
  • Элемент Салмагы: 4.4 килограмм
  • Түсү: Ак
Dimensions of the BLACK+DECKER Garment Steamer

Image 7.1: Diagram illustrating the dimensions of the garment steamer.

8. Кепилдик жана колдоо

This BLACK+DECKER Garment Steamer GST2400-B5 comes with an International Warranty. For detailed warranty terms, conditions, and duration, please refer to the warranty card included with your product or contact BLACK+DECKER customer support in your region.

For technical assistance, spare parts, or service inquiries, please visit the official BLACK+DECKER website or contact their authorized service centers. Always provide your product model number (GST2400-B5) and purchase date when seeking support.

Өндүрүүчү: Black+Decker

© 2026 BLACK+DECKER. Бардык укуктар корголгон.
