YESHOMY 40-inch Electric Height Adjustable Standing Desk User Manual

1. Киришүү

Thank you for choosing the YESHOMY Electric Height Adjustable Standing Desk. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new desk. Designed for both home and office environments, this desk offers adjustable height settings to enhance your comfort and productivity.

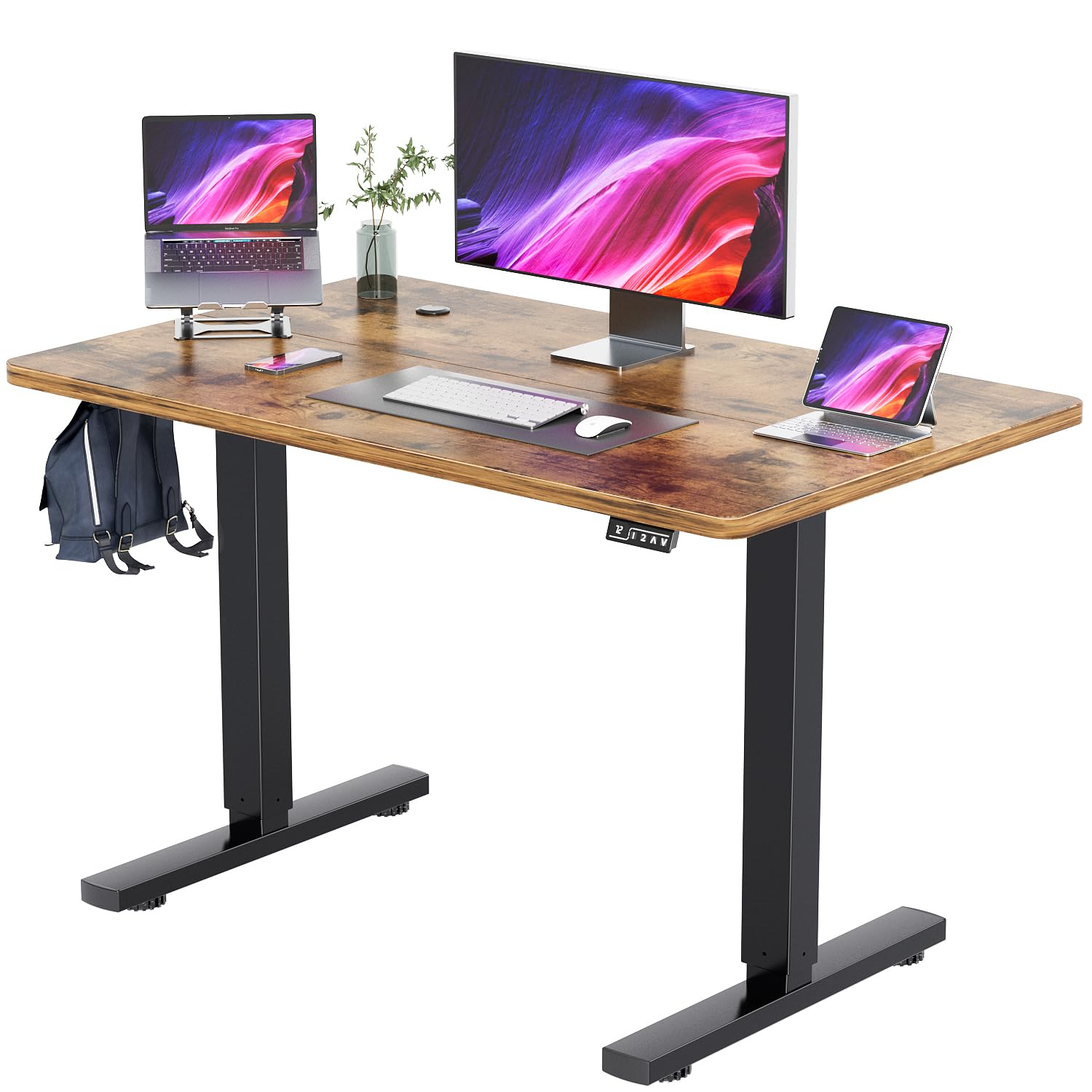

Figure 1: YESHOMY 40-inch Electric Height Adjustable Standing Desk.

2. Коопсуздук боюнча маанилүү маалымат

ЭСКЕРТҮҮ: Бул коопсуздук нускамаларын аткарбоо жаракатка же буюмдун бузулушуна алып келиши мүмкүн.

• This desk has a maximum weight recommendation of 180 lbs (81.6 kg). Do not exceed this weight limit.
• It is recommended to anchor the desk to the wall for added stability, especially when using the desk at its highest height setting.
• The desk contains electrical components and should be assembled and used in accordance with the provided assembly instructions and electrical safety guidelines.
• Always unplug the desk when not in use or during maintenance.
• Кырсыктарды болтурбоо үчүн иш учурунда балдарды жана үй жаныбарларын столдон алыс кармаңыз.
• Бийиктикти тууралоодо столдун жолунда эч кандай тоскоолдуктар жок экенин текшериңиз.

3. Пакеттин мазмуну

Before assembly, please verify that all components are present and undamaged. The package should include:

• Electric Height Adjustable Desk components (tabletop, legs, motor, control panel)
• A tool kit for assembly
• This installation and usage manual

Figure 2: All components included in the package for assembly.

4. Орнотуу жана чогултуу

The YESHOMY Electric Height Adjustable Standing Desk is designed for simple assembly. Follow these steps carefully:

1. Компоненттерди таңгактан чыгаруу: Таңгактан кылдаттык менен бардык бөлүктөрүн алып салыңыз жана чийилип калбаш үчүн таза, жумшак бетке жаткызыңыз.
2. Үстөлдүн рамасын чогултуу: Attach the metal legs and crossbars according to the detailed diagrams in the included manual. Ensure all screws are tightened securely.
3. Столдун үстүн тиркөө: The tabletop is provided in two parts for transport safety. Align the two tabletop sections and secure them together using the provided precise screws and fittings. Then, attach the assembled tabletop to the desk frame.
4. Башкаруу панелин орнотуу: Mount the electronic control panel to the underside of the desk in the designated location. Connect the motor and power cables as instructed.
5. Кабелдик башкаруу: Utilize the included cable management accessories to organize and secure all wires, preventing tangles and ensuring safe operation. A headphone hook is also included for convenience.

5. Иштөө нускамалары

Your YESHOMY standing desk features an intuitive electric lift system for effortless height adjustment.

5.1 Бийиктигин тууралоо

• The desk's height can be adjusted between 28.75 inches and 48 inches.
• колдонуу Өйдө (^) жана Төмөн (v) arrow buttons on the control panel to manually raise or lower the desk to your desired height.
• The electronic display will show the current height in real-time.

Figure 3: Electronic Control Panel with Digital Display and Memory Functions.

5.2 Эстутум алдын ала орнотуулары

The control panel includes two memory preset buttons (1 and 2) to save your preferred sitting and standing heights.

1. Алдын ала орнотууну коюңуз: Adjust the desk to your desired height using the Up/Down buttons. Press and hold one of the preset buttons (1 or 2) until the display flashes or beeps, indicating the height has been saved.
2. Алдын ала коюлган нерсени эстеп калуу: Simply press the corresponding preset button (1 or 2) to automatically move the desk to the saved height.

5.3 Эргономикалык колдонуу

Regularly switching between sitting and standing positions can promote better posture and reduce fatigue.

Figure 4: Benefits of ergonomic desk usage for posture.

6. Техникалык тейлөө

• Тазалоо: Үстөлдүн бетин жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттардан же абразивдүү тазалагычтардан алыс болуңуз.
• Кабелдик текшерүү: Periodically check all power cords and connections for any signs of wear or damage. Replace damaged cords immediately.
• Мотор багуу: The electric motor is designed for durability. Avoid overloading the desk or forcing it to move if obstructed.

7. Кыйынчылыктарды

Эгер үстөлүңүздө кандайдыр бир көйгөйгө туш болсоңуз, төмөнкү жалпы чечимдерди караңыз:

• Үстөл кыймылдабайт: Ensure the power cord is securely plugged into both the desk and a working wall outlet. Check for any obstructions preventing movement.
• Тегиз эмес кыймыл: Verify that the desk is placed on a level surface. If the issue persists, consult the detailed manual for recalibration instructions.
• Башкаруу панели жооп бербей жатат: Unplug the desk from the power source for 10 seconds, then plug it back in to reset the system.

For further assistance, please contact YESHOMY customer support.

8. Техникалык шарттар

Сүрөт 5: Продукциянын өлчөмдөрү жана Салмагы.

9. Кепилдик жана колдоо

This YESHOMY product comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty card included in your package or visit the official YESHOMY webсайт.

For customer support, technical assistance, or to inquire about replacement parts, please contact YESHOMY directly through their official channels.
