Multibrush li-on Plus Instruction Manual

1. Киришүү

The Gloria Haus und Garten Multibrush li-on Plus 000299.0000 is a versatile cordless outdoor cleaning tool designed for various tasks around your home and garden. This multi-talent device features a drive unit that integrates different brush rolls for cleaning stone and wood surfaces, joint cleaning, edge cutting, and lawn care. It offers flexibility and convenience without the need for an electrical cable, thanks to its compatibility with Bosch 18V POWER FOR ALL batteries.

2. Коопсуздук нускамалары

WARNING: Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Keep all warnings and instructions for future reference.

• Always wear appropriate personal protective equipment, including eye protection, gloves, and sturdy footwear.
• Ensure the tool is switched off and the battery is removed before performing any adjustments, changing accessories, or maintenance.
• Куралды иштетип жатканда балдарды жана жанында жүргөндөрдү алыс кармаңыз.
• Жарылуучу чөйрөдө, мисалы, күйүүчү суюктуктар, газдар же чаң бар жерде электр шаймандарын иштетпеңиз.
• Кокусунан баштоодон алыс болуңуз. Батарея пакетине туташтыруудан, аспапты көтөрүүдөн же алып жүрүүдөн мурун өчүргүч өчүк абалда экенин текшериңиз.

3. Продукт бүтүп калдыview жана компоненттер

The Multibrush li-on Plus consists of a main drive unit and various interchangeable accessories. It is designed for quick and tool-free module changes, allowing you to adapt the device to different cleaning and maintenance tasks.

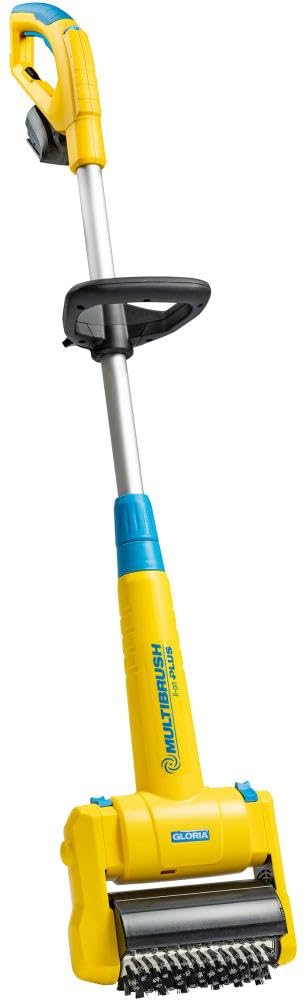

Image: Gloria Multibrush li-on Plus 000299.0000 cordless outdoor cleaning tool with various attachments.

Негизги өзгөчөлүктөрү:

• Up to 11 integrable accessories for diverse applications.
• Compatible with the FineCut compact lawn mower attachment.
• Features a tool-free module change system for quick accessory swaps.
• Compatible with all BOSCH 18V POWER FOR ALL batteries (1.5 - 6.0 Ah).
• Offers flexibility and cordless convenience for outdoor tasks.
• Drive unit designed for integrating various brush rolls for stone and wood cleaning, joint cleaning, edge cutting, and lawn care.

Сүрөт: Жакын план view of the Gloria Multibrush li-on Plus 000299.0000 showing the interchangeable brush head mechanism.

4. Орнотуу

4.1 Батареяны орнотуу

1. Ensure the Multibrush li-on Plus is switched off.
2. Align the Bosch 18V POWER FOR ALL battery with the battery slot on the device.
3. Батареяны бекем чыккыча ордуна жылдырыңыз.
4. To remove, press the release button on the battery and slide the battery out.

4.2 Аксессуарларды тиркөө

1. Ensure the device is switched off and the battery is removed.
2. Select the desired brush roll or accessory for your task.
3. Align the accessory with the drive unit's attachment point.
4. Secure it in place according to the tool-free change mechanism. Ensure it is firmly locked before use.
5. Refer to the specific accessory's instructions for detailed attachment steps, if provided.

5. Иштөө нускамалары

5.1 Жалпы колдонуу

1. Before starting, ensure the correct accessory is attached for your task and the battery is fully charged.
2. Hold the device firmly with both hands, maintaining a comfortable and stable posture.
3. Моторду иштетүү үчүн кубат баскычын басыңыз.
4. Guide the Multibrush li-on Plus evenly over the surface to be cleaned or maintained.
5. Apply appropriate pressure as needed for the task, avoiding excessive force that could damage the surface or the tool.
6. For optimal results, work systematically across the area, overlapping slightly with each pass.
7. Release the power button to stop the motor.

5.2 Тиркемелер

• Stone and Wood Surface Cleaning: Use the appropriate brush roll (e.g., brass brush for robust stone surfaces, nylon brush for sensitive wood surfaces) to effectively remove dirt, grime, and discoloration.
• Биргелешкен тазалоо: Attach the specialized joint cleaning brush to efficiently remove weeds, moss, and dirt from paving joints and crevices.
• Edge Cutting: Utilize the edge cutting accessory for precise and clean lawn edges, enhancing the appearance of your garden.
• Газонго кам көрүү: Employ specific lawn care attachments (sold separately) for tasks such as scarifying or aerating, promoting a healthier lawn.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Multibrush li-on Plus. Follow these guidelines:

• After each use, switch off the device and remove the battery.
• Clean the brush rolls and the drive unit with a damp cloth to remove dirt, debris, and plant residues. Do not use harsh chemicals or abrasive cleaners.
• Inspect accessories for wear and tear, damage, or deformation. Replace them if they are no longer in optimal condition to ensure effective and safe operation.
• Store the device in a dry, safe place, away from direct sunlight, moisture, and extreme temperatures.
• Keep the battery charged when storing for extended periods to maintain battery health.

7. Кыйынчылыктарды

If you encounter issues with your Multibrush li-on Plus, refer to the following common troubleshooting steps:

• Түзмөк башталбайт: Check if the battery is fully charged and correctly inserted. Ensure the power switch is in the 'ON' position.
• Reduced performance or ineffective cleaning: Ensure the brush roll is clean and not clogged with debris. Inspect the brush for excessive wear and replace if necessary.
• Device overheats: If the device feels excessively hot, stop operation immediately and allow it to cool down before resuming. Avoid continuous heavy-duty use without breaks.
• Адаттан тыш үндөр же титирөөлөр: Switch off the device immediately and remove the battery. Inspect for any loose parts or foreign objects caught in the brush or drive unit.

For persistent issues or problems not listed here, consult the manufacturer's support or a qualified service technician.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Кепилдик жөнүндө толук маалымат, шарттар жана эрежелер үчүн, сатып алууңузга тиркелген кепилдик картасын же документтерди караңыз. Сатып алганыңызды тастыктаган документти (квитанция же эсеп-фактура) сактап коюңуз, анткени ал кепилдик боюнча дооматтар үчүн талап кылынат.

For technical support, spare parts, or service inquiries, please visit the official Gloria Haus und Garten webсайтына кайрылыңыз же өнүмүңүздүн таңгагында же алардын бетинде көрсөтүлгөн байланыш маалыматы аркылуу кардарларды тейлөө бөлүмүнө кайрылыңыз webсайт.
