Vita VT17520 Urbana Deck Box Instruction Manual

Introduction

This instruction manual provides detailed guidance for the assembly, operation, maintenance, and troubleshooting of your Vita VT17520 Urbana Deck Box. Please read this manual thoroughly before beginning assembly or use to ensure proper functionality and longevity of your product.

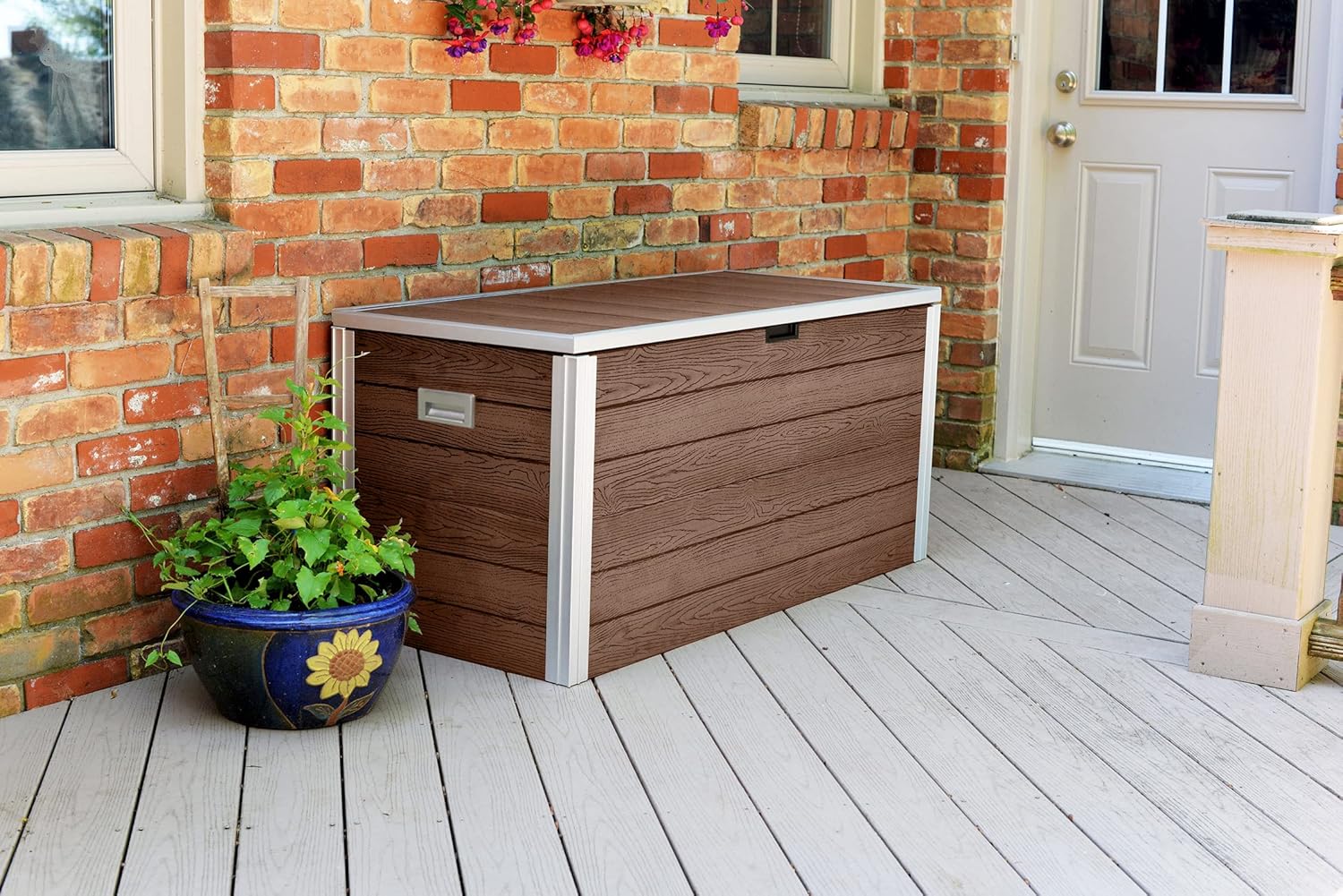

Image: The Vita Urbana Deck Box, shown in an outdoor patio setting, demonstrating its aesthetic integration into a living space.

The Urbana Deck Box is designed to offer functional outdoor storage with an appealing aesthetic. Constructed from a composite PVC material, it mimics the appearance of wood while providing the durability and lightweight properties of vinyl. Its lid features a secure click-and-release mechanism and remains upright when opened, facilitating easy access. Integrated interior weather stripping helps keep contents dry and protected from the elements.

Продукт өзгөчөлүктөрү

• Материал: Constructed from a unique blend of high-grade vinyl composites, offering lightweight durability and a natural wood look, complemented by anodized aluminum posts.
• Ар тараптуу сактоо: Suitable for both indoor and outdoor storage applications.
• Капкак механизми: Features a simple hinge mechanism that keeps the lid securely upright when opened, preventing accidental closure.
• Аба ырайынын туруктуулугу: Equipped with interior weather stripping to protect contents from moisture and environmental elements year-round.
• Оңой жетүү: Lid opens and closes with an easy click-and-release mechanism.

Сүрөт: жакын план view of the deck box lid's edge, highlighting the integrated weather stripping designed to seal and protect the interior from moisture.

Орнотуу нускамалары

Before assembly, ensure all components are present and undamaged. Refer to the included parts list. Assembly typically requires basic hand tools (not included).

1. Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging. Lay them out on a clean, flat surface to identify each piece.
2. Каптал панелдерди чогултуу: Connect the side panels to the front and back panels according to the provided diagrams. Ensure all connections are secure.
3. Төмөнкү панелди бекитүү: Insert and secure the bottom panel into the assembled frame.
4. Install Lid and Hinge Mechanism: Attach the lid to the main body using the provided hinges and gas struts. Ensure the struts are correctly oriented for smooth opening and closing.
5. Verify Weather Stripping: Confirm that the interior weather stripping is properly seated around the lid's perimeter to ensure a watertight seal.

Image: A detailed dimensional drawing of the Urbana Deck Box, illustrating its overall length, width, and height for planning placement and understanding capacity.

Иштөө нускамалары

The Urbana Deck Box is designed for straightforward operation.

Капкакты ачуу

To open the lid, locate the recessed handle on the front of the box. Gently lift the lid using the handle. The integrated hinge mechanism and gas struts will assist in lifting and holding the lid in an upright position, providing full access to the interior.

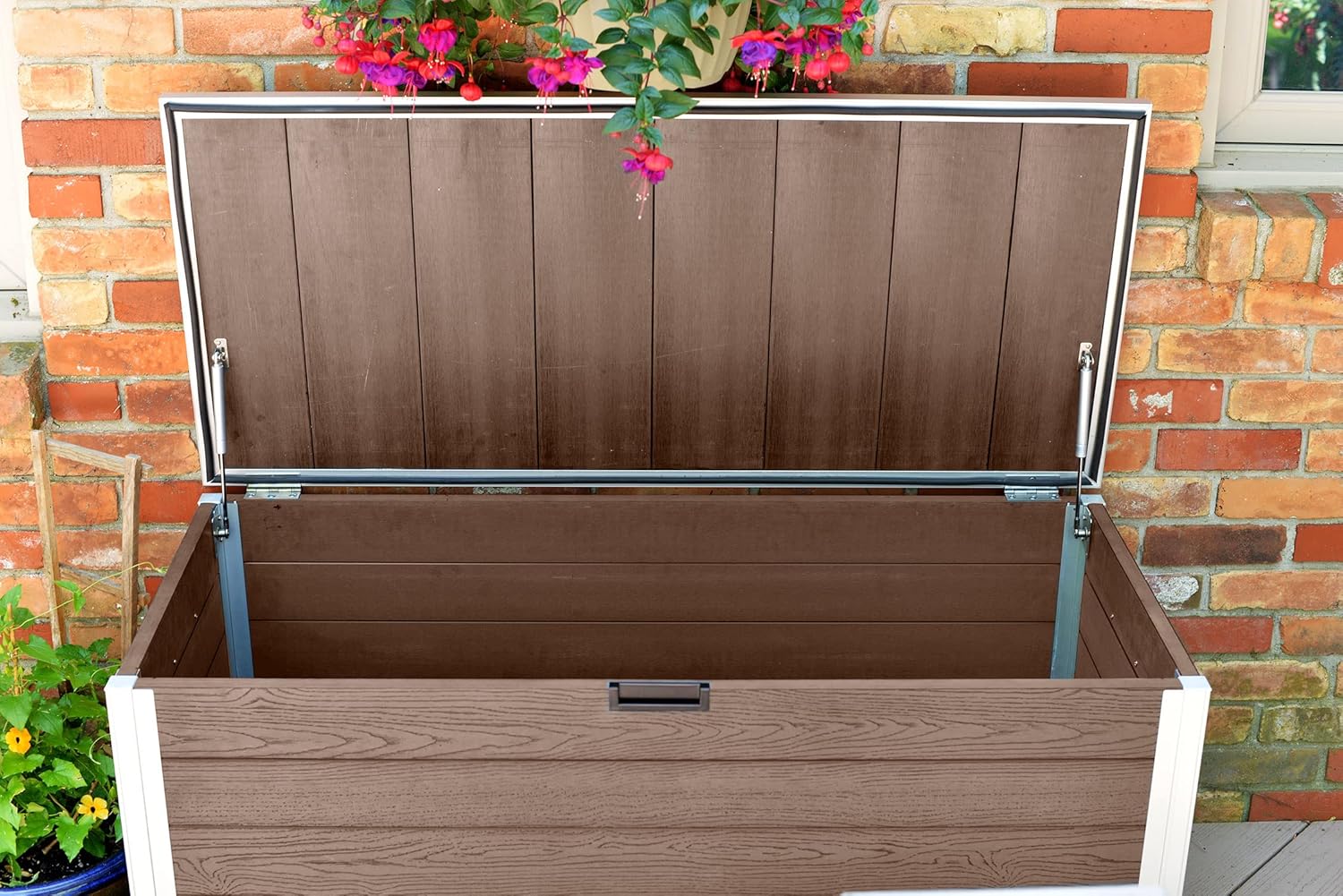

Image: The Urbana Deck Box shown with its lid fully open, revealing the interior and the robust hinge mechanism that supports the lid.

Капкакты жабуу

To close the lid, gently pull it downwards. The gas struts will provide resistance for a controlled descent. Push down firmly until you hear a 'click' sound, indicating the lid is securely latched and the weather stripping is engaged.

Сүрөт: жакын план view of the integrated handle on the front of the deck box, designed for easy opening and closing.

Сактагыч

The deck box is suitable for storing various outdoor items such as cushions, gardening tools, pool supplies, or toys. Ensure items are dry before storing to prevent moisture buildup inside the sealed environment. Do not overload the box beyond its stated capacity.

Сүрөт: Интерьер view of the Urbana Deck Box, demonstrating its spacious capacity, shown here storing patio cushions.

Техникалык тейлөө

Regular maintenance will help preserve the appearance and functionality of your Urbana Deck Box.

Тазалоо

Clean the exterior surfaces with a mild soap and water solution. Use a soft cloth or sponge. Avoid abrasive cleaners, brushes, or harsh chemicals, as these can damage the vinyl composite material. Rinse thoroughly with clean water and allow to air dry.

Аба ырайы

Periodically inspect the interior weather stripping for any signs of wear, tears, or displacement. Ensure it remains firmly seated around the lid's perimeter to maintain its protective seal against moisture.

Hinges and Struts

Check the hinge mechanisms and gas struts occasionally for smooth operation. If any resistance or unusual noise is noted, ensure they are free of debris. Lubrication is generally not required for these components.

Проблемаларды чечүү

• Капкак бекем жабылбайт: Check for any obstructions preventing the lid from fully seating. Ensure the weather stripping is not displaced. Verify that the lid's latch mechanism is aligned correctly.
• Коробканын ичиндеги суу: Inspect the weather stripping for damage or improper seating. Ensure the lid is fully closed and latched. Check for any cracks or damage to the box panels.
• Капкак ачык калбайт: Examine the gas struts for damage or wear. Ensure they are properly attached at both ends.
• Капкакты ачуу/жабуудагы кыйынчылык: Check hinges and struts for debris. Ensure the box is on a level surface.

Техникалык шарттар

Кепилдик жана колдоо

Кепилдик маалымат

The Vita VT17520 Urbana Deck Box comes with a 1 жылдык кепилдик against material defects. This warranty covers manufacturing defects and material failures under normal use. Please retain your proof of purchase for warranty claims.

Кардарларды колдоо

For technical assistance, missing parts, or warranty inquiries, please contact Vita customer support. Refer to the contact information provided with your purchase documentation or visit the official Vita webколдоо чоо-жайы үчүн сайт.
