Puig New Generation Touring Windscreen

1. Продукт бүтүп калдыview

The Puig New Generation Touring Windscreen (Model 20888H) is designed to enhance the riding experience for Naked type motorcycles with non-round headlights. Crafted from high-quality PMMA material, this windscreen offers superior protection against impacts, wind, and adverse weather conditions, while also improving the motorcycle's aerodynamic performance.

This specific model is compatible with the BMW S1000R 2021 жана BMW S1000R 2022.

Puig provides a detailed aerodynamic study with each unit, demonstrating the performance benefits achieved during its development process. The New Generation Touring Windscreen is engineered for a precise fit, ensuring seamless integration with your motorcycle.

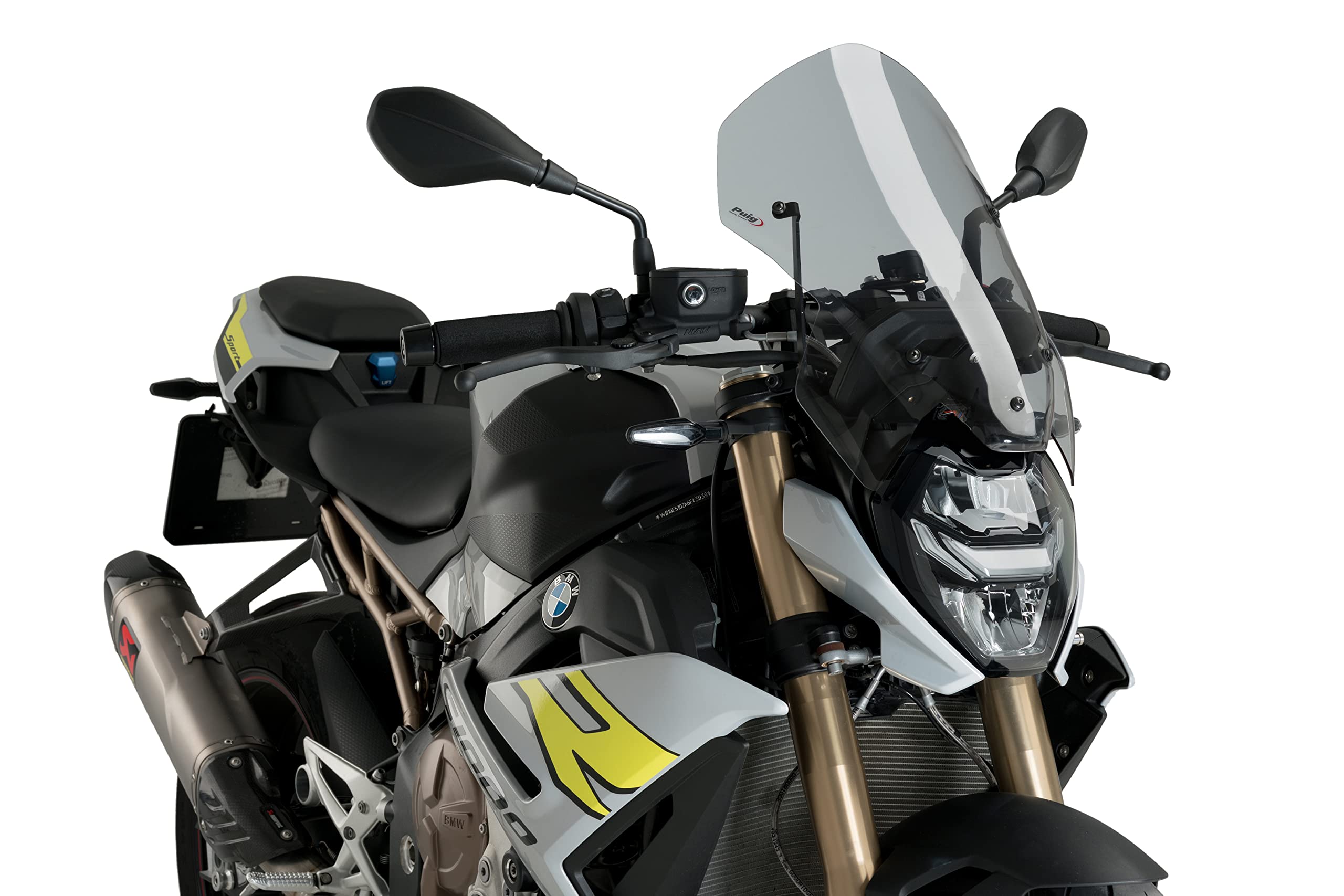

Фронт view of the Puig 20888H New Generation Touring Windscreen in light smoke, mounted on a compatible motorcycle. This image highlights the aerodynamic design and integration with the motorcycle's front fairing.

2. Орнотуу жана орнотуу

Before beginning installation, ensure your motorcycle is stable and turned off. It is recommended to have basic mechanical knowledge or seek professional assistance if unsure. Always refer to your motorcycle's service manual for specific component removal and torque specifications.

2.1. Required Tools (General)

• Hex ачкыч топтому
• Torx key set (if applicable)
• Розетка ачкычынын топтому
• Момент ачкычы
• Таза кездеме

2.2. Орнотуу кадамдары (Жалпы)

1. Даярдоо: Park the motorcycle on a level surface using its kickstand or a paddock stand. Ensure the engine is cool.
2. Учурдагы компоненттерди алып салуу: Carefully remove any existing windscreen or fairing components that obstruct the mounting points for the new Puig windscreen. Keep all original hardware organized.
3. Монтаждоо пункттарын аныктоо: Locate the designated mounting points on your motorcycle's front fairing or headlight assembly. The Puig 20888H is designed for specific models, so ensure correct alignment.
4. Кашаларды тиркөө: Secure the Puig mounting brackets to the motorcycle using the provided hardware. Do not fully tighten bolts at this stage.
5. Mount Windscreen: Position the Puig windscreen onto the installed brackets. Align the holes and insert the remaining hardware.
6. Тууралоо жана бекемдөө: Once the windscreen is in place, adjust its position for optimal fit and aesthetics. Gradually tighten all bolts to the manufacturer's recommended torque specifications. Avoid over-tightening to prevent damage.
7. Акыркы текшерүү: Verify that the windscreen is securely mounted and does not interfere with steering or other controls.

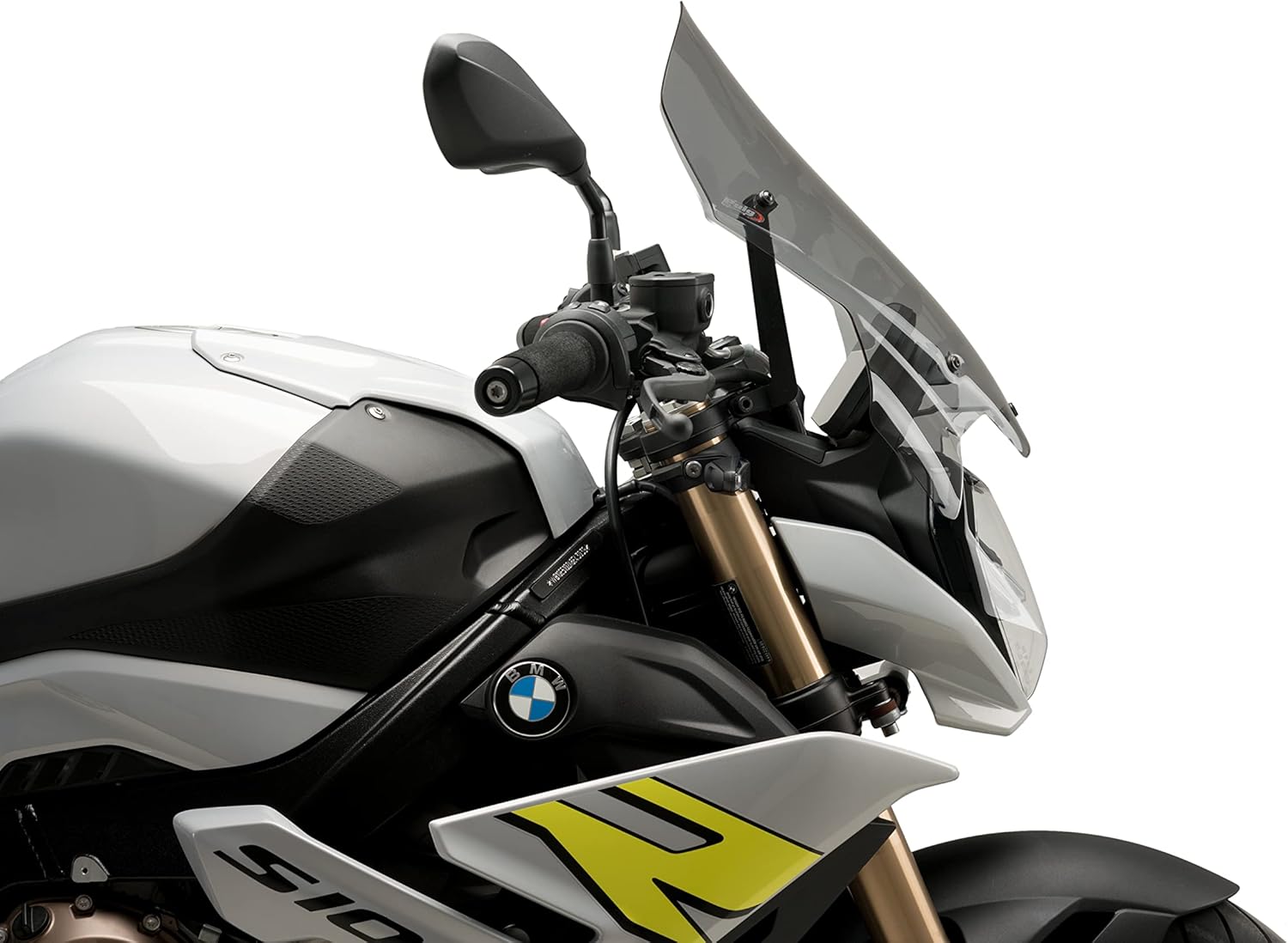

Side profile of the Puig 20888H windscreen, showing its touring shape and how it extends upwards to provide enhanced wind protection for the rider. This view helps in understanding the mounting position.

This image illustrates the difference in mounting brackets for the Puig Touring Screen depending on whether the motorcycle has the original BMW support. Model 20888 is for motorcycles without the original BMW support, while model 20889 is for those with it. Ensure you have the correct model for your motorcycle's configuration.

3. Иштөө нускамалары

The Puig New Generation Touring Windscreen is a fixed-position accessory designed to provide consistent wind protection and improved aerodynamics. Once installed correctly, no further operational adjustments are typically required.

• Минип бара жатып абал: The touring design is optimized for a comfortable riding posture, reducing wind buffeting and fatigue on longer rides.
• Көрүнүш: Ensure the windscreen does not obstruct your field of vision. The light smoke tint is designed to provide glare reduction while maintaining clear visibility.

4. Техникалык тейлөө

Proper maintenance will ensure the longevity and clarity of your Puig windscreen.

4.1. Тазалоо

• Жумшак, абразивдүү эмес чүпүрөк же губка менен жумшак самын менен сууну гана колдонуңуз.
• Avoid harsh chemicals, ammonia-based cleaners, or abrasive materials, as these can scratch or damage the PMMA surface.
• Rinse thoroughly with clean water and dry with a soft microfiber cloth to prevent water spots.
• For stubborn dirt or insect residue, soak the area with a wet cloth for a few minutes before gently wiping clean.

4.2. Текшерүү

• Periodically check all mounting bolts for tightness. Vibrations from riding can cause fasteners to loosen over time.
• Inspect the windscreen for any cracks, deep scratches, or signs of damage that could compromise its structural integrity or visibility.
• Examine the mounting brackets for corrosion or wear.

5. Кыйынчылыктарды

If you encounter any issues with your Puig windscreen, consider the following common solutions:

• Ашыкча титирөө: Ensure all mounting bolts are securely tightened to the recommended torque. Check for any loose components in the surrounding fairing.
• Шамалдын ызы-чуусу/Буфет: While the touring screen is designed to reduce buffeting, individual rider height and helmet design can influence results. Ensure the screen is installed correctly and consider your riding posture.
• Loose Fit: Re-check all installation steps, paying close attention to the mounting hardware and ensuring no components were omitted or incorrectly installed.
• Чийүүлөр/зыян: Minor scratches can sometimes be polished out with specialized plastic polish. For significant damage, replacement may be necessary to maintain safety and visibility.

6. Техникалык шарттар

7. Кепилдик маалыматы

Puig products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Puig webсайт. Кепилдик, адатта, кадимки колдонуудагы өндүрүштүк кемчиликтерди оңдойт.

8. Колдоо

For technical assistance, installation queries, or further product information, please visit the official Puig Hi-Tech Parts webсайтка же кардарларды тейлөөгө кайрылыңыз.

The official logo for Puig Hi-Tech Parts, indicating the brand's commitment to quality motorcycle accessories. For more information and support, visit www.puighitechparts.com.
