Ignition Coil User Manual

1. Продукт бүтүп калдыview

This document provides essential information for the installation, operation, maintenance, and troubleshooting of the Ewon Ignition Coil. This ignition coil is a replacement part designed to restore proper ignition function in compatible outdoor power equipment.

An ignition coil is a crucial component in the ignition system of an internal combustion engine. Its primary function is to transform the low voltage from the battery into the thousands of volts required to create an electric spark in the spark plug, which ignites the fuel-air mixture in the engine cylinder.

Сүрөт 1: Алдыңкы view of the Ewon Ignition Coil. This image shows the main body of the coil with the high-tension lead and spark plug boot extending upwards.

2. Шайкештик

This ignition coil is designed as a direct replacement for the following models and part numbers:

• Бөлүк номерлерин алмаштырат: 300953003, 300953001, 984882001, 545108101, PS03634, PS06156, Walbro MB-27
• Compatible Ryobi Chainsaw Models:
  • PCN3335
  • PCN4040
  • PCN4545
  • PCN4550
  • RY74003D
  • RY74005D
  • RY74007D
• Compatible Craftsman Blower Model:
  • 35874122 (28cc Blower)

3. Пакеттин мазмуну

Пакетти ачканда, бардык компоненттер бар экенин жана бузулбаганын текшериңиз:

• 1 x Ewon Ignition Coil

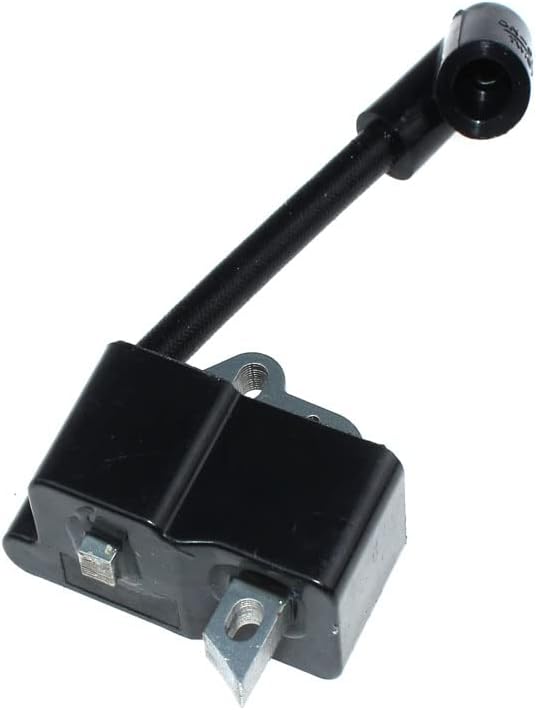

2-сүрөт: Каптал view of the Ewon Ignition Coil. This image highlights the mounting brackets and the overall compact design of the coil.

4. Орнотуу

Биринчи коопсуздук:

• Always disconnect the spark plug wire and ensure the engine is cool before beginning any work.
• Тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде кол каптарды жана көздү коргоону кийиңиз.
• If you are unsure about any step, consult a qualified technician or refer to your equipment's specific service manual.

The following are general steps for replacing an ignition coil. Specific procedures may vary depending on your equipment model.

1. Locate the Existing Ignition Coil: The ignition coil is typically mounted near the flywheel or crankshaft of the engine.
2. Учкун сымын ажыратыңыз: Carefully pull the spark plug boot off the spark plug.
3. Disconnect Low Voltage Зымдар: Identify and disconnect any low voltage wires connected to the coil (e.g., kill switch wire).
4. Монтаждоочу бурамаларды алып салыңыз: Unscrew the bolts or screws that secure the ignition coil to the engine block or chassis.
5. Эски катушканы алып салуу: Carefully remove the old ignition coil. Note its orientation for proper installation of the new coil.
6. Жаңы катушканы орнотуу: Position the new Ewon Ignition Coil in the same orientation as the old one. Secure it with the mounting screws, but do not fully tighten them yet.
7. Set Air Gap (Crucial Step): An air gap must be set between the ignition coil's laminations and the flywheel magnets. Use a non-magnetic feeler gauge or a business card (typically 0.010 - 0.014 inches or 0.25 - 0.35 mm) inserted between the coil and the flywheel. Push the coil firmly against the feeler gauge/flywheel, then tighten the mounting screws. Once tightened, remove the feeler gauge.
8. Зымдарды кайра туташтыруу: Reconnect the low voltage wires and firmly attach the spark plug boot to the spark plug.
9. Сыноо: Attempt to start the engine to verify proper operation.

3-сүрөт: Бурчтуу view of the Ewon Ignition Coil, highlighting the metal mounting points. Proper alignment and securing of these points are essential for correct installation.

5. Операция

The Ewon Ignition Coil functions automatically once installed correctly and the engine is running. It is responsible for generating the high voltage necessary for the spark plug to ignite the fuel-air mixture, initiating combustion and allowing the engine to operate.

Proper operation is indicated by consistent engine starting and smooth running. A faulty ignition coil can lead to no-start conditions, misfires, or rough engine performance.

6. Техникалык тейлөө

Ignition coils are generally sealed units and do not require routine maintenance. However, periodic inspection of the following can help ensure longevity and proper function:

• Spark Plug Wire and Boot: Check for cracks, fraying, or damage to the insulation. Ensure the boot is securely seated on the spark plug.
• Электр байланыштары: Төмөнкү көлөмдүн бардыгын текшериңизtage wires connected to the coil are clean, secure, and free from corrosion.
• Тазалык: Keep the area around the ignition coil free from dirt, debris, and oil buildup, which can affect heat dissipation and electrical conductivity.
• Spark Plug Condition: A worn or fouled spark plug can put extra strain on the ignition coil. Replace spark plugs according to your equipment's maintenance schedule.

7. Кыйынчылыктарды

If your equipment is experiencing ignition-related issues, consider the following common problems and potential solutions:

Эскертүү: Many engine issues can mimic ignition coil problems. Always perform a thorough diagnosis before replacing components. If you are unable to resolve the issue, seek assistance from a qualified service technician.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Кепилдик маалыматы:

This Ewon Ignition Coil comes with a warranty period of 6 ай сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.

Кардарларды колдоо:

If you have any questions regarding the product, installation, or require assistance with troubleshooting, please do not hesitate to contact Ewon customer support. We aim to answer all inquiries within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official Ewon product page on the retailer's webсайт.
