Performance Tool W9005 External Deburr Bit Instruction Manual

Introduction

The Performance Tool W9005 External Deburr Bit is designed for quickly repairing damaged ends on wheel studs, bolts, and threaded rods. It effectively removes burrs and damaged threads, restoring functionality to hardware without the need for replacement. This manual provides essential information for the proper setup, operation, and maintenance of your deburr bit.

Продукт өзгөчөлүктөрү

• Quickly repairs ends on wheel studs, bolts, and threaded rods by removing burred and damaged ends.
• Repairs threads in place, reducing time and cost associated with replacing hard-to-find or expensive hardware.
• Features 3 long-lasting tungsten carbide cutting blades with a hardness rating between 88-90 HRC.
• Durable enough for use on most metals, leaving a clean thread end if used as directed.
• Bit capacity: 1/8 - 3/4 inches (3 - 19mm).
• Compatible with various materials including stainless steel, aluminum, plastic, or wood.

An illustrative diagram highlighting key features of the deburr bit, including its 1/4 inch hex shank, three tungsten carbide blades, and 1/8 to 3/4 inch capacity. It also indicates compatible materials like wood, plastic, metal, and stainless steel.

Техникалык шарттар

Жайгашуу

The W9005 External Deburr Bit features a 1/4 inch hex shank. To set up, insert the hex shank securely into the chuck of a power drill. Ensure the drill is set to its lowest gear setting for optimal control and performance.

The deburr bit attached to a power drill, positioned above a bolt secured in a vise, ready for the deburring process.

Иштөө нускамалары

1. Иштетүү бөлүгүн камсыз кылуу: Firmly secure the bolt or threaded rod in place, such as in a vise, to prevent movement during the deburring process.
2. Attach to Drill: Insert the 1/4 inch hex shank of the deburr bit into the chuck of a power drill and tighten securely.
3. Бургулоо ылдамдыгын орнотуу: Set the drill to its lowest gear. Rotate the bit between 0 - 400 RPM. 400 RPM ашпаңыз.
4. Кысым колдонуу: Apply consistent, even forward pressure to the deburr bit against the damaged threads.
5. Оңдоо: Rotate the bit slowly until all damaged threads have been removed and a clean thread end is achieved.
6. Use Cutting Oil (Optional): For harder materials, applying a small amount of cutting oil can assist in the deburring process and extend tool life.

A three-panel image demonstrating the operation of the deburr bit: a damaged bolt, the bit engaging the bolt, and the bolt after deburring, showing repaired threads.

The deburr bit actively deburring a metal stud that is part of a larger structure, demonstrating its application in situ.

Техникалык тейлөө

After each use, clean the deburr bit thoroughly to remove any metal shavings or debris. Store the bit in a dry place to prevent corrosion. Periodically inspect the tungsten carbide cutting blades for signs of wear, dullness, or chipping. Replace the bit if the blades become dull or damaged to ensure optimal performance and safety.

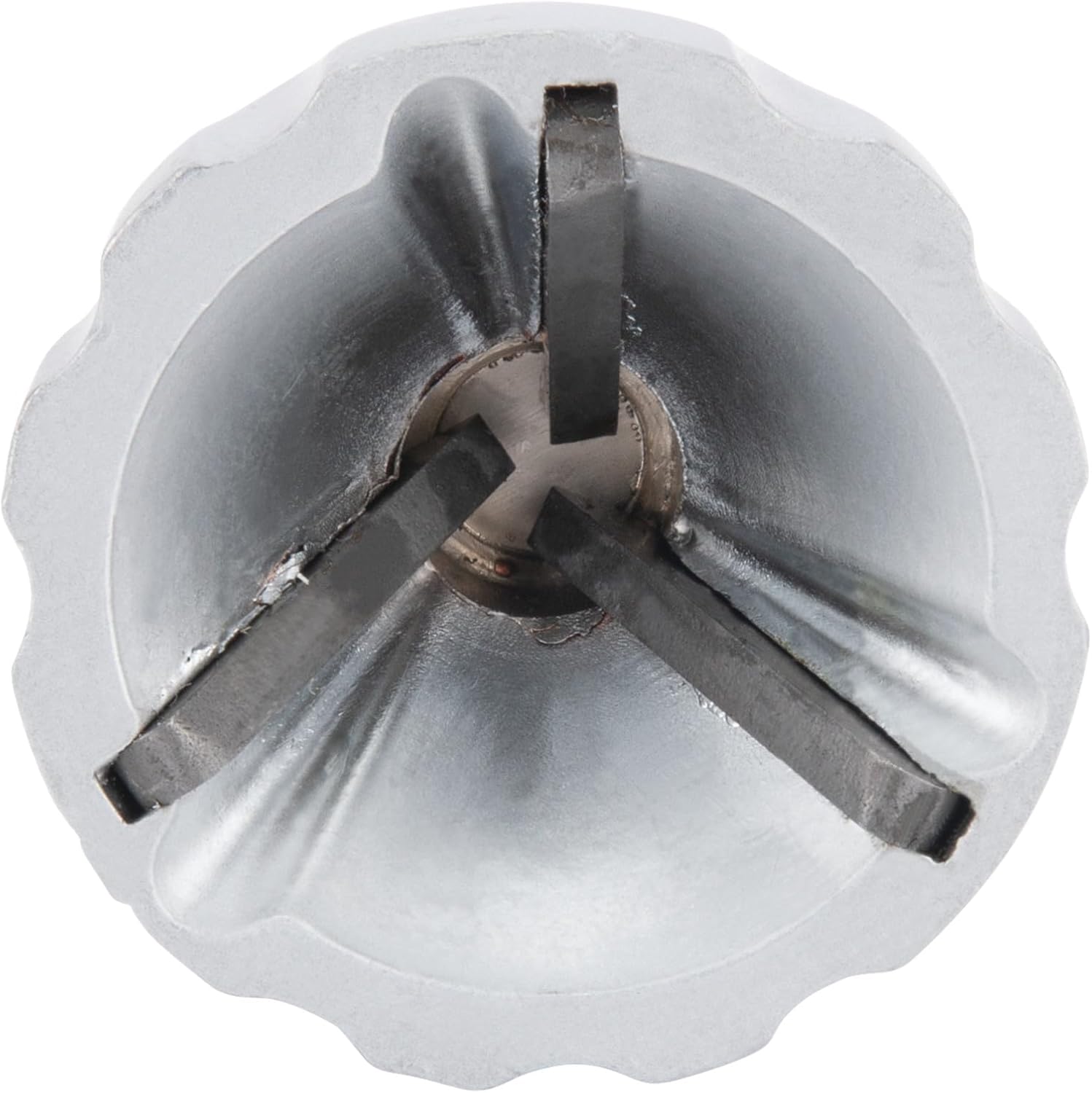

Жакын планда жогорудан ылдый тартылган view of the deburr bit, clearly showing the three tungsten carbide cutting blades within its conical opening.

Проблемаларды чечүү

Кепилдик жана колдоо

Кепилдик жөнүндө маалымат же продуктуну колдоо үчүн өндүрүүчүнүн расмий өкүлүнө кайрылыңыз website or contact Performance Tool customer service directly. It is recommended to keep your purchase receipt for any warranty claims.
