Generic Dryer Heating Element Replacement Kit Instruction Manual

1. Коопсуздук боюнча маанилүү маалымат

Before attempting any repair or installation, please read and understand all instructions. Appliance repair can be hazardous. If you are not comfortable performing this repair, it is recommended to seek assistance from a qualified technician.

• Кубатты өчүрүү: Always disconnect the dryer from its power source (unplug or turn off the circuit breaker) before beginning any service.
• Коргоочу шаймандарды кийүү: Кол кап жана коргоочу көз айнек сыяктуу тиешелүү жеке коргоочу шаймандарды колдонуңуз.
• Шайкештикти текшерүү: Ensure this replacement kit is compatible with your specific dryer model. Refer to the model numbers listed on the product packaging and in this manual.
• Этияттык менен мамиле кылуу: Components may have sharp edges. Handle all parts carefully.

2. Продукт бүтүп калдыview

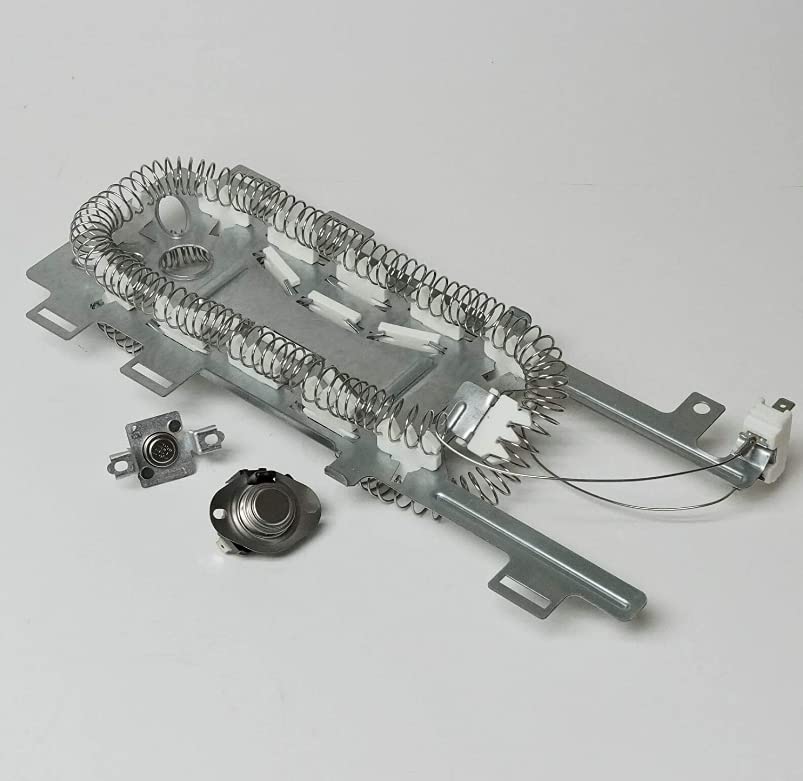

This replacement kit includes essential components for restoring heating functionality to compatible Whirlpool dryers. The kit typically contains a heating element, a thermal fuse, and a thermostat.

Сүрөт 2.1: The complete dryer heating element assembly, featuring the coiled heating wires mounted on a metal frame. This component is responsible for generating heat within the dryer.

Сүрөт 2.2: Жакын план view of the thermal fuse (left) and thermostat (right). The thermal fuse is a safety device that trips if the dryer overheats, while the thermostat regulates the dryer's operating temperature.

The heating element is the primary component that generates heat. The thermal fuse is a safety device designed to prevent overheating by cutting power if the dryer's temperature exceeds a safe limit. The thermostat monitors and regulates the internal temperature of the dryer, cycling the heating element on and off to maintain the selected heat setting.

3. Орнотуу жана орнотуу

This section provides general steps for replacing the heating element, thermal fuse, and thermostat. Specific dryer disassembly procedures may vary by model. Always refer to your dryer's service manual for detailed instructions.

Керектүү шаймандар (өзгөрүшү мүмкүн):

• Бурагычтар (Phillips жана Flathead)
• Nut Drivers or Socket Set
• Кычкач
• Multimeter (for testing components, optional but recommended)

Орнотуу кадамдары:

1. Кубатты өчүрүү: Unplug the dryer from the wall outlet or turn off the circuit breaker supplying power to the dryer. This is a critical safety step.
2. Access the Heating Element: Depending on your dryer model, you may need to remove the rear panel, top panel, or front panel to access the heating element housing. Carefully remove any screws or clips securing these panels.
3. Locate Components: Identify the existing heating element assembly, thermal fuse, and thermostat. They are typically located within a metal housing near the blower wheel or exhaust duct.
4. Зымдарды ажыратыңыз: Take a photograph or make a diagram of the wiring connections to the heating element, thermal fuse, and thermostat before disconnecting them. Carefully pull off the wire terminals.
5. Эски компоненттерди алып салуу: Unscrew or unclip the old heating element assembly from its housing. Similarly, remove the old thermal fuse and thermostat.
6. Жаңы компоненттерди орнотуу:
   • Mount the new heating element assembly into the housing, securing it with screws or clips.
   • Install the new thermal fuse and thermostat in their respective positions. Ensure they are securely fastened.
7. Зымдарды кайра туташтыруу: Using your photograph or diagram, reconnect the wire terminals to the new heating element, thermal fuse, and thermostat. Ensure all connections are snug and secure.
8. Кургаткычты кайра чогултуу: Carefully reattach any panels or components that were removed during disassembly. Ensure all screws and clips are properly secured.
9. Күчтү калыбына келтирүү: Plug the dryer back into the wall outlet or turn on the circuit breaker.

Сүрөт 3.1: A close-up of a terminal connection on the heating element. Ensure all electrical connections are clean, tight, and correctly matched during installation.

4. Operating and Testing After Installation

After completing the installation, it is important to test the dryer's functionality to ensure the new components are working correctly.

1. Баштапкы сыноо: Run the dryer on a low heat setting for a short cycle (e.g., 10-15 minutes) with a small load of damp clothes or towels.
2. Жылуулукту текшерүү: Verify that the dryer is producing heat. You should feel warm air coming from the exhaust vent.
3. Монитор аткаруу: Listen for any unusual noises and observe if the dryer cycles properly. The clothes should dry as expected.
4. Коопсуздук текшерүү: Ensure there are no burning smells or excessive heat from the dryer's exterior. If any issues arise, immediately disconnect power and re-check your installation.

5. Техникалык тейлөө

While the heating element kit itself requires no specific maintenance, regular dryer maintenance is crucial for its longevity and efficient operation, and to prevent premature failure of heating components.

• Таза линт чыпкасы: Clean the lint filter before or after every load.
• Inspect Exhaust Vent: Periodically check and clean the dryer's exhaust vent system (from the dryer to the outside) to ensure proper airflow. Blocked vents can cause overheating and reduce drying efficiency.
• Компоненттерди текшерүү: During routine dryer cleaning or other maintenance, visually inspect the heating element, thermal fuse, and thermostat for any signs of damage or wear.

6. Кыйынчылыктарды

If your dryer is not functioning correctly after installing the replacement kit, consider the following common issues:

• Кургаткыч жылытылбайт:
  • Күчтү текшерүү: Ensure the dryer is receiving power and the circuit breaker has not tripped.
  • Зымдар: Verify all electrical connections to the heating element, thermal fuse, and thermostat are secure and correctly connected.
  • Термикалык сактагыч: A new thermal fuse can blow if there's an underlying issue causing overheating, such as a clogged vent. Check the vent system.
  • Термостат: Although new, a thermostat could be faulty or incorrectly installed.
• Dryer Overheating:
  • Clogged Vent: The most common cause of overheating is a restricted exhaust vent. Clean the entire vent path.
  • Термостат: A faulty operating thermostat might not be cycling off the heat correctly.
• Кургаткыч иштебей жатат:
  • Эшик которгучу: Ensure the dryer door is fully closed and the door switch is engaging properly.
  • Термикалык сактагыч: If the thermal fuse has blown, the dryer will not start. This indicates an overheating issue that needs to be addressed.

Эгер көйгөйдү чечүү кадамдары көйгөйдү чечпесе, анда профессионал техника боюнча адиске кайрылуу сунушталат.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For information regarding warranty coverage or technical support for this replacement kit, please refer to the product listing or contact the seller directly through the platform where the purchase was made. Keep your purchase receipt as proof of purchase.
