BAIONE Worldmotop Engine Highway Guard Crash Bars User Manual

1. Киришүү

This manual provides essential information for the installation, maintenance, and safe use of your BAIONE Worldmotop Engine Highway Guard Crash Bars. These crash bars are designed to offer protection to your motorcycle's engine and fairing in the event of a fall or slide. Please read these instructions thoroughly before proceeding with installation or use.

2. Пакеттин мазмуну

Verify that all components listed below are present in your package. If any items are missing or damaged, please contact customer support.

• Engine Highway Guard Crash Bars (1 pair, left and right)
• Mounting Hardware Kit (bolts, washers, spacers)

Image 2.1: Engine Highway Guard Crash Bars and included mounting hardware.

Сүрөт 2.2: Жакын пландан view of the mounting hardware, including bolts, washers, and spacers.

3. Коопсуздук маалыматы

• Орнотуу учурунда ар дайым тиешелүү жеке коргонуу каражаттарын (ЖКК) кийиңиз.
• Ensure the motorcycle is stable and securely supported on a level surface before beginning installation.
• Do not attempt installation if you are unsure about any steps. Consult a qualified motorcycle mechanic.
• After installation, double-check all fasteners for proper tightness.

4. Орнотуу жана орнотуу

The BAIONE Worldmotop Engine Highway Guard Crash Bars are designed for direct installation onto the motorcycle frame without requiring drilling, cutting, or welding. Follow these steps for proper installation:

1. Мотоциклди даярдоо: Park your Kawasaki KLR 650 on a firm, level surface. Ensure the motorcycle is stable, preferably using a center stand or appropriate lift. Turn off the engine and allow it to cool.
2. Монтаждоо пункттарын аныктоо: Locate the designated mounting points on your motorcycle's frame. These are typically existing bolt locations near the engine and lower frame.
3. Position the Crash Bars: Carefully align one crash bar with its corresponding mounting points on one side of the motorcycle.
4. Аппараттык камсыздоону орнотуу: Insert the provided bolts through the crash bar's mounting tabs and into the frame's attachment points. Hand-tighten all bolts initially. Do not fully tighten at this stage.
5. Башка тарап үчүн кайталаңыз: Follow steps 3 and 4 for the other crash bar on the opposite side of the motorcycle.
6. Жөндөө жана тегиздөө: Once both crash bars are loosely installed, gently adjust their position to ensure proper alignment and clearance around the engine and fairing components.
7. Акыркы бекемдөө: Systematically tighten all mounting bolts using appropriate tools. Ensure all bolts are securely fastened according to your motorcycle's torque specifications (if available) or until snug and secure. Avoid over-tightening.
8. Акыркы текшерүү: After tightening, visually inspect the installed crash bars to confirm they are securely mounted and do not interfere with any moving parts or controls of the motorcycle.

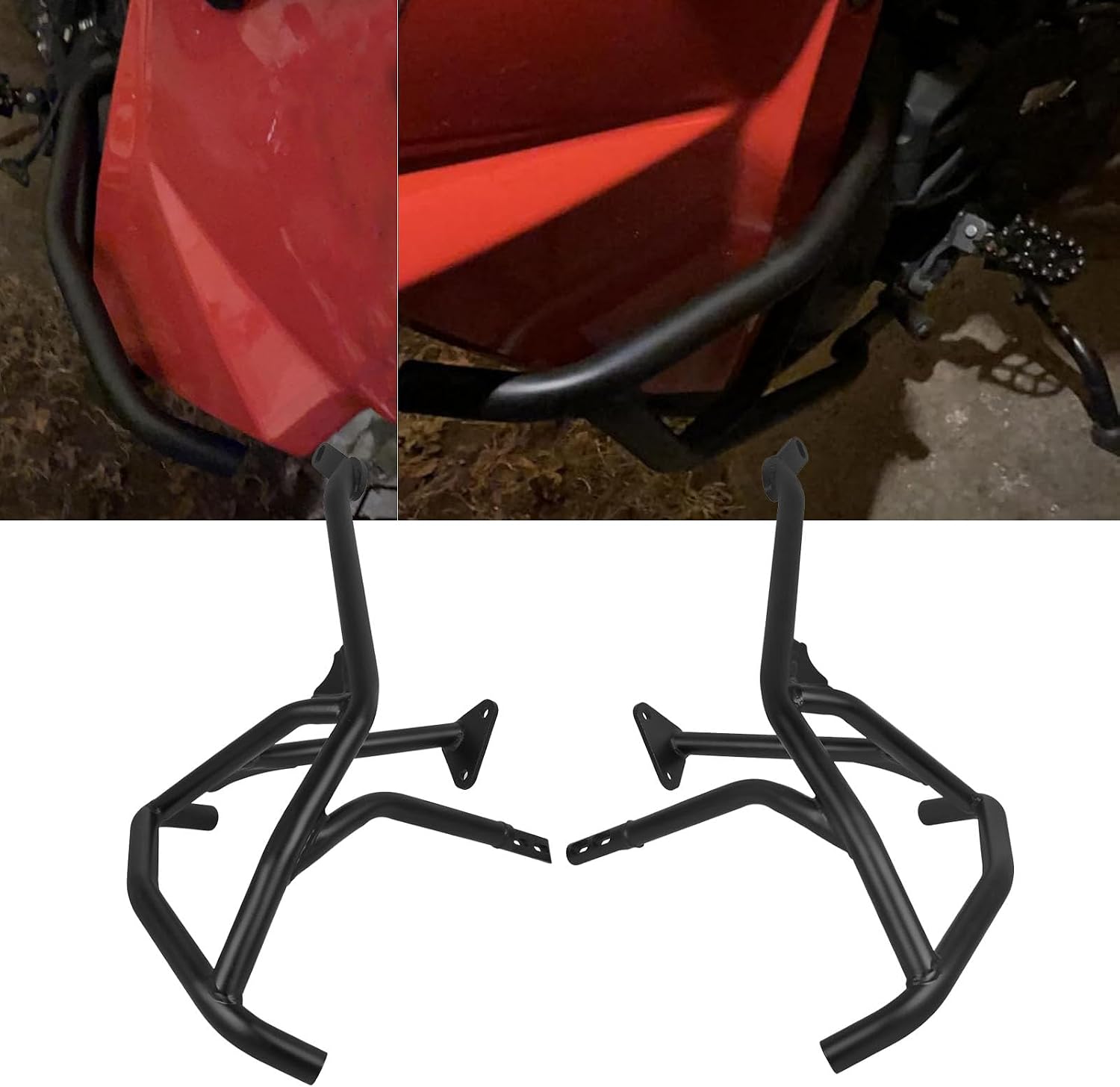

Image 4.1: BAIONE Worldmotop Engine Highway Guard Crash Bars installed on a red Kawasaki KLR 650.

5. Иштөө

These engine highway guard crash bars are passive protective accessories. Once correctly installed, they do not require any operational input. Their function is to absorb impact and protect critical motorcycle components during a fall or slide.

6. Техникалык тейлөө

• Үзгүлтүксүз текшерүү: Periodically inspect the crash bars for any signs of damage, bends, cracks, or loose fasteners.
• Тазалоо: Clean the crash bars with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Бекер текшерүү: Re-check the tightness of all mounting bolts at regular intervals, especially after off-road riding or long trips.
• Соккудан кийинки текшерүү: If the motorcycle experiences a fall or impact, thoroughly inspect the crash bars and their mounting points for any damage. Replace damaged components immediately.

7. Кыйынчылыктарды

• Бошоң түзүлүш: If the crash bars feel loose after installation, ensure all bolts are correctly seated and tightened to the appropriate torque.
• Interference with Components: If the crash bars interfere with any motorcycle components (e.g., fairing, controls), re-check the installation steps for proper alignment. Slight adjustments may be necessary.
• Аппараттык камсыздоо жок: If any hardware is missing from the package, do not proceed with installation. Contact customer support for assistance.

8. Техникалык шарттар

9. Колдоо

For any questions, concerns, or assistance regarding your BAIONE Worldmotop Engine Highway Guard Crash Bars, please contact our customer support. We are committed to helping you resolve any issues.
