FightBox F1-UFB-UP5 All Buttons Leverless Arcade Game Controller User Manual

1. Киришүү

This manual provides instructions for the setup, operation, and maintenance of your FightBox F1-UFB-UP5 All Buttons Leverless Arcade Game Controller. This controller is designed for use with various gaming platforms including PlayStation 5, PlayStation 4, PlayStation 3, PC, Xbox Series X, and Nintendo Switch.

2. Продукт бүтүп калдыview

The FightBox F1-UFB-UP5 is a high-performance leverless arcade controller, featuring an all-button layout for precise input. It incorporates the Brook Universal Fighting Board (UFB) and UFB-UP5 for broad platform compatibility and low-latency performance. The controller is equipped with Sanwa buttons, known for their responsiveness and durability.

This image illustrates the FightBox F1-UFB-UP5 controller alongside its internal components, specifically highlighting the Brook Universal Fighting Board and the UFB-UP5 module, which enable multi-platform compatibility.

Жогортон ылдый view of the FightBox F1-UFB-UP5 controller, showcasing its all-button layout with red and black Sanwa buttons and the 'FIGHTBOX' branding.

3. Орнотуу

The FightBox F1-UFB-UP5 controller connects to your gaming platform via a standard USB cable. No additional drivers are typically required for console use, but PC users may need to ensure proper drivers are installed for optimal performance.

1. Connect the USB cable from the controller to an available USB port on your gaming console (PlayStation 5, PlayStation 4, PlayStation 3, Xbox Series X, Nintendo Switch) or PC.
2. The controller should be automatically recognized by most systems. For PC, if not automatically recognized, check your operating system's device manager for driver updates or visit the Brook webбелгилүү бир драйверди жүктөп алуу үчүн сайт.
3. Ensure the correct input mode is selected if your console requires it (refer to your console's documentation).

4. Иштөө нускамалары

The F1-UFB-UP5 features a leverless button layout, replacing the traditional joystick with directional buttons for precise movement inputs. The primary action buttons are arranged for intuitive gameplay.

This diagram illustrates the button assignments for the PlayStation versions of the FightBox F1-UFB-UP5 controller. It identifies the USB port, Touchpad, Share, R3, L3, Option, and Home buttons, along with the directional and action buttons.

• Багыттуу баскычтар: The four red buttons on the left side control movement (Up, Down, Left, Right).
• Аракет баскычтары: The eight black buttons on the right side are for primary game actions.
• Опция баскычы: Typically used for pausing games or accessing menus.
• Башкы бет баскычы: Returns to the console's main menu or dashboard.
• Бөлүшүү баскычы: Used for sharing gameplay content (on PlayStation platforms).
• Сенсордук такта: Functions as a touchpad input (on PlayStation platforms).
• R3/L3 баскычтары: These buttons correspond to pressing down the right and left analog sticks on a standard controller.

For specific button mappings on different platforms (Xbox, Nintendo Switch), the controller automatically adapts. Consult your game's control settings for customization options.

5. Техникалык тейлөө

Proper maintenance ensures the longevity and performance of your FightBox F1-UFB-UP5 controller.

• Тазалоо: Use a soft, dry cloth to wipe down the surface of the controller. For stubborn marks, a slightly damp жумшак самын кошулган чүпүрөктү колдонуп, андан кийин кургак сүртсө болот. Абразивдүү тазалоочу каражаттардан же эриткичтерден алыс болуңуз.
• СактагычКонтроллерди салкын, кургак жерде, күн нуру түз тийбеген жана өтө жогорку температурадан алыс сактаңыз.
• Cable Care: Avoid sharp bends or kinks in the USB cable. Disconnect by pulling the plug, not the cable itself.
• Button Care: Do not apply excessive force to the buttons. If a button feels sticky, it may require professional cleaning or replacement.

6. Кыйынчылыктарды

If you encounter issues with your FightBox F1-UFB-UP5 controller, refer to the following common solutions.

1. Controller Not Recognized:
   • USB кабелинин контроллерге да, консолго/компьютерге да бекем туташтырылганын текшериңиз.
   • Башка USB портун колдонуп көрүңүз.
   • Консолуңузду же компьютериңизди өчүрүп-күйгүзүңүз.
   • For PC, check device manager for driver issues and update if necessary.
2. Баскычтар жооп бербейт:
   • Verify the controller is powered on and connected.
   • Test buttons in a different game or system menu to isolate the issue.
   • If only specific buttons are affected, they may require cleaning or replacement.
3. Киргизүү кечигүү:
   • Ensure you are using a direct USB connection, avoiding unpowered USB hubs.
   • Компьютериңиздеги ресурстарды керектеп жаткан фондук процесстерди текшериңиз.
   • Ensure your console's firmware and game software are up to date.

7. Техникалык шарттар

Detailed specifications for the FightBox F1-UFB-UP5 All Buttons Leverless Arcade Game Controller.

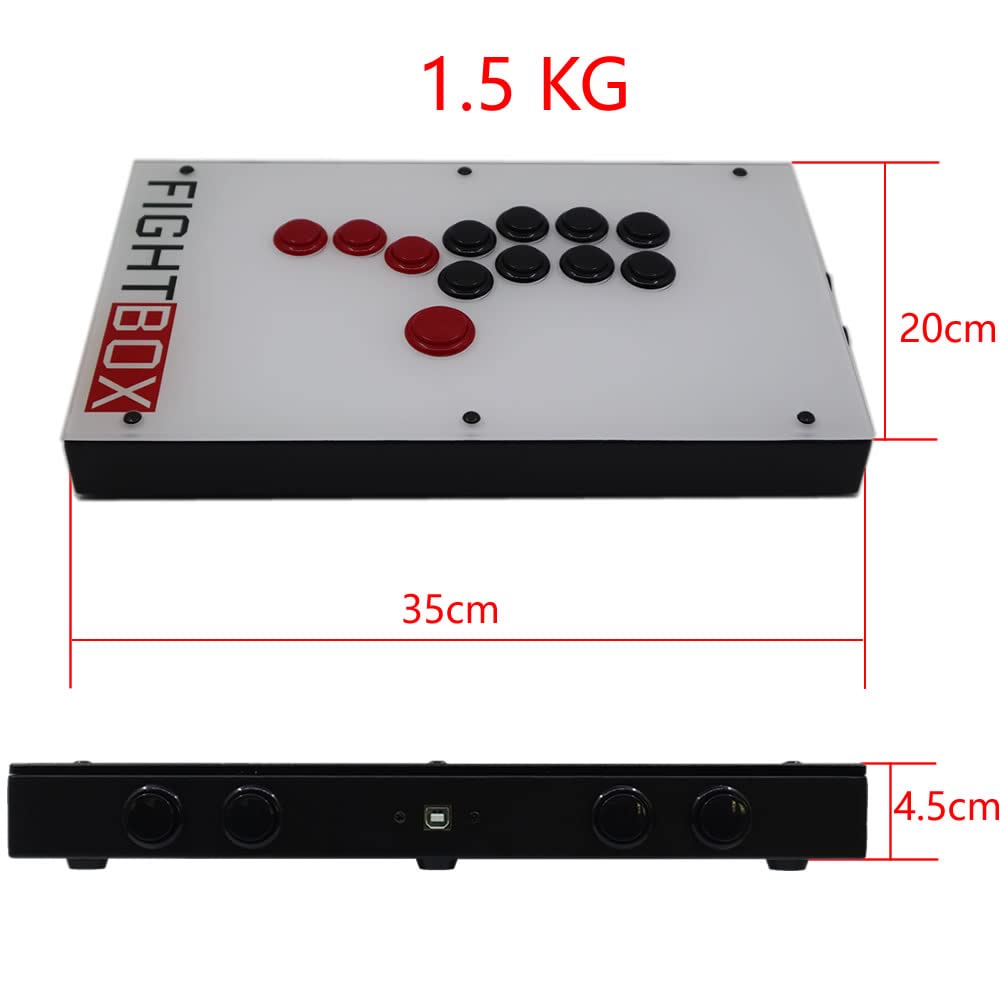

This image provides the physical dimensions of the FightBox F1-UFB-UP5 controller, showing a length of 35cm, width of 20cm, and height of 4.5cm, with a total weight of 1.5 kg.

8. Кепилдик жана колдоо

For warranty information and technical support, please refer to the official FightBox webсайтка же сатуучуга кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

Кошумча жардам алуу үчүн төмөнкүгө кириңиз: FightBox Official Store
