Luminous Solar Grid TIE Inverter 5KW/3P NXI(305) V3 User Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation of your Luminous Solar Grid TIE Inverter 5KW/3P NXI(305) V3. A grid-tied inverter converts the constantly varying DC solar power and feeds it into the grid. It synchronizes the frequency and the output voltage to its connected grid. When solar energy increases, the inverter output increases too, injecting into the grid. Please read this manual thoroughly before installation and operation.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Electrical shock hazard. Only qualified personnel should install, operate, or service this equipment. Failure to follow these instructions may result in serious injury or death.

• Always disconnect all power sources before servicing.
• Инвертордун туура жерге туташтырылышын камсыз кылыңыз.
• Do not operate the inverter if it is damaged.
• Балдарды инвертордон алыс кармаңыз.
• Тез күйүүчү материалдардан алыс, жакшы желдетилген жерде орнотуңуз.

3. Продукциянын өзгөчөлүктөрү

The Luminous Solar Grid TIE Inverter 5KW/3P NXI(305) V3 offers advanced features for optimal solar energy conversion:

• Wide томtage range and low start-up voltage for efficient energy harvesting.
• Super high frequency switching technology for improved performance.
• Friendly and adaptable connection to the grid, ensuring seamless integration.
• User friendly Informative LCD Display for easy monitoring and control.

4. Орнотуу жана орнотуу

Installation of this solar grid-tie inverter requires specialized knowledge and should only be performed by certified electricians or trained solar technicians. Incorrect installation can lead to equipment damage, personal injury, or void the warranty.

Key installation considerations include:

• Монтаждоо жери: Choose a cool, dry, well-ventilated area, protected from direct sunlight and rain.
• Электр байланыштары: Ensure all DC and AC connections are made according to local electrical codes and the wiring diagram provided with the inverter (not included in this general manual).
• Негиздөө: Proper grounding is critical for safety and system performance.
• Тор туташуусу: The inverter must be connected to the utility grid by a qualified professional, adhering to all local regulations and utility requirements.

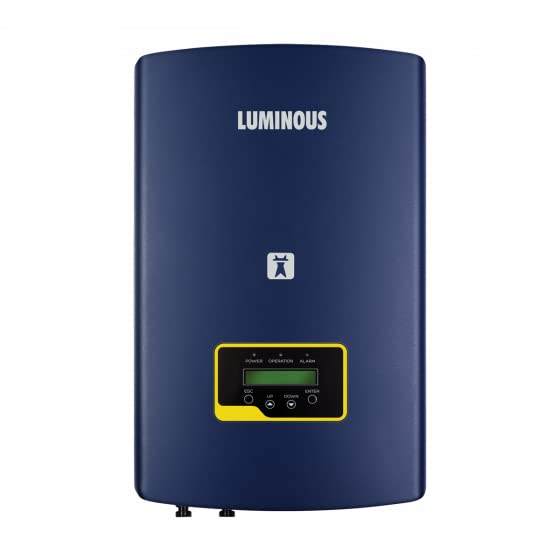

Сүрөт 1: Алдыңкы view of the Luminous Solar Grid TIE Inverter 5KW/3P NXI(305) V3. This image shows the compact design and user interface panel of the inverter.

5. Иштөө нускамалары

Once installed by a qualified professional, the Luminous Solar Grid TIE Inverter operates largely automatically. The LCD display provides real-time information on its status and performance.

1. Алгачкы ишке киргизүү: After installation, ensure all connections are secure. Turn on the DC disconnect switch, then the AC disconnect switch. The inverter will perform a self-test and begin operation.
2. Мониторинг: Use the informative LCD display to monitor key parameters such as DC input voltage, AC output power, grid status, and energy production.
3. Кадимки операция: The inverter will automatically convert DC power from your solar panels into AC power and feed it into the grid. It will adjust its output based on solar availability.
4. Өчүрүү процедурасы: To safely shut down the inverter, first turn off the AC disconnect switch, then the DC disconnect switch. Wait for the display to turn off completely.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your inverter. Always disconnect power before performing any maintenance.

• Тазалоо: Periodically clean the inverter's exterior with a soft, dry cloth to remove dust and debris. Ensure ventilation openings are clear.
• Текшерүү: Annually inspect all wiring and connections for signs of wear, corrosion, or damage. Ensure all terminals are tight.
• Экологиялык текшерүү: Verify that the installation environment remains within specified temperature and humidity ranges.
• Кесиптик текшерүү: It is recommended to have a qualified technician perform a comprehensive system check every 1-2 years.

7. Кыйынчылыктарды

If you encounter issues with your inverter, refer to the following basic troubleshooting steps. For complex problems, contact a qualified technician.

• Инвертор күйбөйт: Check if the DC and AC disconnect switches are in the "ON" position. Verify solar panel connections and grid power supply.
• Төмөн кубаттуулугу: Ensure solar panels are clean and not shaded. Check for any error messages on the LCD display.
• Ката коддору: Consult the inverter's specific error code manual (if provided separately) or contact technical support with the displayed code.
• No Grid Connection: Verify that the utility grid is active and that the AC breaker is not tripped.

8. Техникалык шарттар

Below are the key specifications for the Luminous Solar Grid TIE Inverter 5KW/3P NXI(305) V3:

9. Кепилдик жана колдоо

Specific warranty information and detailed support contacts were not provided in the product data. For warranty claims, technical support, or service inquiries, please refer to the documentation included with your purchase or visit the official Luminous website. Ensure you have your product model number (5KW/3P NXI(305) V3) and purchase date available when contacting support.
