PHOINIKAS Q6 Multi-Mode Gaming Headset User Manual

Introduction

The PHOINIKAS Q6 Gaming Headset is designed to provide a versatile and immersive audio experience across multiple platforms. Featuring 2.4GHz wireless, Bluetooth 5.3, and 3.5mm wired connectivity, this headset offers flexibility for various gaming and communication needs. Its ergonomic design ensures comfort during extended use, while high-precision neodymium drivers deliver clear, powerful sound. The detachable noise-cancelling microphone ensures clear communication.

Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• Gaming Headset Body x1
• 3.5 мм аудио кабель x1
• Y-type Audio Adapter Cable x1 (for PCs with separate audio/mic jacks)
• Detachable Microphone x1
• USB кубаттоо кабели x1
• 2.4GHz USB Receiver x1
• Колдонуучунун колдонмосу x1
• Кепилдик картасы x1

Продукт бүттүview

Аудио өзгөчөлүктөрү

The PHOINIKAS Q6 headset incorporates high-precision 40mm neodymium drivers to deliver a powerful and immersive sound experience. These drivers are designed to reproduce a vivid sound field with clear audio and impactful bass, enhancing both gaming and multimedia content. The Hi-Fi sound quality aims to provide intricate sound details while being gentle on the ears, suitable for prolonged listening sessions.

Микрофон

The headset features a detachable, noise-cancelling microphone. Its 120° rotatable design allows for optimal positioning near your mouth, ensuring clear voice capture. The microphone is engineered to suppress ambient noise, wind noise, and background distractions, delivering clear audio to your communication partners, whether in-game or during calls on platforms like Skype or LINE.

Комфорт жана дизайн

Designed for extended use, the PHOINIKAS Q6 features an ergonomic structure with a lightweight, adjustable headband and soft, breathable earcups. This design minimizes pressure on the head and ears, preventing fatigue during long gaming sessions. The adjustable metal band slider accommodates various head sizes, making the headset comfortable for users of all ages.

Орнотуу нускамалары

2.4GHz зымсыз туташуу

1. Insert the 2.4GHz USB receiver into an available USB port on your PC, PS5, PS4, Mac, or Nintendo Switch.
2. Күч баскычын басып, кармап туруу менен гарнитураны күйгүзүңүз.
3. Ensure the headset is in 2.4GHz mode (refer to the control layout for mode switching). The headset should automatically connect to the USB receiver.

This mode offers low latency (≤20ms) and enhanced stability, ideal for gaming.

Bluetooth 5.3 туташуу

1. Гарнитурадагы кубаттуулук.
2. Switch the headset to Bluetooth mode (refer to the control layout). The headset will enter pairing mode, indicated by a flashing LED.
3. On your device (smartphone, laptop, tablet, Nintendo Switch), go to Bluetooth settings and select "PHOINIKAS Q6" to pair.

3.5 мм зымдуу туташуу

1. Connect the 3.5mm audio cable to the headset's audio jack.
2. Connect the other end of the 3.5mm audio cable to your device.
3. For PCs with separate audio and microphone jacks: Use the included Y-type audio adapter cable. Connect the headset's 3.5mm cable to the Y-splitter, then plug the green connector into your PC's audio output jack and the pink connector into the microphone input jack.
4. Xbox One үчүн: An additional adapter (sold separately) may be required to connect the headset to the controller.

Microphone Attachment

1. Align the detachable microphone's connector with the microphone port on the headset.
2. Микрофонду портко бекем орнотулганга чейин акырын түртүңүз.
3. Adjust the flexible microphone arm to position it optimally near your mouth for clear voice pickup.

Иштөө нускамалары

Күйгүзүү/өчүрүү

• To power on: Press and hold the power button for approximately 3 seconds until the LED indicator lights up.
• To power off: Press and hold the power button for approximately 3 seconds until the LED indicator turns off.

Үндү көзөмөлдөө

• Use the volume up (+) and volume down (-) buttons located on the headset to adjust the audio level.

Mode Switching

• The headset supports 2.4GHz wireless, Bluetooth, and 3.5mm wired modes. Use the dedicated mode switch button (if available) or follow the connection steps in the Setup section to switch between modes.

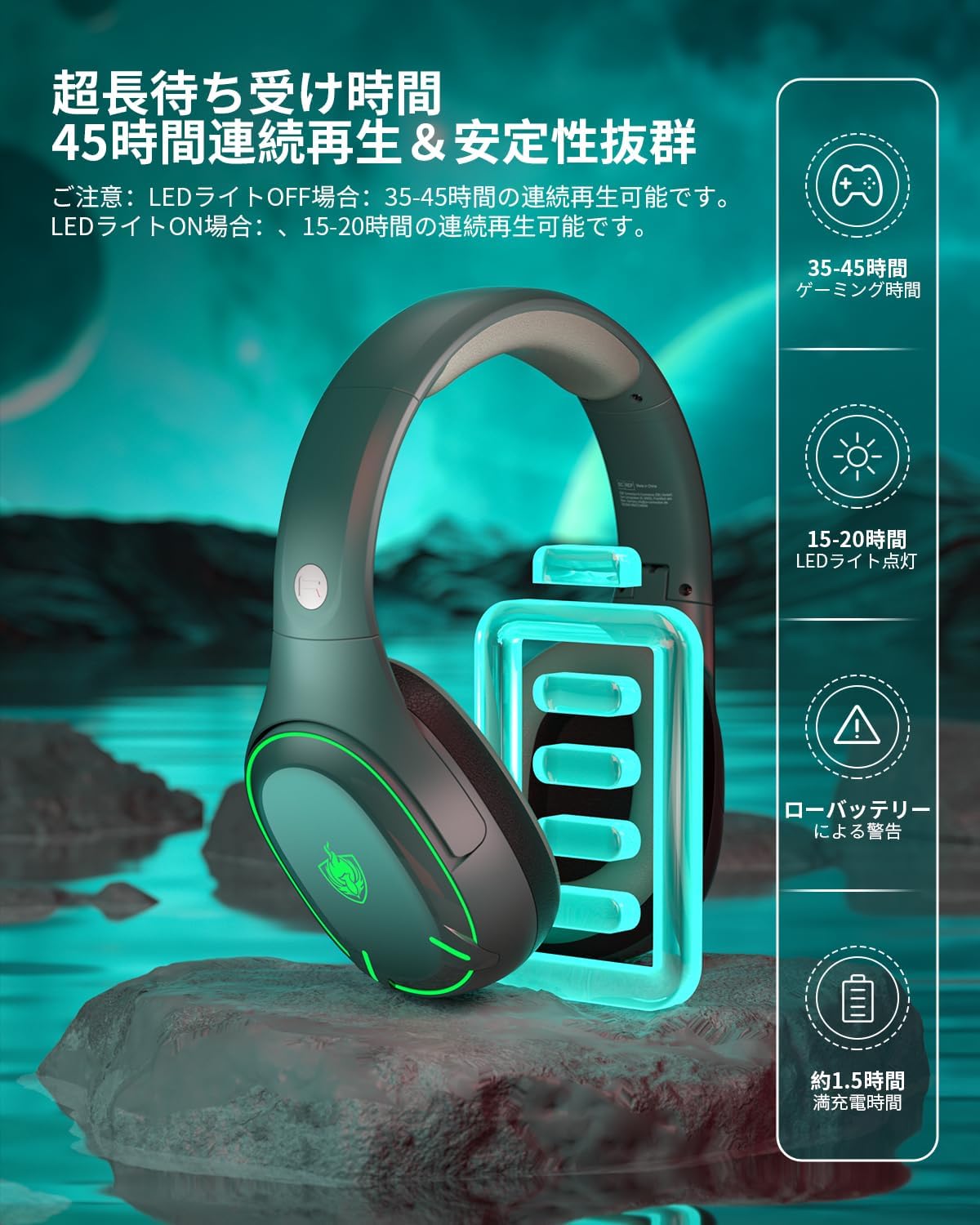

Заряддоо жана батареянын иштөө мөөнөтү

To charge the headset, connect the included USB charging cable to the headset's charging port and a power source (e.g., computer USB port, USB wall adapter).

• Толук кубаттоо убактысы: Болжол менен 1.5 саат.
• Continuous playback (LED lights off): Up to 45 hours.
• Continuous playback (LED lights on): Up to 15-20 hours.

Шайкештик

The PHOINIKAS Q6 headset offers broad compatibility across various devices and connection modes. Refer to the table below for detailed compatibility information:

Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your PHOINIKAS Q6 Gaming Headset.

• Тазалоо: Use a soft, dry cloth to wipe the headset. For earcups, a slightly damp кездемени колдонсо болот, бирок нымдуулуктун динамик торчолоруна же портторуна кирбегенин текшериңиз. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонбоңуз.
• Сактагыч: Store the headset in a cool, dry place away from direct sunlight and extreme temperatures. When not in use, it is recommended to store it in its original packaging or a protective case to prevent dust accumulation and physical damage.
• Кабельге кам көрүү: Avoid sharp bends or excessive pulling on the cables. Disconnect cables by gripping the plug, not the cable itself.

Проблемаларды чечүү

If you encounter issues with your PHOINIKAS Q6 Gaming Headset, refer to the following common troubleshooting steps:

• Үн жок:
  • Ensure the headset is powered on and properly connected (2.4GHz receiver, Bluetooth paired, or 3.5mm cable securely plugged in).
  • Гарнитурадагы жана туташкан түзмөгүңүздүн үнүнүн деңгээлин текшериңиз.
  • Компьютериңиздин үн жөндөөлөрүндө туура аудио чыгаруу түзмөгү тандалганын текшериңиз.
  • If using 3.5mm, ensure the Y-splitter is correctly used for PCs with separate jacks.
• Микрофон иштебейт:
  • Микрофон гарнитурага бекем туташтырылганын текшериңиз.
  • Check that the microphone is not muted on the headset or your connected device.
  • Verify that the correct microphone input device is selected in your computer's sound settings or game/chat application.
  • If using 3.5mm, ensure the Y-splitter's pink connector is in the mic input.
• Зымсыз туташуу маселелери:
  • Ensure the headset is in the correct wireless mode (2.4GHz or Bluetooth).
  • For 2.4GHz, ensure the USB receiver is properly inserted and recognized by your device.
  • Bluetooth үчүн, түзмөгүңүздө Bluetooth иштетилгенин жана гарнитура жупташтыруу режиминде экенин текшериңиз. Жупташтырууну ажыратып, кайра жупташтырып көрүңүз.
  • Диапазондогу көйгөйлөрдү болтурбоо үчүн туташкан түзмөккө жакындаңыз.
  • Башка зымсыз аппараттардын кийлигишүүсүн болтурбаңыз.
• Батарея заряддалбай жатат:
  • Ensure the USB charging cable is securely connected to both the headset and a working power source.
  • Башка USB портун же кубаттоо кабелин колдонуп көрүңүз.

Техникалык шарттар

Кепилдик жана колдоо

The PHOINIKAS Q6 Gaming Headset comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures product quality.

If you encounter any issues with your product, please do not hesitate to contact our customer support. In the event of a product problem, we offer a free new product exchange or refund without requiring a return procedure.

For support, please refer to the contact information provided on the warranty card included in your package or visit the official PHOINIKAS store on Amazon.
