MEISHILE 48V 25A 1200W Switching Power Supply

1. Киришүү

This manual provides detailed instructions for the MEISHILE 48V 25A 1200W Switching Power Supply. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of the product. This power supply is designed to convert AC input voltage to a stable DC 48V output, suitable for various applications such as LED lighting, CCTV systems, audio amplifiers, and industrial machinery.

2. Коопсуздук маалыматы

Эскертүү: Improper installation or use can lead to electric shock, fire, or damage to the device. Always follow these safety guidelines:

• Орнотуудан, зымдарды орнотуудан же техникалык тейлөөдөн мурун, электр менен камсыздоонун негизги электр булагынан ажыратылганын текшериңиз.
• This device should be installed by a qualified electrician or professional.
• Киргизилген томtage switch (115V/230V) is set correctly according to your local power grid before connecting to AC power. Incorrect setting can cause damage.
• Do not use this power supply with devices operating in BUCK-BOOST mode (e.g., certain battery chargers, dimmers, regulators, or PWM modules) as it may not be compatible.
• Ашыкча ысып кетүүнүн алдын алуу үчүн туура желдетүүнү камсыз кылыңыз. Вентиляция тешиктерин жаап албаңыз.
• Түзмөктү нымдуулукка, чаңга же өтө жогорку температурага дуушар кылбаңыз.
• в ачпагылаasing of the power supply. There are no user-serviceable parts inside, and opening it voids the warranty and poses a risk of electric shock.
• Кыска туташуулардын алдын алуу үчүн бардык зымдарды туташтыруу бекем жана тийиштүү түрдө изоляциялангандыгын текшериңиз.

3. Продукт бүтүп калдыview жана өзгөчөлүктөрү

The MEISHILE 48V 25A 1200W Switching Power Supply is designed for reliability and efficiency. Key features include:

• Мыкты курулуш: Features a 1.6mm thickened aluminum housing for durability, wear resistance, and impact protection.
• Натыйжалуу муздатуу: Equipped with a cooling fan, aluminum heat sinks, and silicone film for effective heat dissipation, ensuring longer lifespan and safer operation.
• Жогорку натыйжалуулугу: Utilizes a double-sided PCB with high-precision components, offering low standby power consumption and high operational efficiency.
• Constant Voltage Чыгуу: Provides a stable DC 48V output, manually adjustable within a range of 43.2V to 52.8V.
• Комплекстүү коргоо: Includes protection against overload (110%-150% threshold), overvoltagд, кыска туташуу жана ысып кетүү.
• Кеңири колдонуу: LED l үчүн ылайыктууamps, metal lamps, CCTV, LED displays, electrical appliances, industrial machines, and CNC DC-DC modules.

Сүрөт: бүттүview of the power supply highlighting its protection features including overload, overvoltage, interruption, short circuit, high-precision components, and overheating protection.

Сүрөт: Ички view of the power supply, illustrating its high-quality components such as aluminum housing, capacitors, filters, high-density copper coils, copper transformers, and cooling fans.

4. Техникалык шарттар

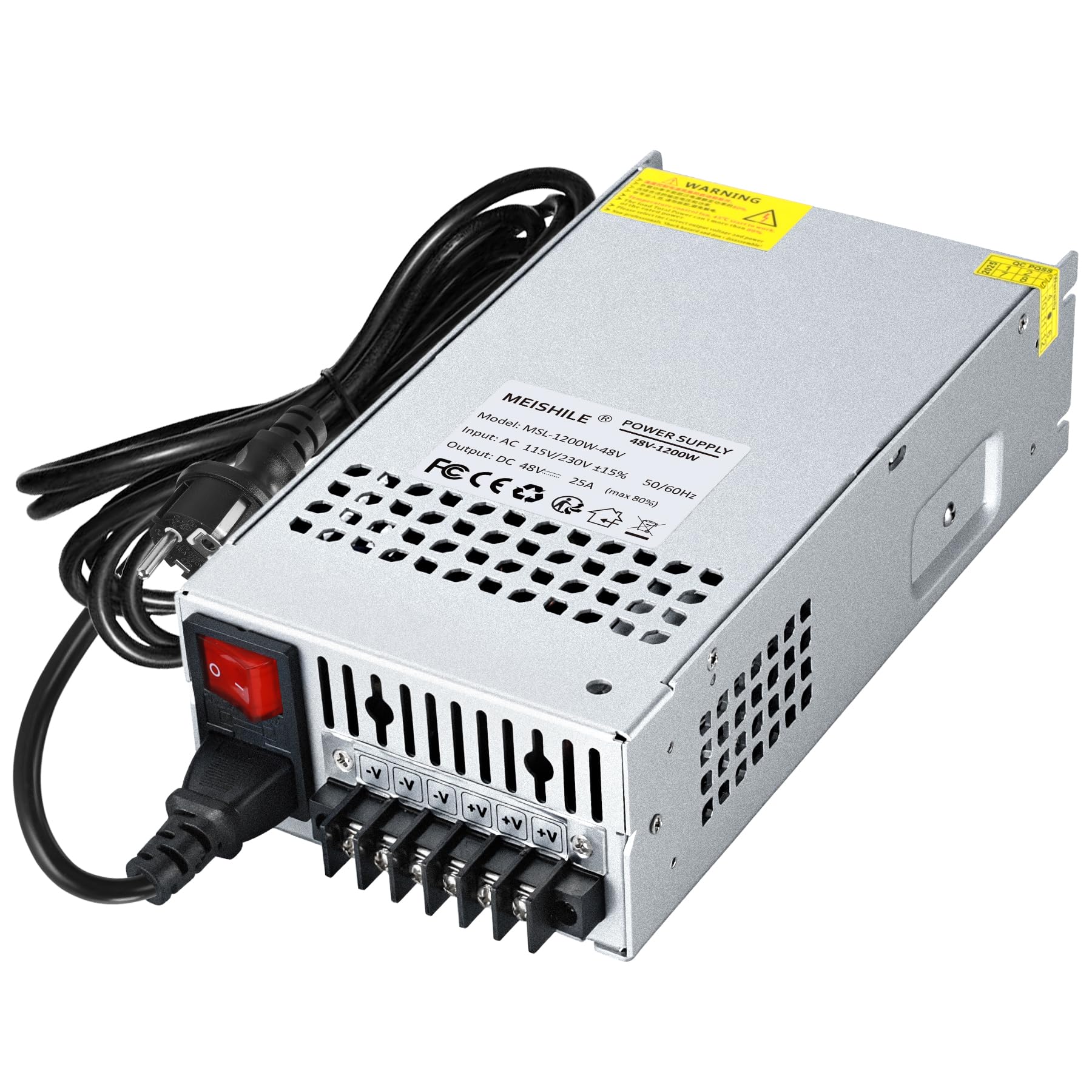

Image: Product parameters and dimensions of the MEISHILE 48V 25A 1200W Switching Power Supply.

5. Орнотуу жана орнотуу

Follow these steps for proper setup and installation:

1. Пакеттен чыгаруу жана текшерүү: Carefully remove the power supply from its packaging. Inspect for any physical damage.
2. Монтаждоо: Choose a suitable location for mounting the power supply. Ensure it is a stable, dry, and well-ventilated area. The unit is designed for panel mounting.
3. Киргизүү көлөмүtage Тандоо: Киргизилген томду табыңызtage selector switch on the side of the unit. Set it to either 115V or 230V according to your local AC power supply. Failure to set this correctly can damage the unit.
4. AC киргизүү туташуу: Connect the AC input power cable to the designated AC input terminals. Ensure the Live (L), Neutral (N), and Ground (GND) wires are connected correctly and securely.

Image: Detailed connection instructions showing AC input terminals and DC power output terminals (V+ and V-).

5. Туруктуу токтун чыгыш туташуусу: Connect your DC load to the V+ and V- output terminals. Ensure correct polarity (+ to V+, - to V-). Use appropriate gauge wiring for your application to handle the current.
6. Тtage Adjustment (Optional): If a precise output voltage is required, use a small screwdriver to carefully adjust the potentiometer (usually labeled "V.ADJ") to fine-tune the output voltage within the specified range (43.2V-52.8V). Monitor the output with a multimeter during adjustment.
7. Күйгүзүү: Once all connections are secure and verified, connect the power supply to the AC mains. The cooling fan will activate when the unit is under load.

6. Иштөө нускамалары

The MEISHILE 48V 25A 1200W Switching Power Supply operates in constant voltage mode. To ensure optimal performance and longevity, consider the following:

• Жүктөө жөндөмдүүлүгү: The power supply is rated for 1200W. For optimal performance and to prevent triggering overload protection, it is recommended to operate the power supply at 80% or less of its maximum rated power for typical loads (soft start devices). For inductive or capacitive loads with high inrush current (hard start devices), it is advisable to operate at 50% or less of the rated power.
• Муздатуу желдеткичинин иштеши: The integrated cooling fan is designed to activate automatically when the power supply reaches a certain internal temperature or when under significant load. This ensures efficient heat dissipation and maintains stable operation.
• Экологиялык шарттар: Operate the power supply within its specified temperature and humidity ranges. Avoid environments with excessive dust, corrosive gases, or high vibration.

Image: The power supply featuring its quiet and efficient cooling system and the input voltage selection switch (115V/USA/CA and 230V/EU).

Сүрөт: Мисamples of applications for the power supply, including LED strip lighting, CCTV, amplifiers, and other industrial or domestic uses.

7. Техникалык тейлөө

Regular maintenance helps ensure the longevity and reliable operation of your power supply:

• Тазалоо: Periodically clean the exterior of the power supply with a soft, dry cloth. Ensure ventilation openings are free from dust and debris to maintain proper airflow. Do not use liquid cleaners or solvents.
• Туташуу текшерүү: Regularly inspect all wiring connections for tightness and integrity. Loose connections can cause overheating or intermittent operation.
• Экологиялык текшерүү: Ensure the operating environment remains within specified conditions (temperature, humidity, dust).
• Колдонуучунун тейлөөчү тетиктери жок: The power supply contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. Refer to qualified service personnel if repair is needed.

8. Кыйынчылыктарды

Эгер сиз кубат менен камсыз кылууда көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын караңыз:

If the problem persists after following these steps, please contact MEISHILE customer support.

9. Кепилдик жана колдоо

MEISHILE is committed to providing high-quality products and excellent customer service. This product comes with a standard manufacturer's warranty against defects in materials and workmanship under normal use.

For any questions, technical assistance, or warranty claims, please contact our customer service team immediately. Our team has years of experience in the power supply field and is ready to assist you with pre-sales and after-sales support. Please refer to the contact information provided with your purchase or on the official MEISHILE webсайт.

The multilingual user manual is also available in the product guide and documentation section where you purchased the product.
