Introduction
The JOYROOM JR-CL16 is a versatile car accessory designed to enhance your in-car audio and charging experience. This device functions as a Bluetooth FM transmitter, allowing you to stream music and make hands-free calls through your car's stereo system. It also features dual fast-charging ports, including USB-C PD and USB-A QC3.0, to quickly charge your mobile devices. The smart LED display provides essential information such as car battery voltage and FM frequency. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.
Коопсуздук маалыматы
Бул продуктуну колдонуудан мурун бардык коопсуздук көрсөтмөлөрүн окуп чыгып, түшүнүп алыңыз. Бул көрсөтмөлөрдү аткарбоо жаракат алууга же түзмөктүн бузулушуна алып келиши мүмкүн.
- Батареянын коопсуздугу: Keep the device away from excessive heat and humidity. Do not short-circuit the device. Dispose of batteries (if applicable, though this device is car-powered) according to local regulations.
- Интерференция: This device may interfere with other wireless devices. Follow the instructions in this manual to minimize potential interference.
- Айдоо коопсуздугу: Do not operate the device in a manner that distracts you from driving. Only use hands-free functions when it is safe and permitted by local traffic laws.
- Кубат булагы: Ensure the device is connected to a compatible 12V-24V car cigarette lighter socket.
Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- 1 × JOYROOM JR-CL16 48W Wireless FM Transmitter Car Charger
Продукт бүттүview
Familiarize yourself with the components of your JR-CL16 FM Transmitter.
Сүрөт: Фронт view of the JOYROOM JR-CL16 FM Transmitter, showing the LED display, multi-function knob, call button, USB-C PD port, USB-A QC3.0 port, and a standard USB port for U-disk playback.
The device features a smart LED display, a multi-function knob for volume and frequency adjustment, a dedicated call button, and multiple charging ports for convenience.
Орнотуу нускамалары
- Унаа розеткасына салыңыз: Plug the JR-CL16 FM Transmitter into your car's cigarette lighter socket. The device will power on automatically, and the LED display will light up.
- FM жыштыгын тууралоо:
- Find an empty FM frequency on your car radio (a frequency with no active broadcast).
- Adjust the FM frequency on the JR-CL16 to match your car radio's frequency. To do this, press and hold the multi-function knob until the FM frequency on the display flashes. Rotate the knob left or right to change the frequency. Press the knob again to confirm.
- Bluetooth жупташууда:
- Мобилдик түзмөгүңүздө Bluetooth иштетип, жеткиликтүү түзмөктөрдү издеңиз.
- Select "JR-CL16" from the list to pair. Once paired, the device will confirm the connection.
Сүрөт: Diagram illustrating the Bluetooth 5.0 connection process, highlighting faster and more stable pairing with automatic connection.
Иштөө нускамалары
Музыканы ойнотуу
The JR-CL16 supports three music playing modes:
- Bluetooth агымы: After successful Bluetooth pairing, open your music player on your mobile device. Audio will be transmitted wirelessly to your car stereo via the selected FM frequency.
- USB Flash Drive (U-Disk) Playback: MP3/WMA/WAV/FLAC сактагычын камтыган USB флеш-дискти (64 ГБ чейин) салыңыз files into the dedicated USB port (not the charging ports). The device will automatically detect and play music from the U-disk.
- AUX Cable Playback: Connect your audio device to the JR-CL16 using a 3.5mm AUX cable. The device will switch to AUX mode for audio transmission.
Сүрөт: Visual representation of the three music playback options: USB flash drive, AUX cable, and Bluetooth 5.0, showing the respective connection points on the device.
Музыканы көзөмөлдөө:
- Үндү тууралоо: Rotate the multi-function knob to adjust the volume.
- Ойнотуу/тындыруу: Short press the multi-function knob.
- Кийинки трек: Rotate the multi-function knob clockwise and hold.
- Мурунку трек: Rotate the multi-function knob counter-clockwise and hold.
- Бас жогорулатуу: Press the "B" button (Bass) to activate or deactivate enhanced bass.
Сүрөт: The JR-CL16 FM Transmitter with an emphasis on its Deep BASS and Hi-Fi Stereo sound capabilities, indicating CD-level audio quality.
Hands-Free Чалуу
The built-in microphone with CVC noise cancellation ensures clear and safe hands-free calls.
- Чакырууга жооп берүү: Short press the call button (green phone icon).
- Чакырууну четке кагуу: Long press the call button.
- Туталануунун Себеби: Short press the call button during a call.
- Акыркы номерди кайра терүү: Double press the call button.
Сүрөт: A driver using the JR-CL16 for a hands-free call, demonstrating the clear and stable calling feature with CVC Noise Cancellation. The image also shows controls for volume, answering, rejecting, and hanging up calls.

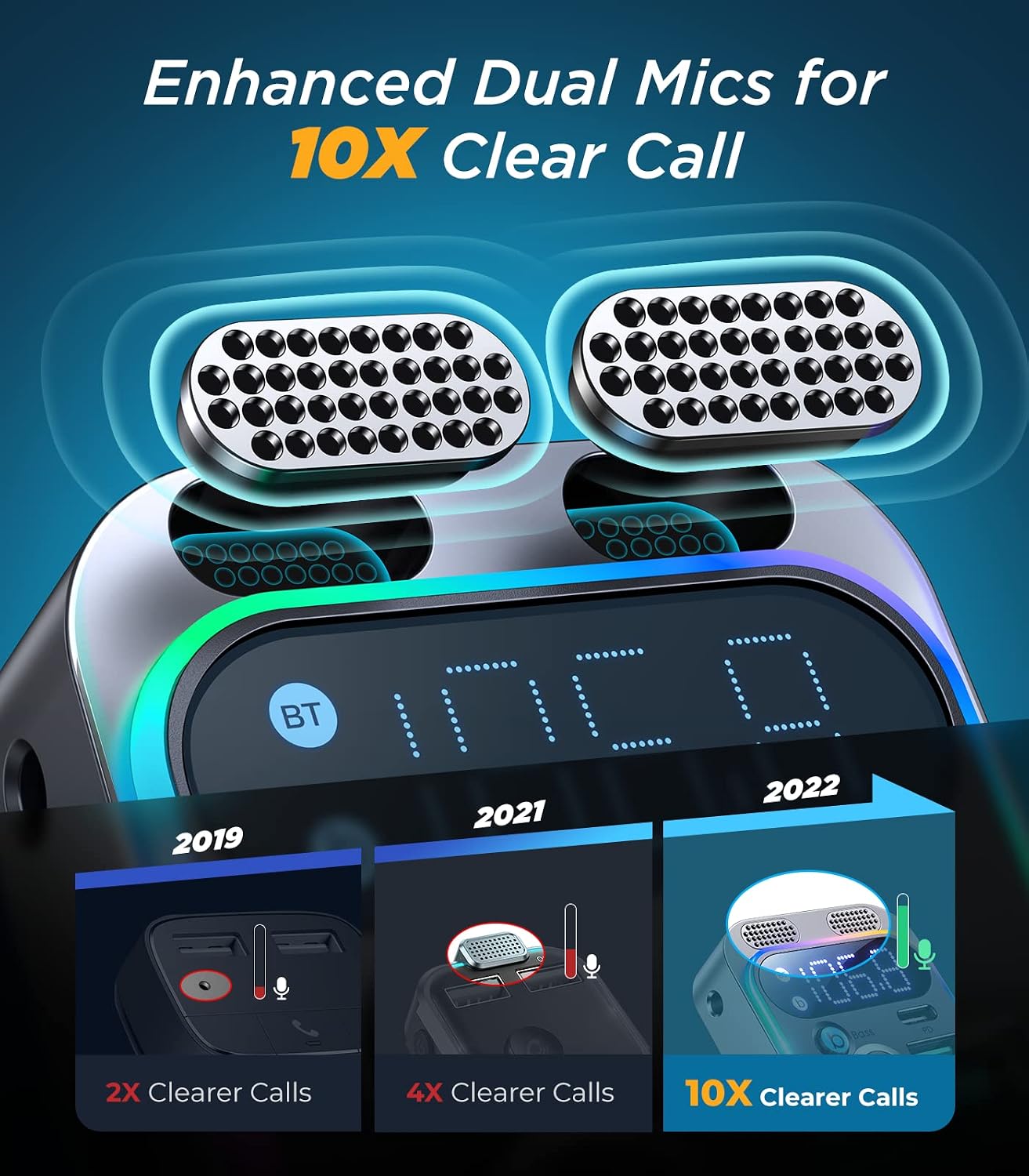

Сүрөт: А деталдуу view of the JR-CL16's enhanced dual microphones, designed to provide 10 times clearer call quality compared to previous versions.
Заряддоо түзмөктөрү
The JR-CL16 is equipped with two fast-charging ports:
- USB-C PD 30W Port: Тез кубаттоо үчүн шайкеш келген USB-C түзмөктөрү үчүн.
- USB-A QC3.0 18W Port: For fast charging compatible USB-A devices.
You can charge two devices simultaneously with a total output of 48W.
Сүрөт: The JR-CL16 connected to a car's power outlet, simultaneously charging an iPhone 13 Pro via PD30W and a Samsung S22 via QC18W, demonstrating its 48W super fast charging capability.
Үн жардамчысы
Activate your phone's voice assistant (Siri or Google Assistant) directly through the JR-CL16 by long-pressing the call button when not on a call.
Техникалык тейлөө
- Аппаратты таза, жумшак, кургак чүпүрөк менен сүртүңүз.
- Аппаратты экстремалдык температурага, тике күн нуруна же нымдуулукка дуушар кылуудан алыс болуңуз.
- Аппаратты өз алдынча бөлүүгө же оңдоого аракет кылбаңыз. Жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кубат/LED дисплейи өчүрүлгөн эмес | Loose connection; car socket issue; blown fuse in car. | Ensure the device is firmly plugged in. Check if the car's cigarette lighter socket is working. Consult a car technician if necessary. |
| Аудио сапаты начар/статикалык | FM frequency interference; volume too low; Bluetooth not properly connected. | Change to a different, clear FM frequency on both the device and car radio. Increase volume on both the device and car stereo. Re-pair Bluetooth. |
| Bluetooth аркылуу жупташтыруу мүмкүн эмес | Телефондо Bluetooth иштетилген эмес; аппарат жупташтыруу режиминде эмес; жупташтырылган түзмөктөр өтө көп. | Ensure Bluetooth is on and visible on your phone. Restart the JR-CL16. Forget previous Bluetooth connections on your phone and try again. |
| Тез кубаттоо иштебейт | Cable not compatible; device not supporting fast charging; incorrect port used. | Use a high-quality, fast-charging compatible cable. Ensure your device supports PD or QC3.0. Use the correct USB-C PD or USB-A QC3.0 port. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | JOYROOM |
| Модель аты | JR-CL16 |
| Байланыш технологиясы | USB, Bluetooth |
| Зымсыз стандарт | Bluetooth 5.0 |
| Power Source | Car Cigarette Lighter (12V-24V) |
| Материал | Пластик, акрил |
| Продукциянын өлчөмдөрү (L x W x Y) | 10 x 5 x 1.3 см |
| Түс | Black (Note: Product title mentions Silver, but specifications indicate Black) |
| Шайкеш түзмөктөр | Car Stereo System, Mobile Phones |
| Өзгөчөлүктөр | USB-C PD Port, Hands-Free Calling, Voice Assistant Support, LED Display, Bass Boost |
| Медиа түрүн колдоо | USB Flash Drive (MP3, WMA, WAV, FLAC), Bluetooth Audio, AUX Input |
| Заряддоо чыгышы | USB-C PD 30W, USB-A QC3.0 18W (Total 48W) |
| Аудио чыгаруу түрү | FM радио, Bluetooth |
| Аудио киргизүү | 3.5 мм AUX |
| Башкаруу ыкмасы | Touch (Multi-function knob) |
| Колдоого алынган колдонмолор | Spotify, YouTube, MP3, AAC, etc. |
| GTIN (UPC/EAN) | 06941237199652 |
Кепилдик жана колдоо
Кепилдик: The product description indicates "No Warranty". Please refer to your point of purchase for specific return or exchange policies.
Кардарларды колдоо: For any questions, issues, or technical assistance, please contact the retailer or JOYROOM customer service through their official website or contact channels. Keep your purchase receipt for any warranty claims or support inquiries.
