1. Продукт бүтүп калдыview
The QC P12-F-08N-B is a 1/2'' FPT (Female Pipe Thread) Break Away Quick Coupler designed for high-pressure applications. This coupler features a ball seat mechanism, ensuring a secure and reliable connection.
Негизги спецификацияларга төмөнкүлөр кирет:
- Жиптин өлчөмү: 1/2'' FPT (.840''-14 Threads)
- Максималдуу басым: 3987 PSI
- Дизайн: Break Away Quick Coupler with Ball Seat
Figure 1.1: ашыкview of the QC P12-F-08N-B Quick Coupler, showing its general appearance and knurled grip.
2. Орнотуу жана орнотуу
Proper installation is crucial for the safe and effective operation of the quick coupler. Ensure all components are clean and free of debris before installation.
2.1. Орнотууга чейинки текшерүү
- Verify that the thread size of your system matches the 1/2'' FPT of the coupler.
- Inspect the coupler for any visible damage or manufacturing defects.
- Ensure the system is depressurized before attempting installation.
2.2. Connecting the Coupler
- Apply a suitable thread sealant (e.g., PTFE tape or pipe dope) to the male pipe threads of the component you are connecting the coupler to.
- Carefully thread the QC P12-F-08N-B coupler onto the male pipe threads.
- Tighten the coupler using an appropriate wrench until a secure, leak-free connection is achieved. Do not overtighten, as this can damage the threads or the coupler.
- Once installed, slowly pressurize the system and check for any leaks at the connection point.

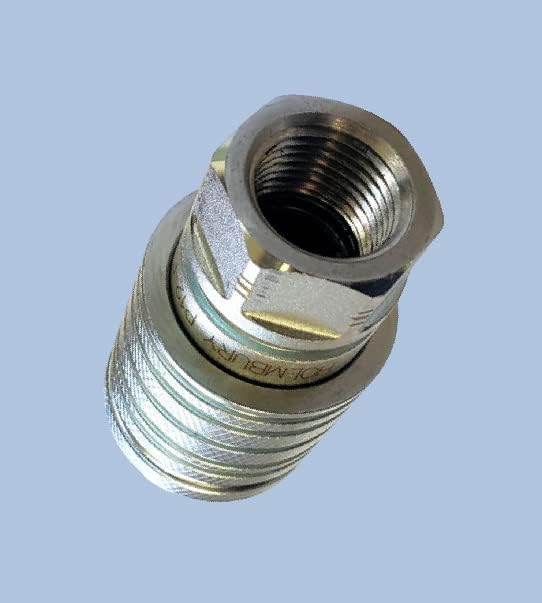

2.1-сүрөт: View of the threaded end of the QC P12-F-08N-B coupler, illustrating the 1/2'' FPT connection point.
3. Иштөө нускамалары
The QC P12-F-08N-B is a quick-connect/disconnect coupler. Follow these steps for proper operation:
3.1. Connecting a Male Plug
- Ensure the male plug is clean and compatible with the P12-F-08N-B coupler.
- Kn артка тартurled sleeve on the coupler.
- Insert the male plug fully into the coupler.
- Kn бошотуңузurled sleeve. It should snap forward, securing the male plug in place. A slight tug on the plug will confirm it is locked.
3.2. Disconnecting a Male Plug
- Ensure the system is depressurized or that the line is isolated before disconnecting, especially in high-pressure applications.
- Kn артка тартurled sleeve on the coupler firmly.
- The male plug will release from the coupler.
Сүрөт 3.1: Жакын пландан view of the internal mechanism of the QC P12-F-08N-B coupler, showing the ball seat design.
4. Техникалык тейлөө
Regular maintenance ensures the longevity and reliable performance of your quick coupler.
- Тазалоо: Periodically clean the coupler, especially the internal mechanism, to remove dirt, dust, or debris that could impede operation or cause leaks. Use a clean cloth and, if necessary, a mild cleaning solution.
- Майлоо: Apply a small amount of appropriate lubricant (e.g., silicone-based grease) to the moving parts of the sleeve and the internal ball mechanism to ensure smooth operation.
- Текшерүү: Regularly inspect the coupler for signs of wear, corrosion, or damage. Pay close attention to the threads, the sealing surfaces, and the integrity of the sleeve mechanism.
- Мөөрдү алмаштыруу: If leaks occur or the connection feels loose, the internal seals may need replacement. Consult a qualified technician or the manufacturer for seal replacement kits.
5. Кыйынчылыктарды
This section addresses common issues you might encounter with the quick coupler.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Coupler leaks when connected. | Damaged or worn internal seals. Debris in the sealing area. Improperly seated male plug. | Clean the coupler and male plug. Ensure the male plug is fully inserted. Replace internal seals if necessary. |
| Male plug difficult to insert or remove. | Lack of lubrication. Debris in the mechanism. Damaged sleeve or internal components. | Lubricate the sleeve and internal parts. Clean out any debris. Inspect for physical damage. |
| Coupler does not hold pressure. | Internal valve or ball seat damage. Excessive wear. | Inspect the ball seat and internal valve. If damaged, the coupler may need replacement. |
6. Техникалык шарттар
Detailed technical specifications for the QC P12-F-08N-B Quick Coupler:
- Модел: P12-F-08N-B
- Жип түрү: 1/2'' FPT (.840''-14 Threads)
- Максималдуу басым: 3987 PSI
- Муфтанын түрү: Break Away Quick Coupler
- Орундук түрү: Топ отургуч
- Өндүрүүчү: Жалпы
- ASIN: B0BYX7S5QP
- UPC: 618455714498
- Биринчи жеткиликтүү болгон күнү: 19-март, 2023-жыл
7. Кепилдик жана колдоо
Information regarding specific warranty terms for this product is not provided in the available documentation. For warranty inquiries or technical support, please contact the seller or manufacturer directly through their official channels.
If you have any questions regarding the use or maintenance of your QC P12-F-08N-B Quick Coupler, please reach out to the seller for assistance.
