1. Киришүү
Thank you for choosing the Lixada Cordless Robotic Pool Cleaner. This automatic pool cleaner is designed to provide efficient and hassle-free cleaning for various flat-bottom pool types. Please read this manual thoroughly before operating the device to ensure proper use, maintenance, and optimal performance.
2. Продукциянын өзгөчөлүктөрү
- Зымсыз дизайн: Eliminates tangled cables, offering freedom of movement and ease of use.
- Күчтүү соргуч: Equipped with two powerful motors and an oversized intake area to effectively collect debris such as leaves, sand, and gravel.
- Surface Control System: Adapts to the pool surface type, enabling a maximum climbing capacity of 18° for thorough cleaning.
- Independent Scrapers: Two independent scrapers assist in scrubbing the pool floor for enhanced cleaning.
- Узак иштөө убактысы: Features a built-in 5200 mAh battery, providing up to 120 minutes of cleaning after a 3-4 hour charge.
- Automatic Retrieval: Automatically stops near the pool wall when the battery is low, allowing for easy retrieval with the included hook.
- Ар тараптуу шайкештик: Suitable for flat-bottom pools, including indoor rectangular pools and outdoor rectangular, elliptical, or circular pools.
Image: The Lixada Cordless Robotic Pool Cleaner offers a hassle-free experience compared to traditional wired pool cleaners with messy hoses.
Image: The cleaner is equipped with powerful dual-motors that propel the device and filter pool water.
Image: Illustrates the cyclonic vacuum technology for powerful debris capture and the surface control system for maximum wall climbing performance.
3. Пакеттин мазмуну
Сураныч, бардык буюмдардын бар экенин жана бузулбаганын текшерүү үчүн пакетти кылдат текшериңиз:
- 1 x Lixada Robotic Pool Cleaner
- 1 x Power Adapter (110-220V)
- 2 x Floor Scrapers
- 2 х бурамалар
- 1 х тутка
- 1 х Hook
- 1 x User Manual
4. Орнотуу нускамалары
4.1 Аппаратты заряддоо
- Ensure the pool cleaner is dry before charging.
- Connect the power adapter to the charging port on the cleaner.
- Plug the power adapter into a standard electrical outlet (110-220V).
- Заряддоо индикаторунун жарыгы күйөт. Толук кубаттоо адатта 3-4 саатка созулат.
- Толук заряддалгандан кийин адаптерди ажыратыңыз.
Image: The pool cleaner being charged using the provided power adapter. Ensure the device is dry before charging.
4.2 Attaching the Handle and Scrapers
- Align the handle with the designated slots on the top of the cleaner.
- Берилген бурамалар менен тутканы бекемдеңиз.
- Attach the two floor scrapers to the underside of the cleaner as indicated in the diagram (refer to the physical manual for detailed diagrams if available).
5. Иштөө нускамалары
5.1 Starting the Cleaning Cycle
- Тазалоочу толук кубатталганын текшериңиз.
- Тазалоочу каражатты акырын бассейнге түшүрүңүз, ал түбүнө чөгүп кетет.
- Press the power button to start the cleaning cycle. The cleaner will begin moving and filtering water.
- The cleaner will operate for up to 120 minutes on a full charge.
Image: Gently lower the cleaner into the pool using the handle.
Image: The cleaner operating on the pool floor, collecting debris.
5.2 Setting Cleaning Patterns
The cleaner offers different cleaning patterns suitable for various pool shapes. Adjust the front and rear dials on the device to select the desired pattern:
- Mode 1: A-B - Recommended for oval pools.
- Mode 2: A-C - Recommended for free-formed pools.
- Mode 3: B-C - Default setting, suitable for most pools.
Image: Instructions for adjusting front and rear dials to set the desired cleaning pattern based on pool shape.
5.3 Тазалоочу каражатты алуу
When the battery is low, the cleaner will automatically move to the nearest pool wall. Use the provided hook to carefully lift the cleaner out of the water. Ensure to turn off the device before charging or cleaning.
6. Техникалык тейлөө
6.1 Фильтрди тазалоо
- Ар бир тазалоо циклинен кийин тазалагычты бассейнден чыгарыңыз.
- Open the filter compartment (refer to the physical manual for location).
- Чыпка себетти алып чыгып, чогулган таштандыларды бошотуңуз.
- Rinse the filter basket thoroughly with clean water.
- Reinsert the clean filter basket and close the compartment securely.

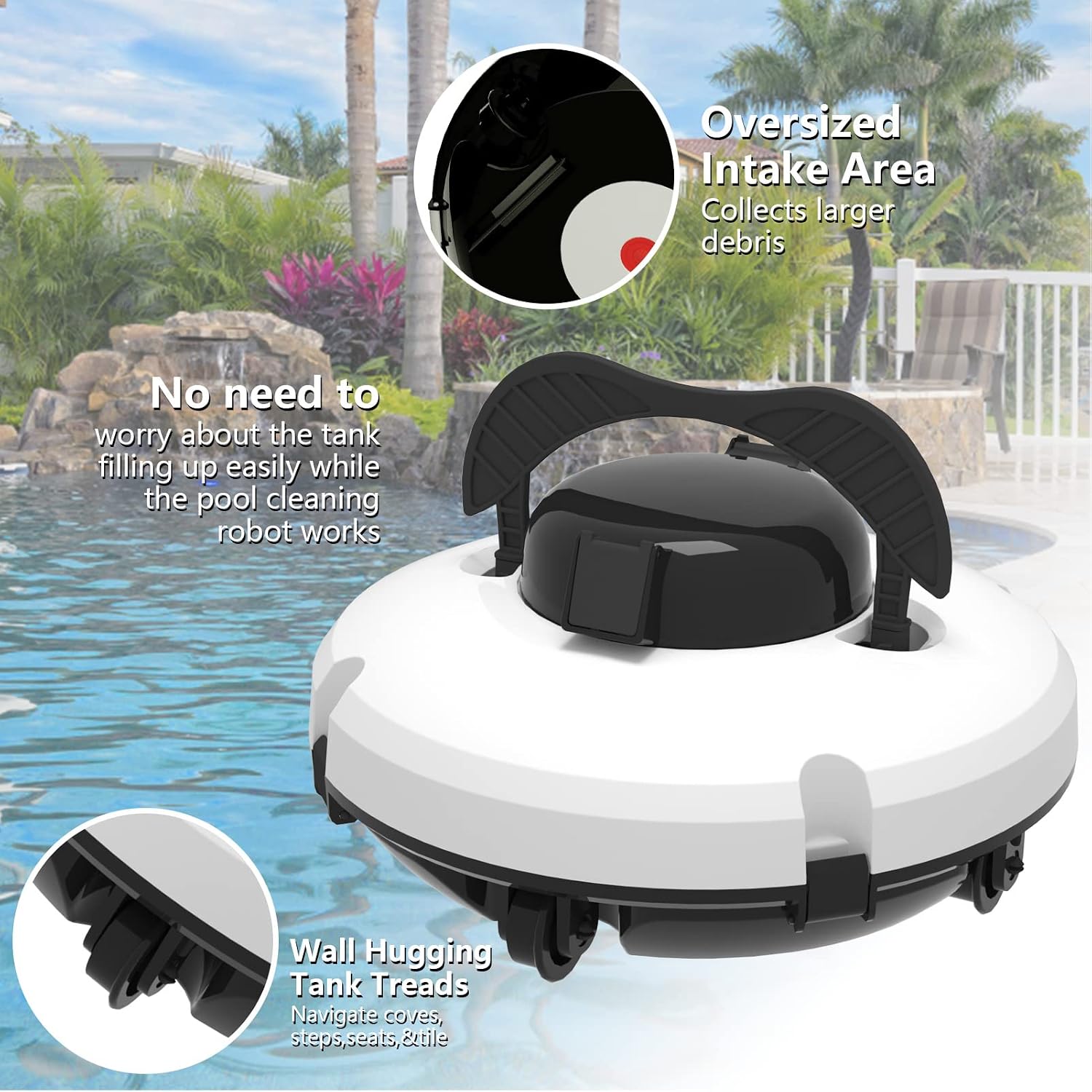

Image: The cleaner features an oversized intake area for collecting larger debris, reducing the frequency of filter emptying.
6.2 Жалпы тазалоо жана сактоо
- Тазалоочунун сыртын жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды колдонбоңуз.
- Тазалоочу каражатты салкын, кургак жерде, күндүн түз нурунан жана өтө жогорку температурадан алыс сактаңыз.
- Батареянын иштөө мөөнөтүн сактоо үчүн, аны узак убакытка сактоо учурунда мезгил-мезгили менен заряддап туруңуз.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Тазалоочу күйбөйт. | Батареянын аздыгы; Кубат баскычы туура басылган жок. | Charge the cleaner fully. Press the power button firmly. |
| Cleaner moves slowly or stops. | Low battery; Filter basket is full; Obstruction in motors/wheels. | Recharge the battery. Clean the filter basket. Check for and remove any obstructions. |
| Начар тазалоо көрсөткүчү. | Filter basket is full; Incorrect cleaning pattern selected; Scrapers are worn. | Clean the filter basket. Adjust the cleaning pattern according to your pool shape. Inspect and replace scrapers if necessary. |
| Cleaner stirs up debris instead of collecting it. | Cleaner moving too fast for fine debris. | Ensure the filter is clean. For very fine debris, a slower pass or multiple cycles might be needed. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | KFN5103152288932EF |
| Материал | ABS (акрилонитрил бутадиен стирол) |
| Батарея сыйымдуулугу | 5200 мАч |
| Заряддоо убактысы | 3-4 саат |
| Иштөө убактысы | 120 мүнөткө чейин |
| Суу өткөрбөйт рейтинги | IPX8 |
| Filter Fineness | 180ум |
| Rated Operating Voltage | 11.5 V |
| Adapter Input Frequency | 50/60 Гц |
| Адаптер чыгаруу томtage | 12.6 V |
| Өлчөмдөрү (L x W x Y) | 33 x 33 x 15 см (13 x 13 x 5.9 дюйм) |
| Таза Салмак | 3.5 кг |
9. Кепилдик жана колдоо
Information regarding specific warranty terms and availability of spare parts is not provided in the product data. For warranty claims, technical support, or inquiries about spare parts, please contact your original retailer or the Lixada customer service directly. Keep your purchase receipt as proof of purchase.
Note: Some marketplace purchases may have different warranty conditions. Please verify with your seller.
