Introduction

This manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your Generic RTD36AC Rotary Tool. Please read this manual thoroughly before using the tool to ensure optimal performance and user safety.

The RTD36AC Rotary Tool is a versatile 200W power tool designed for various applications such as cutting, engraving, sanding, drilling, and polishing. It features a variable speed control ranging from 10,000 to 40,000 RPM and comes with 170 accessories and 4 attachments, including a MultiPro Keyless Chuck and a Flex Shaft.

Пакеттин мазмуну

Пакетти ачкандан кийин, төмөндө келтирилген компоненттердин бардыгы бар экенин жана бузулбаганын текшериңиз:

• RTD36AC Rotary Tool
• 170 Accessories (various types for cutting, grinding, sanding, drilling, polishing, carving, engraving)
• 4 Attachments (Shield, Flex Shaft, Cutting Guide, Universal Chuck)
• Ташуу кутусу
• Аксессуар кутусу
• Колдонуучунун Колдонмосу (бул документ)

Image: The RTD36AC Rotary Tool, its carrying case, and a wide array of 170 accessories including various bits, sanding drums, cutting wheels, and polishing pads, along with the flexible shaft and shield attachment.

Image: A detailed visual breakdown of the 183 total pieces, including the rotary tool, kit box, and various accessories categorized for grinding/sharpening, cutting, sanding, cleaning/polishing, carving/engraving, and general accessories.

Орнотуу жана чогултуу

1. Attaching Accessories with the MultiPro Keyless Chuck

The MultiPro Keyless Chuck allows for quick and easy accessory changes without the need for a wrench. It accommodates shanks from 1/32'' to 1/8''.

1. Айланма аспаптын кубат булагынан суурулганын текшериңиз.
2. Unscrew the existing collet nut if present.
3. Insert the desired accessory shank into the keyless chuck.
4. Tighten the chuck by hand until the accessory is securely held. Do not overtighten.

2. Attaching the Flex Shaft

The Flex Shaft provides enhanced comfort and precision for detailed work, reducing hand fatigue during prolonged use.

1. Айланма аспаптын розеткадан суурулганын текшериңиз.
2. Айланма аспаптан руль гайкасын жана руль гайкасын чыгарыңыз.
3. Insert the inner drive cable of the flex shaft into the collet of the rotary tool.
4. Secure the flex shaft's coupling nut onto the rotary tool's threaded collar.
5. Insert the desired accessory into the flex shaft's chuck and tighten.

Image: Close-up of the user-friendly flex shaft in action, demonstrating its ergonomic design and aluminum alloy construction for durability, as it is used for engraving.

3. Attaching the Shield Attachment

The Shield attachment provides protection from debris during cutting and grinding operations.

1. Айланма аспаптын розеткадан суурулганын текшериңиз.
2. Slide the shield attachment over the threaded collar of the rotary tool.
3. Rotate the shield to the desired position for optimal protection.

4. Attaching the Cutting Guide

The Cutting Guide assists in making precise cuts at various depths and maintains stability.

1. Айланма аспаптын розеткадан суурулганын текшериңиз.
2. Thread the cutting guide onto the rotary tool's threaded collar.
3. Adjust the depth by rotating the guide until the desired cutting depth is achieved.

Иштөө нускамалары

1. Күйгүзүү жана өчүрүү

To turn the tool ON, slide the power switch to the 'ON' position. To turn it OFF, slide the switch to the 'OFF' position. Always ensure the tool is OFF before plugging or unplugging it from the power source or changing accessories.

2. Өзгөрмө ылдамдыкты башкаруу

The RTD36AC features a 6-level variable speed control, allowing you to adjust the RPM from 10,000 to 40,000 RPM to suit different materials and applications. Higher speeds are generally used for harder materials and finer work, while lower speeds are suitable for softer materials and polishing.

Image: The variable speed control mechanism on the rotary tool, illustrating the 6-speed settings and the range from 10,000 to 40,000 RPM, highlighting the 200W strong power.

3. Колдонуу сценарийлери

The 170 accessories and powerful 200W motor enable a wide range of applications:

• Кесүү: Use appropriate cutting wheels for materials like metal, plastic, or wood. Always use the shield attachment for safety.


Image: The rotary tool equipped with a clear shield attachment, actively cutting through a metal surface, demonstrating the protection provided during operation.

• Гравюра: Utilize engraving cutters or diamond grinding needles for detailed work on various surfaces. The flex shaft is ideal for precision engraving.
• Тегиш: Attach sanding bands or discs for smoothing surfaces, removing rust, or shaping materials.
• Бургулоо: Use drill bits for creating small holes in wood, plastic, or soft metals.
• Жылтыратуу: Apply felt wheels with polishing compound to achieve a high-gloss finish on metals, plastics, or ceramics.

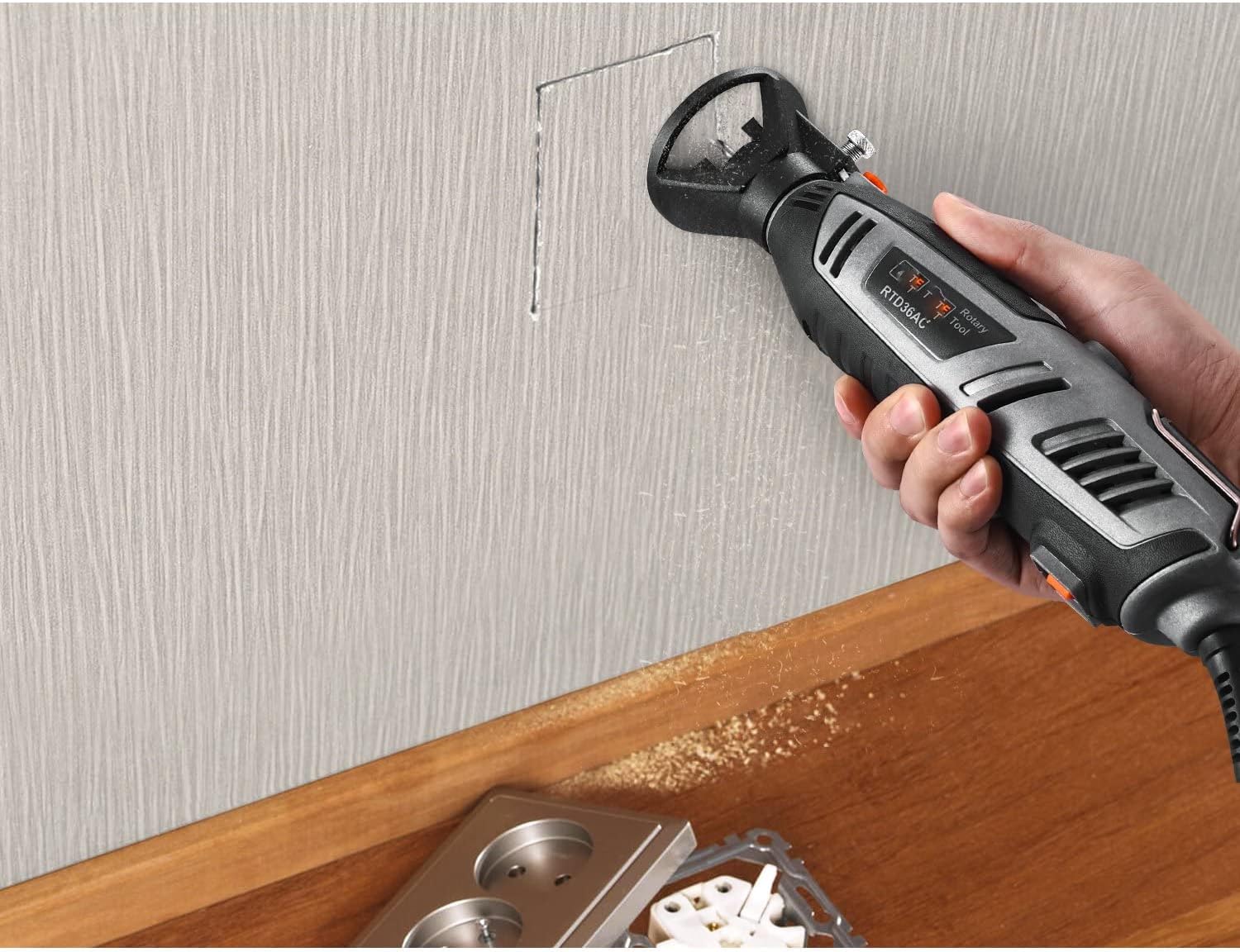

Image: The rotary tool with the cutting guide attachment in use, precisely cutting a rectangular opening in a wall, demonstrating its utility for controlled cuts.

Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин айлануучу куралыңыздын узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.

1. Тазалоо

• After each use, unplug the tool and use a soft brush or compressed air to remove dust and debris from the ventilation openings and around the chuck area.
• Wipe the tool's body with a clean, damp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.

2. Аксессуарларга кам көрүү

• Store accessories in the provided accessory case to prevent damage and loss.
• Inspect accessories before each use for wear or damage. Replace worn or damaged accessories immediately.

3. Сактоо

Store the rotary tool and its accessories in the original carrying case in a dry, clean, and secure location, out of reach of children.

Проблемаларды чечүү

If you encounter issues with your rotary tool, refer to the following common problems and solutions:

Эгер бул чечимдерди колдонууга аракет кылгандан кийин көйгөй чечилбесе, кошумча жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.

Техникалык шарттар

Кепилдик жана колдоо

This product comes with a user manual. If you have any questions about the rotary tool, its operation, or require technical assistance, please do not hesitate to contact our customer support team. Our technical support team is available to solve your problems as soon as possible.

Please refer to your purchase documentation or the product packaging for specific warranty details and contact information.
