BLACK+DECKER Cobra
Instruction Manual
BLACK+DECKER Cat and Squirrel Repellent Outdoor Solar Motion-Activated Water Blaster Jet Spray (Cobra)
Model: Cobra
1. Продукт бүтүп калдыview
The BLACK+DECKER Cobra Water Blaster is a solar-powered, motion-activated device designed to humanely deter unwanted animals from your garden or property using a harmless jet of water. It provides a safe and effective solution for managing pests such as deer, rabbits, foxes, squirrels, skunks, raccoons, birds, bears, cats, dogs, and rodents without the use of chemicals or traps.

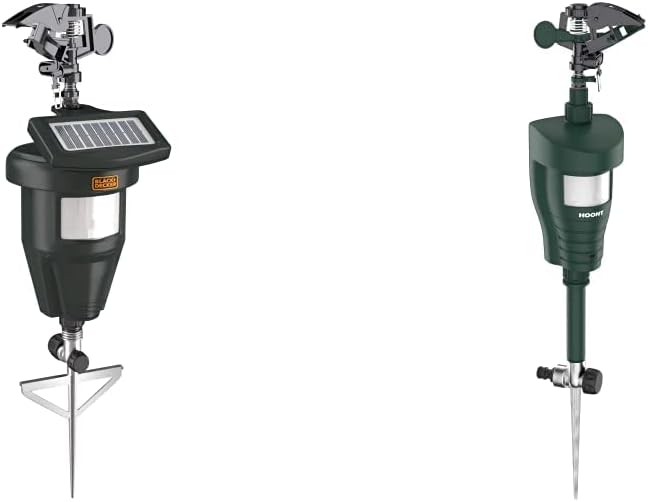

Figure 1: Main unit of the BLACK+DECKER Cobra Water Blaster.
The device features a motion sensor that detects movement within its range, triggering a brief burst of water. This sudden spray and the accompanying clicking noise from the sprinkler valve startle animals, encouraging them to leave the area and learn to avoid it in the future. The system is designed for water efficiency, reactivating only when new motion is detected.
2. Пакеттин мазмуну
- Motion detector Body (with integrated solar panel)
- Water sprayer Unit
- Шланг туташтыруу
- Metal Ground Spike
- 2 AA NiMH Rechargeable batteries (pre-installed or included separately)
- Колдонуучунун колдонмосу (бул документ)
Figure 2: The BLACK+DECKER Cobra Water Blaster showing the solar panel and main components.
3. Орнотуу нускамалары
Follow these steps to set up your Cobra Water Blaster:
- Батарея орнотуу: Ensure the 2 AA NiMH rechargeable batteries are correctly installed in the battery compartment. The device typically comes with batteries pre-installed.
- Attach Ground Spike: Securely attach the metal ground spike to the bottom of the main unit.
- Позициялоо: Choose a location in your garden or yard that requires protection. Ensure the solar panel on top of the unit receives direct sunlight for optimal charging.
- Жерге киргизүү: Firmly push the metal ground spike into the soil until the unit is stable and upright.
- Суу түтүгүн туташтыруу: Connect a standard garden hose to the hose connection port at the base of the unit. Ensure the connection is tight to prevent leaks.
- Adjust Spray Preference: Adjust the water sprayer unit to direct the spray in the desired area. The spray angle is adjustable up to 360 degrees.
- Түзмөктү иштетүү: Turn on the water supply to the hose. The device is now ready to detect motion and activate the water jet.
4. Аппаратты иштетүү
The Cobra Water Blaster operates automatically once set up and activated. It functions effectively both during the day and night.
- Кыймылды аныктоо: The integrated motion sensor detects movement within a range of up to 30 feet and an approximate detection angle of 120 degrees.
- Water Jet Activation: Upon detecting motion, the water jet is activated for approximately 5 seconds. This sudden spray, combined with the sound of the sprinkler valve, startles the animal.
- Суунун натыйжалуулугу: The device is designed to be highly water-efficient. The water sprinkler will only reactivate when new motion is detected after a brief pause, preventing continuous spraying.
- Камтуу аймагы: The device can effectively monitor and protect an area of approximately 650 square feet.
Figure 3: Key features including motion sensor, water efficiency, and coverage area.
5. Техникалык тейлөө
To ensure optimal performance and longevity of your Cobra Water Blaster, regular maintenance is recommended:
- Күн панелин тазалоо: Мезгил-мезгили менен күн панелин жумшак, гamp cloth to remove dust, dirt, or debris that may obstruct sunlight and reduce charging efficiency.
- Кыймыл сенсорун тазалоо: Keep the motion sensor lens clean and free from obstructions (e.g., leaves, mud) to ensure accurate detection.
- Water Nozzle Check: Inspect the water nozzle for any blockages. If water flow is weak or erratic, gently clear any debris.
- Шланг туташтыруу: Regularly check the hose connection for leaks and ensure it remains securely fastened.
- Кышкы сактоо: In freezing temperatures, disconnect the water hose and store the unit indoors to prevent damage from ice expansion.
6. Кыйынчылыктарды
If you encounter issues with your Cobra Water Blaster, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Device not spraying. | No water supply, low water pressure, dead batteries, obstructed sensor. | Ensure hose is connected and water is turned on. Check water pressure. Allow solar panel to charge or replace batteries. Clean motion sensor lens. |
| Device spraying constantly. | Sensor continuously triggered, faulty sensor. | Ensure no constant movement in detection area (e.g., swaying branches). Reposition the unit. If problem persists, contact customer support. |
| Short detection range. | Obstructed sensor, low battery charge. | Clean motion sensor lens. Ensure solar panel receives adequate sunlight for charging. |
| Weak water spray. | Low water pressure, clogged nozzle. | Increase water pressure from the tap. Clean the water nozzle. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | BLACK+DECKER |
| Модел | Кобра |
| Power Source | Solar-powered with 2 AA NiMH rechargeable batteries (included) |
| Тактоо диапазону | 30 метрге чейин |
| Detection Angle | Болжол менен 120° |
| Water Spraying Angle | 360° (жөнгө салынуучу) |
| Мониторингге алынган аймак | Болжол менен 650 кв. |
| Материал | Metal (spike), Plastic (main body) |
| Түс | Кара |

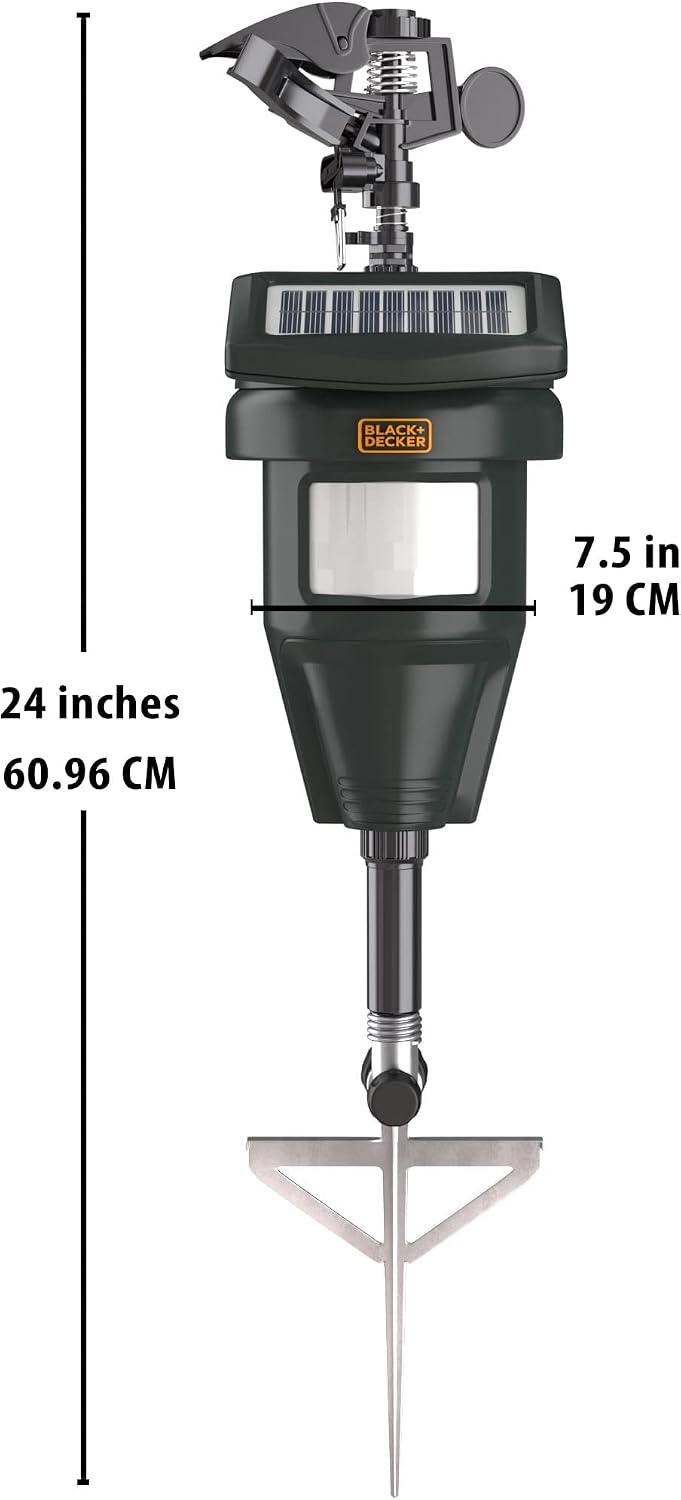

Figure 4: Approximate dimensions of the Cobra Water Blaster.
8. Кепилдик жана колдоо
The BLACK+DECKER Cobra Water Blaster comes with a 1 жылдык өндүрүүчүнүн кепилдиги. For warranty claims, technical support, or any inquiries regarding your product, please refer to the contact information provided on the product packaging or visit the official BLACK+DECKER webсайт.
Өндүрүүчү: BLACK+DECKER
