SAMSUNG 7.5 Cu. Ft. Brushed Black Smart Electric Dryer with Steam Sanitize+ & Sensor Dry User Manual

1. Орнотуу жана орнотуу

Proper setup is crucial for the safe and efficient operation of your new Samsung electric dryer. Please follow these instructions carefully.

1.1 Пакеттен чыгаруу

Carefully remove all packaging materials, including the shipping bolts and any protective film. Ensure all accessories are present. Keep packaging for future transport if needed.

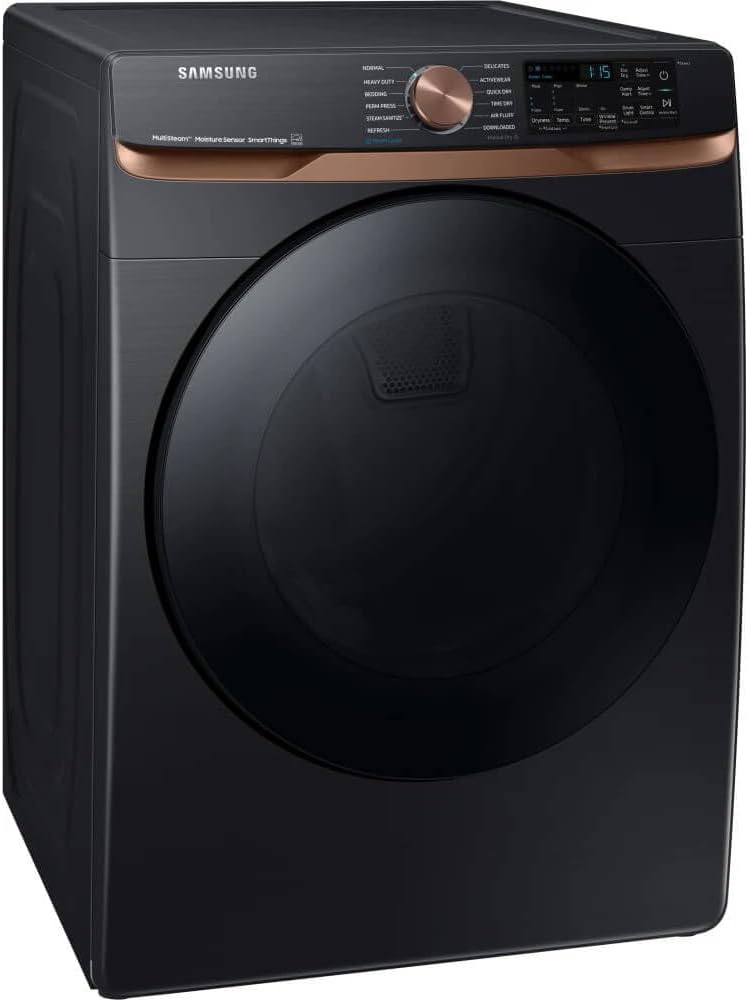

Бурчтуу view of the Samsung dryer, highlighting its large capacity drum and modern aesthetic.

1.2 Орнотууга талаптар

• Жайгашкан жери: Install the dryer on a level surface in a well-ventilated area, away from direct sunlight or heat sources.
• Электр: Requires a dedicated 240V, 30A electrical circuit. Consult a qualified electrician for proper wiring.
• Вентиляция: Ensure proper exhaust venting to the outside. Use rigid metal ducting for optimal performance and safety.
• Water (for Steam Features): A cold water supply line with a shut-off valve is required for the Steam Sanitize+ and Steam Refresh functions.

1.3 Connecting to Utilities

Connect the power cord to the appropriate electrical outlet. Securely attach the exhaust duct to the dryer and vent to the exterior. For steam functions, connect the cold water supply hose to the dryer's water inlet valve.

2. Иштөө нускамалары

This section provides detailed instructions on how to use your Samsung Smart Electric Dryer's various features and cycles.

2.1 Башкаруу панелинин үстүнөview

The intuitive control panel features a central cycle selector dial and a digital display for settings and status. The dial allows you to choose from various drying programs, while the touch buttons enable customization of dryness level, temperature, and other options.

А деталдуу view of the dryer's control panel, showing the cycle selection dial, digital display, and various setting buttons.

2.2 Кургатуу циклин тандоо

Turn the cycle selector dial to choose the desired drying program. The digital display will show the selected cycle and its default settings. Available cycles include:

• Кадимки: For cottons and linens.
• Оор жүк: For heavy fabrics.
• Супер ылдамдык: Fast and effective drying.
• Чакан жүк: Optimized for smaller loads.
• Накикаттар: Gentle drying for delicate items.
• Steam Sanitize+: Uses steam and high heat to sanitize items.
• Wrinkle Away: Reduces wrinkles with steam.
• Steam жаңыртуу: Refreshes clothes with steam in 15 minutes.
• сүлгү: Keeps towels fluffy.
• Төшөнчүлөр: For bed sheets and light duvets.
• Активдүү кийим: For training and gym wear.
• Пермь басмасы: Синтетикалык кездемелер үчүн.
• Аба толкуну: Dries without heat.
• Жүктөлгөн: Custom cycles downloaded via SmartThings.
• Manual Dry: Allows manual setting of time and temperature.

2.3 Орнотууларды ыңгайлаштыруу

After selecting a cycle, you can adjust the following settings using the corresponding buttons on the control panel:

• Кургактык: Adjust the level of dryness (e.g., More Dry, Normal Dry, Less Dry).
• Темп: Select the drying temperature (e.g., High, Medium, Low, Extra Low).
• Убакыт: For Manual Dry cycles, set the specific drying time.
• Параметрлер: Access additional features like Damp Alert, Wrinkle Prevent, or Drum Light.

басыңыз Баштоо/Пауза кургатуу циклин баштоо үчүн баскычын басыңыз.

2.4 SmartThings байланышы

Your Samsung Smart Electric Dryer can connect to the SmartThings app via Wi-Fi. This allows you to:

• Monitor cycle status and remaining time from your smartphone.
• Цикл аяктаганда эскертмелерди алыңыз.
• Remotely start or pause drying cycles.
• Downloaded specialized drying cycles.
• Access troubleshooting tips and smart care features.

Refer to the SmartThings app's in-app guide for detailed setup and usage instructions.

3. Техникалык тейлөө

Үзгүлтүксүз тейлөө оптималдуу иштешин камсыз кылат жана кургаткычыңыздын иштөө мөөнөтүн узартат.

3.1 Линт чыпкасын тазалоо

Кургатуунун натыйжалуулугун сактоо жана өрт коркунучунун алдын алуу үчүн, ар бир жүктөөдөн мурун же кийин түк чыпкасын тазалап туруңуз. Түтүк чыпкасы кургаткычтын эшигинин тешигинин ичинде жайгашкан.

1. Кургаткычтын эшигин ачыңыз.
2. Түктүү чыпканы түз сыртка тартыңыз.
3. Open the filter and remove any accumulated lint by hand.
4. Чыпканы жаап, аны кайра оюгуна бекем салыңыз.

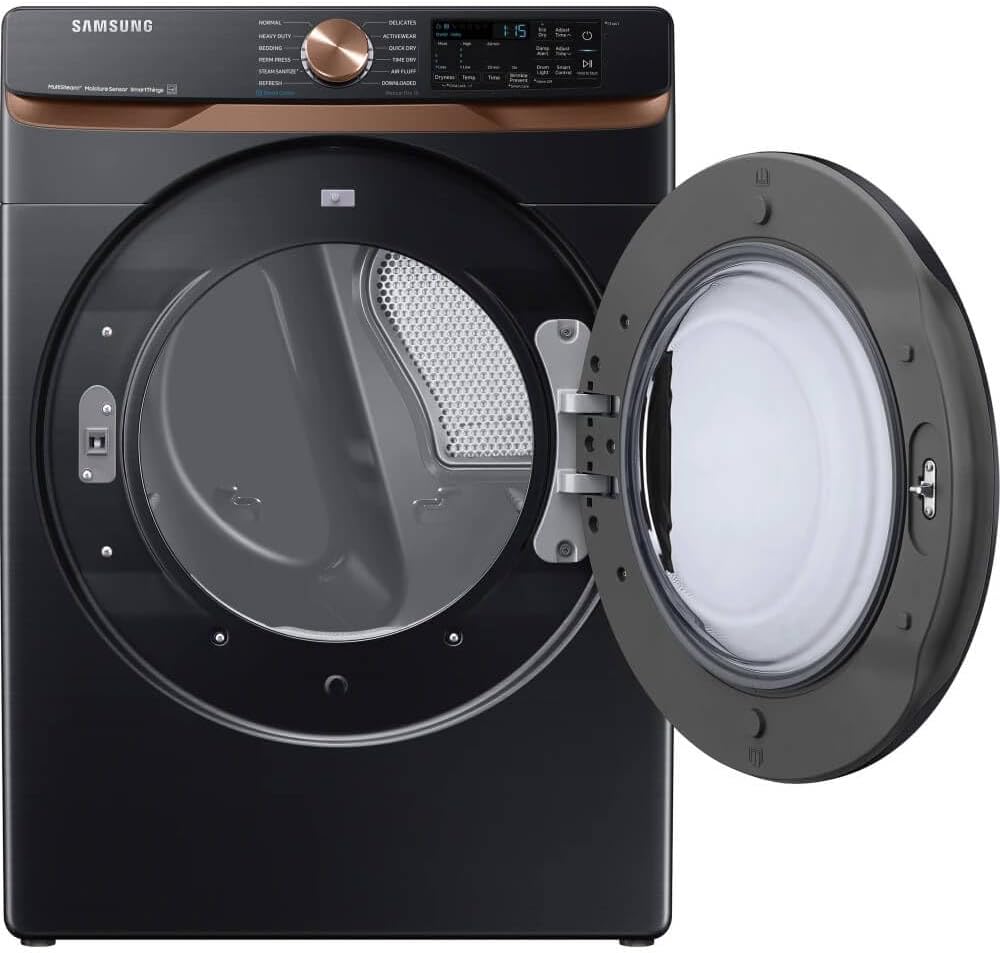

The dryer drum with the door open, revealing the lint filter slot at the bottom.

3.2 Тышкы тазалоо

Сырткы беттерин жумшак менен сүртүңүз, гamp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive pads.

3.3 Interior Drum Cleaning

Occasionally, clean the interior of the dryer drum with a damp cloth and a mild detergent. Rinse thoroughly and dry with a clean cloth. Do not use abrasive cleaners or steel wool.

4. Кыйынчылыктарды

Кызматка кайрылуудан мурун, кайраview this section for solutions to common issues.

5. Техникалык шарттар

Key technical specifications for the Samsung 7.5 Cu. Ft. Brushed Black Smart Electric Dryer.

6. Кепилдик жана колдоо

Кепилдик маалыматы үчүн продуктуңузга кошулган кепилдик картасын караңыз же расмий Samsung компаниясына баш багыңыз website. For technical support or service inquiries, please contact Samsung Customer Support.

You can find contact details for customer support on the Samsung webсайтында же SmartThings колдонмосу аркылуу.
