Fretta F3000 Cold Press Juicer Instruction Manual

Introduction

Thank you for choosing the Fretta F3000 Cold Press Juicer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new juicer. Please read all instructions carefully before first use and retain this manual for future reference.

Маанилүү коопсуздук нускамалары

ЭСКЕРТҮҮ: Өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн ар дайым негизги коопсуздук чараларын аткарыңыз.

• Шайманды иштетүүдөн мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
• Do not operate the juicer if any part is damaged or if the power cord is frayed. Contact customer support for assistance.
• Жаракат алуунун алдын алуу үчүн, иштеп жатканда колдоруңузду жана идиш-аяктарды тамак берүүчү науадан алыс кармаңыз. Ар дайым берилген тамак-аш түрткүчүн колдонуңуз.
• Ensure the juicer is properly assembled and locked before turning it on.
• Unplug the appliance from the outlet before cleaning or when not in use.
• Мотордук базаны сууга же башка суюктуктарга батырбаңыз.
• Бул шайман тиричиликте гана колдонуу үчүн.
• Avoid juicing extremely hard items like frozen fruits with pits, as this may damage the auger.

Продукт бүттүview

The Fretta F3000 Cold Press Juicer is designed for efficient and quiet juice extraction, preserving nutrients and flavor. It features a 3-inch wide feed chute, a powerful 200W DC motor, and BPA-free Tritan material for your health and safety.

Image: Fretta F3000 Cold Press Juicer, showcasinанын кооз дизайны жана компоненттери.

Компоненттер

• Башкаруу панели бар мотор базасы
• Feed Chute Assembly (with 3-inch wide opening)
• Шнек (чайноочу бурама)
• Шире чыпкасы
• Целлюлоза чыгуучу капкак
• Шире контейнери
• Целлюлоза контейнери
• Food Pusher
• Тазалоочу щетка

Сүрөт: жарылган view illustrating all the detachable parts of the Fretta F3000 Juicer for easy identification.

Орнотуу жана чогултуу

Before first use, wash all detachable parts (except the motor base) in warm, soapy water. Rinse thoroughly and dry.

1. Мотордун негизин туруктуу, тегиз бетке коюңуз.
2. Align the feed chute assembly with the motor base and push it in until it locks securely. Ensure the lock button on top of the juicer body is fully upright, indicating it's locked.
3. Insert the auger into the feed chute assembly.
4. Place the juice strainer over the auger.
5. Connect the pulp spout by aligning the indicator arrow with the unlock icon, pushing the spout in, and twisting counter-clockwise until the arrow aligns with the lock icon.
6. Place the juice container under the juice outlet and the pulp container under the pulp outlet.

Important: Do not operate the juicer unless it is fully assembled and locked. Improper assembly could damage the machine.

Иштөө нускамалары

1. Ингредиент даярдоо

• Бардык жашылча-жемиштерди жакшылап жууш керек.
• The 3-inch wide feed chute allows for larger pieces, reducing prep time. However, for optimal flavor and to prevent clogging, it is recommended to remove hard peels (e.g., oranges, lemons) and large seeds/pits.
• Cut ingredients into pieces that fit comfortably into the feed chute.

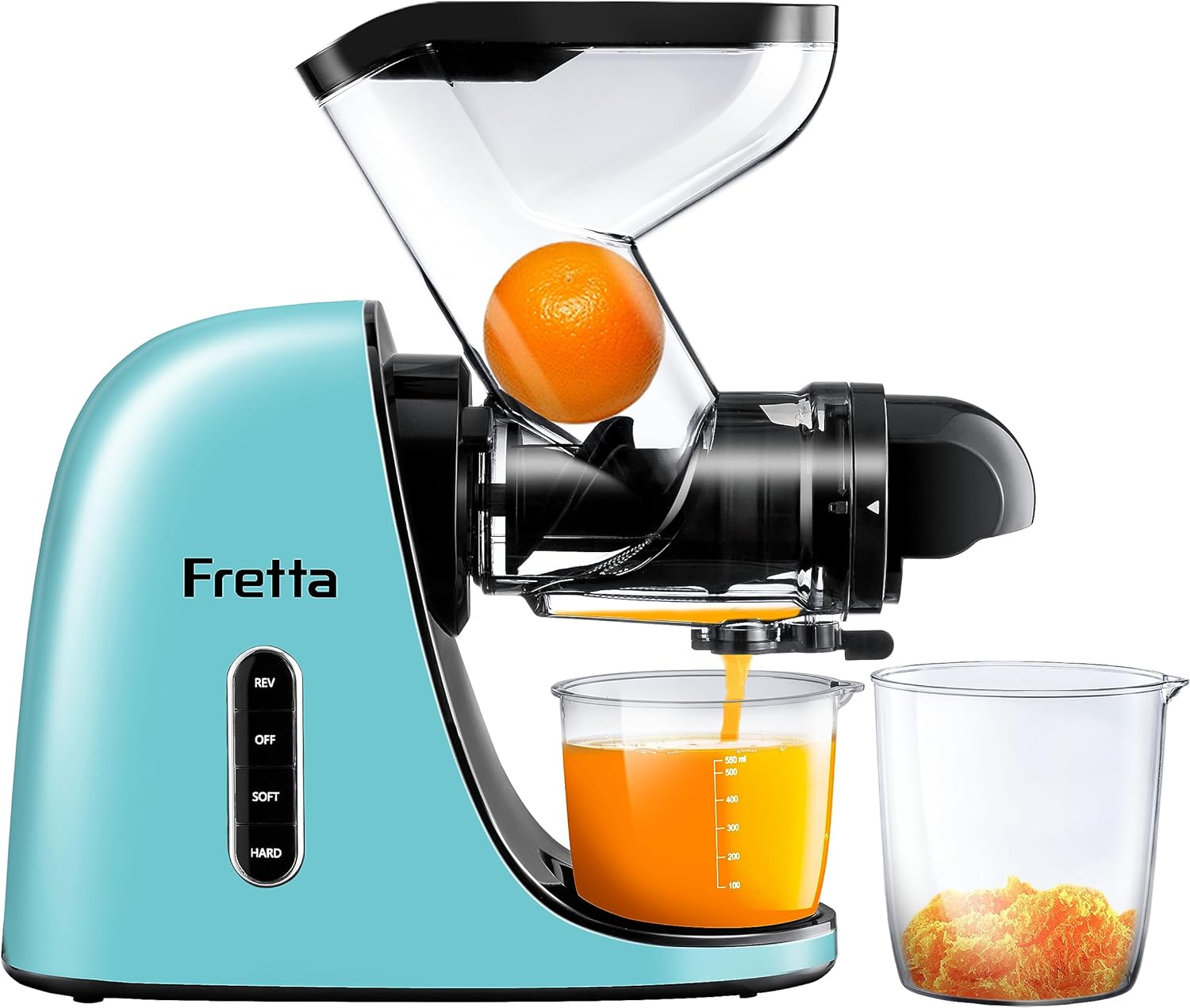

Image: The Fretta F3000 Juicer's large 3-inch feed chute, designed to accommodate whole fruits and vegetables, minimizing pre-cutting.

2. Шире чыгаруу процесси

1. Шире сыккычты электр розеткасына сайыңыз.
2. Select the appropriate speed setting:
   • ЖУМШАК: For softer fruits and vegetables (e.g., oranges, grapes, watermelon, strawberries, kiwi).
   • КАТЫН: For harder fruits and vegetables (e.g., carrots, celery, apples, pears, ginger).
3. Gradually feed the prepared ingredients into the feed chute. Use the food pusher to gently guide them down. Do not force ingredients.
4. The juicer will extract juice into the juice container and pulp into the pulp container.
5. If ingredients get stuck, use the 'REV' (Reverse) function to clear the blockage. Hold the 'REV' button for a few seconds, then release and restart.
6. Once juicing is complete, turn the juicer off and unplug it.

Image: The control panel of the Fretta F3000 Juicer, showing the 'SOFT', 'HARD', and 'REV' (Reverse) settings for different types of produce.

3. Recipe Example: Kiwi Ginger Power Punch Juice

• Ingredients: 2-3 kiwis (peeled), 1-inch piece of ginger (peeled), 1 green apple (cored).
• Process: Feed ingredients into the juicer using the 'HARD' setting for apple and ginger, and 'SOFT' for kiwi.
• Enjoy immediately for maximum freshness and nutrients.

Тейлөө жана тазалоо

Regular cleaning ensures the longevity and hygiene of your juicer. The Fretta F3000 is designed for easy disassembly and cleaning.

1. Шире сыггычты розеткадан сууруп алыңыз.
2. Press the release button on the motor base and twist the feed chute assembly counter-clockwise to detach it.
3. Disassemble all individual parts: auger, strainer, pulp spout, and feed chute.
4. Rinse all detachable parts under running water. Use the provided cleaning brush to remove any stubborn pulp residue from the strainer and other components.
5. All detachable parts are dishwasher safe (top rack recommended). The motor base should only be wiped clean with a damp кездеме.
6. Кайра чогултуудан же сактоодон мурда бардык бөлүктөр толугу менен кургап калсын.

Image: Detachable parts of the Fretta F3000 Juicer being rinsed under running water, highlighting the ease of cleaning.

Проблемаларды чечүү

• Шире сыккыч күйбөйт: Ensure the power cord is securely plugged in and all parts are correctly assembled and locked.
• Шире сыккыч иштеп жатканда токтойт: This may indicate a blockage. Use the 'REV' (Reverse) function to clear the obstruction. If the issue persists, disassemble and clean the parts.
• Ширенин аз чыгышы же нымдуу целлюлоза: Ensure ingredients are properly prepared (e.g., hard peels removed). Try feeding ingredients slower. Check if the strainer is clean and not clogged.
• Ашыкча ызы-чуу: Some noise is normal during operation. If the noise is unusually loud or grinding, ensure all parts are correctly assembled and there are no foreign objects in the juicer.

Техникалык шарттар

Кардарларды колдоо

For any questions, concerns, or assistance with your Fretta F3000 Cold Press Juicer, please contact Fretta-US customer support.
