MX3 Air Mouse Remote Control

Introduction

The MX3 Air Mouse Remote Control is a versatile 2.4G wireless device designed to enhance your control over various smart devices. It combines the functionality of an air mouse, a mini wireless keyboard, and a traditional remote control, making navigation and input seamless for Android TV Boxes, projectors, smart TVs, mini PCs, and more.

Featuring a 3-Gyro&Gsensor for precise air mouse control, a full QWERTY keyboard on the reverse side, and a convenient backlight function, the MX3 is engineered for ease of use in diverse environments. Its plug-and-play design ensures quick setup, and the IR learning capability allows it to mimic functions from your existing TV remote.

Image: The MX3 Air Mouse Remote Control showing its front (remote) and back (keyboard) sides, alongside the compact USB receiver.

Жайгашуу

1. Пакеттин мазмуну

• MX3 Air Mouse Remote Control
• USB кабыл алгыч
• Колдонуучунун Колдонмосу (бул документ)

2. Батареяны орнотуу

Locate the battery compartment on the back of the remote control. Insert two AAA batteries (not included), ensuring correct polarity (+/-) as indicated inside the compartment. Close the battery cover securely.

3. USB кабылдагычты туташтыруу

The MX3 remote uses a 2.4GHz RF wireless connection. Simply plug the included USB receiver into an available USB port on your Android TV Box, Projector, Mini PC, Smart TV, or other compatible device. The system should automatically recognize the device, making it plug-and-play.

Image: Illustration of the 2.4G wireless connection, showing the USB receiver plugged into a laptop and the remote control wirelessly connected.

4. Алыстан башкарууну жупташтыруу

In most cases, the remote will pair automatically upon plugging in the USB receiver. If the cursor does not move or the remote is unresponsive, follow these steps to manually pair:

1. Ensure the USB receiver is plugged into your device.
2. басып, кармап туруңуз OK баскычы жана TV button on the remote control simultaneously for 3-5 seconds.
3. The LED indicator on the remote will flash rapidly, then slowly.
4. Release the buttons. If the pairing is successful, the cursor should now move smoothly on your screen.

Image: A visual guide detailing the pairing process and IR learning function, showing the remote control and on-screen instructions.

Иштөө нускамалары

1. Негизги функциялар

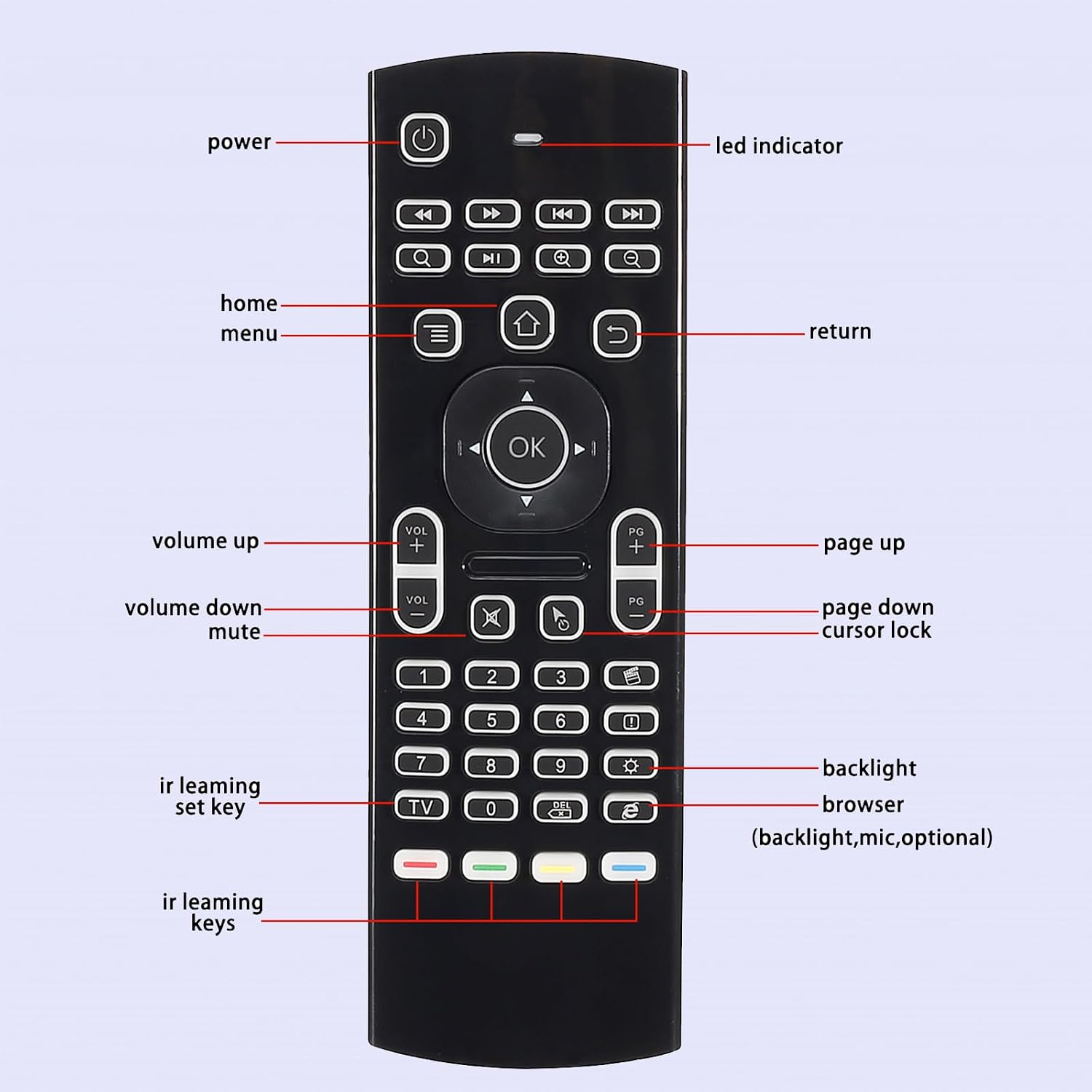

Image: A detailed diagram labeling the various buttons on the front side of the MX3 remote control, including power, volume, navigation, and special function keys.

• Кубат баскычы: Түзмөгүңүздү күйгүзөт же өчүрөт.
• Чабыттоо тактасы (ОК, Өйдө, Төмөн, Сол, Оң): Менюда навигация жана тандоо үчүн колдонулат.
• Үнүн жогорулатуу/төмөндөтүү: Аудионун үнүн тууралайт.
• Барак өйдө/төмөн: Scrolls through pages or lists.
• Үй баскычы: Returns to the main screen or home interface.
• Кайтаруу баскычы: Мурунку экранга же менюга кайтып келет.
• Меню баскычы: Контекстке сезгич менюларды ачат.

2. Баскычтопту колдонуу

Flip the remote over to access the full QWERTY keyboard. This allows for easy text input, searching, and typing, similar to a standard computer keyboard.

3. Air Mouse Functionality

The MX3 remote features a 3-Gyro&Gsensor system, enabling precise air mouse control. Simply wave the remote in the air to move the cursor on your screen. Press the Курсор кулпу button to toggle between air mouse mode and traditional button navigation.

Image: The MX3 remote control being used as an air mouse, with a diagram illustrating the 6-Axis Inertia Sensors (Gyroscope frame, Spin axis, Gimbal, Rotor) that enable its motion-sensing capabilities.

4. Арткы жарык функциясы

To activate the backlight for the keyboard, press the Жарыктык button (often depicted as a light bulb icon). This illuminates the keys, making the remote easy to use in low-light conditions or in the dark.

Image: The MX3 remote control with its LED backlight illuminated, demonstrating its utility for use in dark environments.

5. IR Learning Function

The MX3 remote can learn infrared (IR) signals from your existing TV remote, allowing you to consolidate control. Follow these steps:

1. Place the MX3 air mouse remote and your TV remote head-to-head, ensuring their IR emitters are aligned.
2. Press and hold the MX3 remote's TV button for 3-5 seconds. The red LED will flash fast, then slowly, indicating it has entered learning mode.
3. Press the button on your TV remote that you wish to learn (e.g., Power button). The red LED on the MX3 remote will light up steadily.
4. While the MX3's LED is steady, press the corresponding button on the MX3 remote (e.g., the Power button or one of the four color buttons) where you want to store the learned function. The red LED will flash slowly again, indicating successful learning.
5. Программалагыңыз келген башка баскычтар үчүн 3 жана 4-кадамдарды кайталаңыз.
6. Press the MX3 remote's TV button again to exit learning mode. The LED will turn off.

Image: The MX3 remote control positioned to learn IR signals from another remote, illustrating the IR learning function.

Техникалык тейлөө

1. Тазалоо

Пультту тазалоо үчүн, анын бетин жумшак, кургак чүпүрөк менен акырын сүртүңүз. Өжөр кир үчүн, бир азampen the cloth with water or a mild, non-abrasive cleaner. Avoid using harsh chemicals or excessive moisture, as this can damage the electronics.

2. Батареяны алмаштыруу

When the remote's performance degrades or the LED indicator flashes to signal low power, replace the AAA batteries. Always replace both batteries at the same time with new ones. Dispose of old batteries responsibly according to local regulations.

3. Сактоо

Store the remote in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. If storing for an extended period, it is advisable to remove the batteries to prevent leakage and potential damage to the device.

Проблемаларды чечүү

• Пульт жооп бербей жатат:
  • Ensure the USB receiver is securely plugged into your device.
  • Батареянын деңгээлин текшерип, керек болсо алмаштырыңыз.
  • Try re-pairing the remote by holding the OK жана TV баскычтарды бир эле учурда.
  • Try plugging the USB receiver into a different USB port on your device.
• Курсор туура эмес же бир калыпта жылбай жатат:
  • Ensure the remote is held steadily and not subjected to excessive shaking.
  • Recalibrate the air mouse by placing the remote on a flat surface for a few seconds.
  • Interference from other 2.4GHz devices might be present. Try moving closer to the receiver or away from other wireless devices.
• Арткы жарык иштебейт:
  • басыңыз Жарыктык button to ensure it's toggled on.
  • Check battery levels. Low batteries may prevent the backlight from functioning.
• IR learning failed:
  • Ensure the remotes are aligned head-to-head and close enough during the learning process.
  • Make sure the MX3 remote is in IR learning mode (LED flashing slowly after holding TV баскычы).
  • Some IR signals may not be compatible. Try with another button or remote if possible.

Техникалык шарттар

Кепилдик жана колдоо

Кепилдик маалымат

For specific warranty details, please refer to the product packaging or contact the seller directly. Warranty terms may vary based on region and purchase date.

Кардарларды колдоо

If you encounter any issues or have questions regarding the MX3 Air Mouse Remote Control, please contact the seller or manufacturer for assistance. You can typically find contact information on the product packaging or the retailer's webпродукт сатылып алынган сайт.

As stated in the product features: "Any question before purchase or during use, please feel free to contact us."
