ANCHEER Foldable Hydraulic Rower User Manual

1. Киришүү

Thank you for choosing the ANCHEER Foldable Hydraulic Rower. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read this manual thoroughly before assembly and operation to ensure proper use, maximize your workout benefits, and maintain the longevity of your rower.

ANCHEER Foldable Hydraulic Rower in use, demonstrating its compact design and user-friendly setup.

2. Коопсуздук маалыматы

Before starting any exercise program, consult with your physician. It is crucial to understand and follow all safety precautions outlined below:

• Always place the rower on a flat, stable surface.
• Ensure adequate clear space around the rower (at least 0.6 meters or 2 feet).
• Inspect the rower for loose or worn parts before each use. Do not use if damaged.
• Бул калакчы үчүн колдонуучунун максималдуу салмагы 120 кг (265 фунт). Бул чектен ашпаңыз.
• Keep children and pets away from the rower during operation.
• ылайыктуу спорттук бут кийим жана кийим кийүү.
• Эгер алсырап, башыңыз айланса же ооруса, көнүгүүлөрдү дароо токтотуңуз.
• Do not attempt to modify the rower.

3. Пакеттин мазмуну

Монтаждоону баштоодон мурун бардык компоненттердин бар экендигин текшериңиз:

• Негизги кадрдык жыйын
• Жылма отургуч
• Foot Pedals (pre-assembled)
• Handlebars (pre-assembled)
• ЖК Monitor
• Hydraulic Cylinders (pre-assembled)
• Assembly Hardware Kit (bolts, washers, nuts)
• Tools (wrench, Allen key)
• User Manual

4. Монтаждоо боюнча нускамалар

The ANCHEER Rower is designed for quick and easy assembly, typically completed within 20 minutes. Follow these steps:

1. Бардык компоненттерди таңгактан чыгарып, аларды таза, тегиз бетке жаткызыңыз.
2. Attach the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are securely tightened.
3. Slide the seat onto the main rail. Ensure it moves smoothly.
4. Connect the LCD monitor cable to the sensor cable on the main frame. Mount the LCD monitor onto its designated bracket.
5. Verify all pre-assembled parts (pedals, handlebars, hydraulic cylinders) are secure.
6. Test the rower's movement and resistance adjustment before first use.

Жакын план view of the ANCHEER Rower's ergonomic features, including comfortable padding, anti-slip pedals, and foam grips, designed for safety and comfort.

5. Иштөө нускамалары

5.1. Каршылыкты жөнгө салуу

The ANCHEER Rower features 12 levels of adjustable hydraulic resistance. To change the resistance level, locate the adjustment knob on the hydraulic cylinders. Turn the knob clockwise to increase resistance and counter-clockwise to decrease it. Start with a lower resistance and gradually increase as your fitness improves.

Diagram illustrating the 12-level hydraulic resistance system of the ANCHEER Rower, showing how resistance can be adjusted for varying workout intensities.

5.2. ЖК мониторду колдонуу

Интеграцияланган LCD монитор машыгууңуздун жүрүшүн көзөмөлдөйт. Ал, адатта, төмөнкү көрсөткүчтөрдү көрсөтөт:

• TIME: Учурдагы машыгууңуздун узактыгы.
• COUNT: Number of strokes performed during the current workout.
• КАЛОРИЙ: Болжолдуу күйгөн калория.
• Дистанция: Болжолдуу аралыкты басып өтүү.
• TOTAL COUNT (TCNT): Total accumulated strokes since the monitor was reset.

Use the MODE button to cycle through display functions. Press and hold the RESET button to clear current workout data.

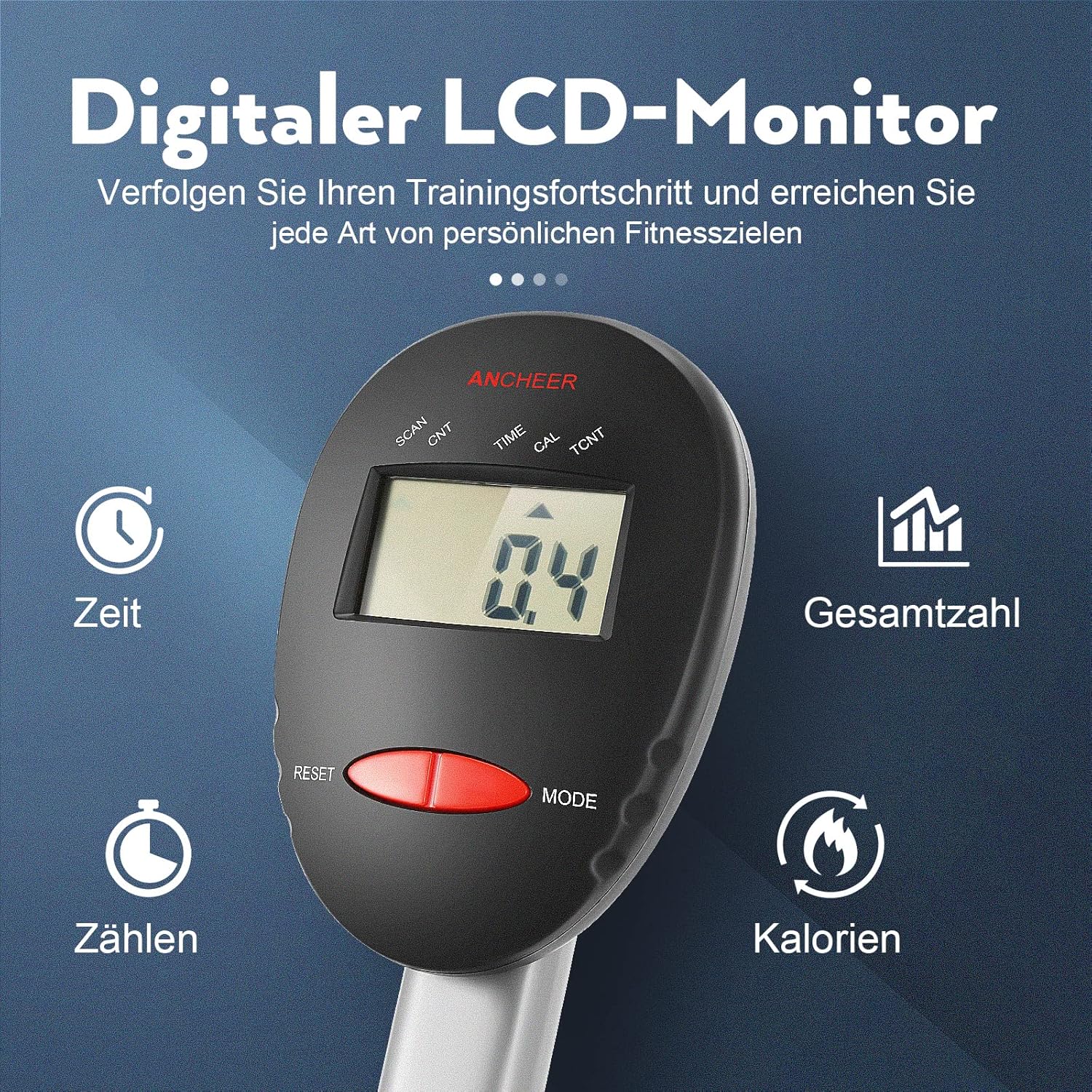

Деталдаштырылган view of the ANCHEER Rower's digital LCD monitor, displaying workout metrics such as time, count, calories burned, and distance.

5.3. Калак менен сүзүүнүн туура ыкмасы

Proper technique is essential for an effective and safe full-body workout. The ANCHEER Rower engages over 84% of your body's muscle groups. Follow these general guidelines:

1. Катуу: Колдорду алдыга сунуп, тизелерди бүгүп, вертикалдуу кылып бийик отуруңуз.
2. Drive: Push off with your legs, then swing your back, and finally pull with your arms. Your core should be engaged throughout.
3. Аяктоо: Lean back slightly, arms pulled towards your chest, legs extended.
4. Калыбына келтирүү: Extend arms forward, then hinge at the hips, and finally bend your knees to slide forward to the catch position.

User performing a rowing exercise on the ANCHEER Rower, highlighting the full-body engagement and ergonomic design.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your rower:

• Тазалоо: Калакчыны жарнама менен сүртүңүзamp терди жана чаңды кетирүү үчүн ар бир колдонуудан кийин чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтардан алыс болуңуз.
• Байланыштарды текшерүү: Бардык болтторду, гайкаларды жана бурамаларды бекем бекитилгенин мезгил-мезгили менен текшерип туруңуз. Зарыл болсо, бекемдеңиз.
• Темир жолду тазалоо: Keep the sliding rail clean and free of debris to ensure smooth seat movement.
• Hydraulic Cylinders: No specific maintenance is typically required for sealed hydraulic cylinders, but inspect for any leaks or unusual wear.

7. Сактоо

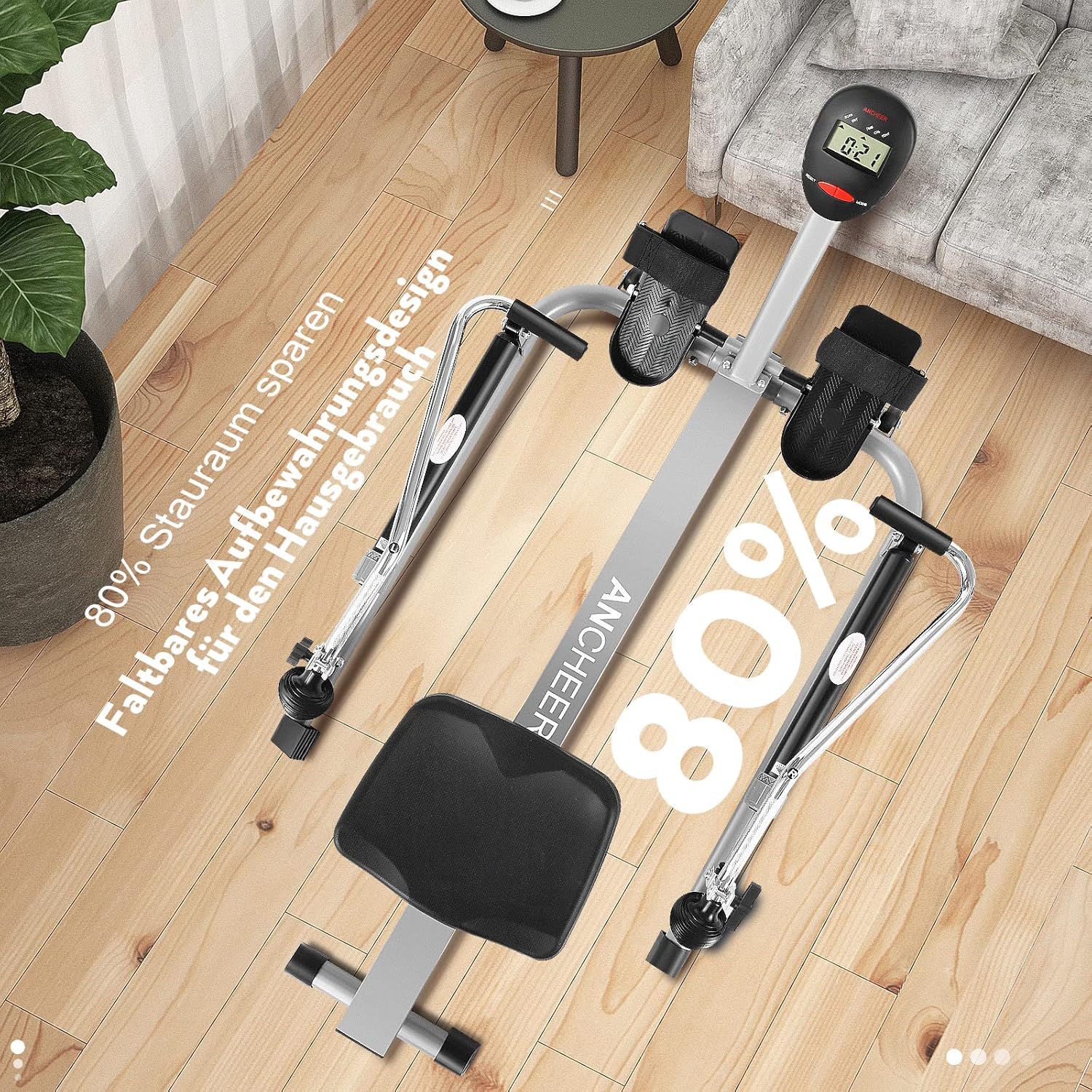

The ANCHEER Rower features a foldable design for convenient storage, saving up to 80% of space. To fold the rower:

1. Кайыктын тегиз жерде турганын текшериңиз.
2. Locate the folding pin or mechanism (refer to assembly diagram if unsure).
3. Release the locking mechanism and carefully fold the rower into its upright storage position.
4. Secure the rower in the folded position using the designated locking pin or strap.
5. Utilize the transport wheels to easily move the folded rower for storage.

The ANCHEER Rower in its folded position, demonstrating its space-saving design for convenient storage in small living spaces.

8. Кыйынчылыктарды

If you encounter issues with your ANCHEER Rower, refer to the common problems and solutions below:

9. Техникалык шарттар

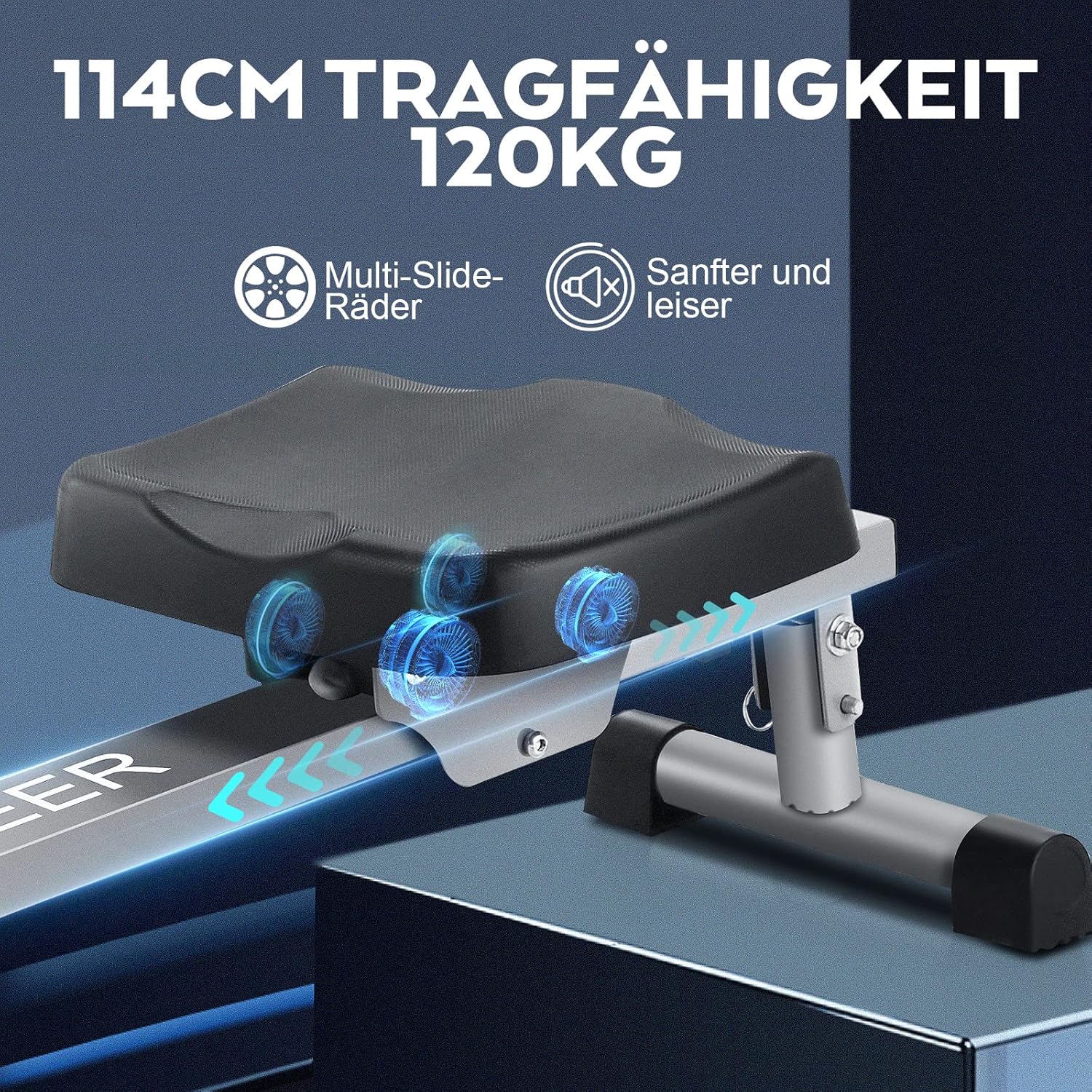

Illustration of the ANCHEER Rower's robust construction, highlighting its 120 kg weight capacity and smooth, quiet multi-slide wheels.

10. Кепилдик жана колдоо

ANCHEER is committed to providing lasting service for our hydraulic rowers. Your item is covered with professional 24/7 care and worry-free customer service. Should you have any questions, concerns, or require assistance, please do not hesitate to contact us through the Amazon Message Center. Our team is dedicated to making customer service easier and more efficient for you.
