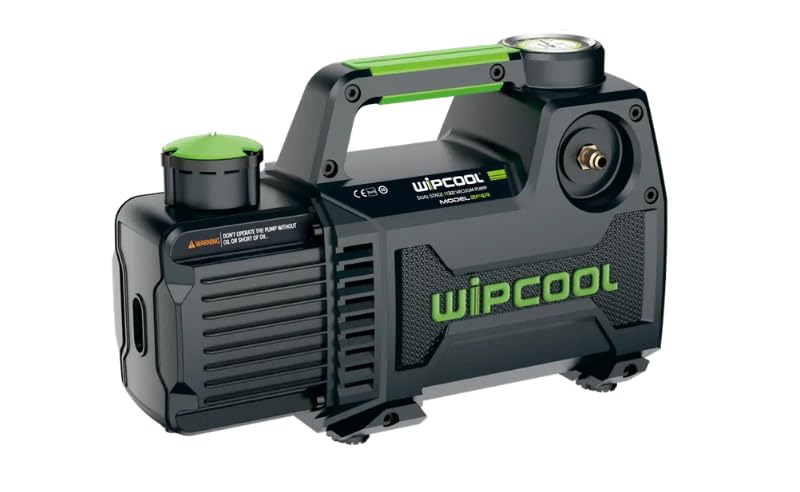

Wipcool Double Stage Vacuum Pump 2F3R User Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Wipcool Double Stage Vacuum Pump Model 2F3R. Please read this manual thoroughly before operating the pump and retain it for future reference.

The Wipcool 2F3R vacuum pump is specifically designed for use with various refrigerants, including next-generation A2L refrigerants like R32 and R1234YF, as well as traditional refrigerants such as R410A and R22. Its design incorporates features for enhanced safety and performance in HVAC applications.

2. Коопсуздук нускамалары

Always adhere to the following safety precautions to prevent injury and damage to the equipment.

• Электр коопсуздугу: Электр энергиясы насостун көлөмүнө дал келүүсүн текшериңизtage (230 Volts). Do not operate with damaged cords or plugs. Always disconnect power before servicing.
• Муздаткыч шайкештиги: This pump is suitable for A2L refrigerants (R32, R1234YF) and other common refrigerants (R410A, R22). When working with flammable refrigerants (A2L), ensure proper ventilation and eliminate all potential ignition sources.
• Мунай деңгээли: Regularly check the oil level using the sight glass. Do not operate the pump without oil or when the oil level is low. Use only recommended vacuum pump oil.
• Вентиляция: Operate the pump in a well-ventilated area to prevent the accumulation of refrigerant vapors.
• Жеке коргонуу каражаттары (ЖКК): Wear appropriate PPE, including safety glasses and gloves, when handling refrigerants and operating the pump.
• Колдонуу: The pump weighs approximately 9.8 kg. Lift with care to avoid injury.
• Экологиялык шарттар: Avoid operating the pump in wet or excessively dusty environments.

3. Пакеттин мазмуну

Таңгактан чыгарганда, бардык буюмдардын бар экенин жана бузулбаганын текшериңиз:

• Wipcool Double Stage Vacuum Pump 2F3R
• Колдонуучунун Колдонмосу (бул документ)
• Электр кабели
• Vacuum Pump Oil (may be included separately or pre-filled)

4. Продукциянын өзгөчөлүктөрү

The Wipcool 2F3R vacuum pump incorporates several advanced features for reliable performance:

• Non-Sparking Design: Suitable for use with A2L refrigerants (R32, R1234YF) and other refrigerants (R410A, R22).
• Brushless Motor Technology: Offers a lighter design (over 25% lighter than similar products) and extended service life.
• Built-in Solenoid Valve: Prevents oil backflow into the system during power outages or shutdown.
• Overhead Vacuum Gauge: Provides a compact and easy-to-read display of vacuum levels.
• Integral Cylinder Structure: Enhances reliability and durability.
• Reinforced Aluminum Alloy Oil Tank: Designed for effective heat dissipation and resistance to chemical corrosion.
• Oversized Sight Glass: Allows for easy monitoring of oil color and level.

5. Орнотуу

1. Пакеттен чыгаруу: Carefully remove the vacuum pump from its packaging. Inspect for any shipping damage.
2. Жайгашкан жери: Place the pump on a stable, level surface in a well-ventilated area. Ensure adequate space around the pump for air circulation and heat dissipation.
3. Май толтуруу:
   • Май толтуруучу капкагын алып салыңыз.
   • Pour appropriate vacuum pump oil into the reservoir until the level is between the MIN and MAX marks on the sight glass. Do not overfill.
   • Май толтуруучу капкакты бекем ордуна коюңуз.
4. Кубат туташуу: Connect the power cord to the pump and then to a grounded electrical outlet matching the specified voltage (230V).
5. Алгачкы текшерүү: Before connecting to a system, briefly turn on the pump to ensure it operates smoothly and the oil circulates. Turn off immediately.

6. Иштөө нускамалары

Follow these steps for proper operation of the vacuum pump:

1. Системага туташуу: Connect the vacuum pump to the system requiring evacuation using appropriate vacuum hoses. Ensure all connections are tight to prevent leaks.
2. Open System Valves: Open all valves on the manifold gauge set and the system to be evacuated.
3. Насосту баштоо: Turn on the power switch of the vacuum pump. The pump will begin to draw a vacuum.
4. Монитор вакуум: Observe the overhead vacuum gauge to monitor the vacuum level. Continue operation until the desired vacuum level is achieved, typically indicated by a stable reading.
5. Isolate Pump: Once the desired vacuum is reached, close the manifold gauge set valves to isolate the system from the pump.
6. Насосту өчүрүү: Вакуумдук насосту өчүрүңүз.
7. Ажыратуу: Carefully disconnect the vacuum hoses from the pump and the system.

7. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө оптималдуу иштөөнү камсыз кылат жана вакуумдук насостун иштөө мөөнөтүн узартат.

• Май алмаштыруу: Change the vacuum pump oil regularly, especially after each use with contaminated systems or when the oil appears discolored or cloudy.
  • Ensure the pump is off and cool.
  • Май төгүүчү тыгындын астына ылайыктуу идиш коюңуз.
  • Remove the oil drain plug and the oil fill cap to allow oil to drain completely.
  • Replace the drain plug and refill with new, clean vacuum pump oil to the correct level.
• Тазалоо: Keep the exterior of the pump clean and free of dust and debris. Ensure cooling fins are not obstructed.
• Сактагыч: When not in use, store the pump in a dry, clean environment. Ensure the oil level is correct before storage.

8. Кыйынчылыктарды

9. Техникалык шарттар

10. Кепилдик жана колдоо

This Wipcool 2F3R Double Stage Vacuum Pump comes with a 1 жылдык кепилдик сатып алынган күндөн тартып.

For warranty claims, technical support, or service inquiries, please contact your authorized Wipcool dealer or the manufacturer's customer service department. Please have your model number (2F3R) and proof of purchase available when contacting support.
