Mujocooker C3 Ultra-Lightweight Foldable Transport Wheelchair Instruction Manual

Introduction

Thank you for choosing the Mujocooker C3 Ultra-Lightweight Foldable Transport Wheelchair. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your new transport wheelchair. Please read this manual thoroughly before use and retain it for future reference.

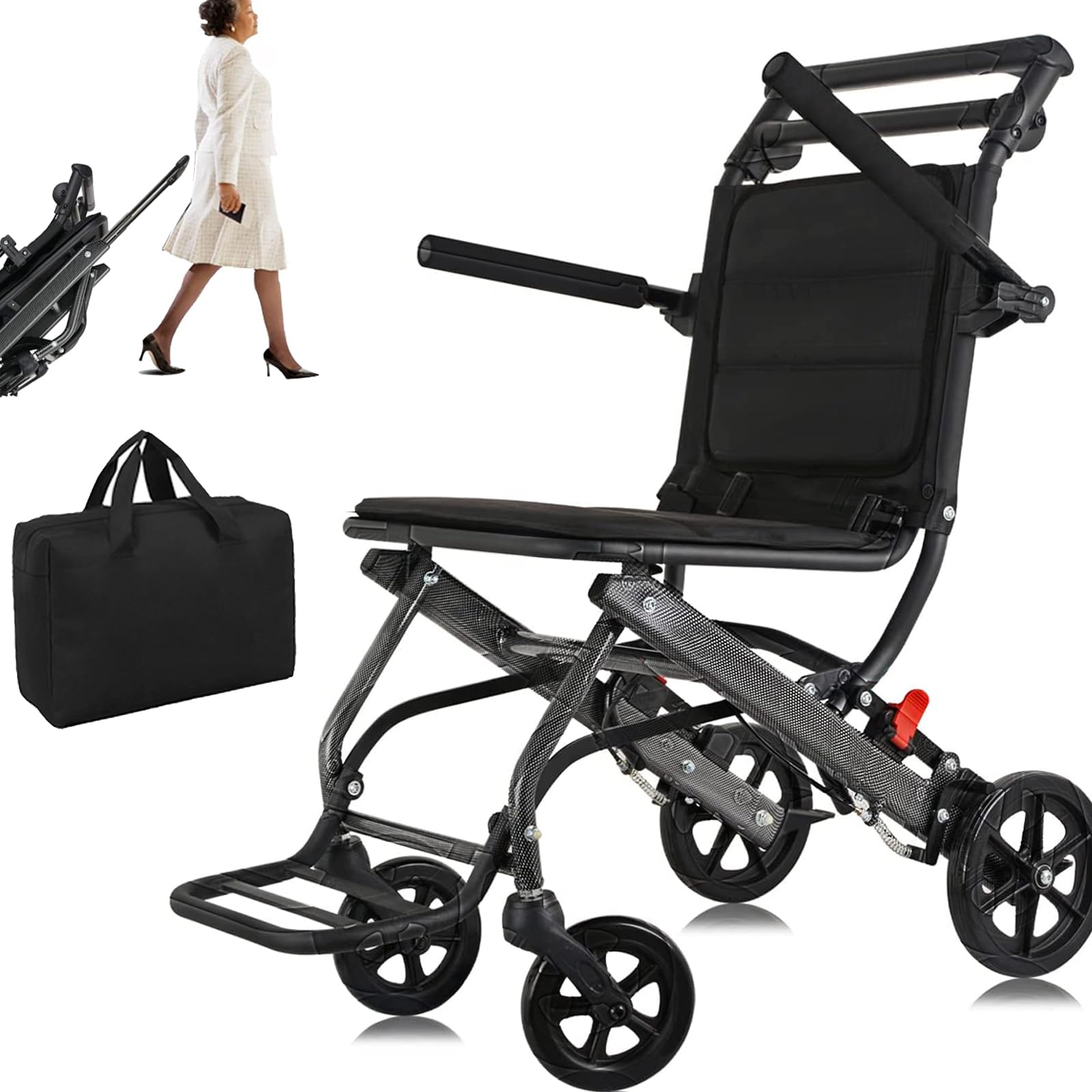

Figure 1: Mujocooker C3 Lightweight Foldable Transport Wheelchair.

Маанилүү коопсуздук маалыматы

WARNING: Failure to follow these instructions may result in serious injury or damage to the product.

• Always ensure all locking mechanisms are fully engaged before use.
• The maximum weight capacity for this wheelchair is 220 фунт (100 кг). Бул чектен ашпаңыз.
• Always use the integrated seat belt for added safety during transport.
• Ensure the user's feet are properly placed on the footrests to prevent injury.
• Exercise caution when navigating uneven terrain, ramps, or obstacles.
• Do not attempt to self-propel this transport wheelchair; it is designed for attendant use only.

Продукт өзгөчөлүктөрү

The Mujocooker C3 is engineered for convenience, comfort, and durability. Key features include:

• Ультра жеңил дизайн: Weighing only 15 lbs (approximately 8 kg), this wheelchair is easy to lift and transport.
• Компакт бүктөлүүчү: Designed for quick and easy folding, making it ideal for travel and storage in small spaces.

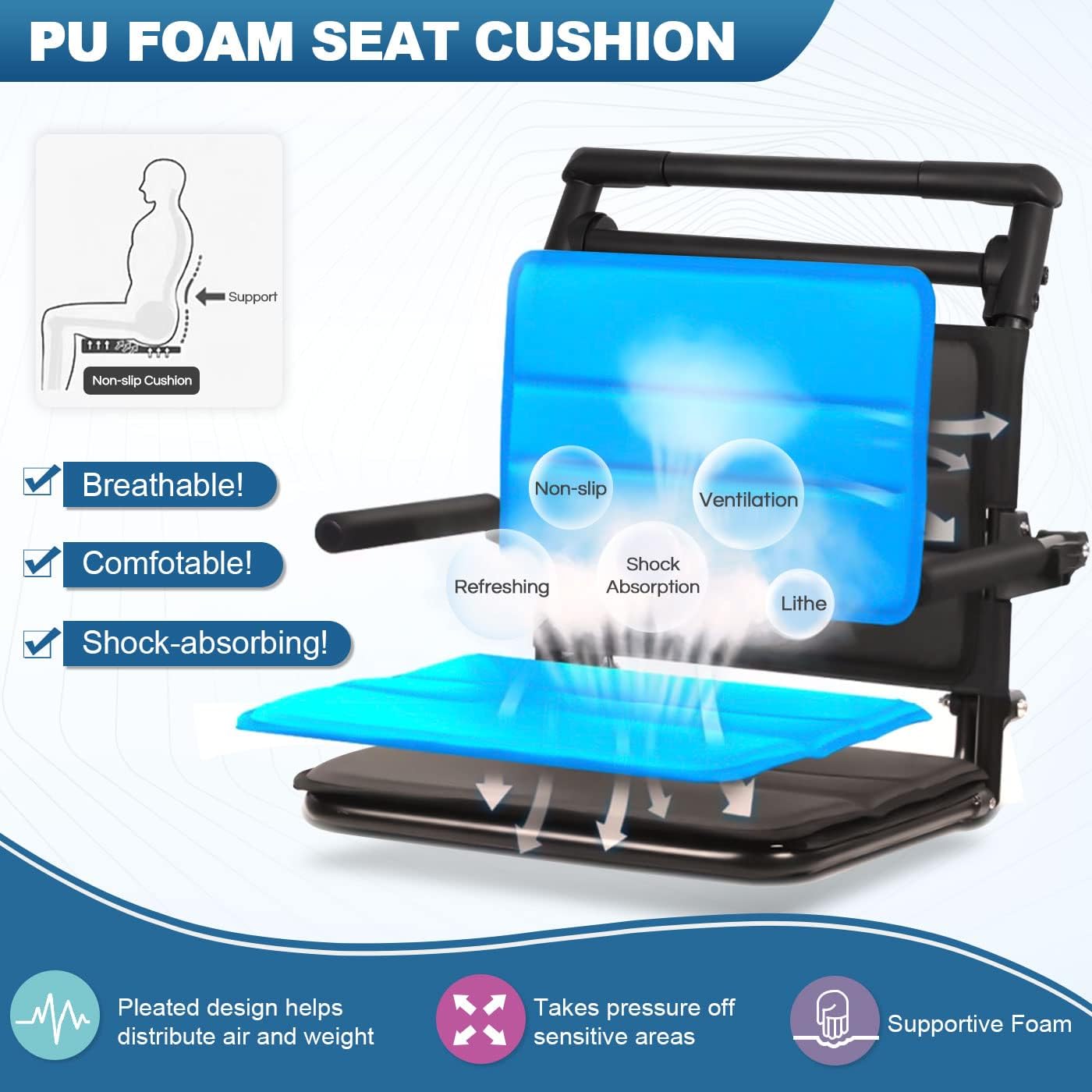

• Ыңгайлуу отургуч: Features a breathable, wear-resistant, dirt-resistant, and shock-absorbing PU foam seat cushion with an extra-wide 16.5-inch seat.
• Өркүндөтүлгөн коопсуздук: Equipped with a seat belt for user security and a reliable one-piece handbrake system.
• Туруктуу курулуш: Built with a high-end aviation-grade aluminum alloy frame for strength and lightness.

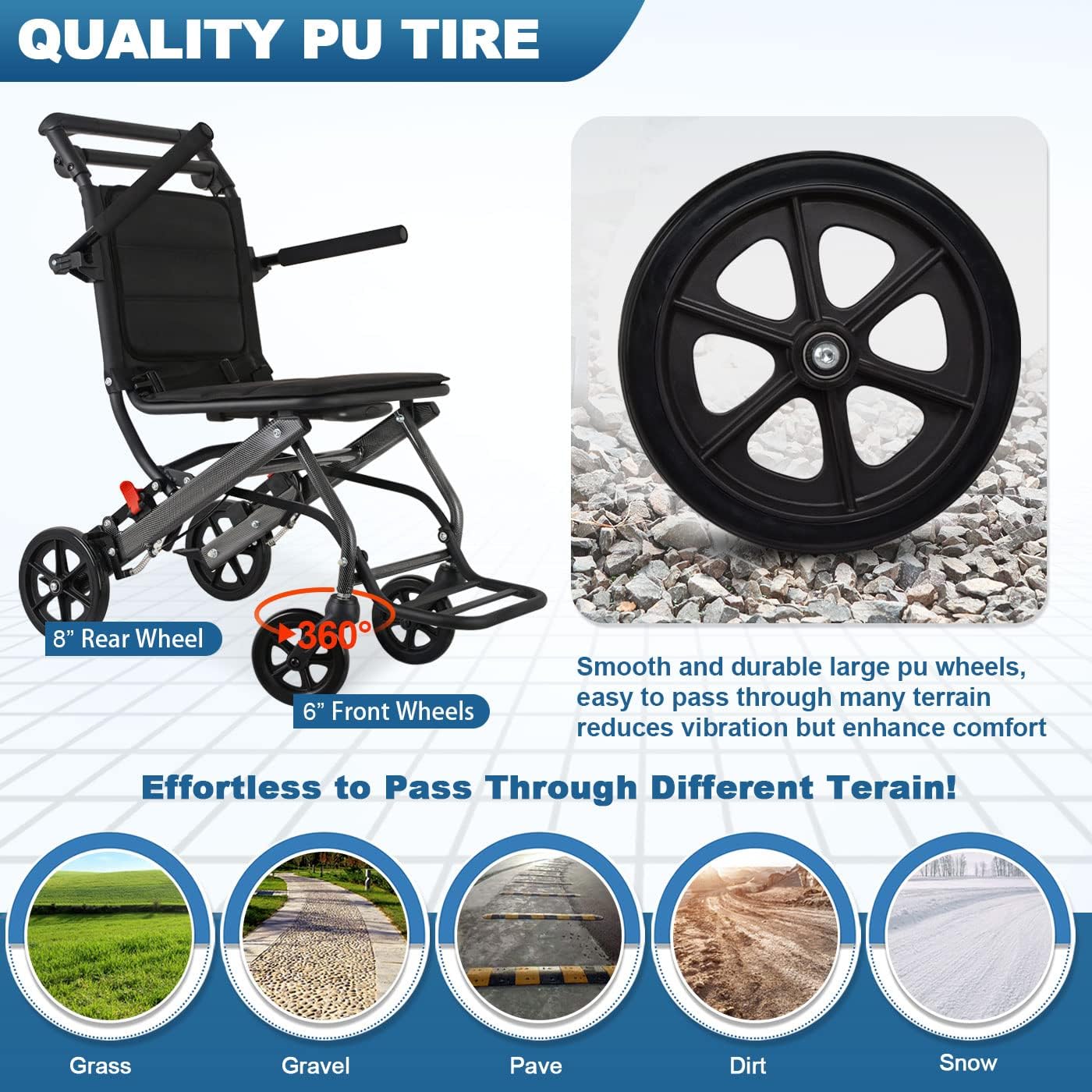

• Versatile Mobility: Features 8-inch rear wheels and 6-inch 360-degree swivel front wheels for smooth navigation across various terrains.
• Convenient Transport: Includes a carry bag for easy portability and storage, suitable for car trunks, airplanes, and public transport.
• Adjustable Handrail & Foldable Pedal: The handrail offers a 280-degree turnover for easy user access, and the foot pedal folds up for compact storage.

Жайгашуу

The Mujocooker C3 wheelchair comes 95% pre-assembled. Follow these steps to prepare it for use:

1. Ачылууда: Gently pull the frame apart until the seat is fully extended and flat. Ensure all structural bars are locked into place.
2. Engage Locks: Locate the red locking mechanisms on the frame near the wheels. Push them firmly until they click into the locked position.
3. Буттуктар: Lower the footrests into position. Ensure they are securely in place before the user sits.
4. Коопсуздук куру: Unbuckle and lay out the seat belt across the seat for easy access.

For a visual guide on unfolding and setup, please refer to the official product video below:

Иштөө нускамалары

User Seating

1. Ensure the wheelchair is fully unfolded and all locks are engaged.
2. If necessary, turn the handrails to the 280-degree turnover position for easier access (refer to Figure 8).
3. Assist the user to sit securely in the seat.
4. Fasten the seat belt snugly around the user.
5. Ensure the user's feet are comfortably placed on the footrests.

Тормоздоо

The wheelchair is equipped with a one-piece handbrake system:

• үчүн engage the brake, pull the handbrake levers upwards until they lock into place.
• үчүн release the brake, push the red safety button and lower the handbrake levers.

Маневрлөө

Push the wheelchair using the telescopic handles. The 360-degree swivel front wheels allow for easy steering and navigation in various environments.

Бүктөө жана транспорт

The Mujocooker C3 is designed for compact folding and easy transport:

1. Remove User: Ensure the user has safely exited the wheelchair.
2. Fold Footrests: Lift the foot pedal upwards to fold it against the frame.
3. Кулпуларды бошотуу: Disengage any frame locks.
4. Бүктөмдү баштоо: Locate the safety buckle (often red) and push it to begin folding the wheelchair.
5. Compact Fold: Continue to compress the wheelchair until it is in its fully folded, compact state.
6. Use Carry Bag: Place the folded wheelchair into the included carry bag for protection and ease of carrying.

The official product video (Video 1) also demonstrates the folding process and how to place the wheelchair into its carry bag.

Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your wheelchair:

• Тазалоо: Wipe down the frame and seat cushion with a damp кездеме жана жумшак самын. Катуу химиялык заттардан алыс болуңуз.
• Дөңгөлөктү текшерүү: Дөңгөлөктөрдүн эскиргендигин жана жыртылгандыгын мезгил-мезгили менен текшерип туруңуз. Алардын эркин айланып, таштандылардан тазалангандыгын текшериңиз.
• Тормозду текшерүү: Regularly test the handbrake to ensure it engages and disengages properly.
• Бекер текшерүү: Inspect all screws, bolts, and fasteners to ensure they are tight. Tighten if necessary.
• Сактагыч: Store the wheelchair in a dry, clean place when not in use.

Проблемаларды чечүү

If you encounter any issues with your Mujocooker C3 wheelchair, refer to the following common solutions:

• Бүктөө/ачуу кыйынчылыгы: Ensure all locks are disengaged before folding. New wheelchairs may require a few uses for mechanisms to loosen and operate smoothly. Apply a small amount of silicone lubricant to moving parts if stiffness persists.
• Тормоздор иштебей жатат: Check the handbrake levers and ensure they are pulled fully upwards until they click. Inspect the brake pads for wear.
• Wheelchair Feels Unstable: Verify that all frame locks are fully engaged after unfolding. Ensure the user is within the specified weight limit.
• Дөңгөлөктөр жылмакай жылбайт: Check for debris (hair, lint, etc.) caught in the wheel axles. Clean as needed. Ensure tires are not damaged.

Бул чечимдерди колдонууга аракет кылгандан кийин көйгөйлөр чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

Техникалык шарттар

Кепилдик жана колдоо

Mujocooker stands behind the quality of its products. If you encounter any problems with your wheelchair within 365 күн of receiving it, please contact our professional customer support team for assistance.

For customer service, please refer to the contact information provided on your product packaging or the official Mujocooker webсайт.
