Mabe RMS510IAMRM0 Refrigerator User Manual

1. Киришүү

Thank you for choosing the Mabe RMS510IAMRM0 Refrigerator. This appliance is designed to provide efficient and reliable food storage for your home. With a generous capacity of 510 liters (19 cubic feet) and a sleek matte stainless steel finish, it combines functionality with modern aesthetics. This manual provides essential information for the safe installation, operation, and maintenance of your refrigerator.

Please read this manual thoroughly before using your refrigerator to ensure proper operation and to prevent any potential damage or injury. Keep this manual for future reference.

2. Коопсуздук маалыматы

Сиздин жана башкалардын коопсуздугу абдан маанилүү. Сураныч, бул колдонмодогу жана шайманыңыздагы бардык коопсуздук билдирүүлөрүн окуп чыгыңыз. Бул көрсөтмөлөрдү аткарбоо олуттуу жаракат же өлүмгө алып келиши мүмкүн.

• Электр коопсуздугу: Ensure the refrigerator is connected to a grounded electrical outlet with the correct voltage (127 Вольт). Узарткычтарды же адаптерлерди колдонбоңуз.
• Вентиляция: Ашыкча ысып кетүүнүн алдын алуу үчүн муздаткычтын айланасында туура желдетүү үчүн жетиштүү орун калтырыңыз.
• Күйүүчү материалдар: Бензинди же башка күйүүчү бууларды жана суюктуктарды ушул же башка шайманга жакын жерде сактабаңыз же колдонбоңуз.
• Балдардын коопсуздугу: Supervise children when they are near the appliance. Old refrigerators are dangerous if children play inside. Remove doors before disposal.
• Шайманды жылдыруу: Use at least two people to move and install the refrigerator to prevent back injury or other injuries.
• Эритүү: This model features a manual defrost system. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

3. Орнотуу жана орнотуу

3.1 Пакеттен чыгаруу

Carefully remove all packaging materials, including tape and protective films. Dispose of packaging materials responsibly. Check for any damage during transit. If damage is found, contact your retailer immediately.

3.2 Орнотуу

Choose a location that is level, dry, and well-ventilated. Avoid direct sunlight or proximity to heat sources like ovens or radiators. Ensure there is sufficient space around the refrigerator for the doors to open fully and for proper air circulation.

• Минималдуу уруксаттар: Allow at least 10 cm (4 inches) at the back and sides, and 30 cm (12 inches) at the top for optimal performance.

3.3 Тегиздөө

The refrigerator must be level for proper operation. Adjust the leveling feet located at the bottom front of the appliance by turning them clockwise to raise or counter-clockwise to lower. Use a spirit level to ensure the appliance is perfectly level.

3.4 Баштапкы күйгүзүү

After placement and leveling, plug the refrigerator into a dedicated, grounded 127 Volt electrical outlet. Allow the refrigerator to stand for at least 2-4 hours before loading food to allow the refrigerant to settle and the interior to cool down to the desired temperature.

Сүрөт 1: Алдыңкы view of the Mabe RMS510IAMRM0 Refrigerator.

Figure 2: Refrigerator dimensions: 187.39 cm (Height) x 73.82 cm (Width) x 66.2 cm (Depth).

4. Иштөө нускамалары

4.1 Температураны көзөмөлдөө

Your refrigerator is equipped with a temperature control dial, typically located inside the fresh food compartment. Turn the dial to adjust the cooling intensity. A higher number usually indicates a colder setting. Start with a medium setting and adjust as needed based on ambient temperature and food load.

• Сунушталган температура: For the fresh food compartment, aim for 2°C to 4°C (35°F to 40°F). For the freezer compartment, aim for -18°C (0°F).

4.2 Сактоочу бөлүмдөр

The Mabe RMS510IAMRM0 features multiple shelves and compartments designed for organized storage.

• Жөнгө салынуучу текчелер: The refrigerator has 6 shelves. These can be adjusted to accommodate items of various heights.
• Crisper тартма: Located at the bottom of the fresh food compartment, ideal for storing fruits and vegetables to maintain their freshness.
• Эшик кутулары: Бөтөлкөлөргө, банкаларга жана майда буюмдарга ылайыктуу.

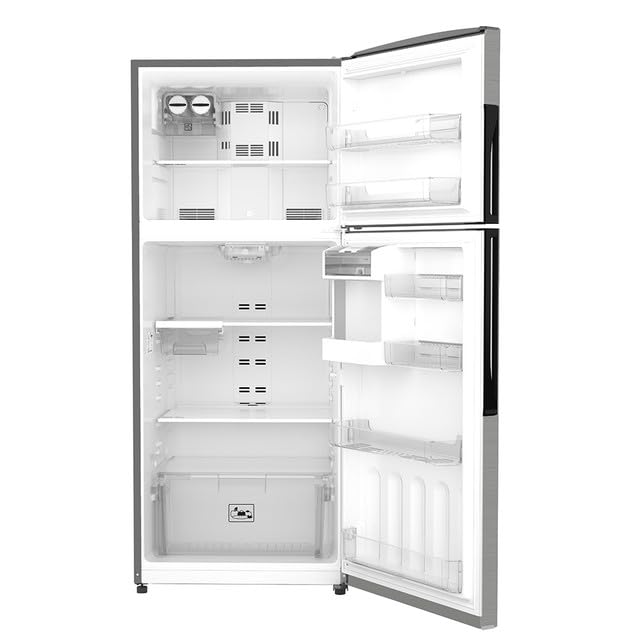

3-сүрөт: Интерьер view of the Mabe RMS510IAMRM0 Refrigerator with empty shelves and compartments.

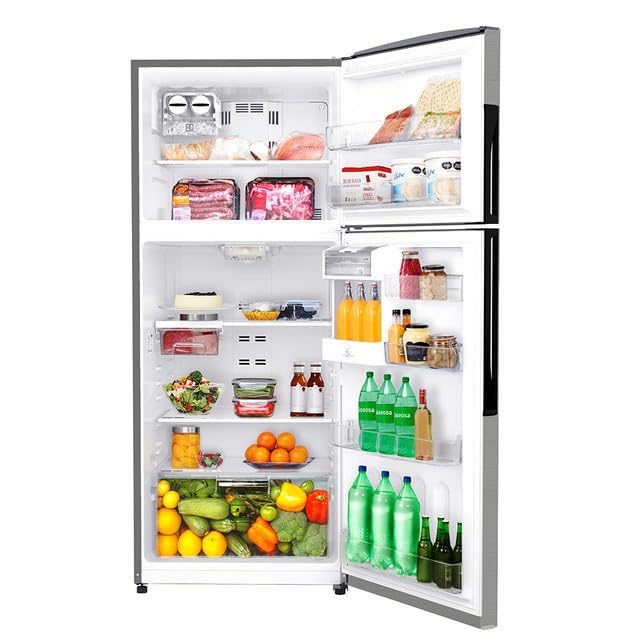

4-сүрөт: Мисample of organized food storage within the Mabe RMS510IAMRM0 Refrigerator.

4.3 Кол менен эритүү

This refrigerator features a manual defrost system. Frost buildup in the freezer compartment is normal and should be removed periodically to maintain efficiency. Defrost when frost accumulation reaches approximately 0.6 cm (1/4 inch) thickness.

• Даярдоо: Remove all food items from the freezer and store them in a cooler. Unplug the refrigerator from the power outlet.
• Эритүү: Leave the freezer door open. Place towels on the floor to absorb melting ice. You can place a pan of hot water inside the freezer to speed up the process, but do not use sharp objects or heating devices to remove ice.
• Тазалоо: Бардык муз эригенден кийин, ички бетин кылдаттык менен тазалап, кургатыңыз.
• Кайра баштоо: Муздаткычты кайра сайып, тамак-ашты кайтарып берүүдөн мурун муздаганча күтүңүз.

5. Техникалык тейлөө жана кам көрүү

5.1 Интерьерди тазалоо

Clean the interior of your refrigerator regularly to prevent odors and maintain hygiene.

• Жыштыгы: Clean monthly or as needed.
• Процедура: Unplug the refrigerator. Remove all food and removable parts (shelves, drawers). Wash with a mild detergent and warm water solution. Rinse and dry thoroughly. Do not use abrasive cleaners or harsh chemicals.

5.2 Сырты тазалоо

Wipe the exterior surfaces, including the matte stainless steel finish, with a soft cloth dampened with mild soap and water. For stainless steel, wipe in the direction of the grain. Avoid abrasive cleaners or pads that can scratch the surface.

5.3 Конденсатор катушкалары

The condenser coils, usually located at the back or bottom of the refrigerator, can accumulate dust and dirt, reducing efficiency. Clean them annually using a vacuum cleaner with a brush attachment.

5.4 Power Outages

Куч болгон учурда уtage, keep the refrigerator and freezer doors closed as much as possible to maintain internal temperatures. Food can remain frozen for several hours if the doors are kept shut.

6. Кыйынчылыктарды

Кызматка кайрылуудан мурун төмөнкү жалпы маселелерди жана чечимдерди текшериңиз:

7. Техникалык шарттар

8. Augmented Reality Experience

Visualize the Mabe RMS510IAMRM0 Refrigerator in your space using Augmented Reality (AR). Scan the QR code or click the link below to access the AR experience.

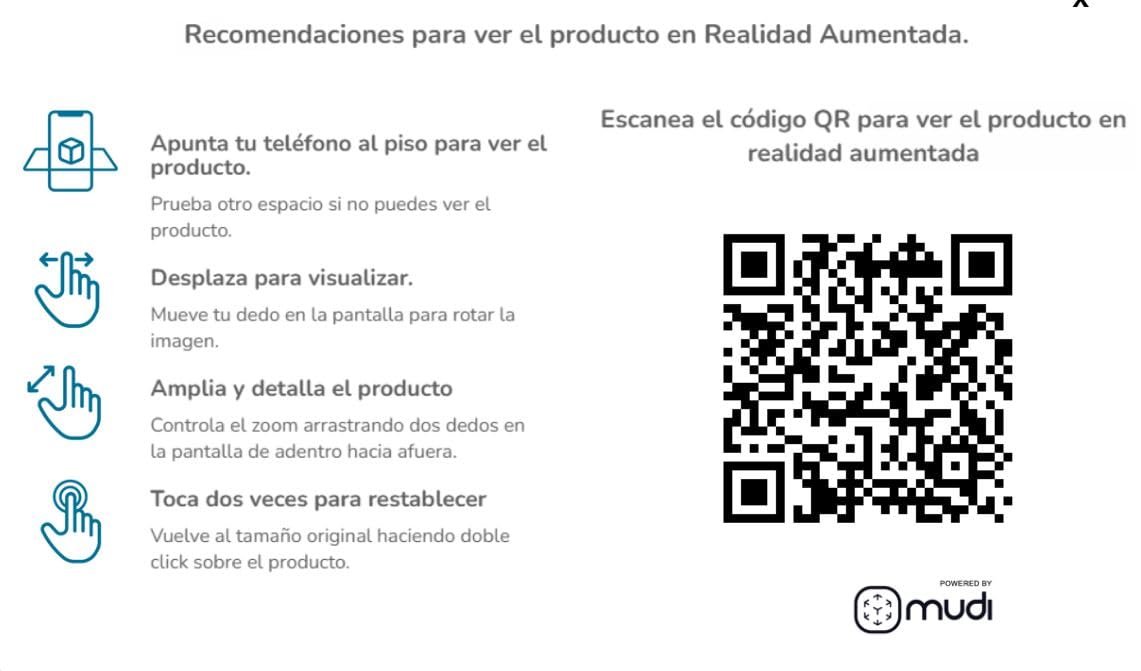

Figure 5: Scan this QR code for an Augmented Reality view буюмдун.

Click here for Augmented Reality experience

9. Кепилдик жана колдоо

For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Mabe webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

If you encounter issues not covered in the troubleshooting section, please contact Mabe customer service for assistance.
