TOUCAN RC HOBBY 1/14 HUINA RC Metal Excavator Model 1594 Instruction Manual

1. Киришүү

Сатып алганыңыз үчүн рахматasing the TOUCAN RC HOBBY 1/14 HUINA RC Metal Excavator Model 1594. This remote-controlled excavator is designed for enthusiasts aged 15 years and older, offering a realistic and engaging operating experience. Please read this manual thoroughly before operating the product to ensure safe and correct usage.

Safety Warning: This product is not suitable for children under 15 years of age. Adult supervision is recommended during operation.

2. Кутуда эмне бар

Upon unboxing your TOUCAN RC HOBBY 1/14 HUINA RC Metal Excavator Model 1594, please verify that all the following components are included:

• 1x 1/14 HUINA RC Metal Excavator Model 1594 (with standard bucket attached)
• 1x 2.4G Radio Controller
• 1x Body Battery (Lithium-Ion Polymer)
• 1x USB кубаттоо кабели
• 1x Alloy Ball Grabber Attachment
• 1x Plastic Ball Grabber Attachment
• 1x Alloy Log Grabber Attachment
• 1x Drill Attachment

Image: All components included in the package, featuring the excavator, remote, battery, charging cable, and interchangeable attachments.

3. Орнотуу

3.1. Battery Installation (Excavator)

1. Locate the battery compartment on the underside of the excavator.
2. Батарея уясынын капкагын ачыңыз.
3. Connect the provided Lithium-Ion Polymer battery to the excavator's power connector.
4. Батареяны бөлүмдүн ичине этияттык менен салып, капкагын бекем жабыңыз.

3.2. Алыстан башкаруунун батареясын орнотуу

1. Пульттун артындагы батарея отсегин табыңыз.
2. Open the battery compartment cover using a small screwdriver if necessary.
3. Insert the required batteries (typically AA, not included) according to the polarity indicators.
4. Батарея уясынын капкагын бекем жабыңыз.

3.3. Attachment Installation

The excavator comes with a standard bucket and three interchangeable attachments: an alloy ball grabber, a plastic ball grabber, and an alloy log grabber, plus a drill attachment. To change attachments:

1. Use the provided tool to remove the pins securing the current attachment to the excavator arm.
2. Carefully detach the current attachment.
3. Align the desired new attachment with the excavator arm's connection points.
4. Insert the pins to secure the new attachment. Ensure they are fully seated and locked.
5. For powered attachments (like the grabbers or drill), connect the small power cable from the attachment to the port on the excavator arm.

Image: The four main attachments for the excavator, showcasing their different designs and intended uses.

4. Operating the Excavator

4.1. Күйгүзүү/өчүрүү жана жупташтыруу

1. Turn on the excavator using the power switch located on its underside.
2. Алыстан башкаруу пультун анын кубат баскычын колдонуп күйгүзүңүз.
3. The excavator and remote should automatically pair. If not, refer to the troubleshooting section.

4.2. Basic Movement Controls

Use the joysticks on the remote control to maneuver the excavator:

• Left Joystick (Forward/Backward): Pushing both sticks forward moves the excavator forward; pulling both back moves it backward.
• Left Joystick (Turning): Pushing one stick forward and the other backward allows for turning.
• Right Joystick (Turret Rotation): Moving the right joystick left or right rotates the upper platform 360 degrees continuously.

Image: The excavator's upper body rotating, highlighting its 360-degree continuous rotation feature.

4.3. Arm and Attachment Operation

The remote control features dedicated buttons and joysticks for controlling the excavator's arm and attachments:

• Arm Control: Use the designated buttons/joysticks to raise, lower, extend, and retract the excavator arm independently.
• Bucket/Grabber/Drill Control: Specific buttons activate the functions of the attached tool, such as scooping with the bucket, opening/closing the grabber, or operating the drill.

Image: The excavator navigating different terrains, showcasing its robust tracks and powerful movement.

4.4. Realistic Lights and Sounds

The excavator features realistic LED lighting effects and a simulated engine sound for an immersive operating experience. These can typically be toggled on/off via dedicated buttons on the remote control.

5. Техникалык тейлөө

• Тазалоо: After each use, especially outdoors, gently wipe down the excavator with a dry or slightly damp cloth to remove dirt, dust, or debris. Avoid using harsh chemicals or excessive water.
• Батареяга кам көрүү: Always disconnect the battery from the excavator when not in use. Store batteries in a cool, dry place. Do not overcharge or completely discharge the battery.
• Сактагыч: Store the excavator and its components in a dry, safe place away from direct sunlight and extreme temperatures. The original packaging or a dedicated storage case is ideal.
• Майлоо: Periodically check moving parts for smooth operation. Light lubrication with RC-safe oil may be applied to metal joints if needed, but avoid over-lubricating.

6. Кыйынчылыктарды

• Excavator Not Responding:
  - Ensure both the excavator and remote control are powered on.
  - Check if the batteries in both devices are fully charged and correctly installed.
  - Re-pair the remote control by turning both devices off and then on again.
• Weak Performance:
  - Recharge the excavator's battery.
  - Алыстан башкаруу пультундагы батареяларды алмаштырыңыз.
• Тиркемелер иштебейт:
  - Verify that the attachment is securely installed and its power cable (if applicable) is properly connected.
• Интерференция:
  - Operate the excavator away from other 2.4GHz devices or strong electromagnetic fields.

7. Техникалык шарттар

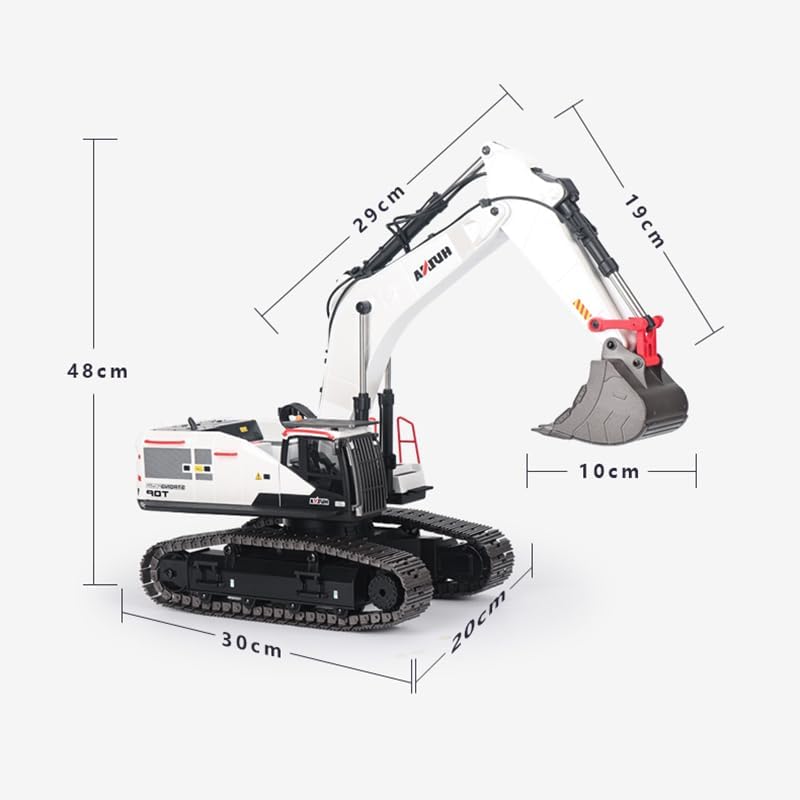

Сүрөт: Өлчөмдүүview of the excavator, indicating its length, width, and height.

8. Кепилдик жана колдоо

For warranty information, technical support, or any inquiries regarding your TOUCAN RC HOBBY 1/14 HUINA RC Metal Excavator Model 1594, please refer to the contact information provided with your purchase or visit the official TOUCAN RC HOBBY webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
