Andoer 1080P HD Mini Body Camera User Manual

1. Киришүү

The Andoer 1080P HD Mini Body Camera is a compact and versatile recording device designed for various applications, including daily recording, service delivery, and personal security. It features high-definition video recording, a 180° rotatable lens, night vision capabilities, and WiFi connectivity for live viewing. This manual provides essential information for setting up, operating, and maintaining your device.

The Andoer 1080P HD Mini Body Camera offers a range of functionalities including high-definition video recording, photo capture, and mobile monitoring via WiFi. It supports various modes such as night vision and features a 180-degree rotatable lens for flexible recording.

2. Пакеттин мазмуну

Сураныч, кутудан чыгарганда пакеттин мазмунун текшерип, бардык буюмдар бар экенин текшериңиз:

• Andoer 1080P HD Mini Body Camera (Host)
• USB заряддоо/дата кабели
• Instruction Manual

This image illustrates the contents of the product package, including the main camera unit, a USB charging and data cable, the retail packaging, and the printed instruction manual.

3. Негизги өзгөчөлүктөрү

• 1080P HD видео жаздыруу: Так жана деталдуу видеону тартатtage.
• Аудио жаздыруу: Supports WAV format for audio capture.
• 180° айлануучу линза: Allows for flexible adjustment of the camera angle.
• Түнкү көрүү функциясы: Enables clear recording in low-light conditions.
• WiFi туташуусу: Connects to a smartphone app for live viewжана контролдоо.
• Клиптин дизайны: Easily attaches to clothing or bags for portable use.
• Чоң эс тутум сыйымдуулугу: Supports up to 256GB TF (Micro SD) card for ample сактагыч.
• Батареянын узак иштөө мөөнөтү: Equipped with a 1400mAh lithium battery, providing 4-5 hours of recording.

The camera features a convenient clip-on design, allowing it to be easily attached to clothing like a collar or pocket, or to a backpack for hands-free recording.

With its 180-degree rotating lens and wide-angle view, the camera can function as a driving recorder, capturing a broad perspective of the road and surroundings.

The camera is equipped with a 1400mAh lithium battery, providing extended recording time. It can be powered by an internal battery, an external power bank, or a direct power supply.

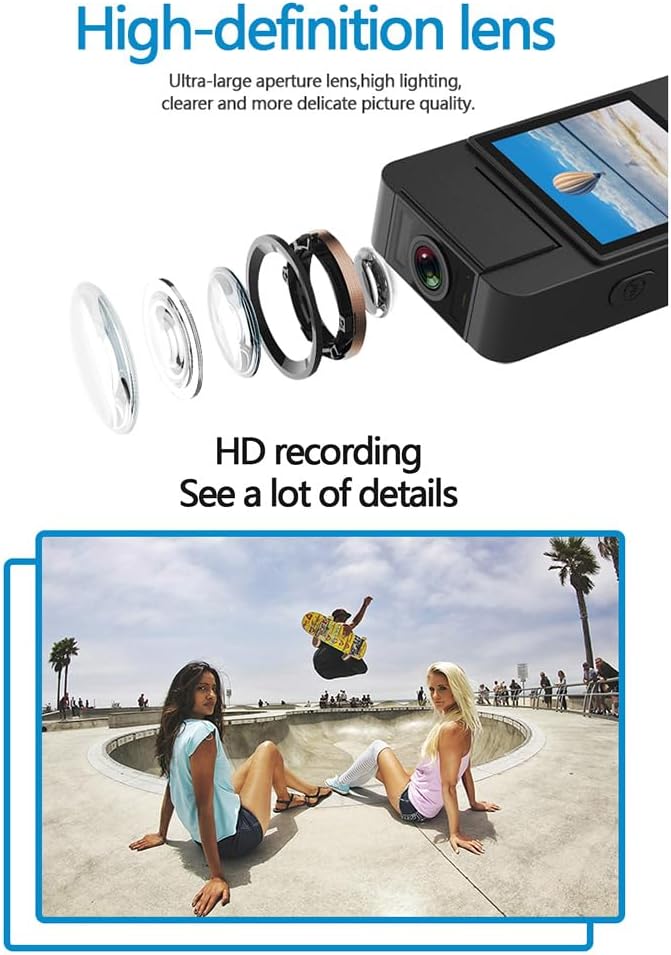

The camera features a high-definition lens with a large aperture, designed to capture clear, bright, and detailed images and videos.

4. Орнотуу колдонмосу

4.1 Аппаратты заряддоо

Before first use, fully charge the camera. Connect the provided USB cable to the camera's Type-C port and the other end to a DC 5V power adapter or a computer's USB port. The charging indicator light will show the charging status and turn off when fully charged.

4.2 Микро SD картаны салуу

The camera supports Micro SD (TF) cards up to 256GB. Insert the Micro SD card into the designated slot with the gold contacts facing down until it clicks into place. Ensure the camera is powered off before inserting or removing the card.

4.3 Баштапкы күйгүзүү

Press and hold the Power button for a few seconds until the indicator light turns on, indicating the device is powered on.

5. Иштөө нускамалары

5.1 Күйгүзүү/өчүрүү

• Күйгүзүү: Күч баскычын индикатор жарыгы күйгүчө басып туруңуз.
• Өчүрүү: Индикатор жарыгы өчкөнчө Кубат баскычын басып, кармап туруңуз.

5.2 Видео жаздыруу

In standby mode, press the Video button once to start recording. The indicator light will flash to confirm recording is in progress. Press the Video button again to stop recording and save the file.

5.3 Аудио жаздыруу

In standby mode, press the Audio button once to start audio-only recording. The indicator light will flash. Press the Audio button again to stop recording and save the file.

5.4 Photo Function

In standby mode, press the Photo button once to capture a still image. The indicator light will flash briefly.

The camera is designed for simple operation, featuring dedicated buttons for one-click recording, switching between recording modes, and activating video mode.

5.5 Night Vision Activation

The camera features an automatic night vision function. It can be manually toggled on or off depending on the model variant. Refer to the on-screen menu or specific button for night vision control.

5.6 Объективдин бурчун тууралоо

The camera lens can be manually rotated 180 degrees to capture different perspectives without repositioning the entire device.

5.7 WiFi Live Viewing

Download the dedicated app on your smartphone. Power on the camera and activate its WiFi function. Connect your smartphone to the camera's WiFi network (SSID and password usually found on the device or in the manual). Open the app to view жаша фооtage, control recording, and access settings.

5.8 Ойнотуу

Жазылган files can be played back directly on the camera's screen (if available), or by connecting the camera to a computer via USB. Alternatively, remove the Micro SD card and insert it into a card reader to access fileкомпьютерде.

This image illustrates the camera's ability to record clearly in various environments, whether for work, leisure, or night shooting, maintaining high picture quality.

6. Кароо жана тейлөө

• Линзаны тазалоо: Use a soft, lint-free cloth specifically designed for camera lenses to gently clean the lens. Avoid abrasive materials or harsh chemicals.
• Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн, батареянын тез-тез толук зарядын жоготуп албаңыз. Түзмөктү көпкө чейин колдонулбаса дагы, үзгүлтүксүз кубаттап туруңуз. Салкын, кургак жерде сактаңыз.
• Сактагыч: Store the camera in a dry environment, away from extreme temperatures, direct sunlight, and dust.
• Маалыматтын камдык көчүрмөсү: Regularly back up important recordings from the Micro SD card to a computer or external storage device to prevent data loss.
• Таасирден качуу: Аппаратты ички тетиктерге зыян келтирүүчү тамчылардан жана соккулардан коргоңуз.

7. Кыйынчылыктарды

7.1 Түзмөк күйбөй жатат

• Батарея жетиштүү заряддалганын текшериңиз. Камераны кубат булагына туташтырып, кайра аракет кылыңыз.
• Кубат баскычын узак убакытка (5-10 секунд) басып туруңуз.

7.2 Recording Issues (No Recording/Poor Quality)

• Check if a Micro SD card is properly inserted and has sufficient free space.
• Ensure the Micro SD card is formatted correctly (FAT32 recommended).
• Clean the camera lens if the image quality is blurry.
• Ensure adequate lighting for optimal video quality, or activate night vision in low-light conditions.

7.3 WiFi Connection Problems

• Make sure the camera's WiFi function is enabled.
• Ensure your smartphone is within range of the camera's WiFi signal.
• Туура WiFi сырсөзүн киргизгениңизди текшериңиз.
• Restart both the camera and your smartphone, then try connecting again.

7.4 Түзмөк катып калат же жооп бербей калат

• Press and hold the Power button for an extended period (up to 15 seconds) to force a shutdown.
• If possible, use a small pin to press the reset button (if available on your model).

8. Техникалык шарттар

9. Кепилдик маалыматы

Specific warranty details for the Andoer 1080P HD Mini Body Camera may vary by region and retailer. Please refer to the product packaging, the seller's website, or your purchase receipt for comprehensive warranty terms and conditions. It is recommended to retain your proof of purchase for any warranty claims.

10. Кардарларды колдоо кызматы

For technical assistance, product inquiries, or customer support, please contact the retailer from whom you purchased the device or visit the official Andoer website. When contacting support, please have your product model number (B0CL9SCVVK) and purchase details readily available to facilitate faster service.
