DENFOON Electric Solar Roller Blind

Introduction

Welcome to the instruction manual for your new DENFOON Electric Solar Roller Blind. This guide provides essential information for the safe and efficient installation, operation, and maintenance of your product. Please read this manual thoroughly before installation and use, and keep it for future reference.

Your DENFOON roller blind features a blackout polyester fabric with a special coating for enhanced thermal insulation, an integrated rechargeable lithium battery, and convenient remote control operation. It also includes a solar panel for eco-friendly charging.

Image: DENFOON Electric Solar Roller Blind installed in a modern living room.

Орнотуу жана орнотуу

1. Пакеттен чыгаруу жана мазмунун текшерүү

Бардык компоненттерди кылдаттык менен ачып, төмөнкү нерселердин камтылганын текшериңиз:

• DENFOON Electric Solar Roller Blind unit
• Алыстан башкаруу
• Mounting hardware (brackets)
• Күн панели
• USB-C charging cable (not explicitly listed but implied for charging)

2. Монтаждоо параметрлери

Your DENFOON roller blind offers versatile installation methods:

Drill-Free Klemmfix Installation

This method allows installation without drilling, preventing damage to your windows and frames. It is suitable for window sashes with a thickness of 15 - 25 мм.

• The fabric width is approximately 3 cm narrower than the total blind width.
• For drill-free mounting, the recommended order width is the clear width (including glazing beads) + 3 cm.

Бургу орнотуу

For traditional mounting, you can drill the brackets into the window reveal or wall.

• For drill mounting, the recommended order width is the width of the window reveal + 8-10 cm.

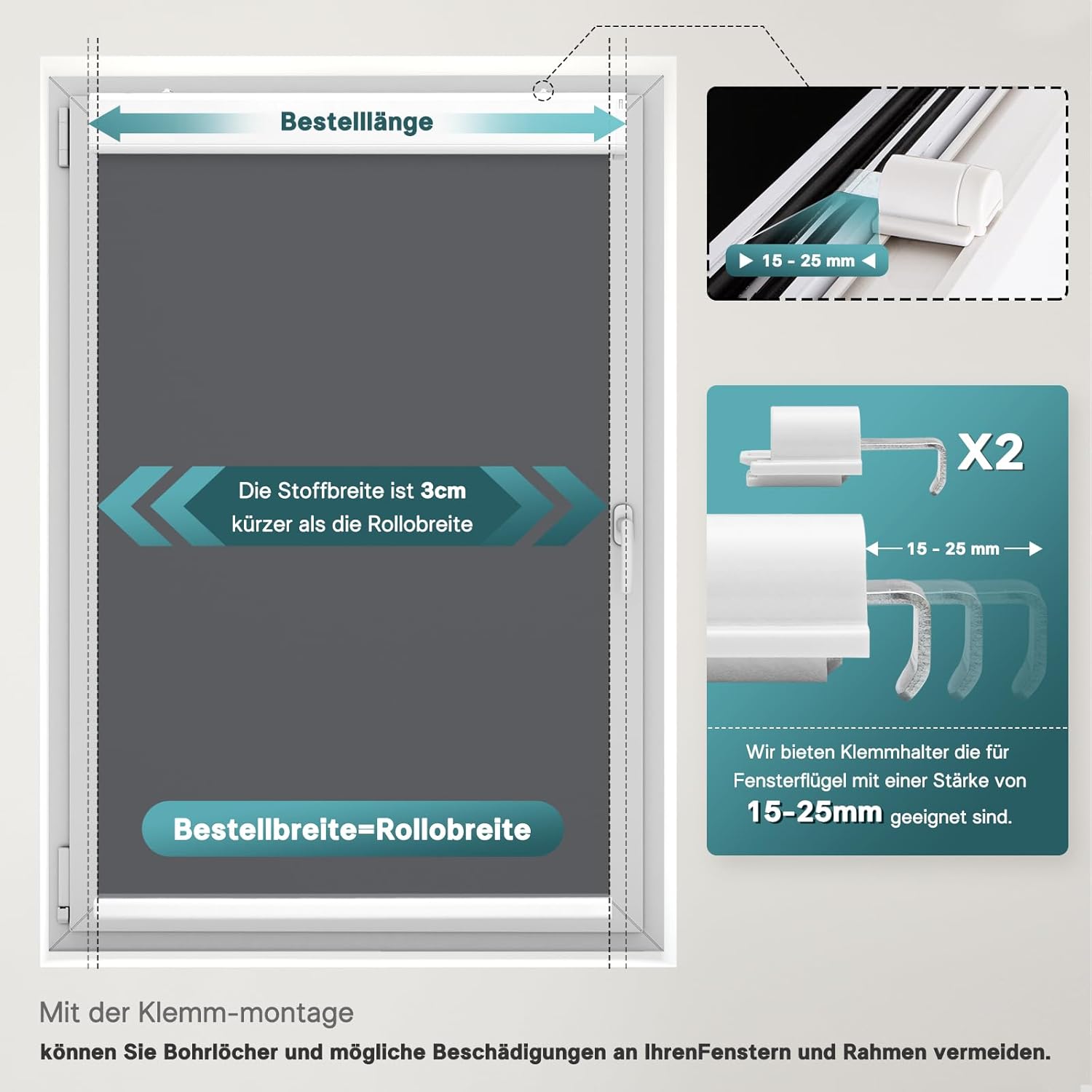

Image: Diagram illustrating roller blind dimensions, the 3cm difference between fabric and total width, and clamp bracket suitability for 15-25mm window sashes.

Image: Comparison of drill-free and drill mounting options, showing how to measure for each method and noting that a larger order width provides better blackout.

3. Solar Panel Installation and Initial Charging

The included solar panel provides a sustainable charging solution for your blind's integrated lithium battery.

• Mount the solar panel in a location that receives sufficient direct sunlight throughout the day. Double-sided adhesive tape can be used for attachment.
• Connect the solar panel to the charging port on the roller blind.
• Before first use, ensure the blind's battery is fully charged. This can be done via the solar panel (allow sufficient time in sunlight) or by connecting a USB-C charger.

Image: Illustration of the solar panel included with the product, emphasizing its environmental benefits and independence from a direct power connection.

Сүрөт: Жакын план view of the solar panel, highlighting its role as a sustainable and clean energy source for the blind.

Иштөө нускамалары

1. Алыстан башкарууну колдонуу

Use the provided remote control to operate your DENFOON Electric Solar Roller Blind. Typically, there are buttons for raising, lowering, and stopping the blind. Refer to the separate remote control guide for detailed pairing and programming instructions if necessary.

If you wish to control multiple blinds simultaneously, 15-channel remote control accessories are available for purchase.

2. Батареяны заряддоо

The integrated lithium battery is designed for continuous charging via the solar panel when exposed to sufficient sunlight. If solar charging is insufficient due to low light conditions or extended periods of non-use, you can charge the battery using a standard USB-C charger.

3. Thermal Insulation Function

The special coating on the back of the blind provides thermal insulation, helping to regulate room temperature:

• Жайында: Keep the blind closed during the day to reduce solar energy penetration and keep your room cooler. Open the blind at night to allow cooler night air to pre-cool the room.
• Кышында: Close the blind at night to retain warmed air in the room. During the day, the penetrating solar energy can help warm the room.

Image: Diagram showing how the roller blind's thermal properties help keep rooms cooler in summer and warmer in winter.

Техникалык тейлөө

1. Кездемени тазалоо

To clean the polyester fabric of your roller blind, gently wipe it with a damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these may damage the fabric or coating.

2. Solar Panel and Battery Care

Ensure the solar panel remains clean and free from obstructions (e.g., dust, leaves) to maximize charging efficiency. If the blind is not used for extended periods, or if solar charging is consistently insufficient, periodically charge the battery via USB-C to maintain its health.

Проблемаларды чечүү

If you encounter issues with your DENFOON Electric Solar Roller Blind, please refer to the following common troubleshooting steps:

• Blind not moving: Check if the battery is charged. Ensure there are no physical obstructions preventing the blind from moving.
• Алыстан башкаруу жооп бербей жатат: Verify the remote control's battery. If applicable, try re-pairing the remote control with the blind according to its specific instructions.
• Insufficient battery charge: Ensure the solar panel is clean, correctly positioned, and receiving adequate direct sunlight. If not, charge the blind via USB-C.

For more detailed troubleshooting or persistent issues, please consult the comprehensive manual included with your product or contact DENFOON customer support.

Техникалык шарттар

Кепилдик жана колдоо

For information regarding warranty coverage, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or any other inquiries, please visit the official DENFOON webсайтка же түздөн-түз кардарларды тейлөө бөлүмүнө кайрылыңыз.
