Swan SMF2 Host 500W Stainless Steel Milk Frother and Warmer User Manual

1. Киришүү

This manual provides essential information for the safe and efficient use of your Swan SMF2 Host 500W Stainless Steel Milk Frother and Warmer. Please read these instructions carefully before first use and retain them for future reference.

The Swan SMF2 is designed to heat up to 250ml of liquid and froth up to 115ml of liquid, making it suitable for preparing various hot beverages such as cappuccinos, lattes, and hot chocolates.

2. Маанилүү коопсуздук нускамалары

• Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
• Do not immerse the frother base, cord, or plug in water or other liquids.
• VoltagШайманда көрсөтүлгөн e жергиликтүү электр тармагына туура келетtagэ туташтыруудан мурун.
• Бул шайман тиричиликте гана колдонуу үчүн. Сыртта колдонбоңуз.
• Шайманды ар дайым туруктуу, түз, ысыкка чыдамдуу бетке койуңуз.
• Шайманды шнур же сайгычы бузулуп, же шайман иштебей калгандан кийин же кандайдыр бир зыянга учураганда иштетпеңиз.
• Шайманды жана анын шнурун балдар жетпеген жерде сактаңыз.
• Do not fill above the maximum fill line to prevent overflow.
• Always ensure the lid is securely in place during operation.
• Колдонбогондо жана тазалоодон мурун розеткадан ажыратыңыз. Тетиктерди кийүүдөн же чечүүдөн мурун жана шайманды тазалоодон мурун муздатып алыңыз.
• The frother jug is not dishwasher safe. Hand wash only.

3. Продукт бүтүп калдыview

Familiarize yourself with the components of your Swan Milk Frother.

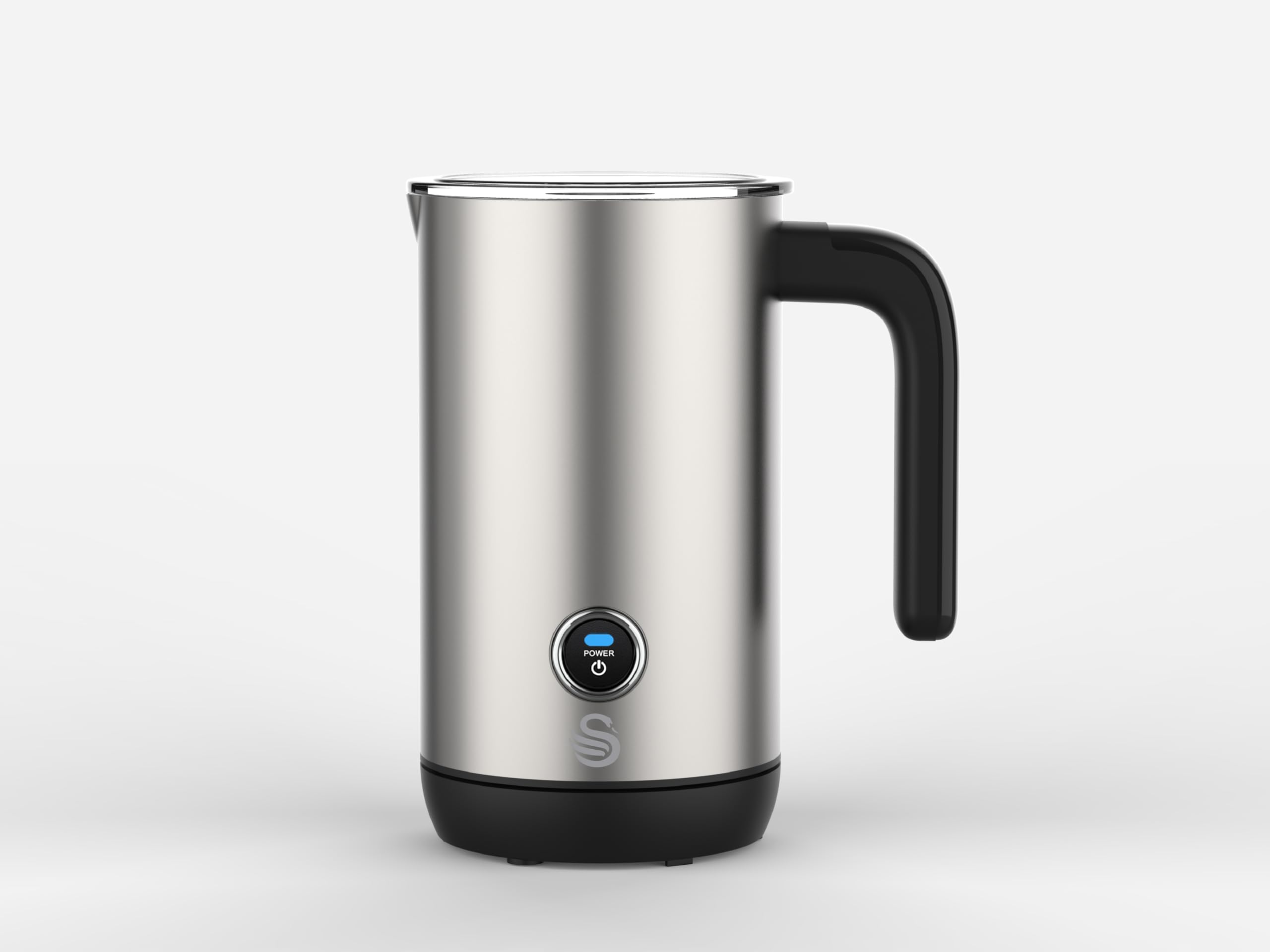

1-сүрөт: Фронт view of the Swan SMF2 Host Milk Frother, showing the stainless steel jug, handle, power button, and base.

2-сүрөт: The Swan SMF2 Host Milk Frother jug separated from its 360-degree power base, illustrating the cordless design for easy handling.

3-сүрөт: Жогорудан төмөн view of the Swan SMF2 Host Milk Frother, showing the interior with the spring whisk attachment for frothing.

Компоненттери:

• Frother Jug: Stainless steel jug with non-stick interior coating.
• Капкак: Transparent lid to cover the jug during operation.
• Жазгы камчы: Detachable whisk for frothing milk.
• Жылытуу үчүн бычак: Used for heating milk without frothing (often the spring whisk removed).
• Күч базасы: 360-degree rotational base with power cord.
• Кубат баскычы: Located on the front of the jug for operation.

4. Орнотуу

1. Шайманды жана бардык аксессуарларды таңгактан чыгарыңыз. Таңгактоочу материалдарды алып салыңыз.
2. Clean the frother jug and whisk attachments according to the 'Cleaning and Maintenance' section before first use.
3. Place the power base on a dry, stable, and heat-resistant surface.
4. Ensure the frother jug is dry on the outside before placing it on the power base.

5. Иштөө нускамалары

5.1 Көптөгөн сүт

1. Ensure the spring whisk is securely attached to the bottom of the frother jug.
2. Pour cold milk into the jug. Do not exceed the 'MAX FROTH' fill line (typically 115ml). Using full cream milk is recommended for best frothing results.
3. Капкакты кумурага салыңыз.
4. Place the jug onto the power base.
5. Press the power button once. The indicator light will illuminate, and the frother will begin operation.
6. The frother will automatically stop when the milk reaches the optimal temperature and froth consistency. The indicator light will turn off.
7. Carefully remove the jug from the base and pour the frothed milk.

5.2 Heating Milk (without frothing)

1. Remove the spring whisk from the frother jug.
2. Pour cold milk into the jug. Do not exceed the 'MAX HEAT' fill line (typically 250ml).
3. Капкакты кумурага салыңыз.
4. Place the jug onto the power base.
5. Press the power button once. The indicator light will illuminate, and the frother will begin heating.
6. The frother will automatically stop when the milk reaches the optimal temperature. The indicator light will turn off.
7. Carefully remove the jug from the base and pour the heated milk.

Эскертүү: For optimal results, use fresh, cold milk. The frother is designed for dairy milk; results with non-dairy alternatives may vary.

6. Тазалоо жана тейлөө

Proper cleaning ensures the longevity and hygiene of your milk frother.

6.1 Тазалоо боюнча нускамалар

1. Тазалоодон мурун шайманды розеткадан сууруп, аны толугу менен муздатыңыз.
2. Remove the whisk from the jug.
3. Wash the frother jug interior, lid, and whisk attachments with warm, soapy water using a soft sponge or cloth. Rinse thoroughly.
4. Маанилүү: The frother jug is жок dishwasher safe. Do not immerse the exterior of the jug or the power base in water.
5. Wipe the exterior of the jug and the power base with a damp кездеме. Абразивдүү тазалагычтарды же тазалоочу жайларды колдонбоңуз.
6. Сактоодон же кийинки колдонуудан мурун бардык бөлүктөр толугу менен кургак экенин текшериңиз.

6.2 Сактоо

Store the frother in a clean, dry place when not in use. Ensure the power cord is neatly wrapped and not kinked.

7. Кыйынчылыктарды

If you encounter issues with your frother, refer to the following table for common problems and solutions.

8. Техникалык шарттар

• Модел: SMF2 Host
• Бренд: Swan
• Күч: 500 Вт
• Материал: Дат баспаган болот
• Көбүрөөк кубаттуулугу: 115мл
• Жылытуу кубаттуулугу: 250мл
• Өлчөмдөрү (W x Y): 16 Вт x 13 Н сантиметр
• Элемент Салмагы: 0.4 килограмм
• Өзгөчө өзгөчөлүгү: Ergonomic Handle, 360 Degree jug placement on base
• Продукцияга кам көрүү: Колду гана жуу

9. Кепилдик жана колдоо

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical support, spare parts, or warranty claims, please contact Swan customer service through their official website or the retailer from whom you purchased the product. Keep your proof of purchase for warranty validation.
